🛠 TEARDOWN: Brushless Motor Controller 48V of the Chinese Electrical Bike (Ebike)
Introduction
This motor controller installed in the Chinese electrical 🚲 bike (ebike) with 750W motor. It failed due to water ingress, so let's analyze board and construction in overall.
🌟 Related Article
Specification
Brushless DC Motor Controller
- Model: JH4AQ6585DZMN
- Voltage: 48V
- Low Voltage Protect: 40V±1V
- Current Limit: 25A±1A
- Throttle adjustment voltage: 1.1V-4.2V
- Date: 20-03-2024
- Manufacturer: Dongguan jing hui Controller Co;LTD
- Transistors: 6PCS
- Chassis connection: isolated from GROUND
Teardown
Aluminum housing + heatsink

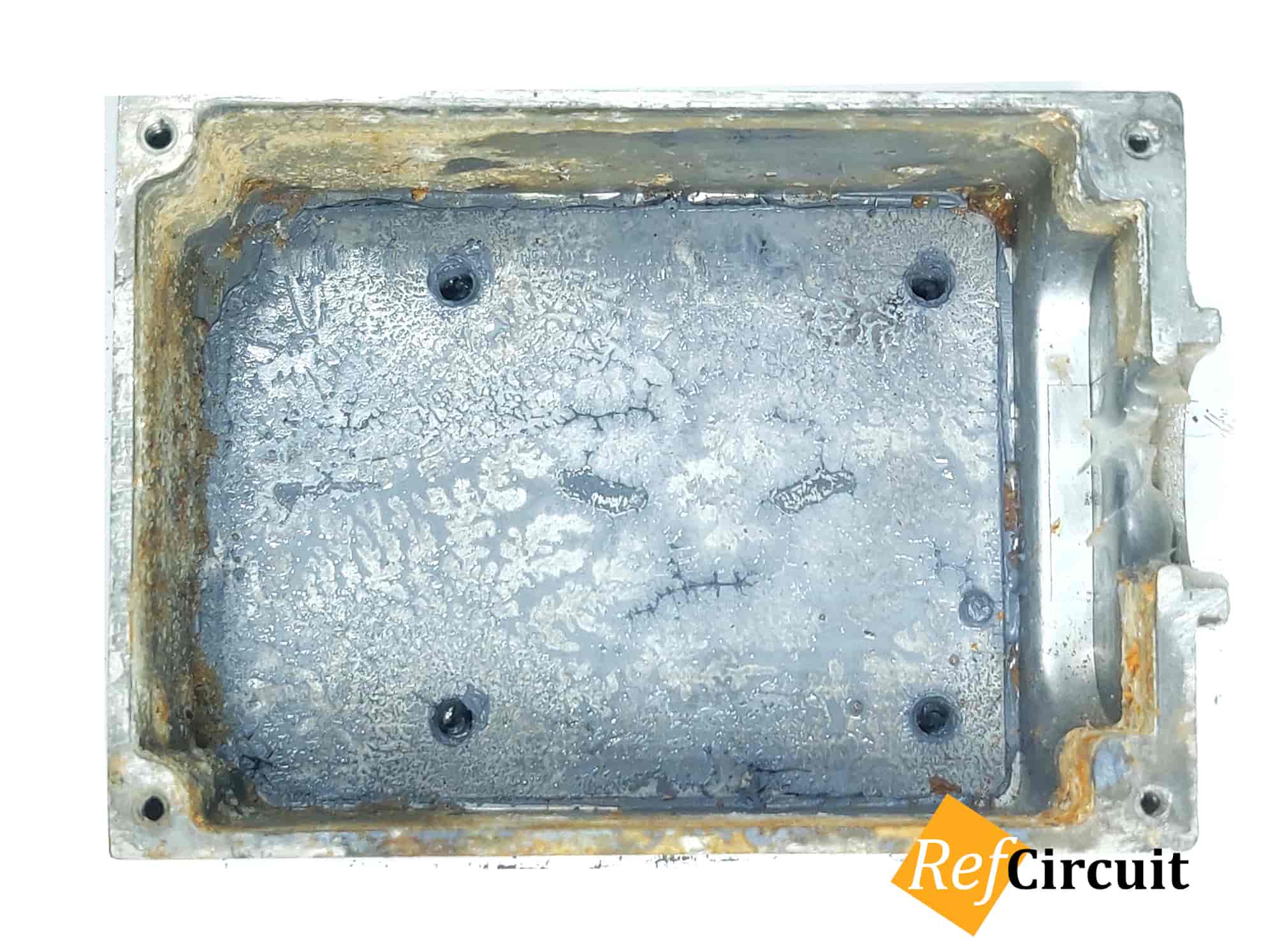

Aluminum board screwed to the case-heatstink with using thermal paste.
Cable input doesn't have good water protected input (some transparent sealant).
 |  |

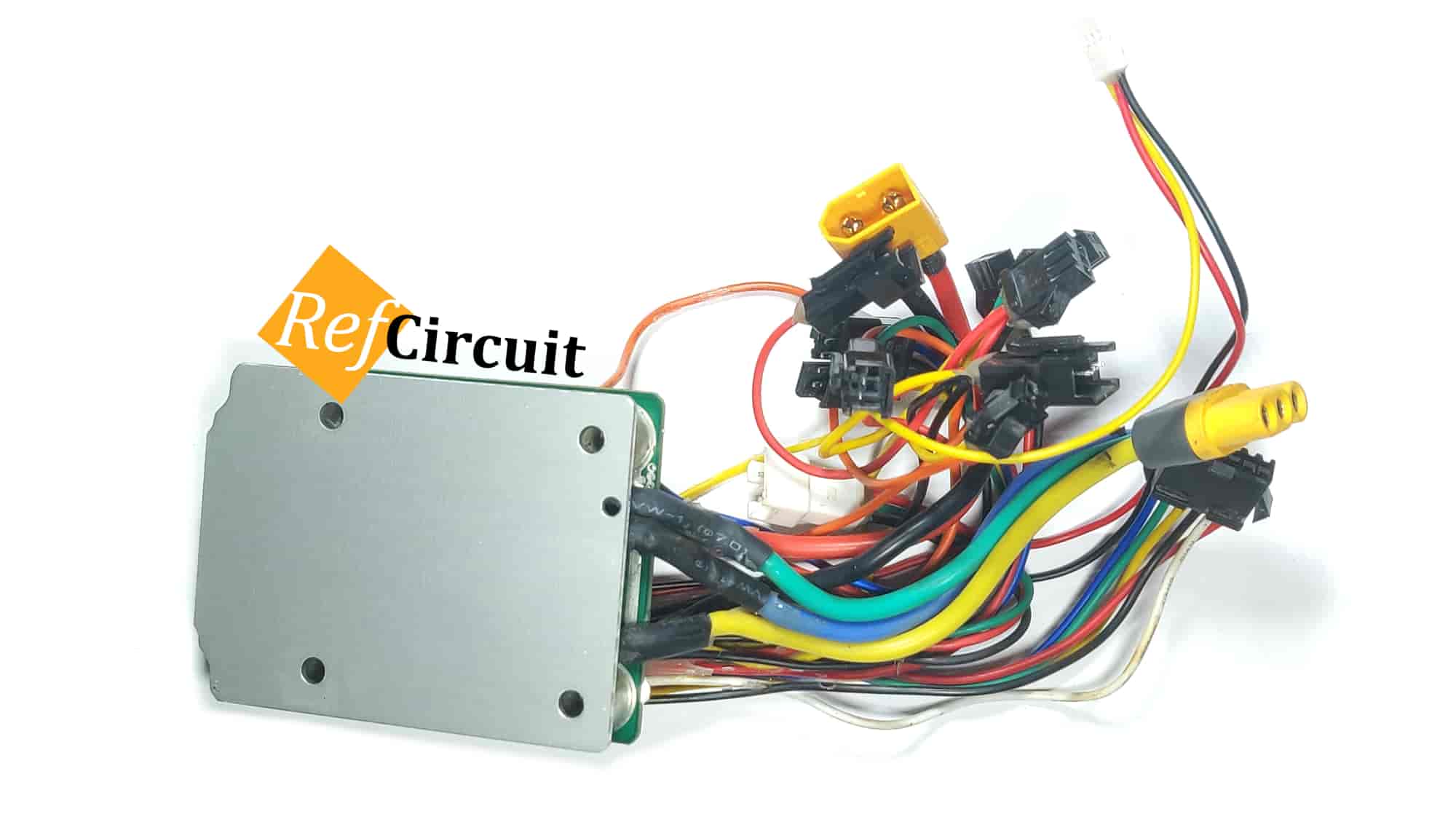

Combined Construction

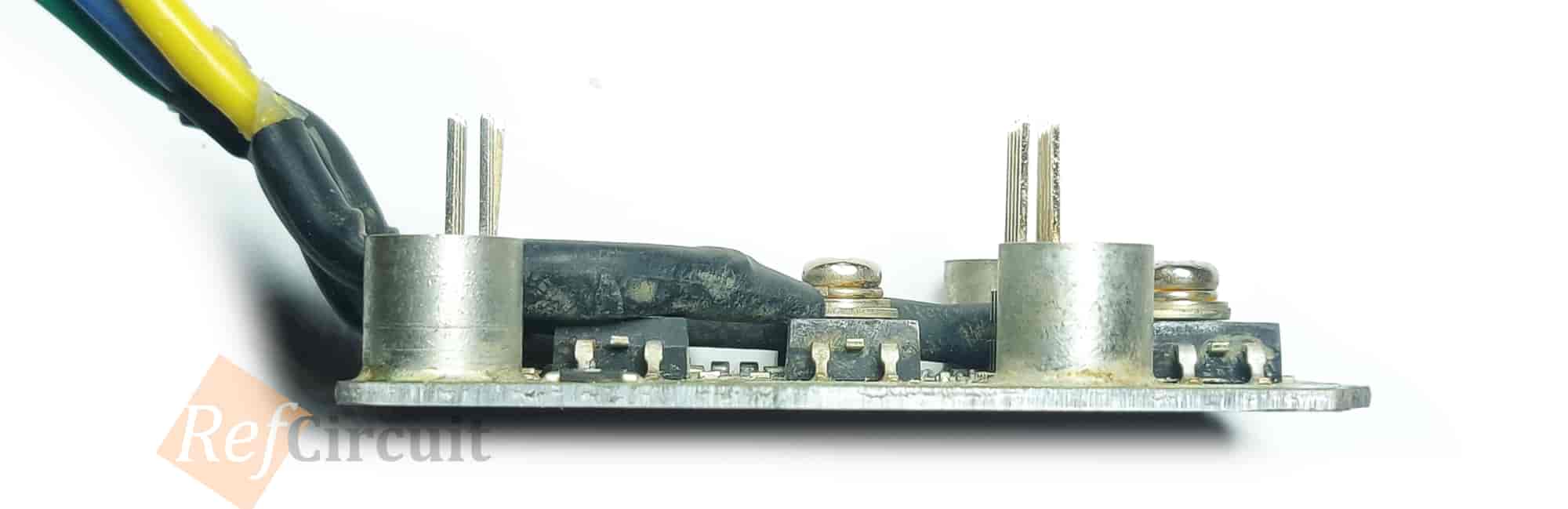

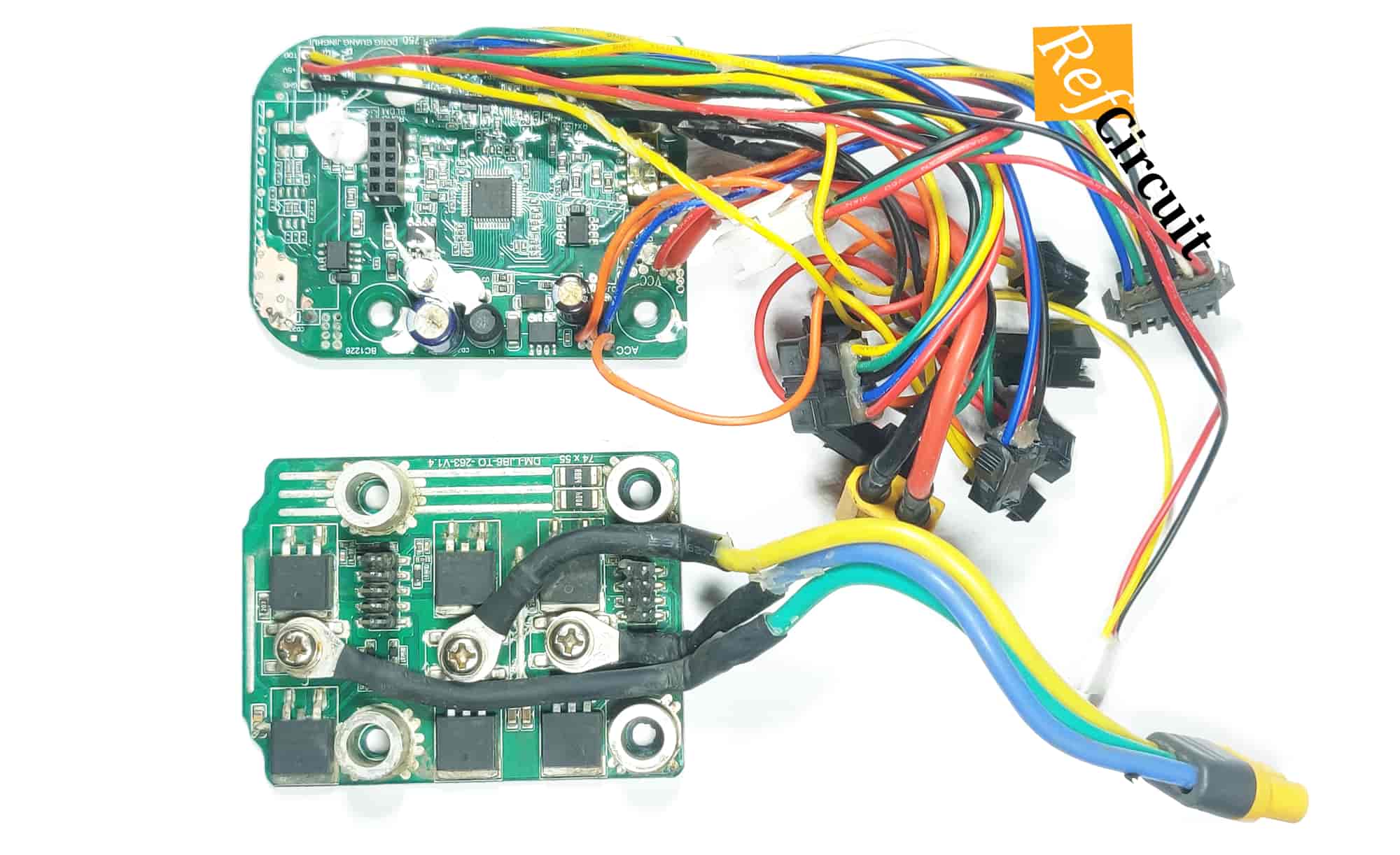

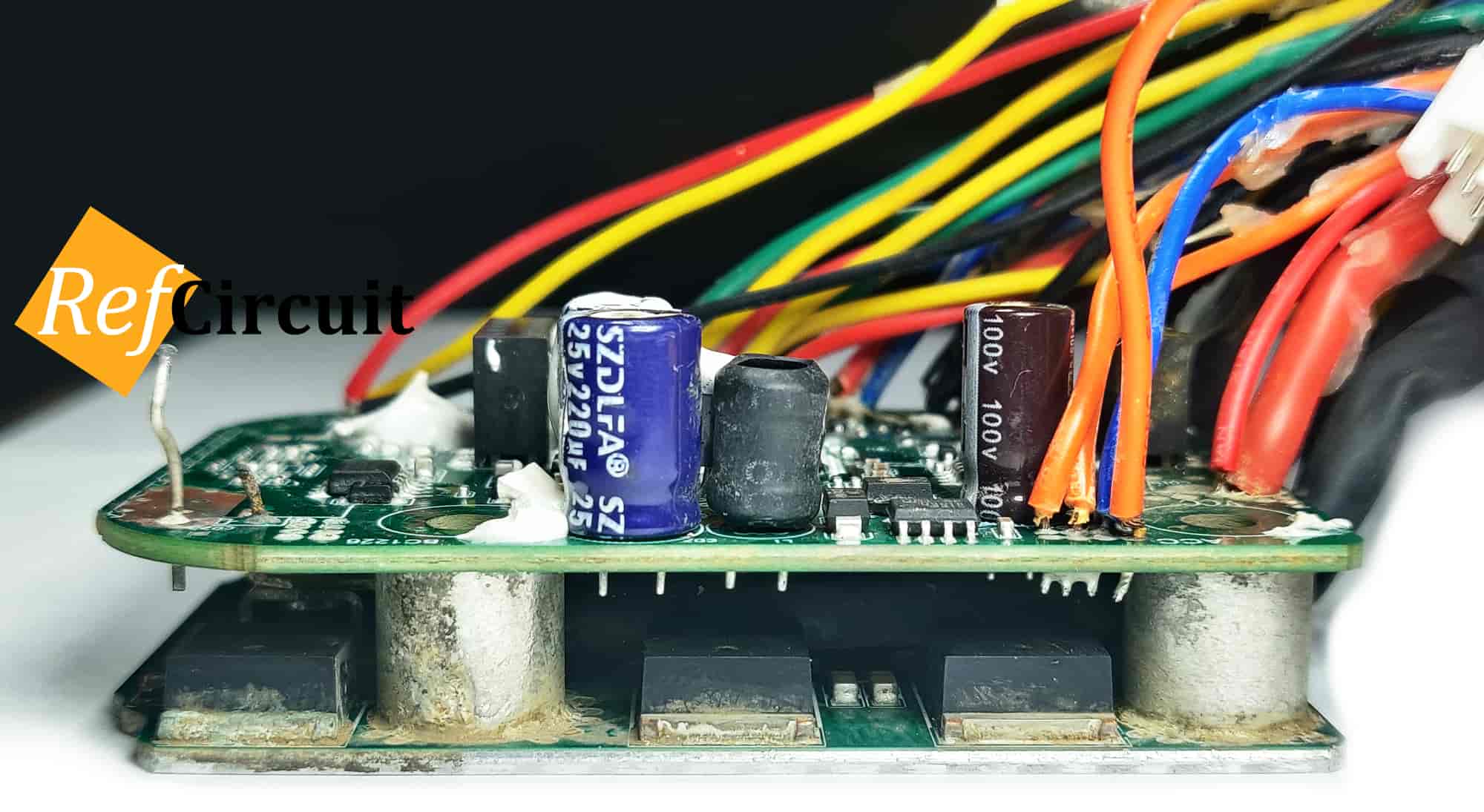

This is a multiboard, so we can see heating components on the aluminum board (bottom) and logic components on the FR-4 board (top):

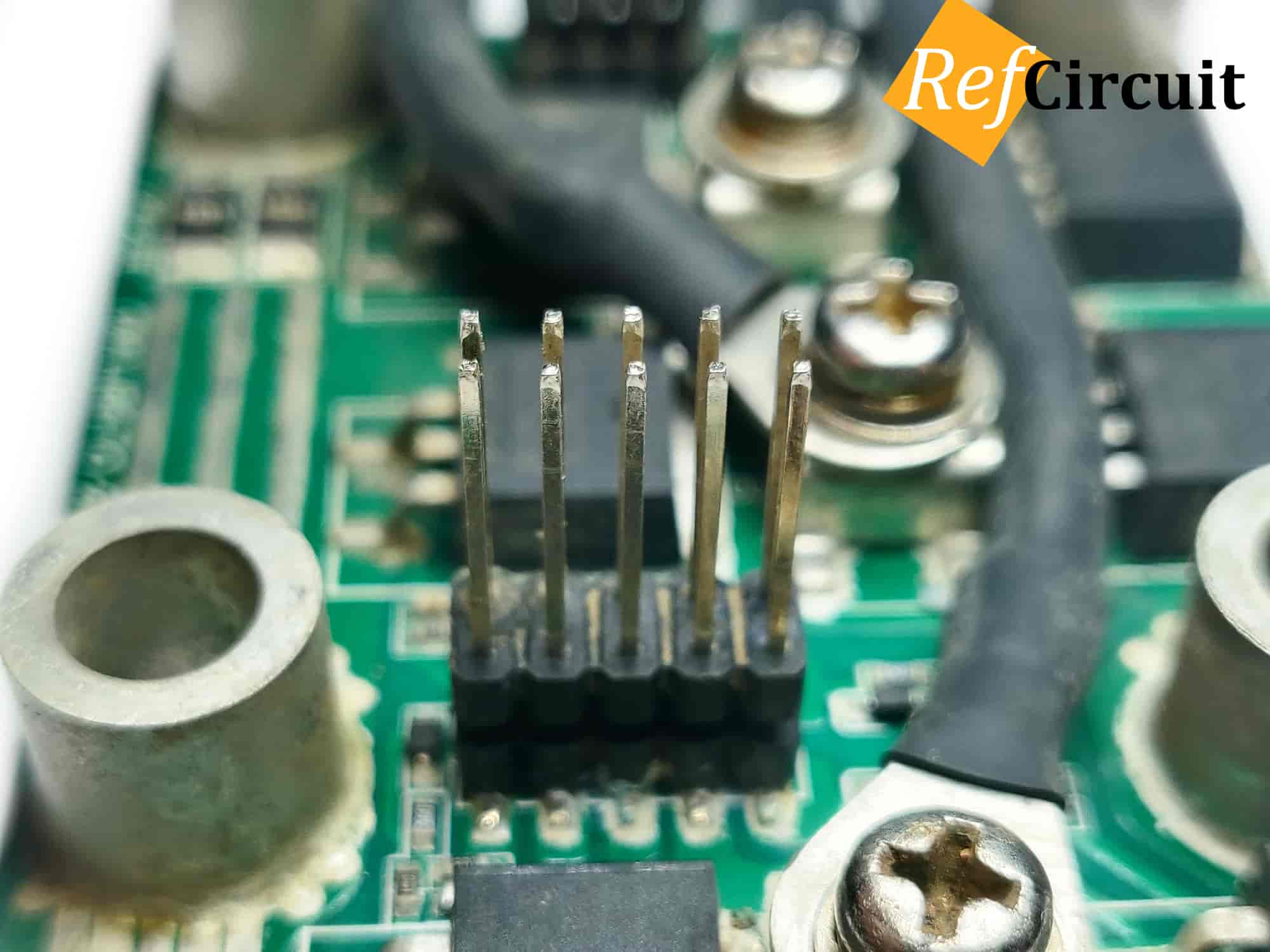

It's pretty easy to detached them, because it uses 2mm pitch pin headers for signal lines:

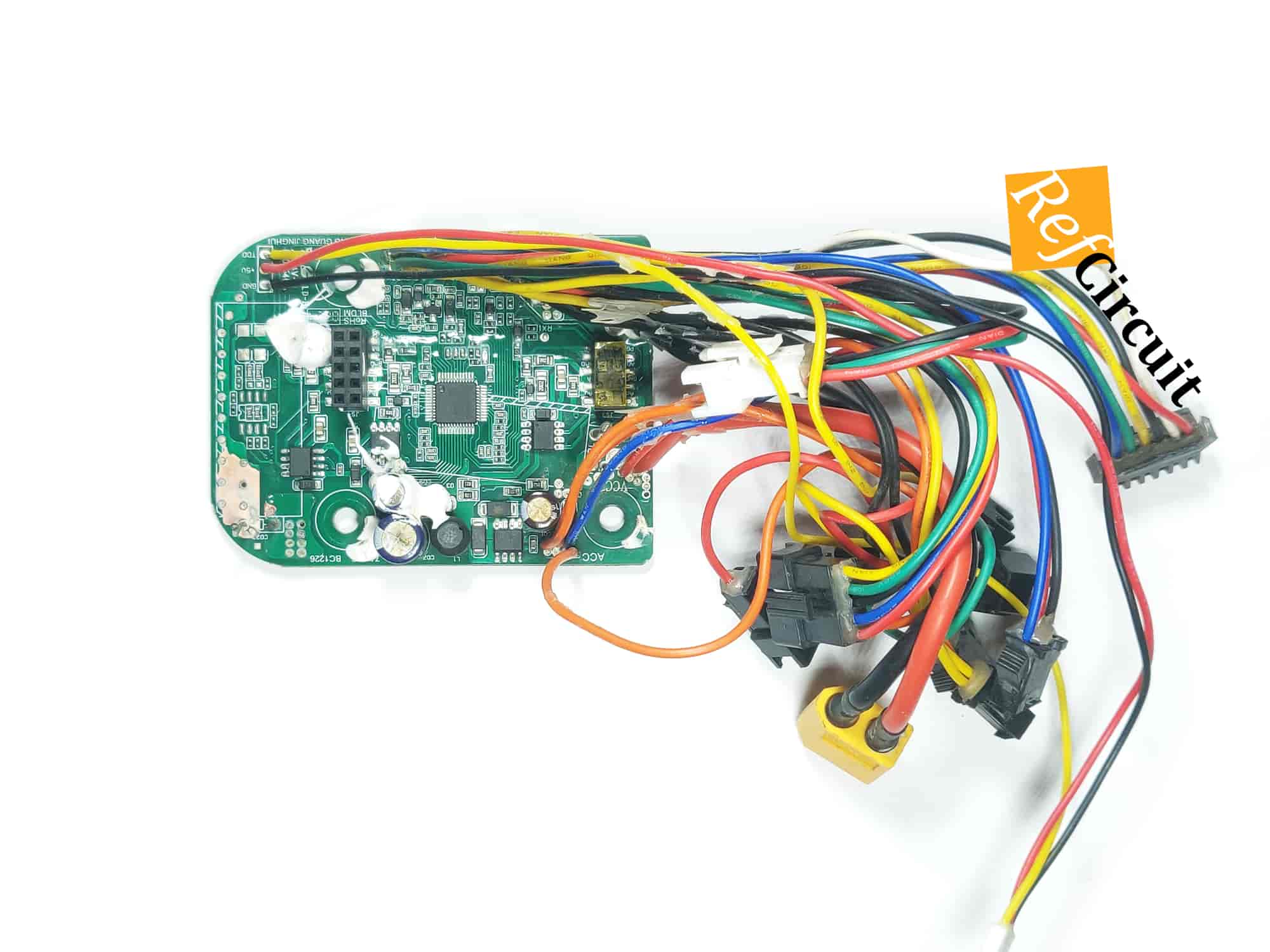

FR-4 Board

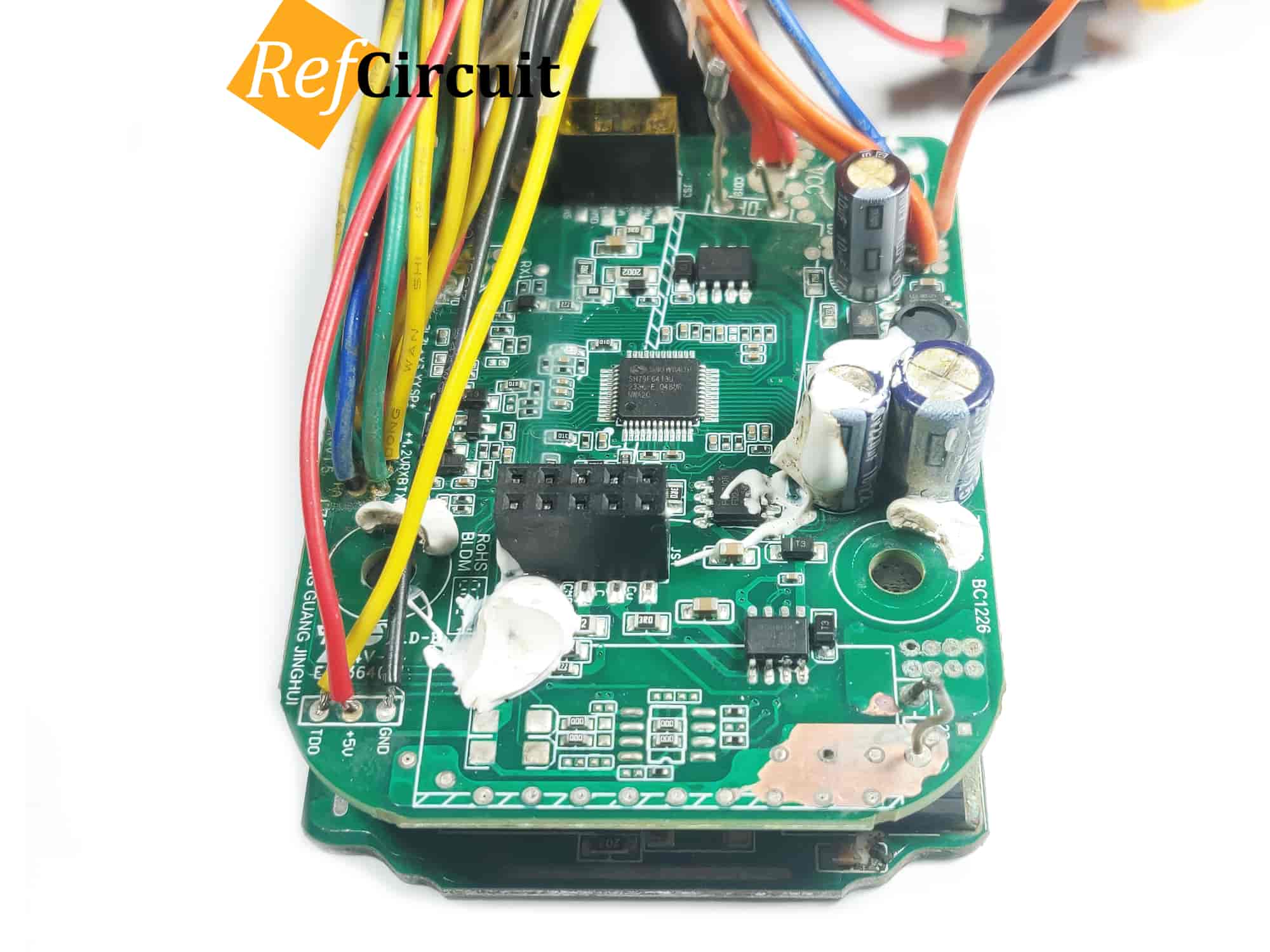

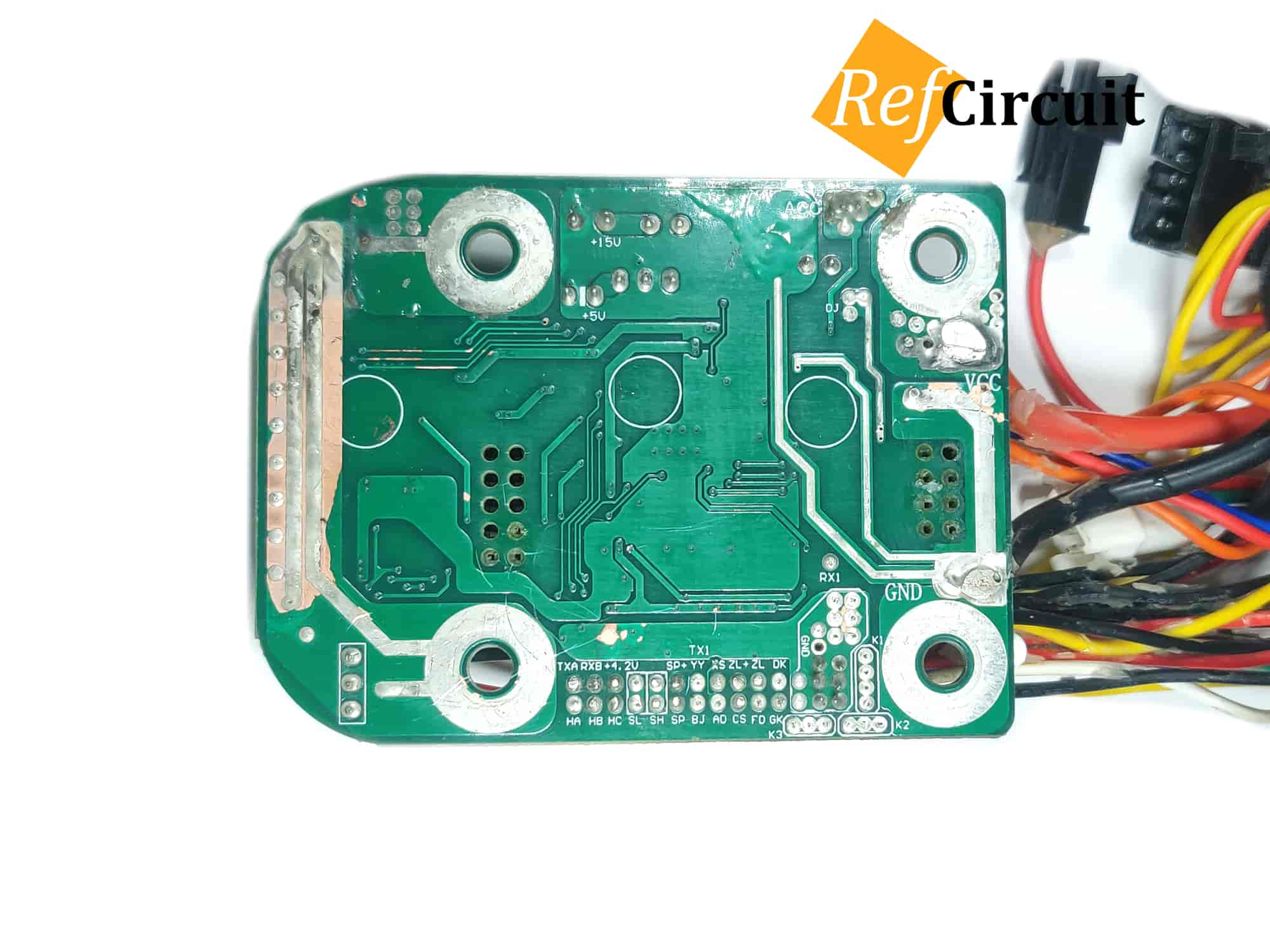

Control board has additionally two electrolytic capacitors 1000uF 63V:
 |  |
The holes has only bottom side, so screwed not electrically connected to any of spacers:

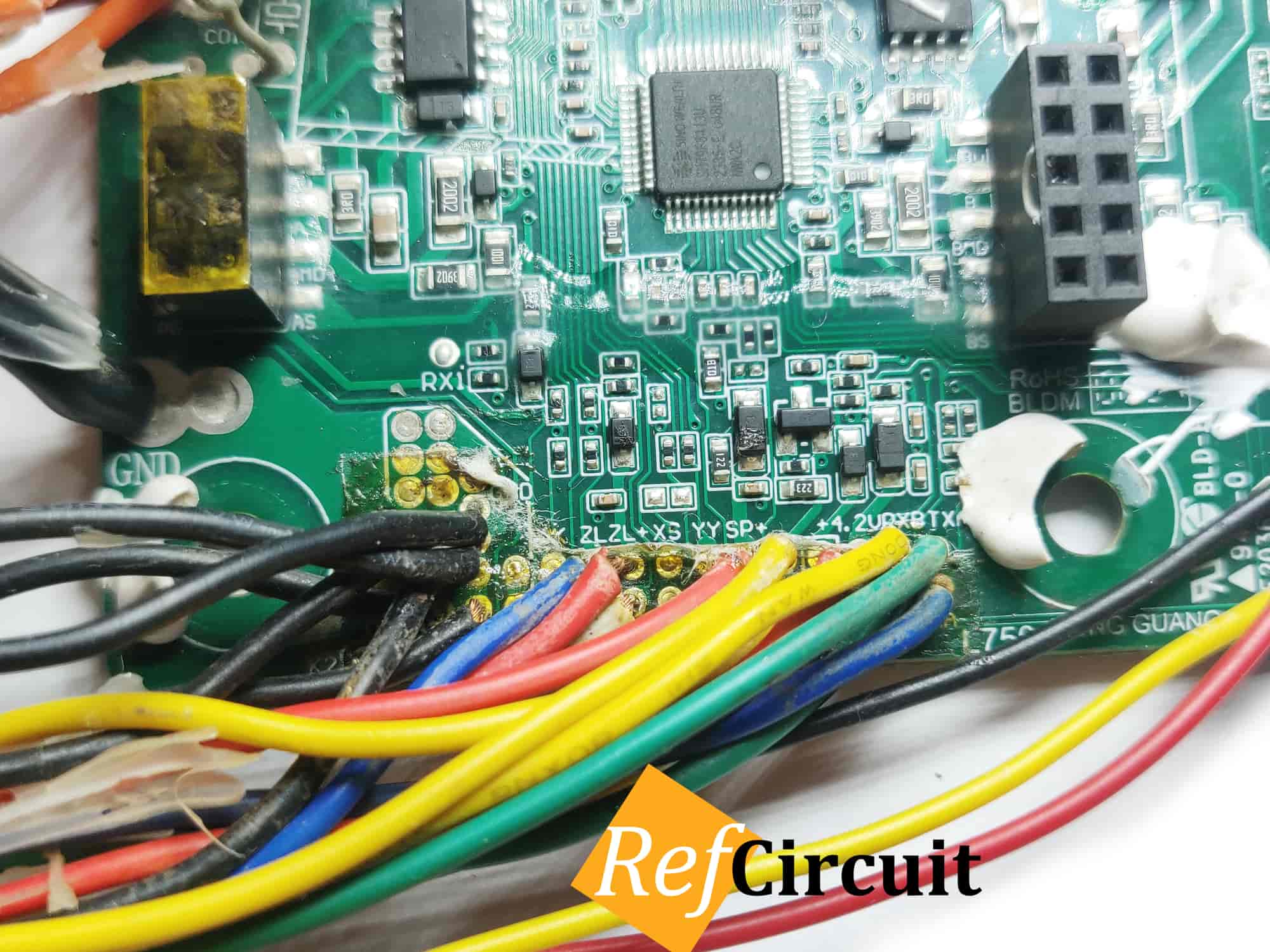

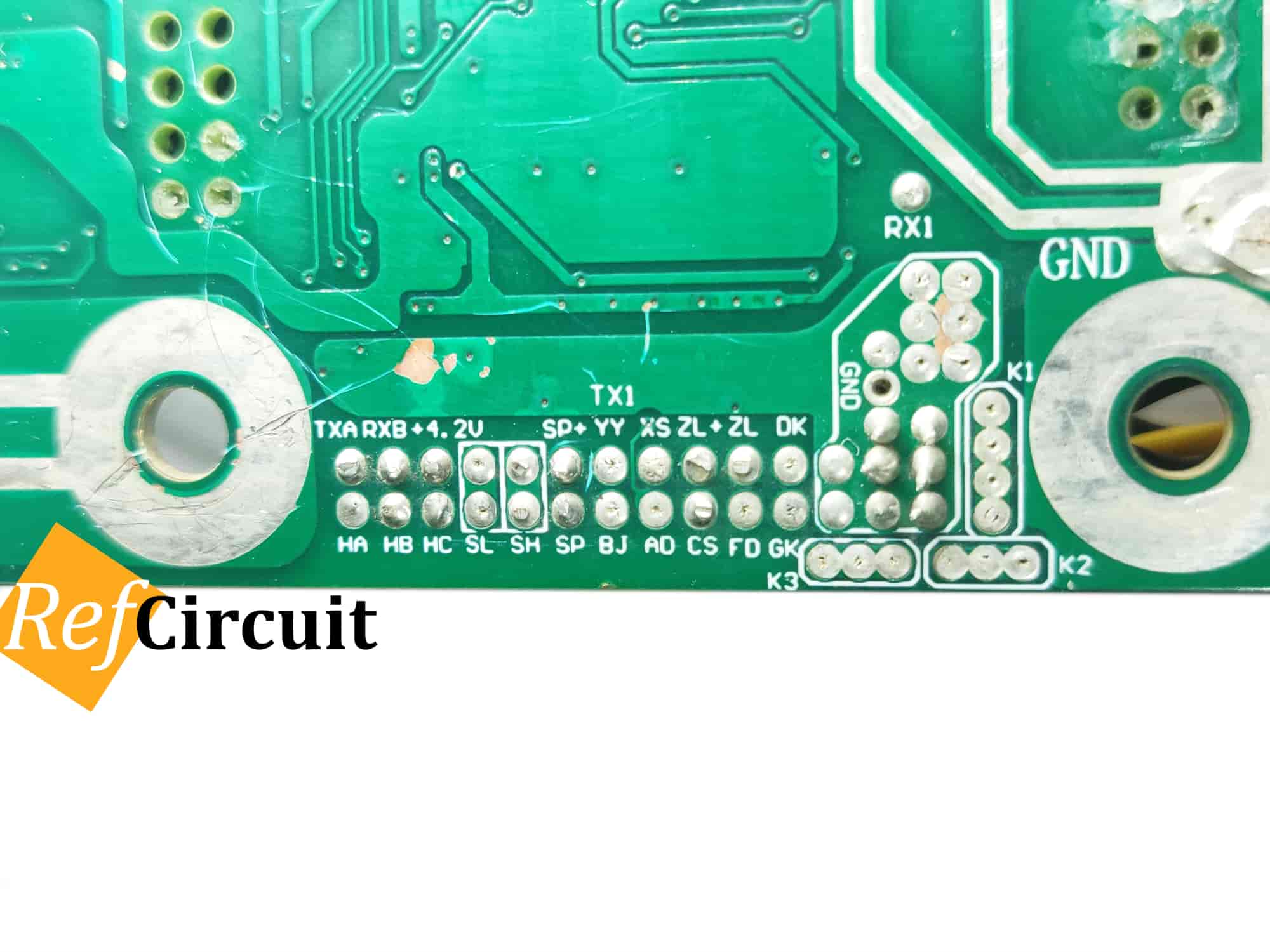

Wires soldered directly to the board without proper mechanical retention. Silkscreen labeling not clear:
 |  |

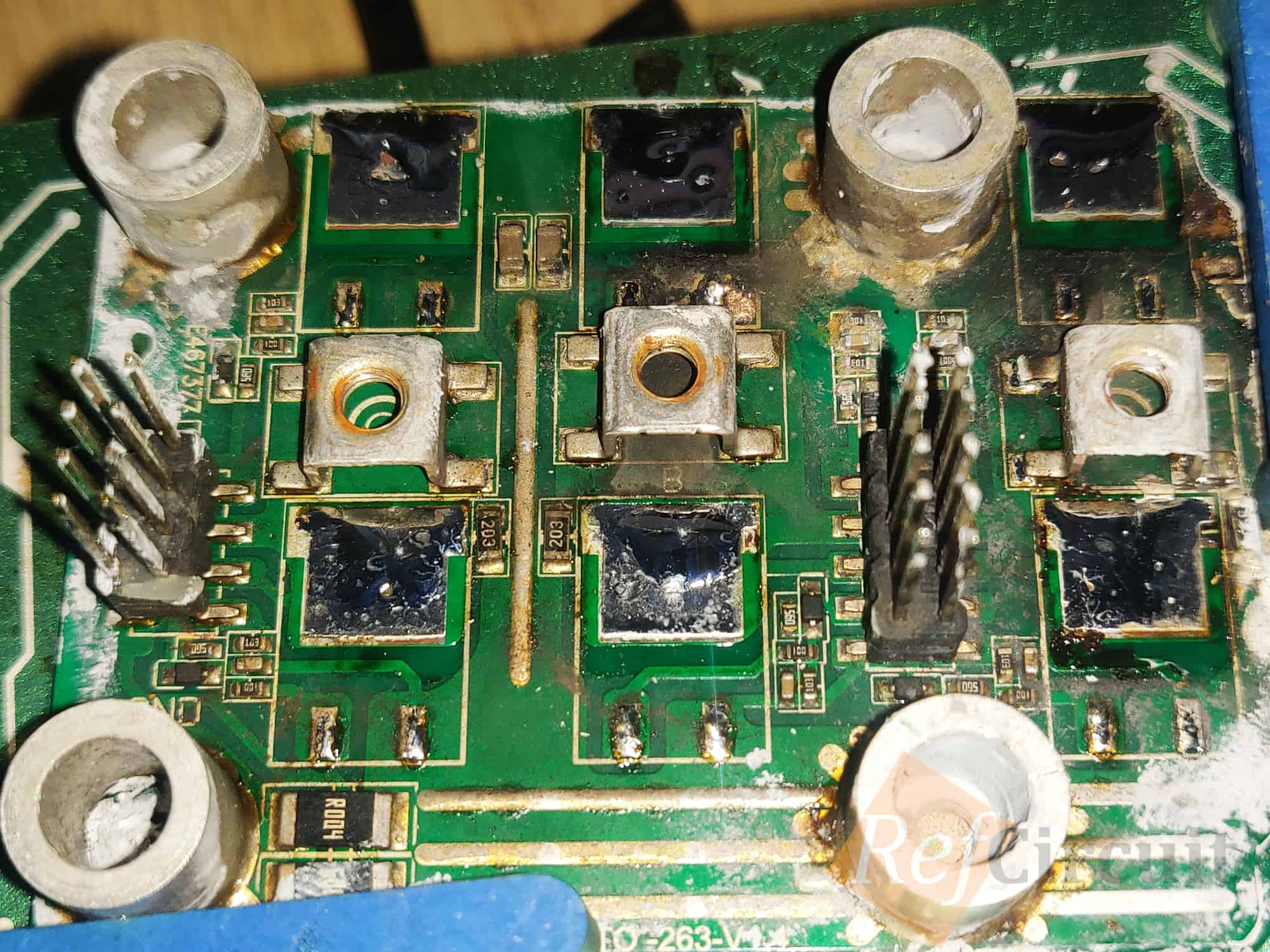

Aluminum Board

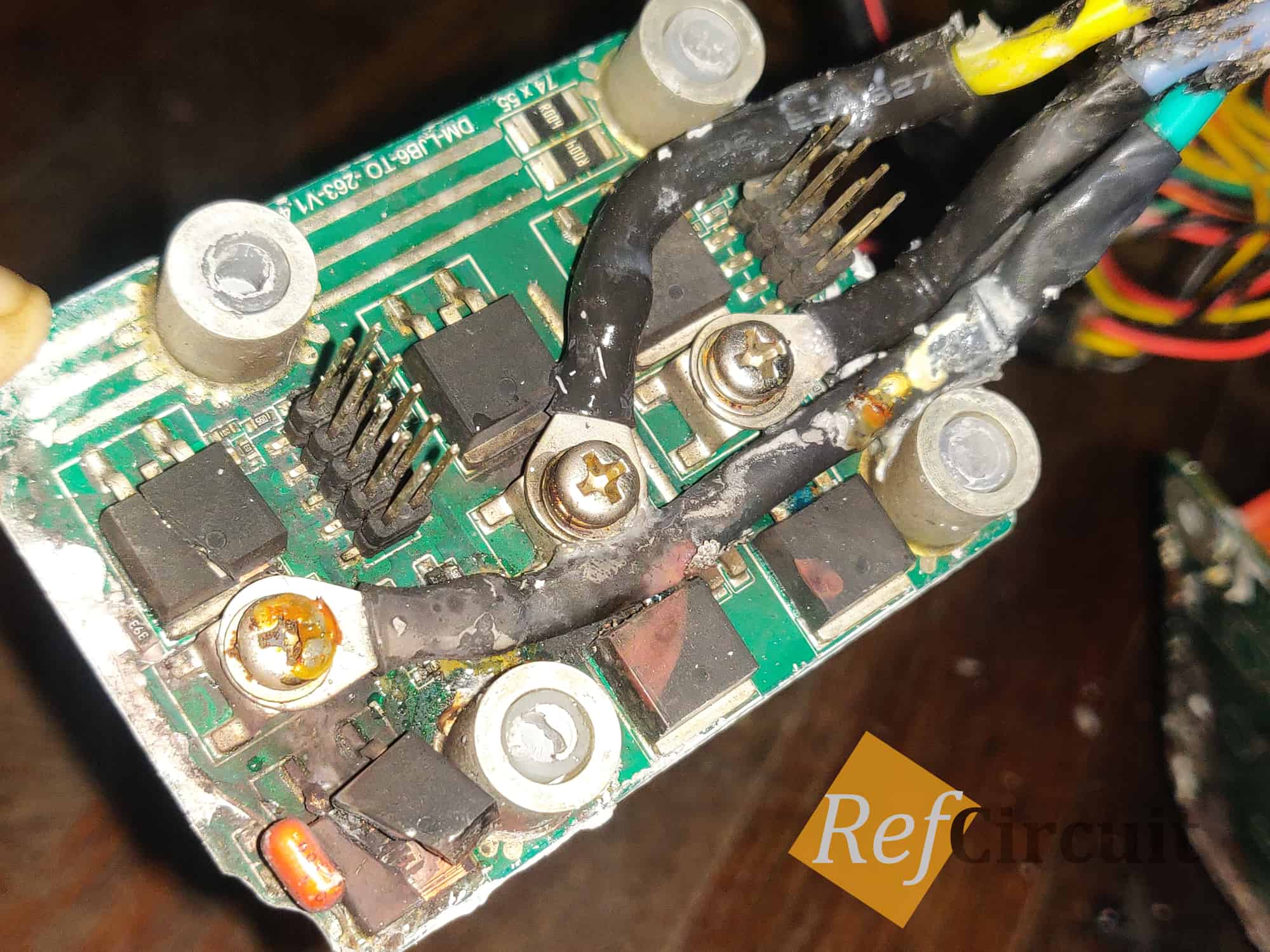

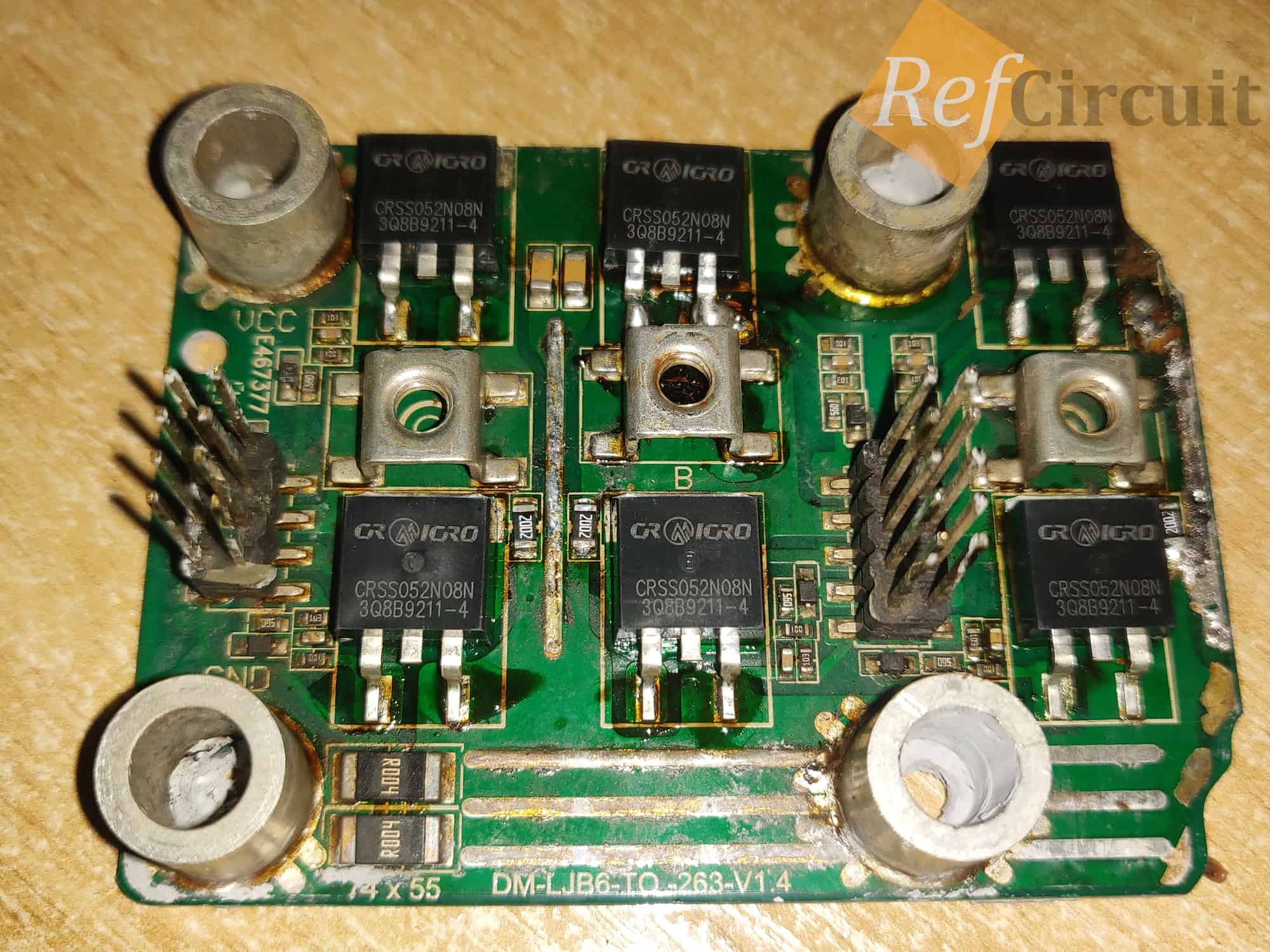

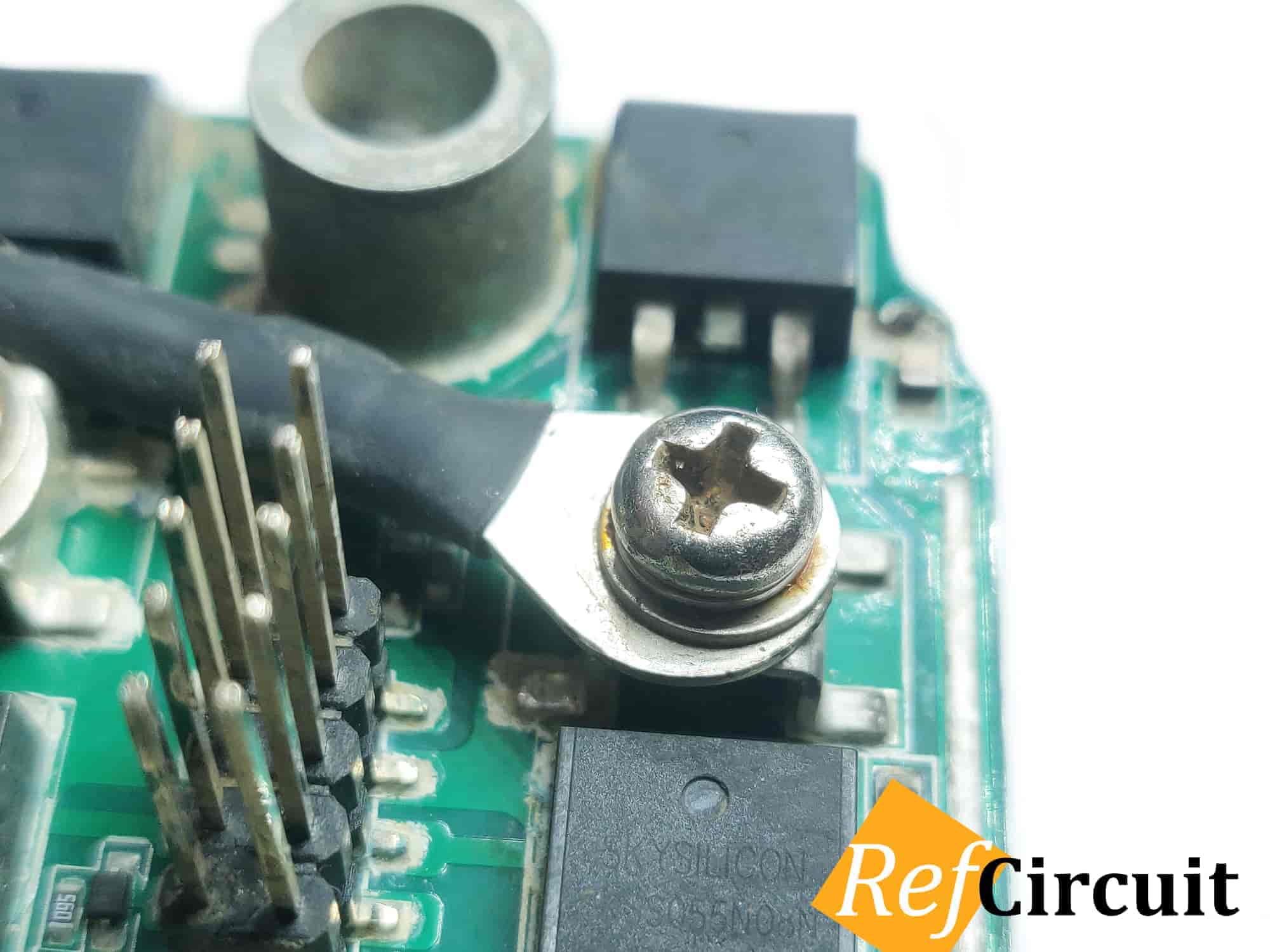

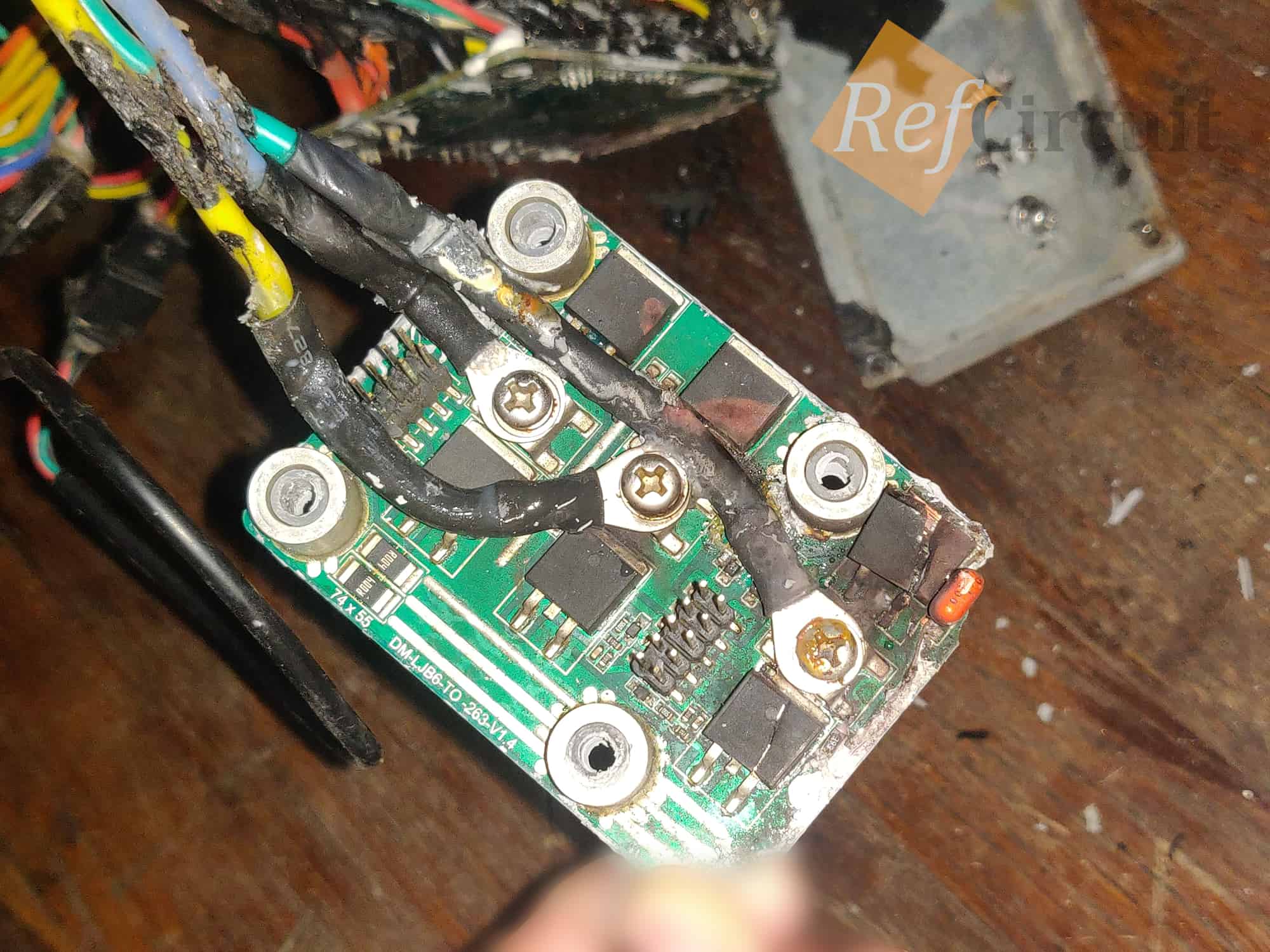

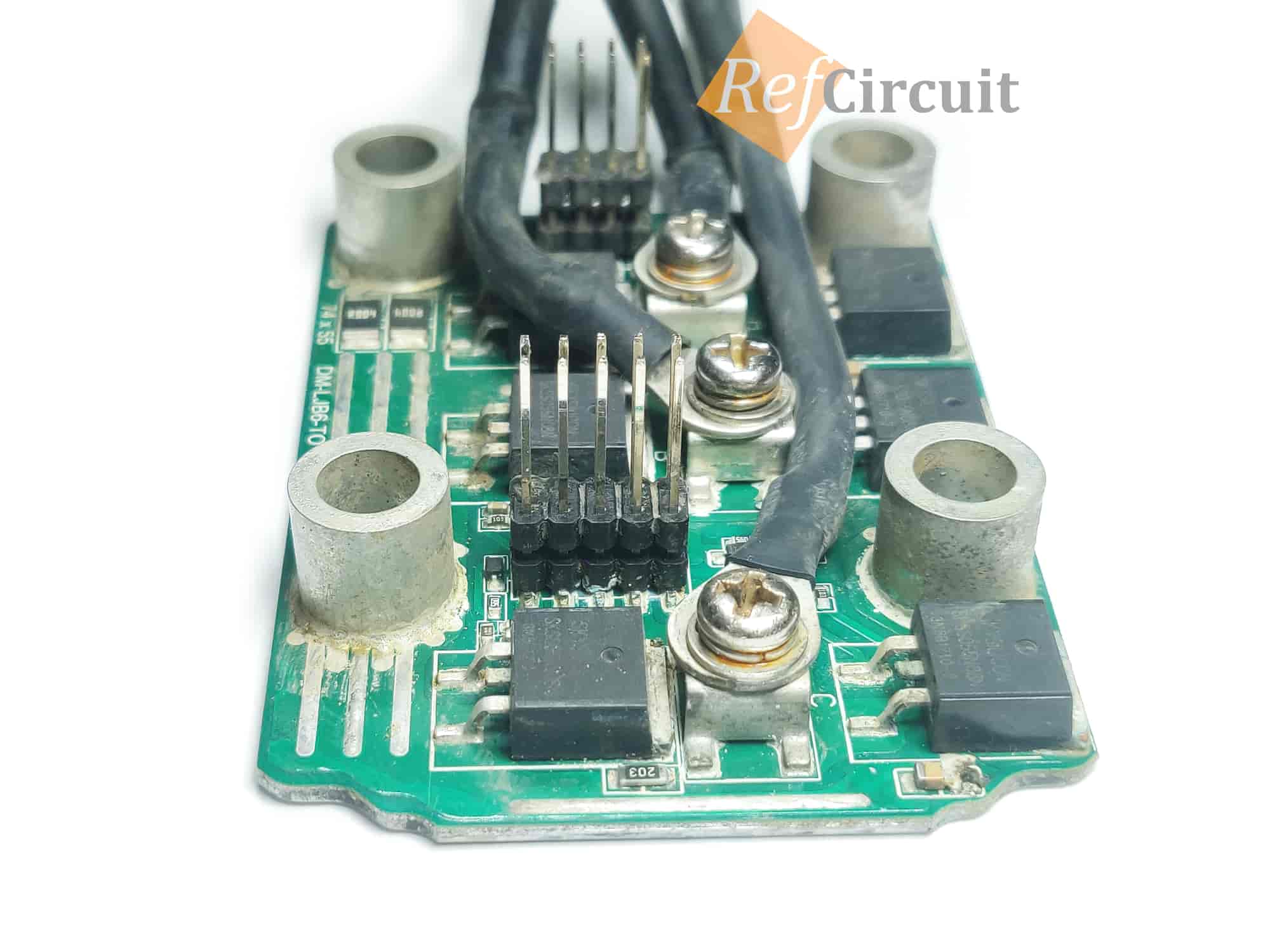

Power board contain 6 transistors and 3 screwed terminals for three phases of BLDC motor:
 |  |
 | |
 | |

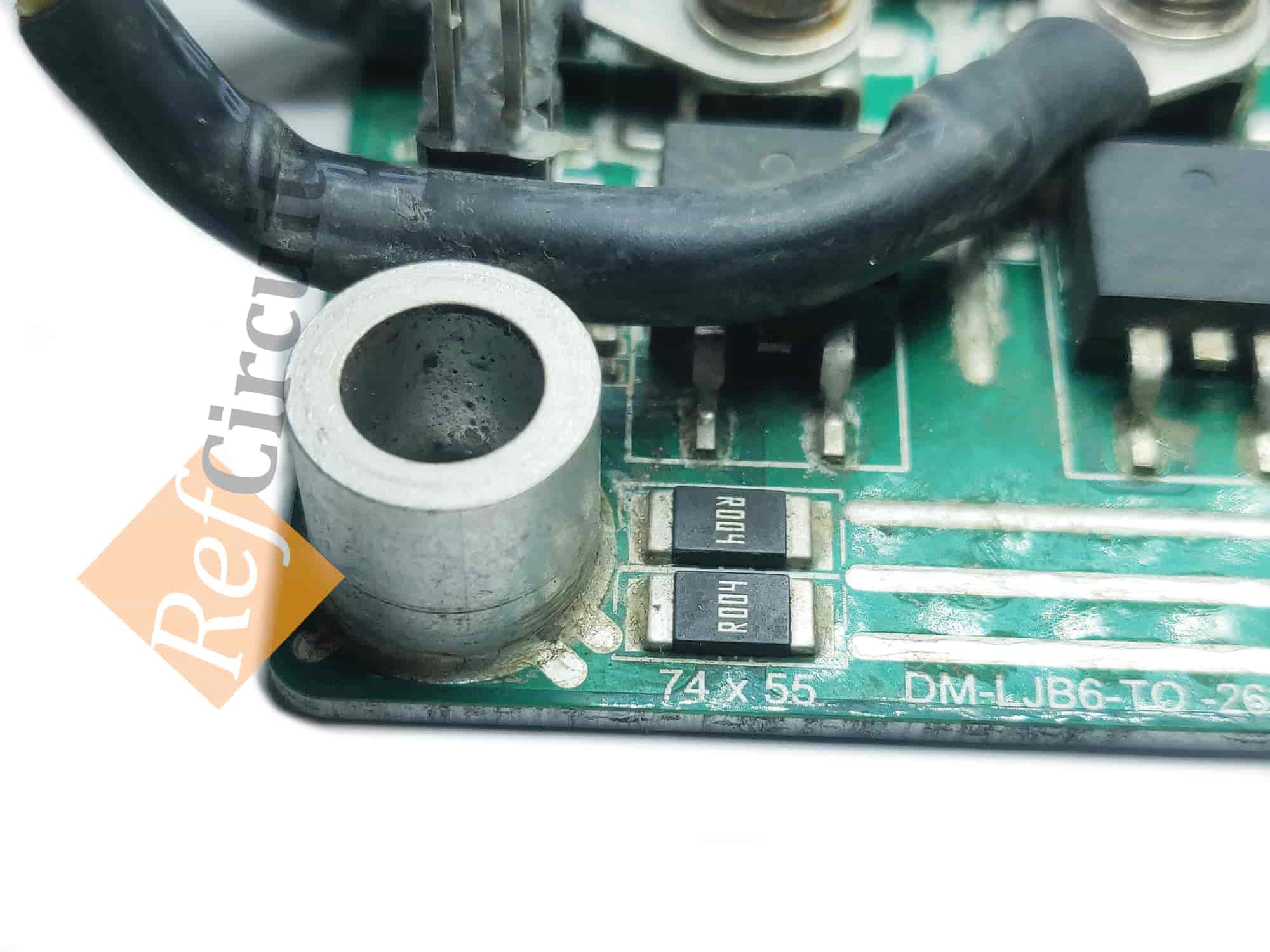

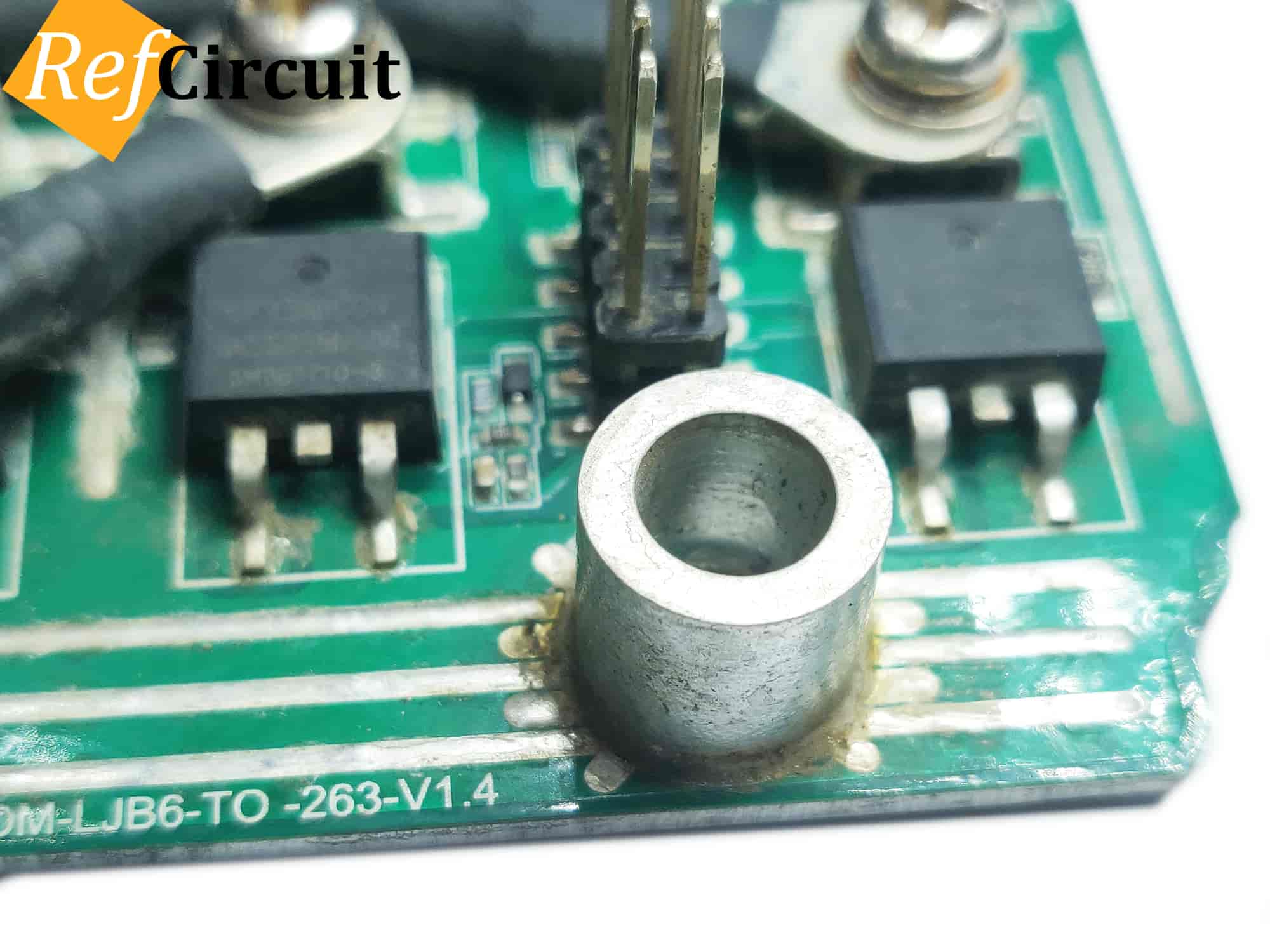

All components are surface-mounted, which important for this aluminum board:
 |  |
 |  |
Components

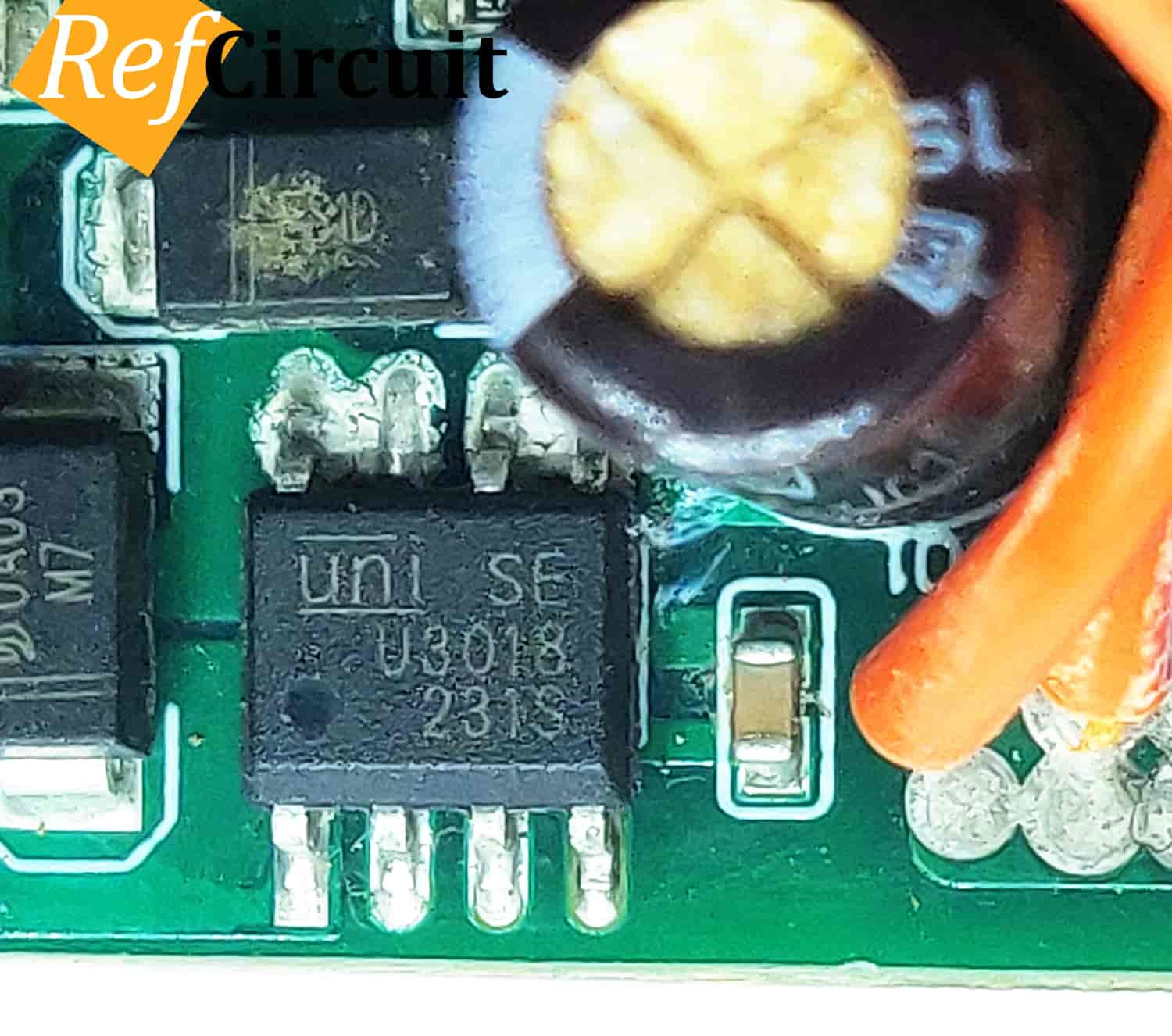

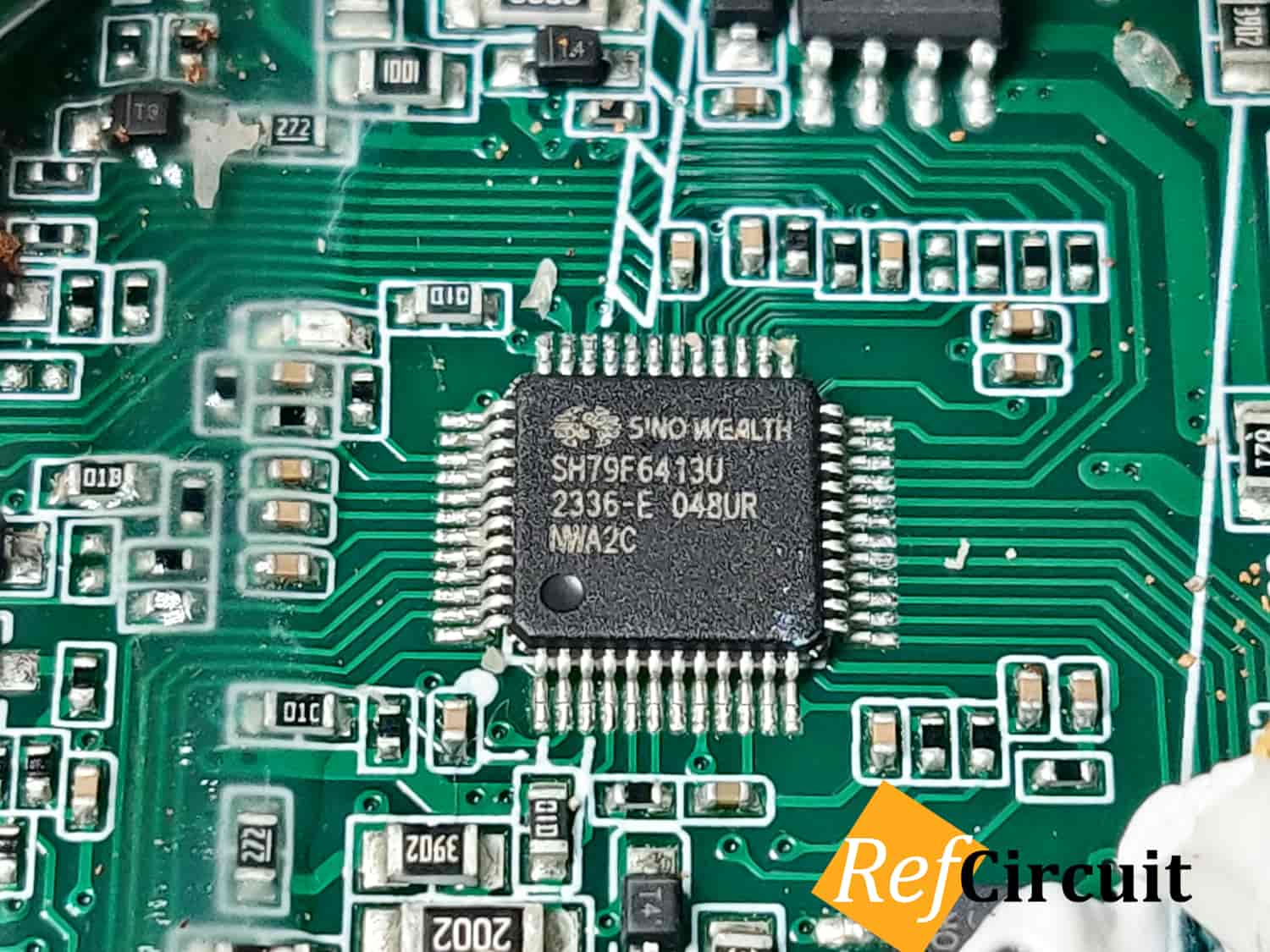

MCU SH79F6413 | DC-DC U3018

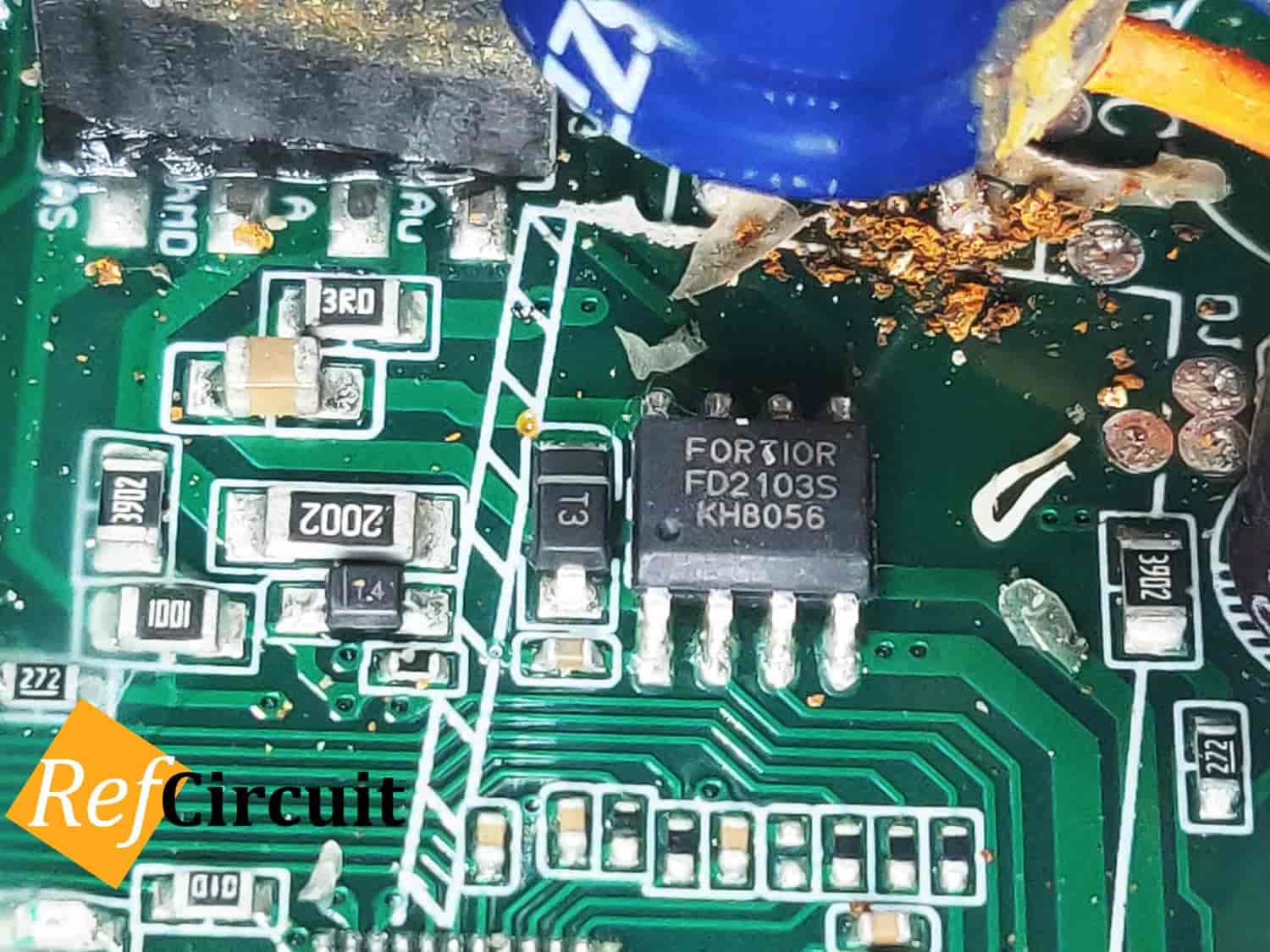

| GATE DRIVER FD2103S

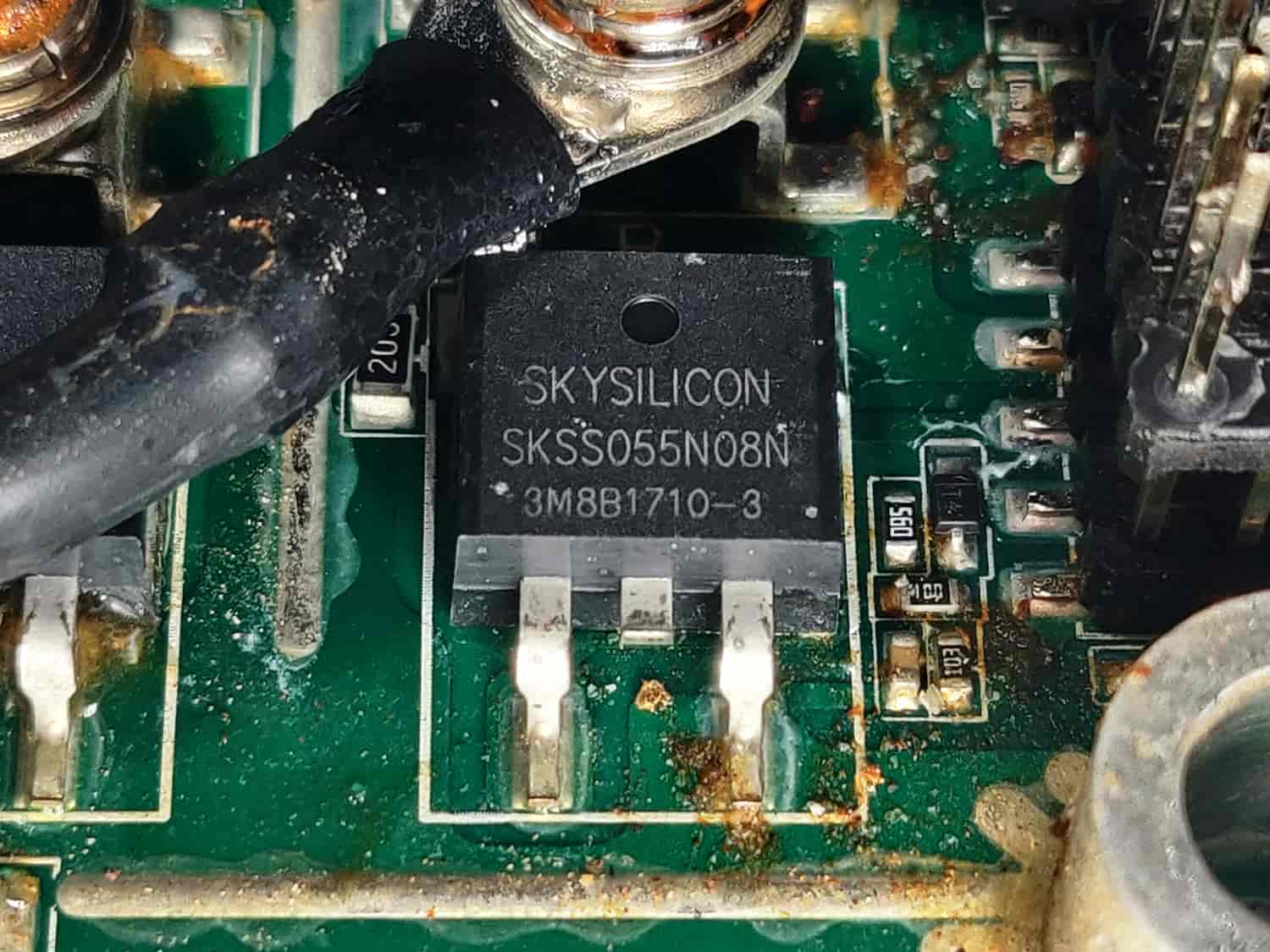

| N-CH MOSFET SKSS055N08N

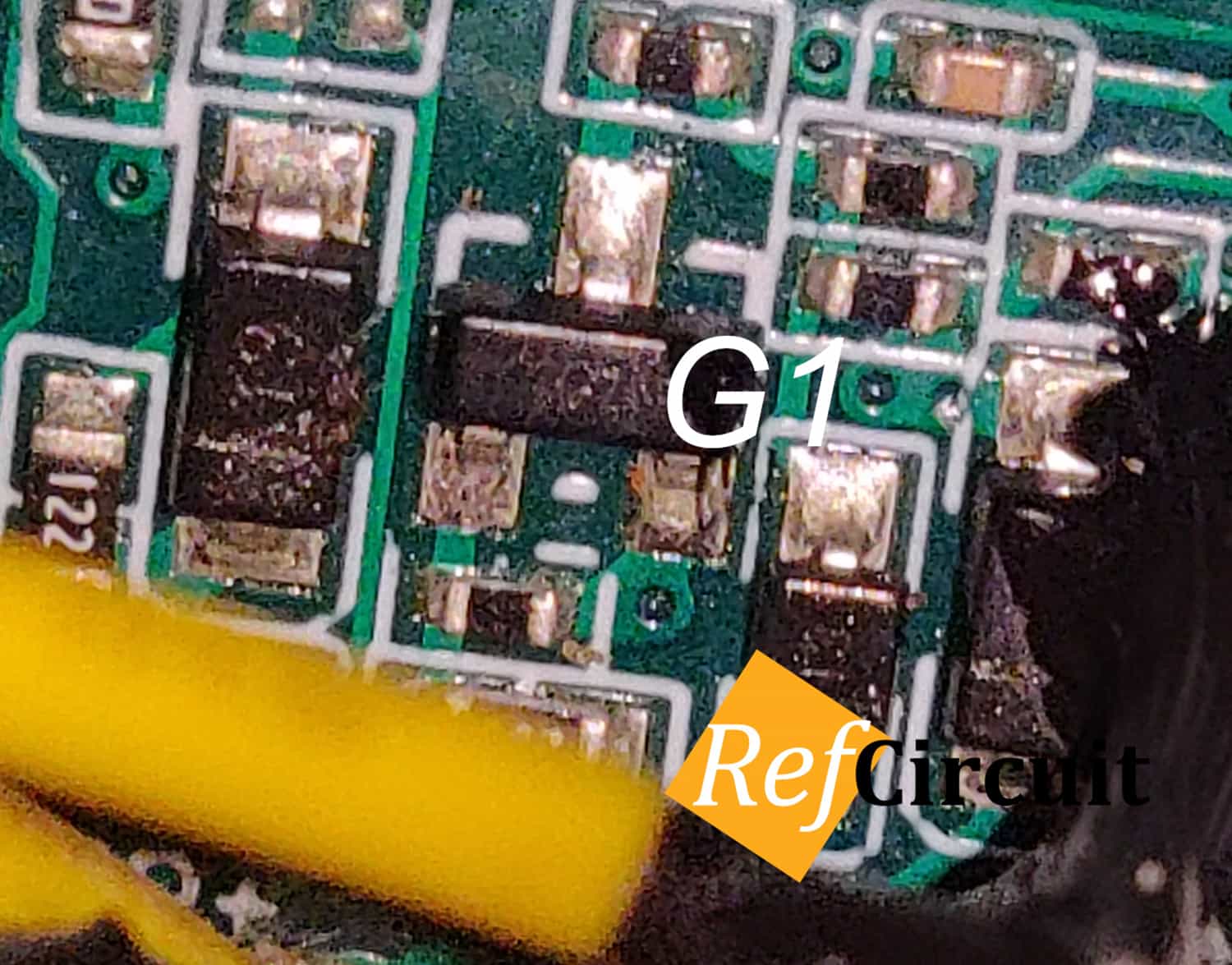

| NPN BJT MMBT5551 (Marking G1 SOT-23 package)
|
 |  |  |  |  |
💡 Unique Multiboard Construction (Al+FR4)
Actually I'm thinking about using the same approach for high power projects before:
| 1 | Top FR-4 board for control components (microcontroller) |
| 2 | Metal spaces (standoffs) or screwed terminals |
| 2 | Bottom aluminum board for power components (transistors) |
And that's interesting that this miniature commercial controller already made like I want to do 😮
 | Effective High-Power Multiboard Design using Aluminum and FR-4 boards |

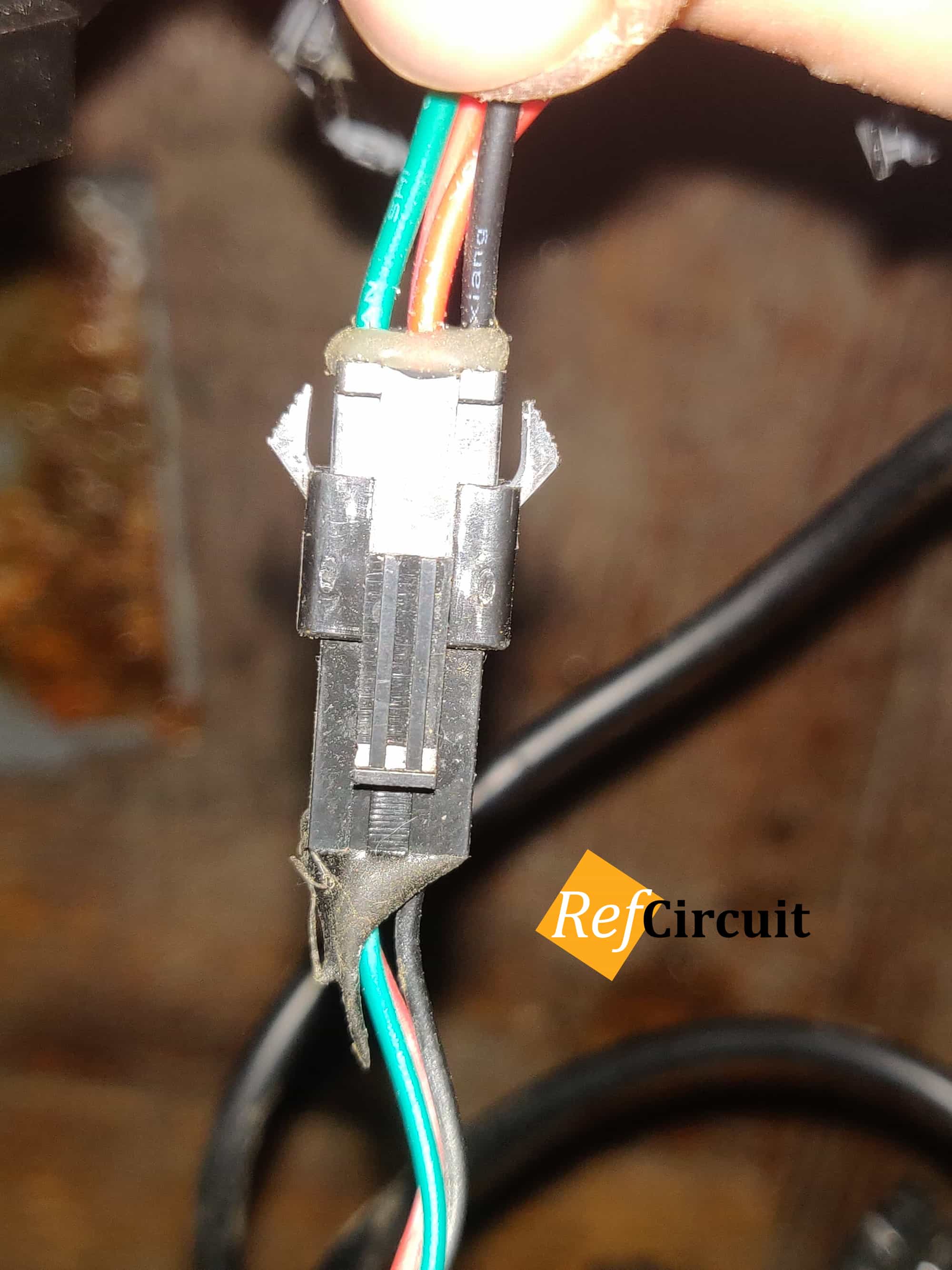

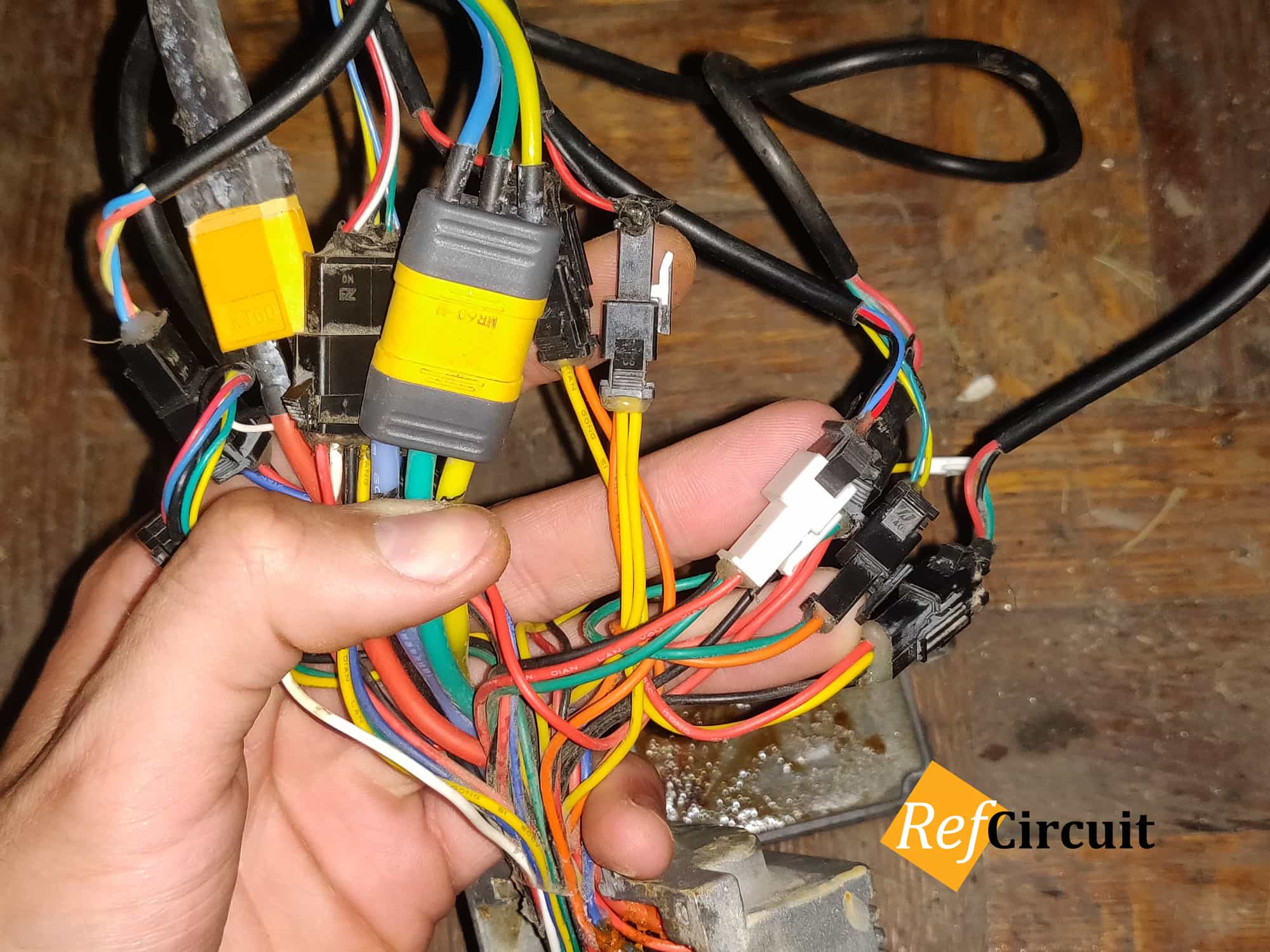

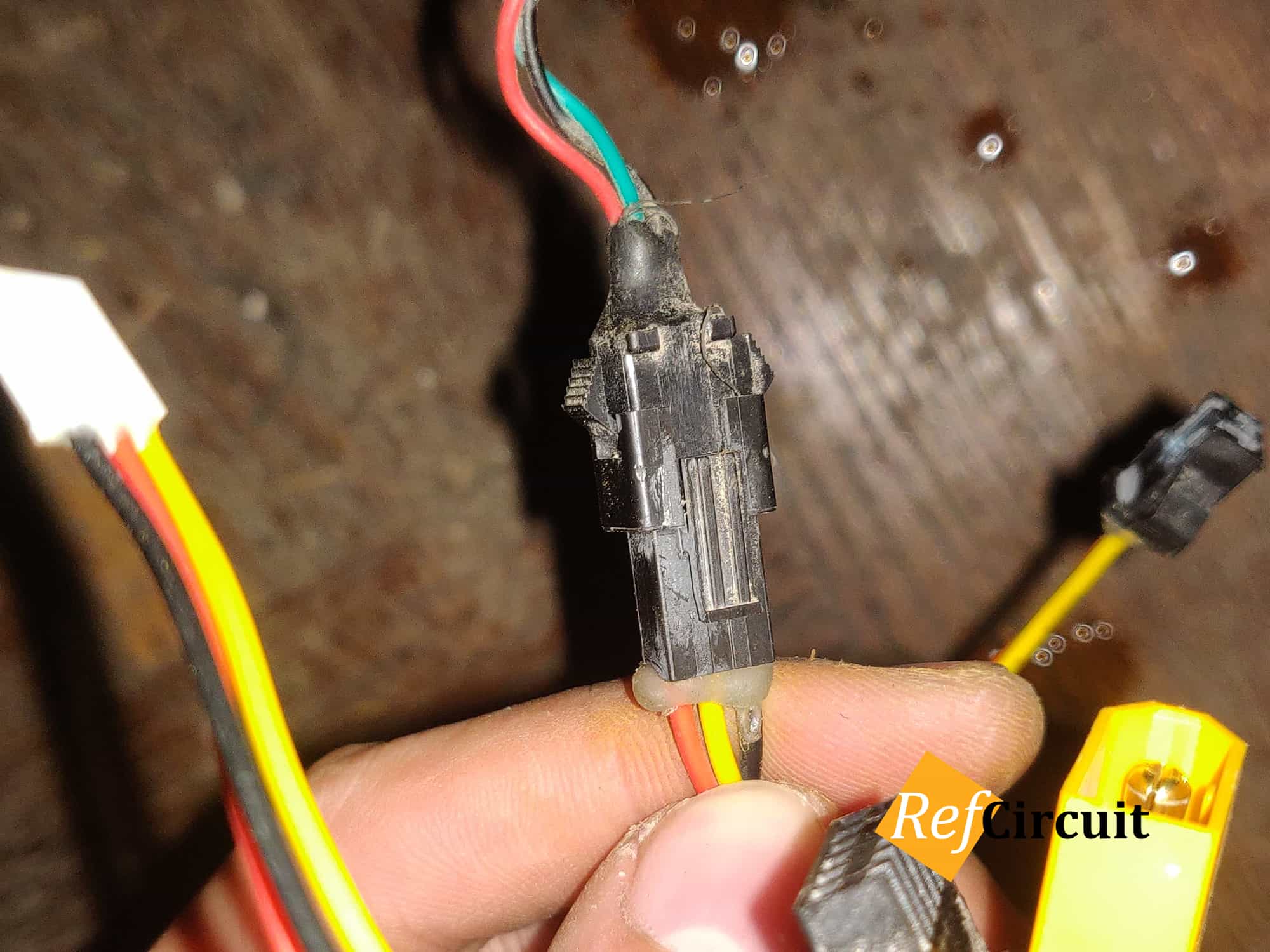

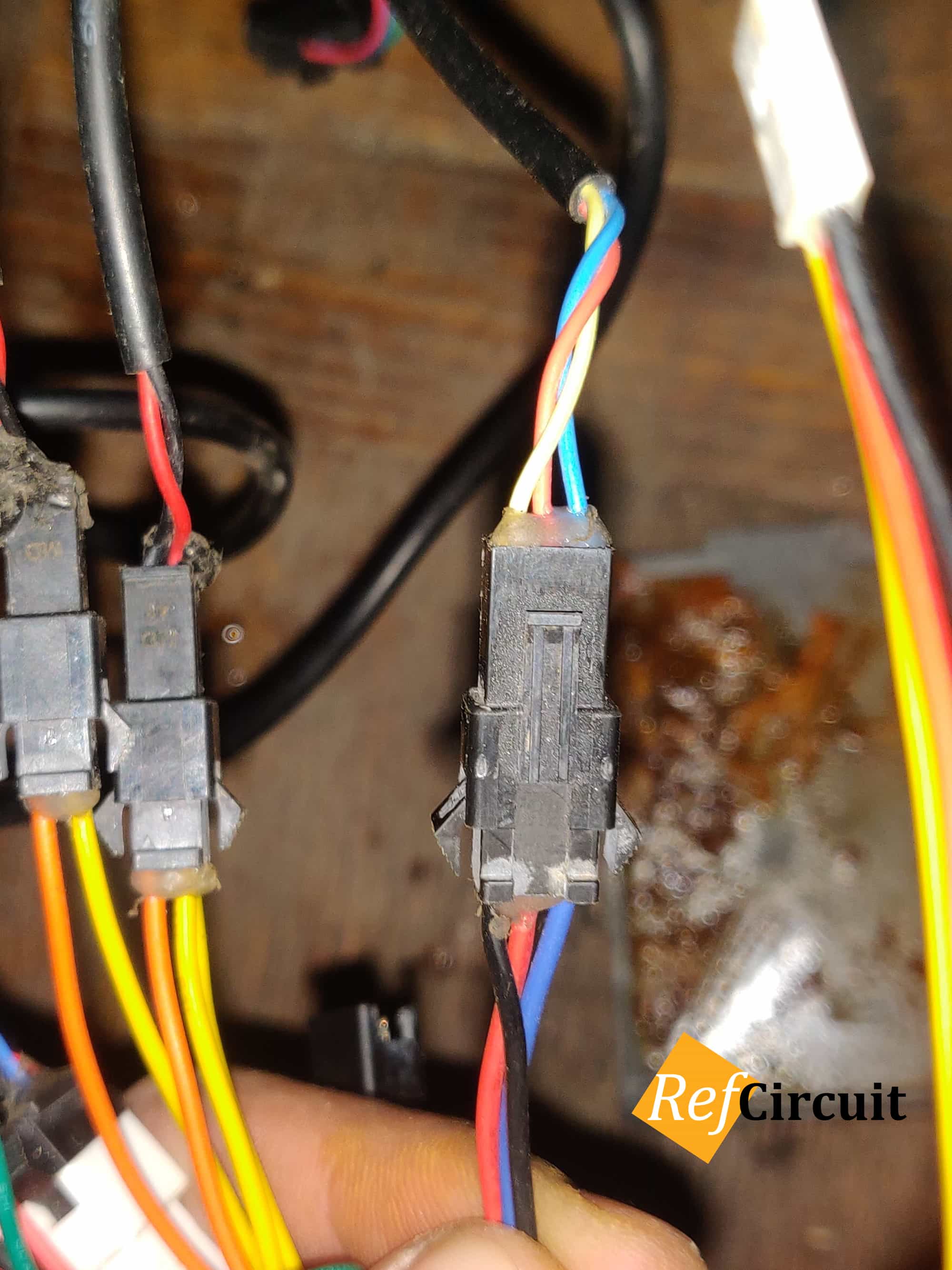

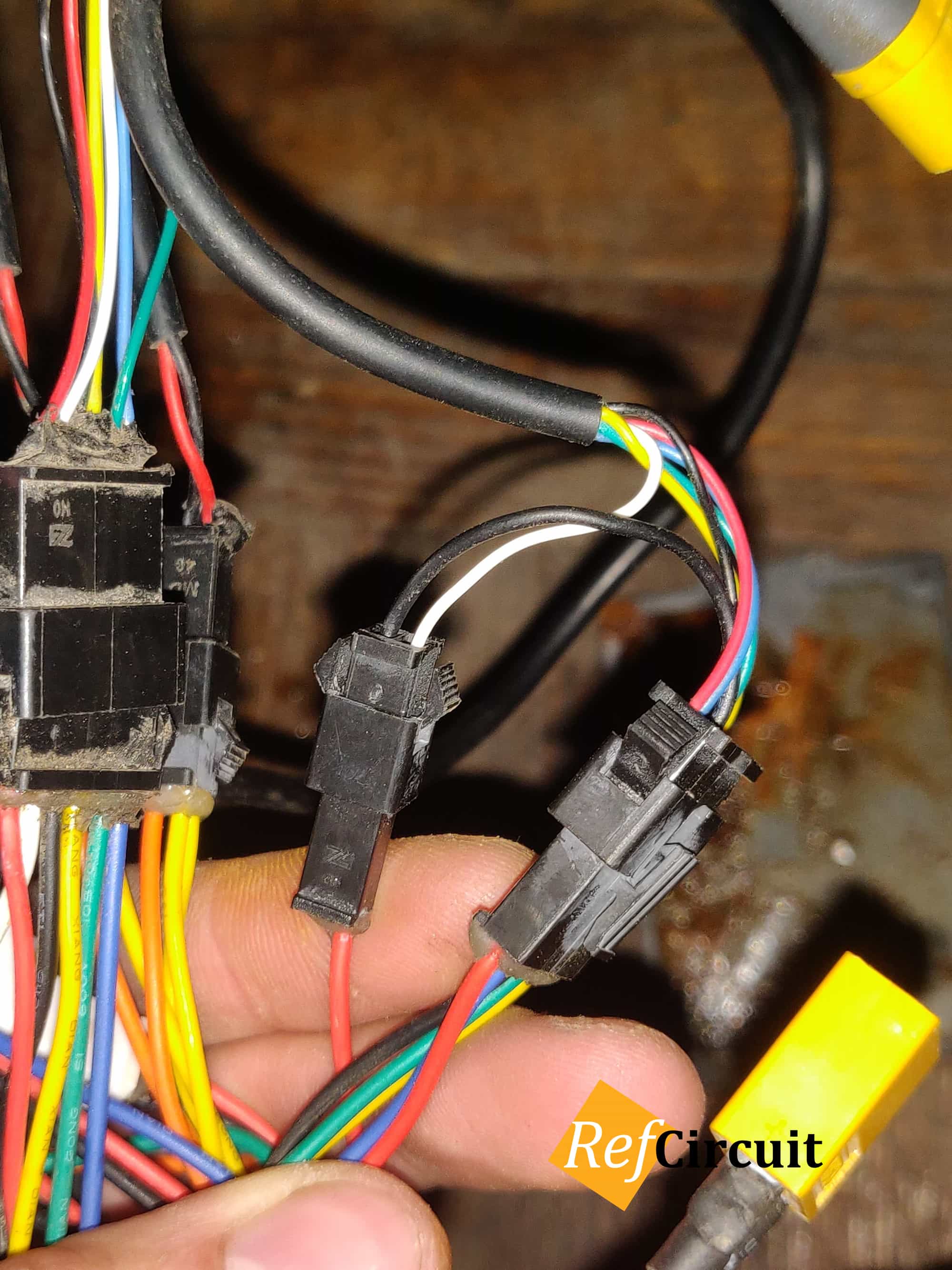

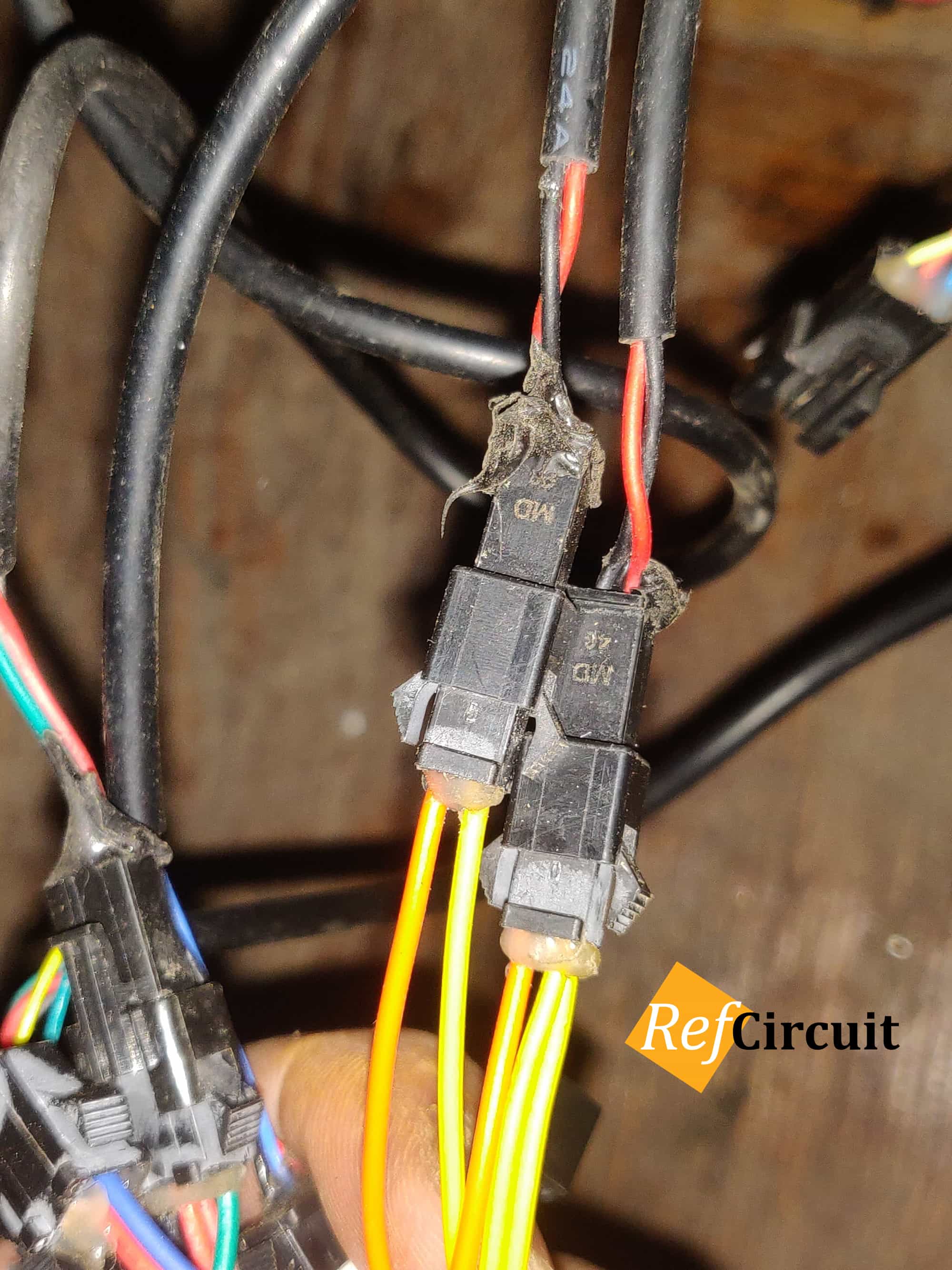

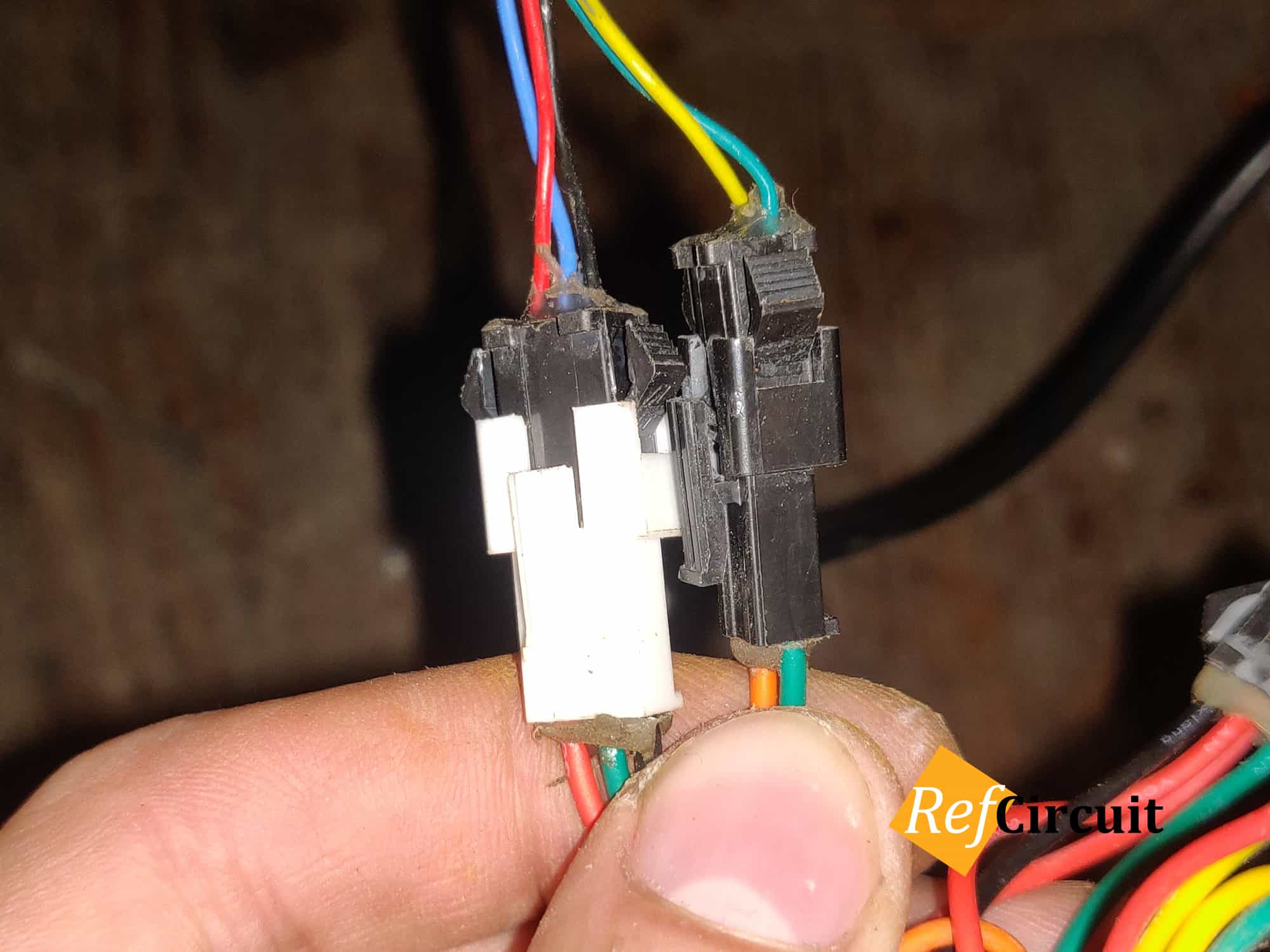

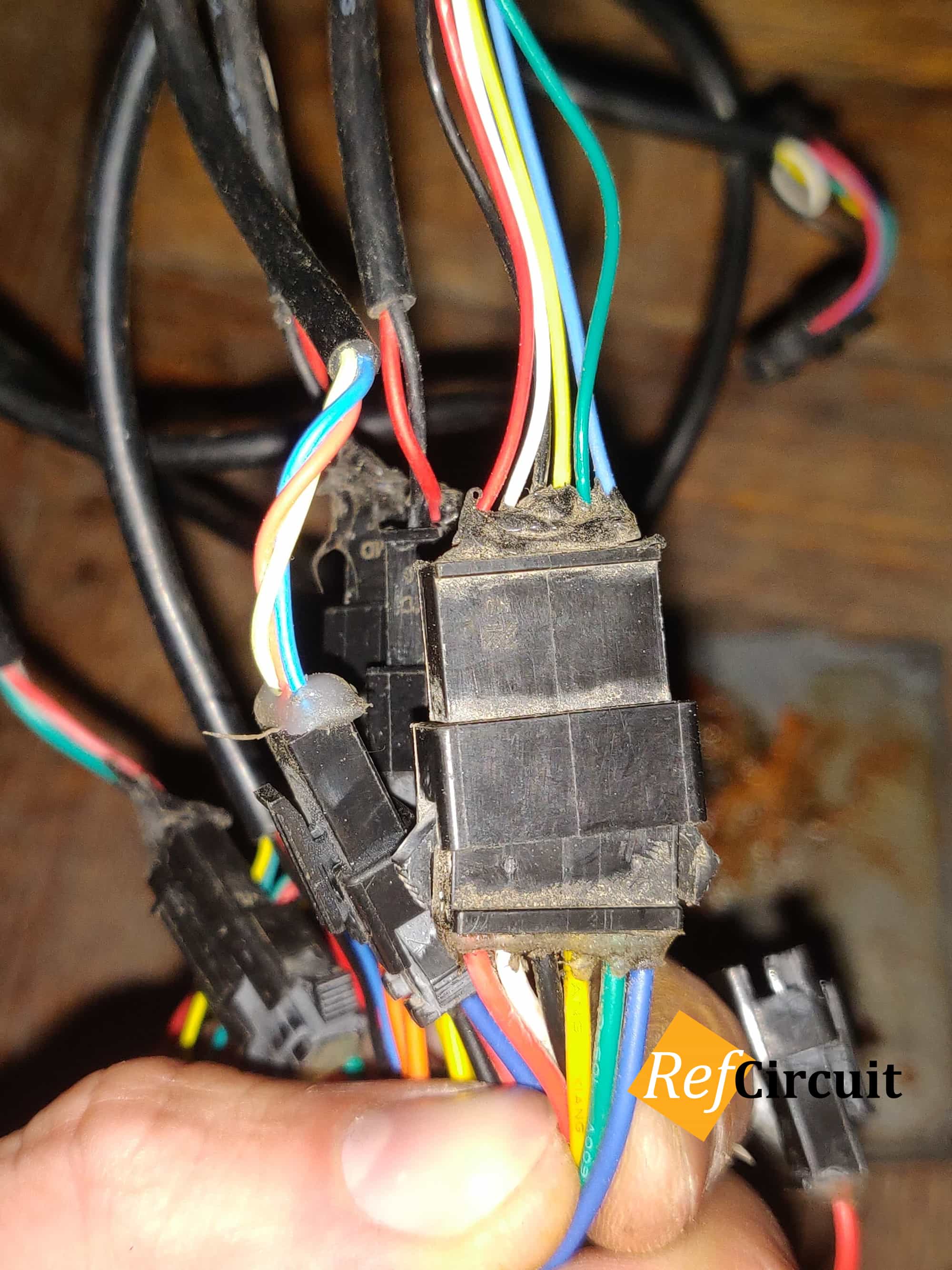

Wiring (Update from 09/04/2025)
 |  |
 |  |
 |  |
 |  |
The end (2026/08/23)

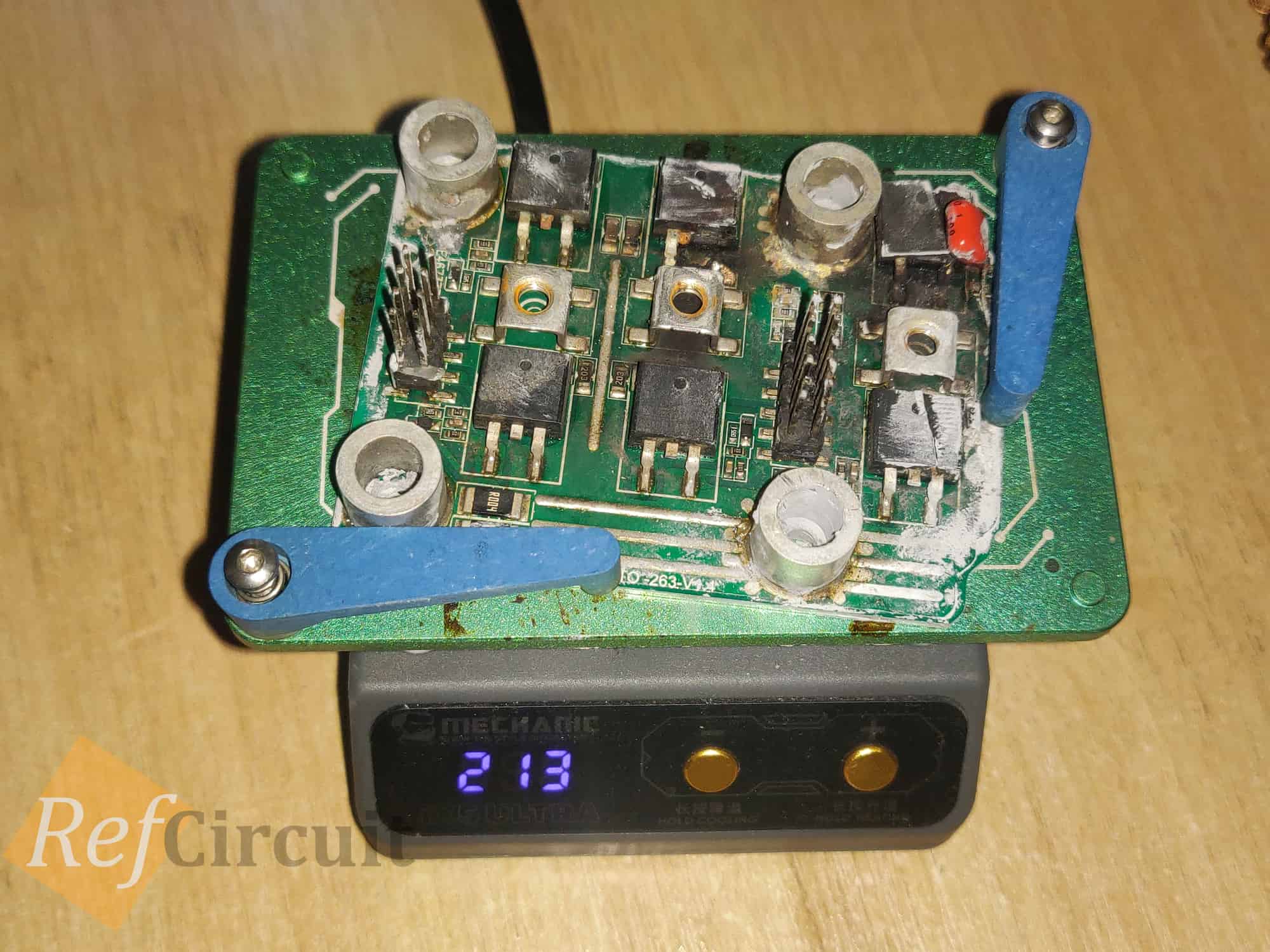

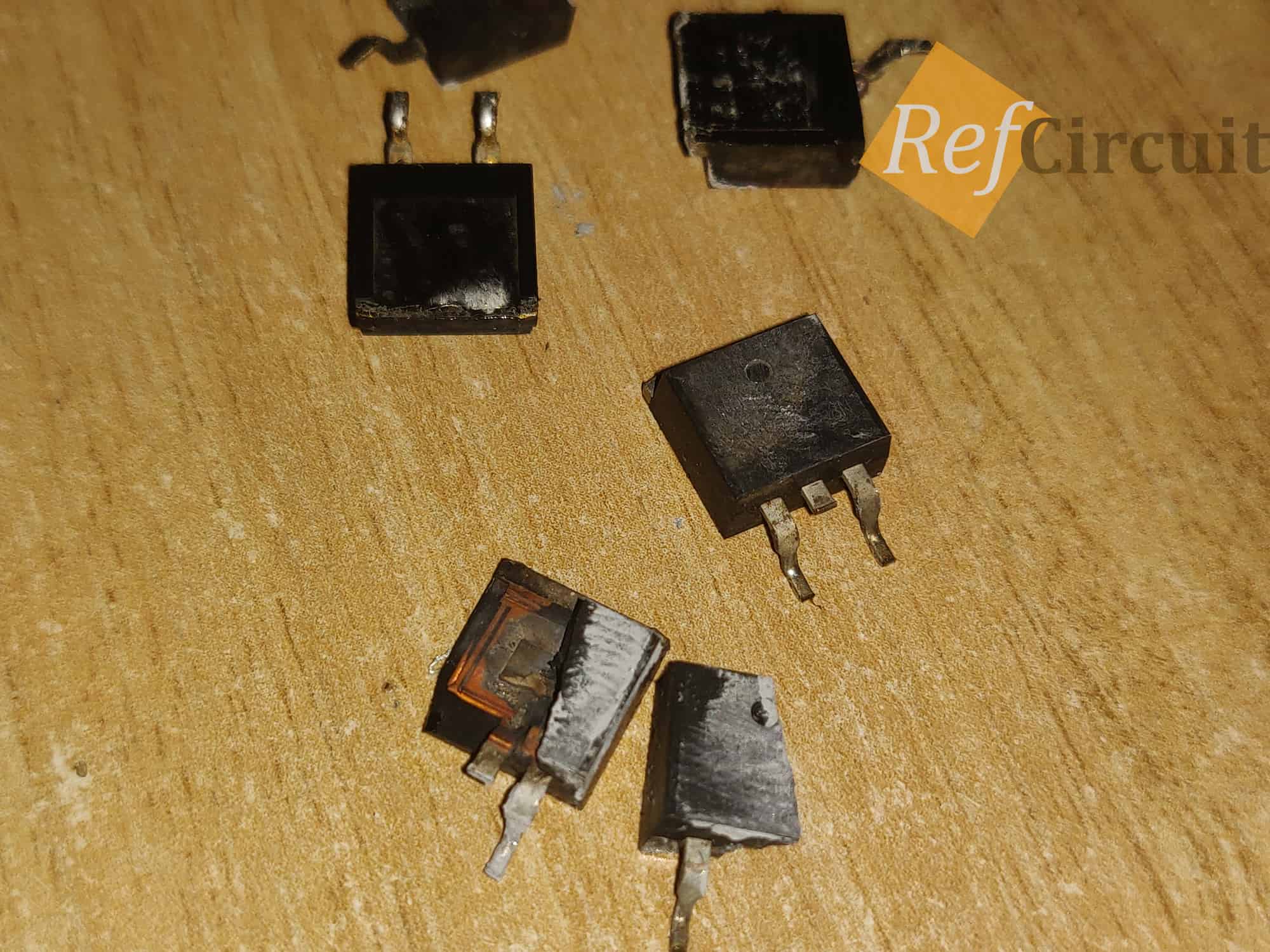

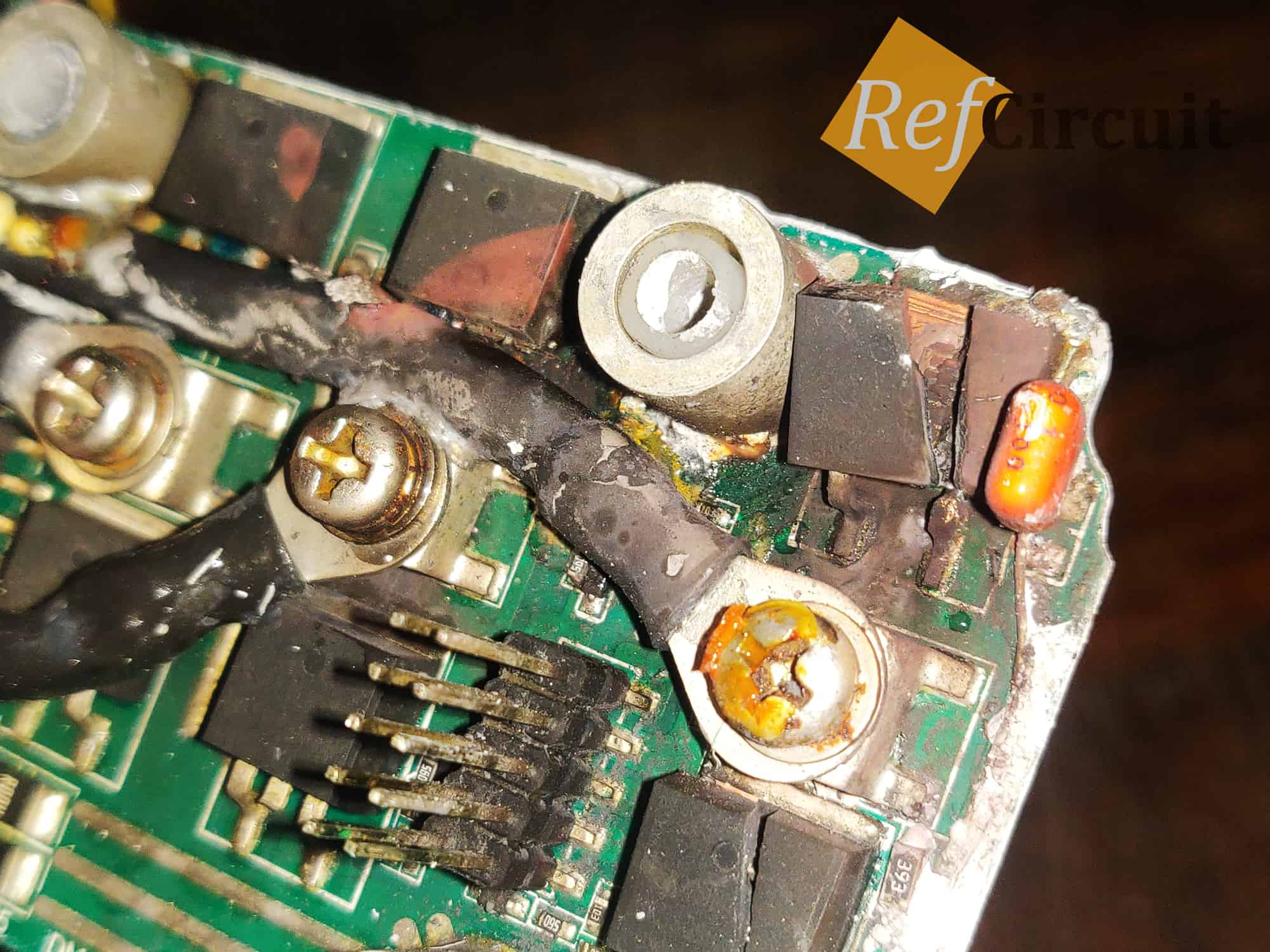

After another water ingress controller totally died. I tried to replace FETs and drivers but it didn't helped, so I have to buy a new one.
 | |
 |  |
 |  |
 |  |
Tips (How to prevent water damage of controller?)
Place controller upside down, so water residuals can't easily ingress into internal space through gasket and cover. However, connectors are still in dangerous.
Add drainage hole for frame space where controller is placed.
Check controller + connectors after rainy rides.
Conclusions
| 🟢 |
|
| 🔴 |
|
