🛠 TEARDOWN: USB-C to USB-C 24Pin Cable
Intro
Teardown of USB-C to USB-C cable with all pins (24pin).

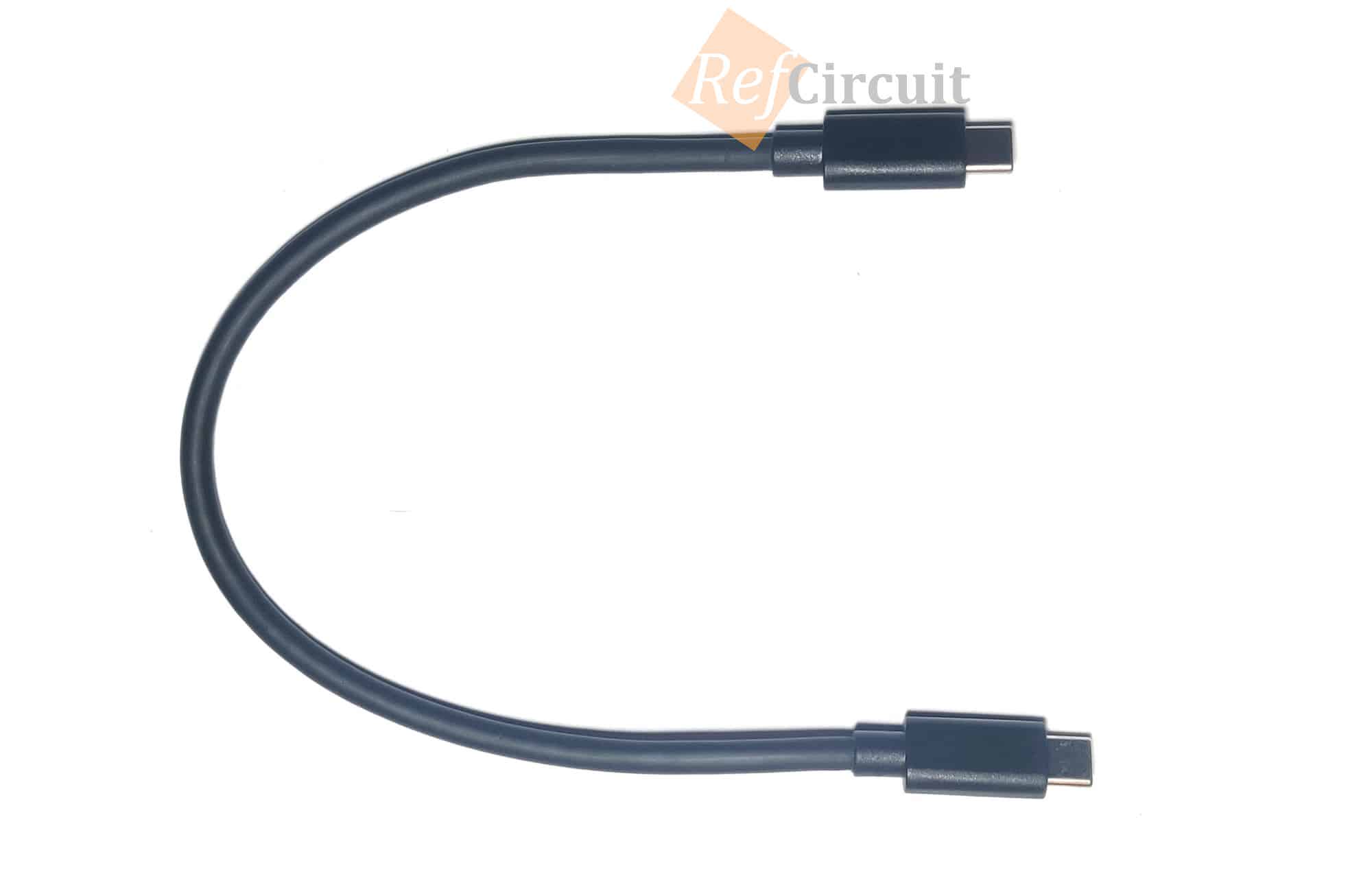

Cable Overview
 |  |

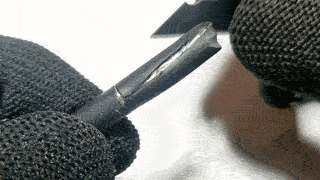

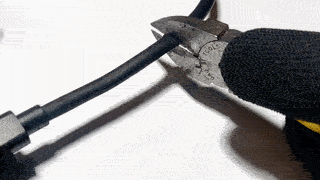

✂ Cut
 | |

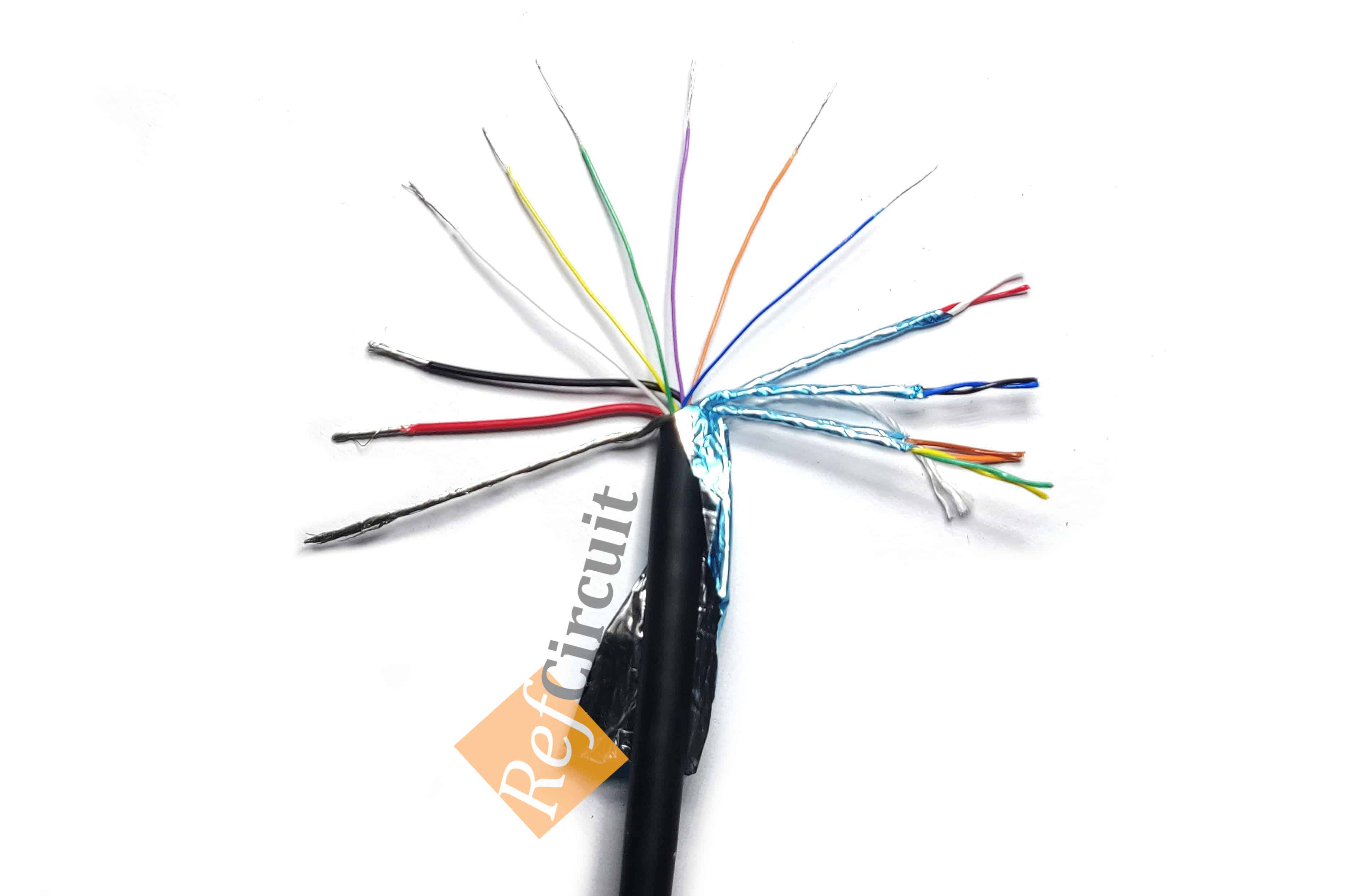

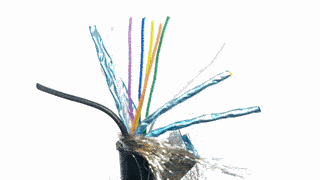

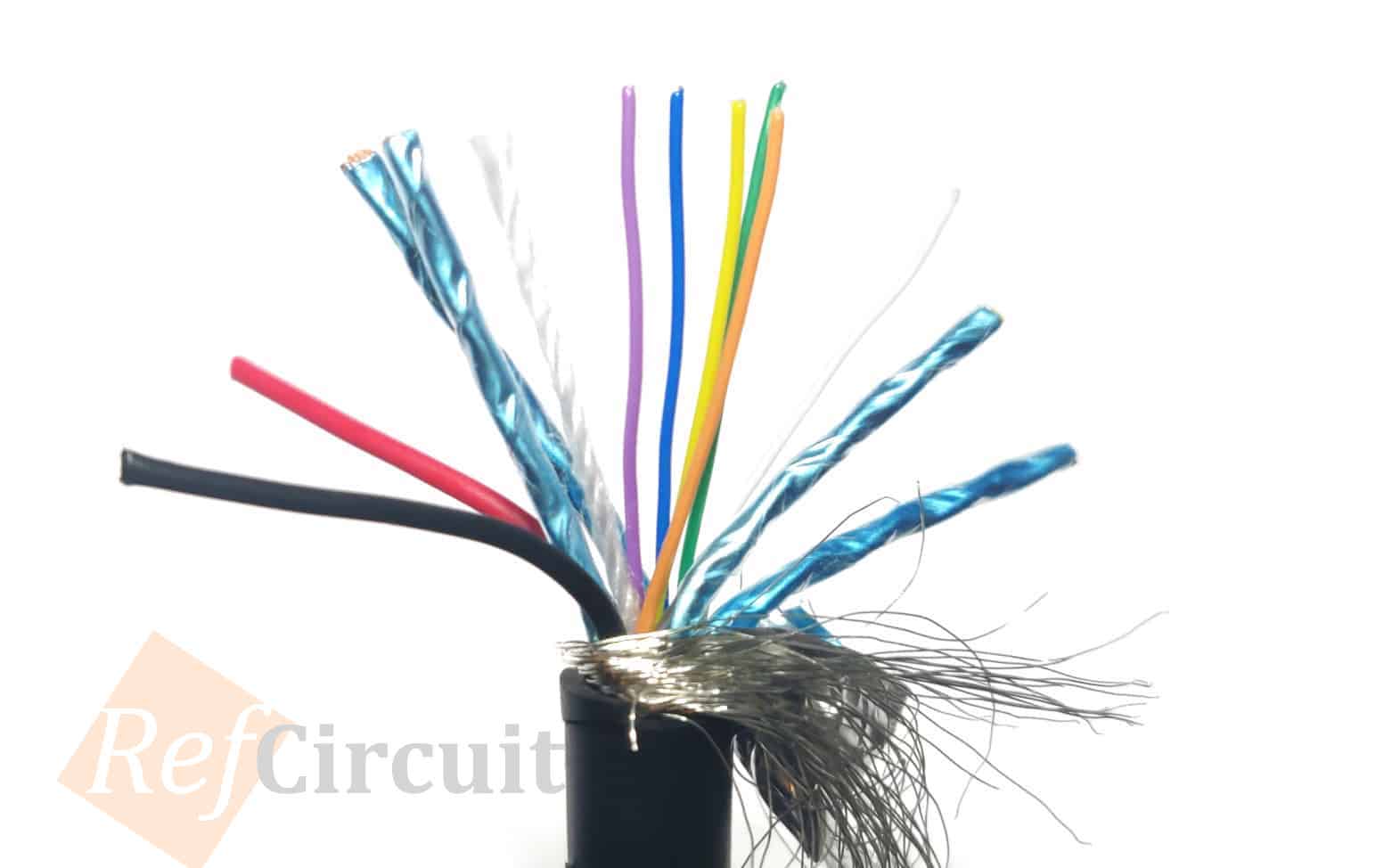

Wires
 |  |
 | |
Symbol

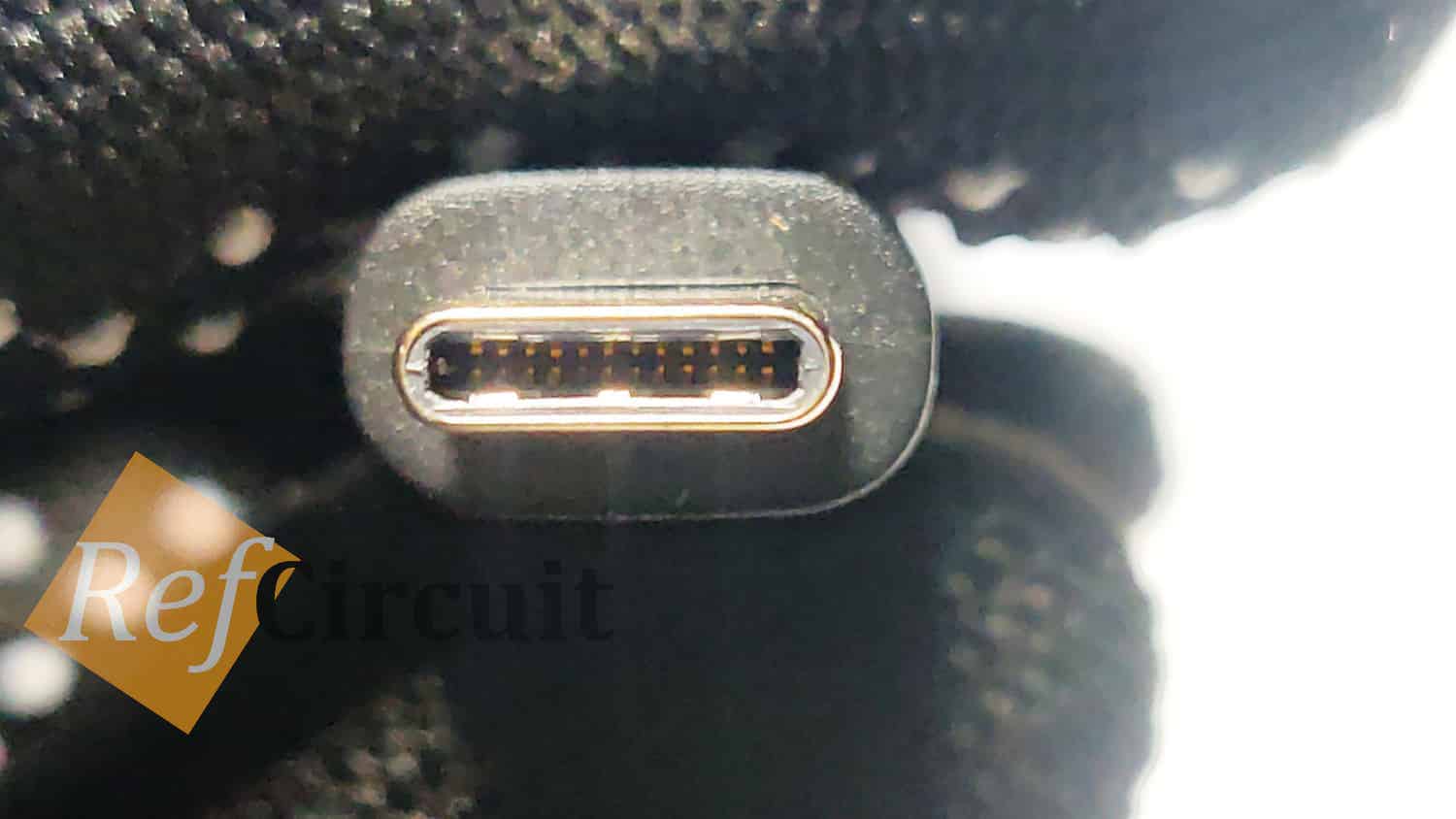

SBU1/SBU2 Pins
If cable has pins they're could be used as debugging tool (for UART RX, TX) which makes possible to work with device in case. Search for USB-Cereal for more information.
Conclusions
| 🔴 | On this particular cable red wire is negative and black wire is positive |
| 🔴 | On this particular cable shielding not connected to the plug at all (floating) |
