Big Deye 5kW Inverter (SUN-5K-SG01/SG03/LP1-EU/AU) Teardown 2025 - Boards | Part 1

Intro

This page has a lot off high-res photos with some analysis of the modern solar hybrid inverter DEYE SUN-5K-SG01/03/LP1-EU/AU.

⏭️ Because device has a lot of components I'm still updating article with more details. Moreover, article separated on several parts due to a lot of photos:

1️⃣Big Deye 5kW Inverter (SUN-5K-SG01/SG03/LP1-EU/AU) Teardown 2025 — Boards | Part 1
2️⃣Big Deye 5kW Inverter (SUN-5K-SG01/SG03/LP1-EU/AU) Teardown 2025 — Heatsink | Part 2
3️⃣Big Deye 5kW Inverter (SUN-5K-SG01/SG03/LP1-EU/AU) Teardown 2025  — Inductors and transformers | Part 3
4️⃣Big Deye 5kW Inverter (SUN-5K-SG01/SG03/LP1-EU/AU) Teardown 2025 — Other parts | Part 4
5️⃣Big Deye 5kW Inverter (SUN-5K-SG01/SG03/LP1-EU/AU) Teardown 2025 — Housing | Part 5
6️⃣Big Deye 5kW Inverter Teardown 2025 — Quiescent and Standby Current | Part 6

Sources

📦 All photos also available in archive (100MB+) : Teardown_DEYE_Inverter_SUN-5K-SG0103LP1-EUAU_refcircuit.com.zip

Boards

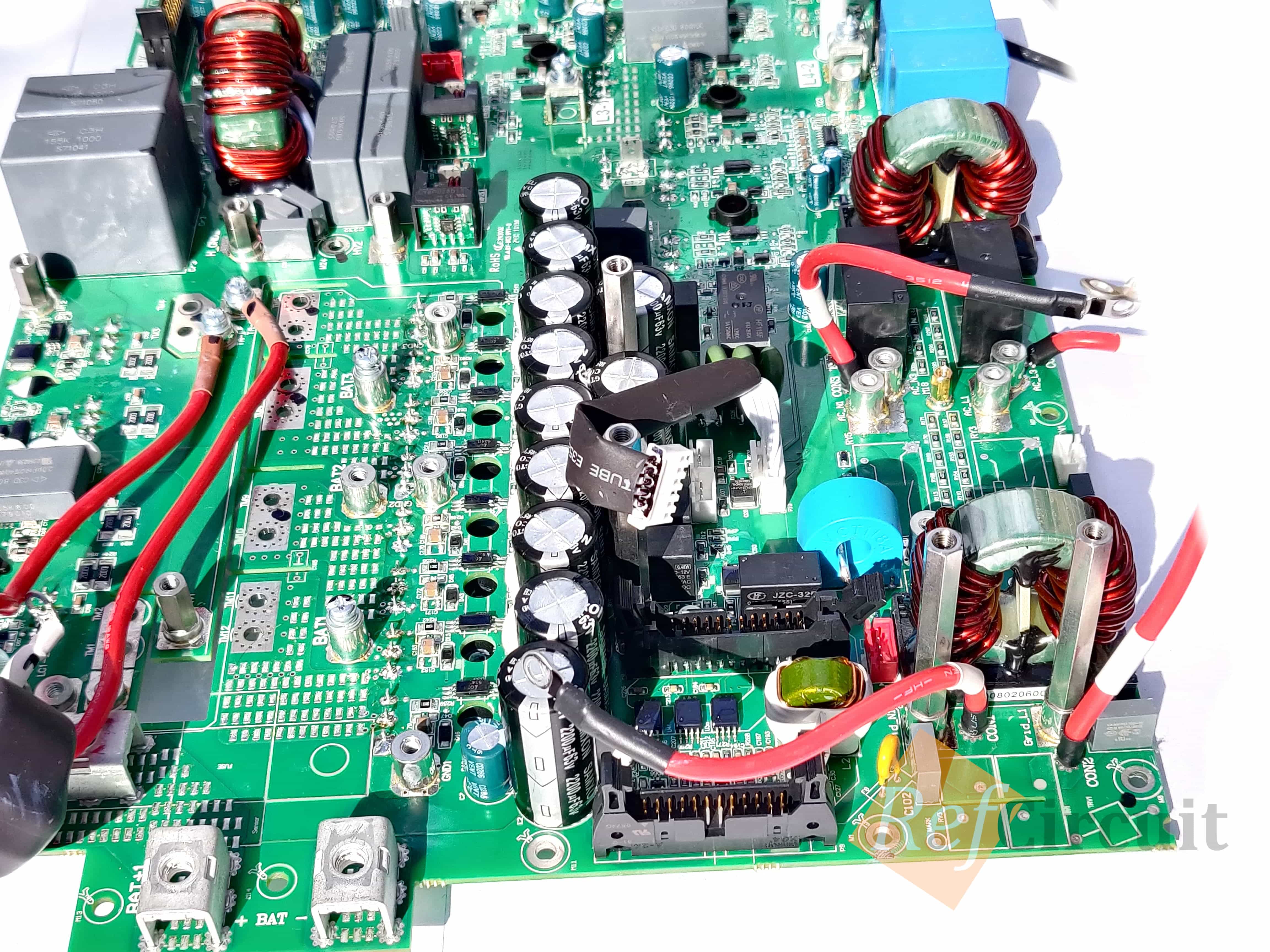

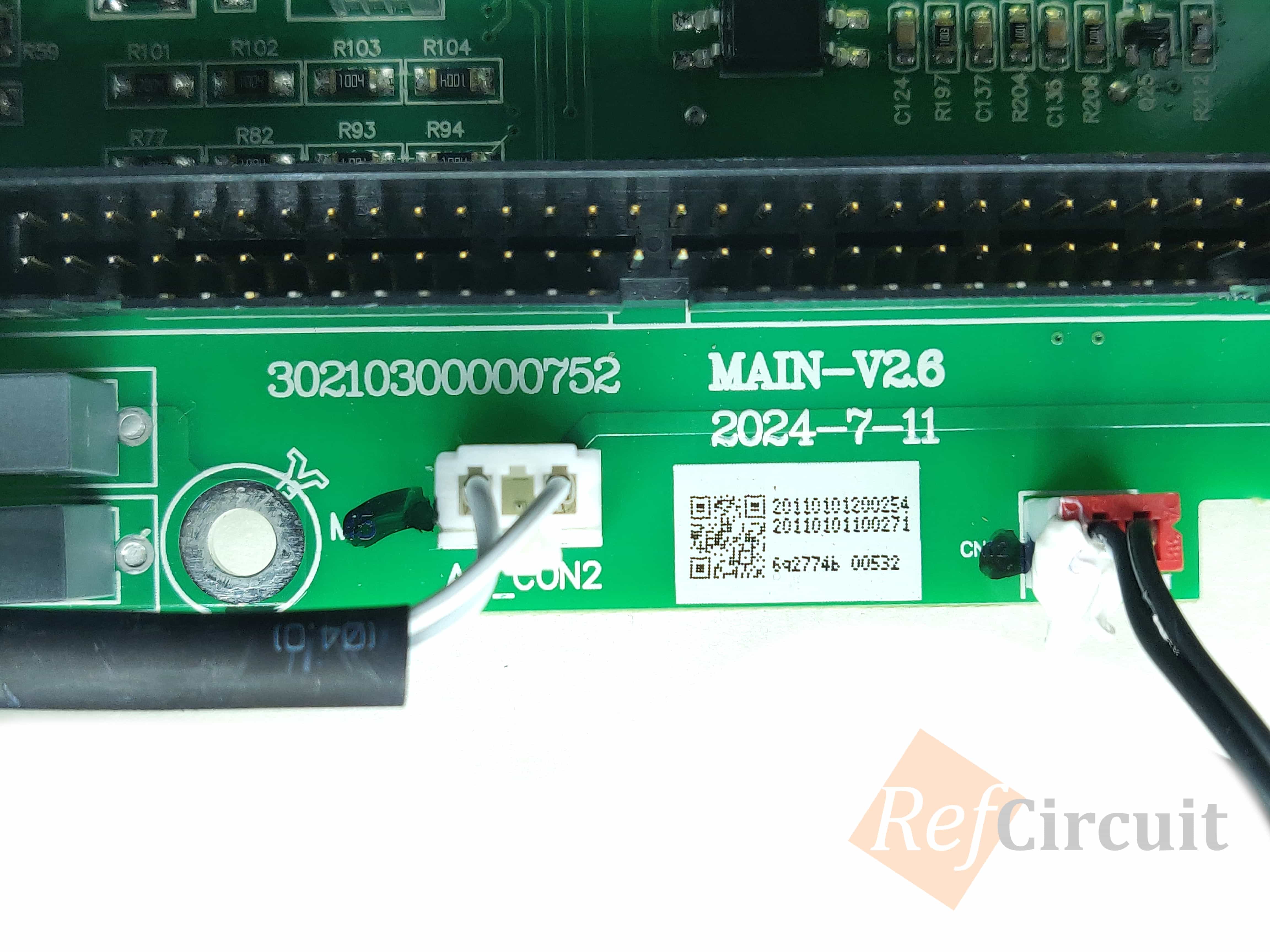

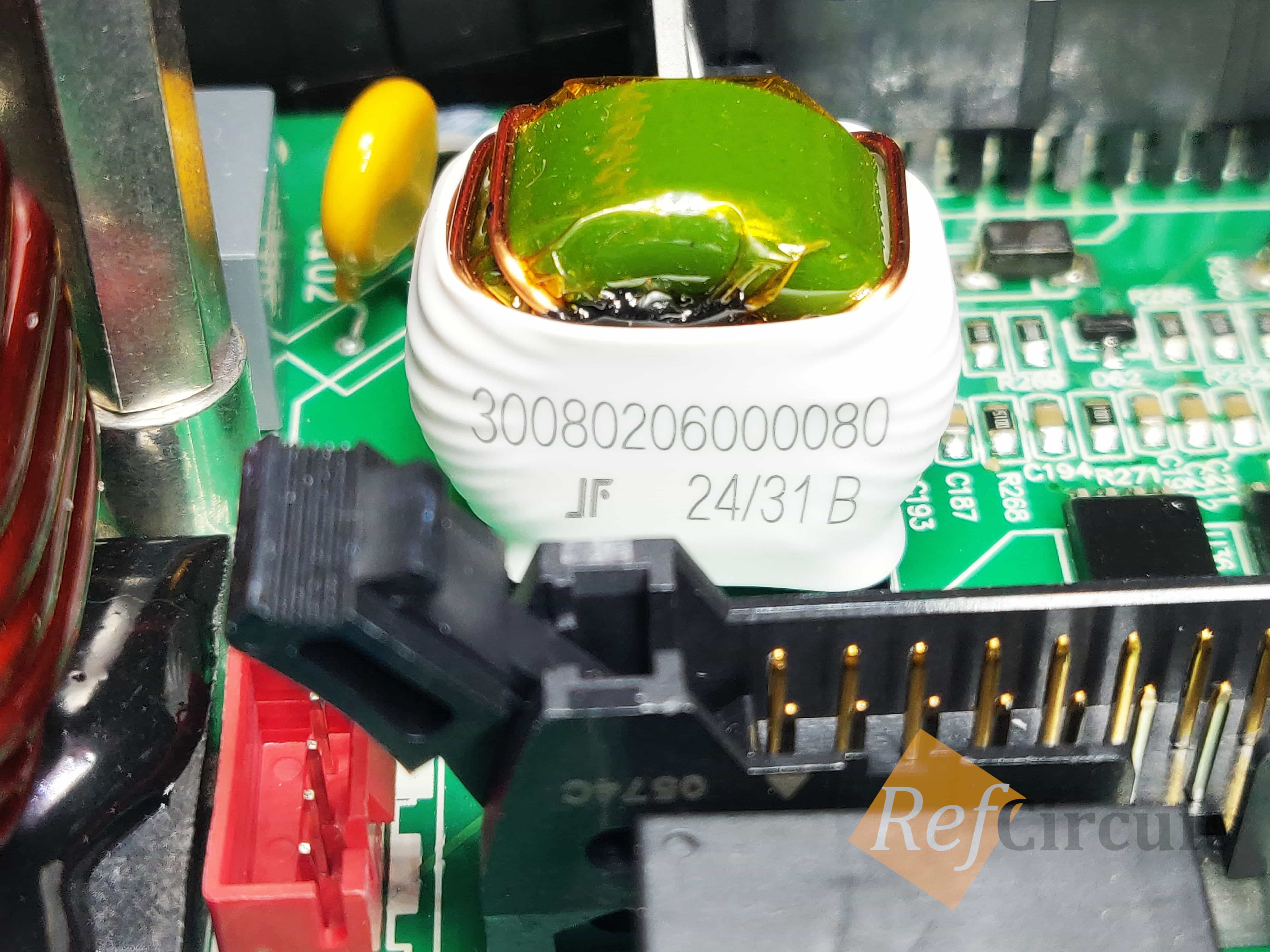

MAIN-V2.6 (2024-07-11)

  • Layers: 4L
  • Thickness: 2mm
  • Size: 264mm x 412mm + 15mm (BAT TERM)

Considering the time it takes to manufacture and assemble, the board is very new.

30210300000752

2024-07-11

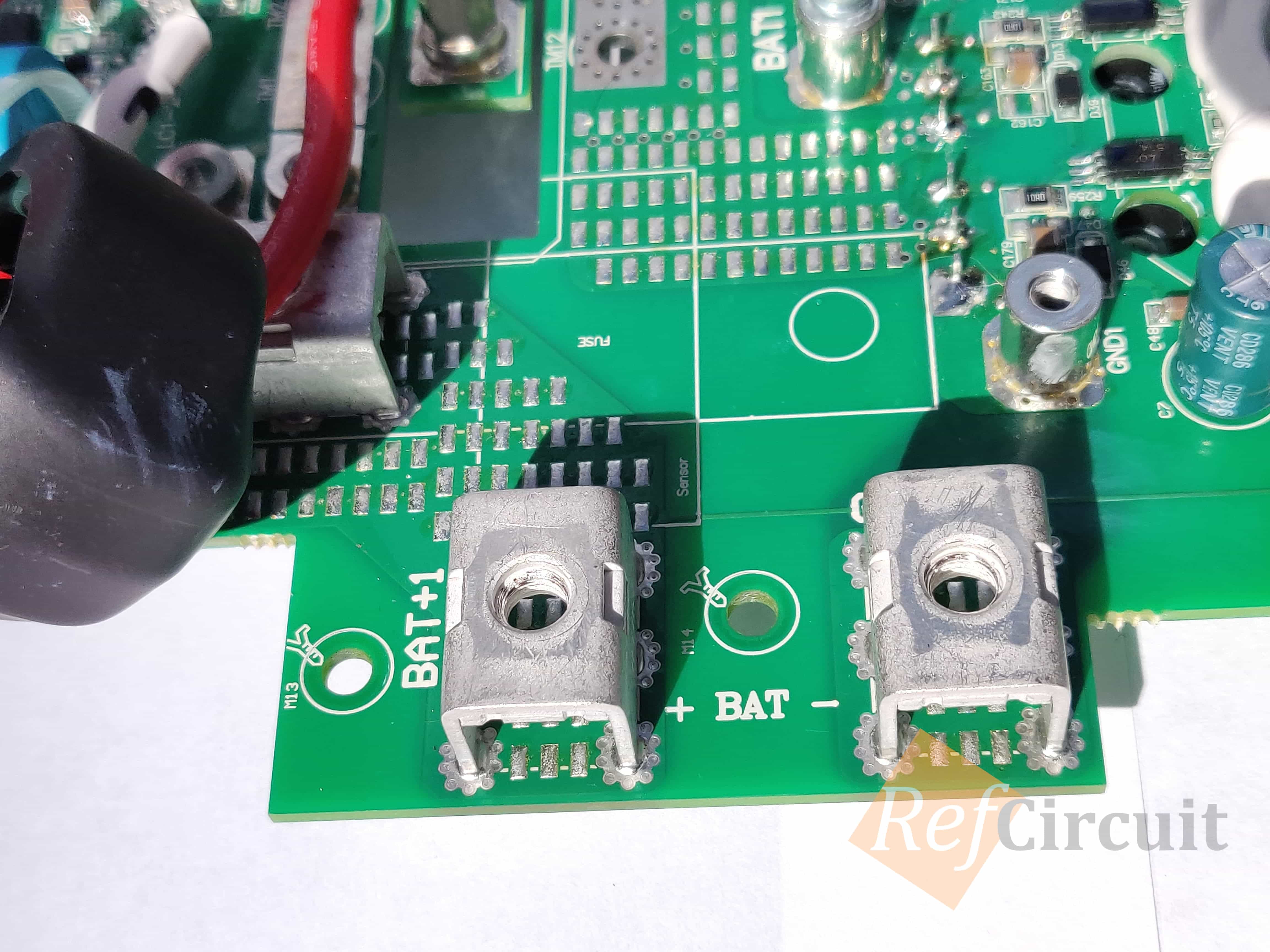

High-current PCB welding terminals M6 for battery connection

Similar part: TM68160200-1300

  • PCB Soldering Terminal
  • M6
  • 240A

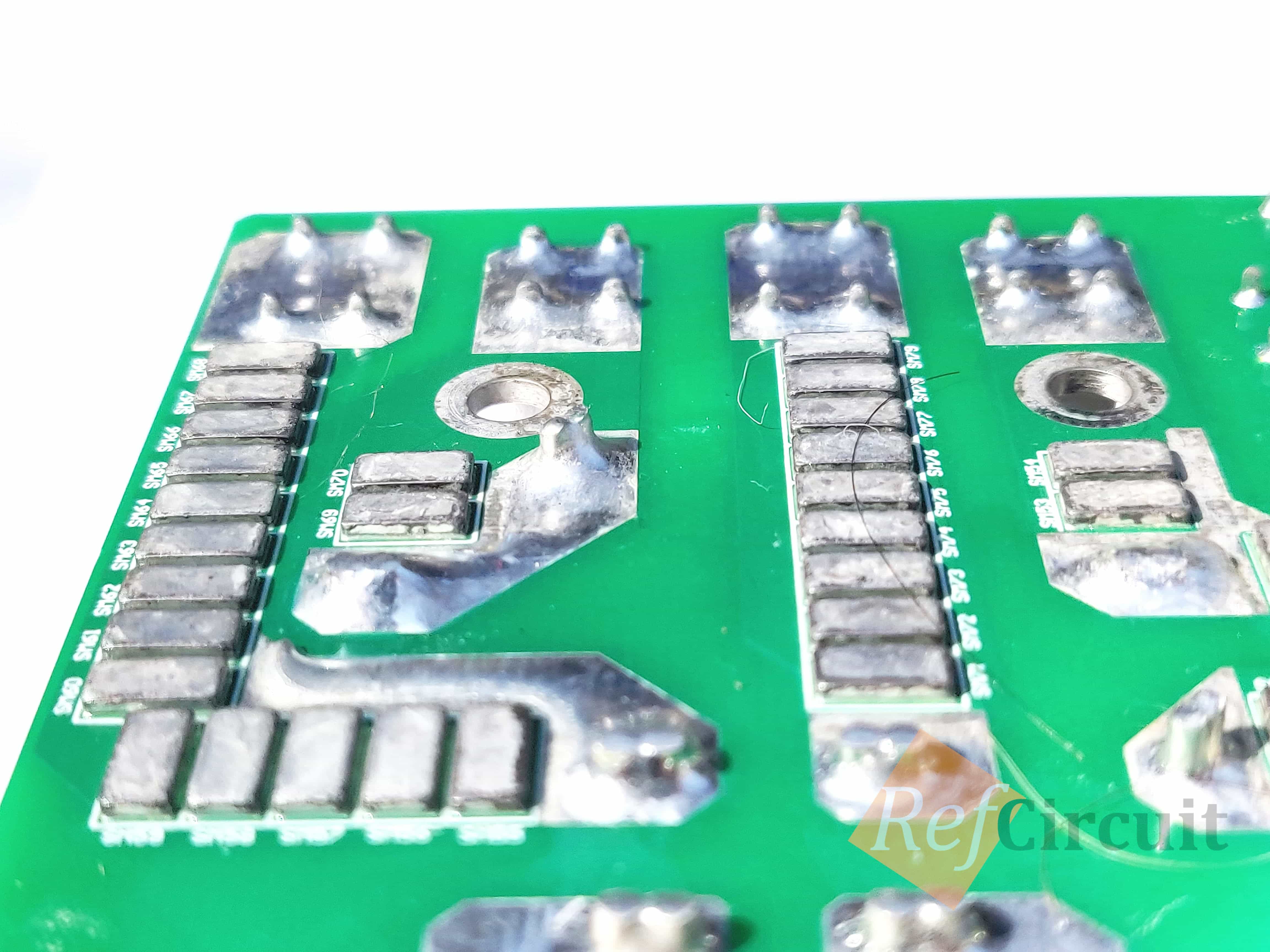

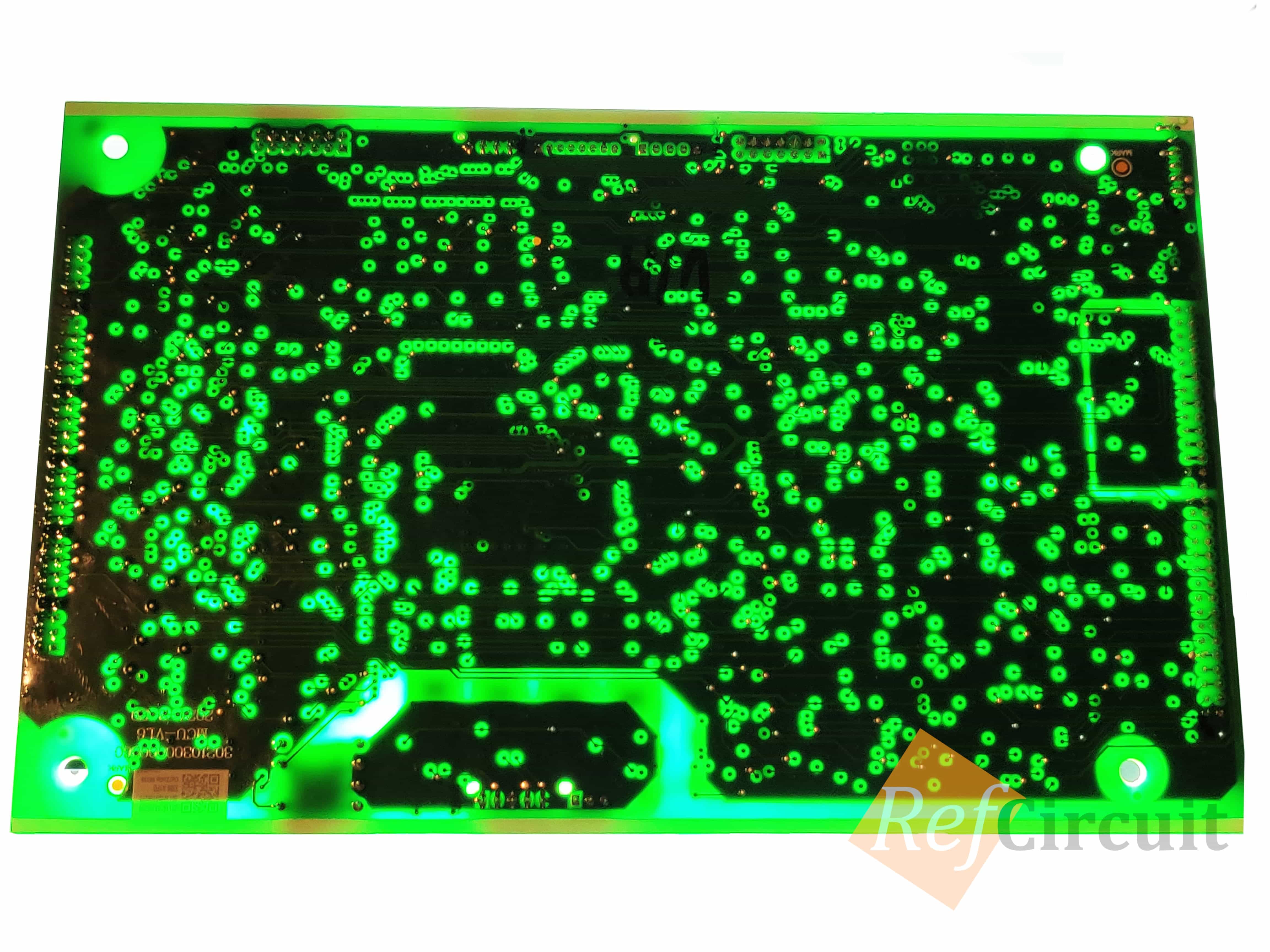

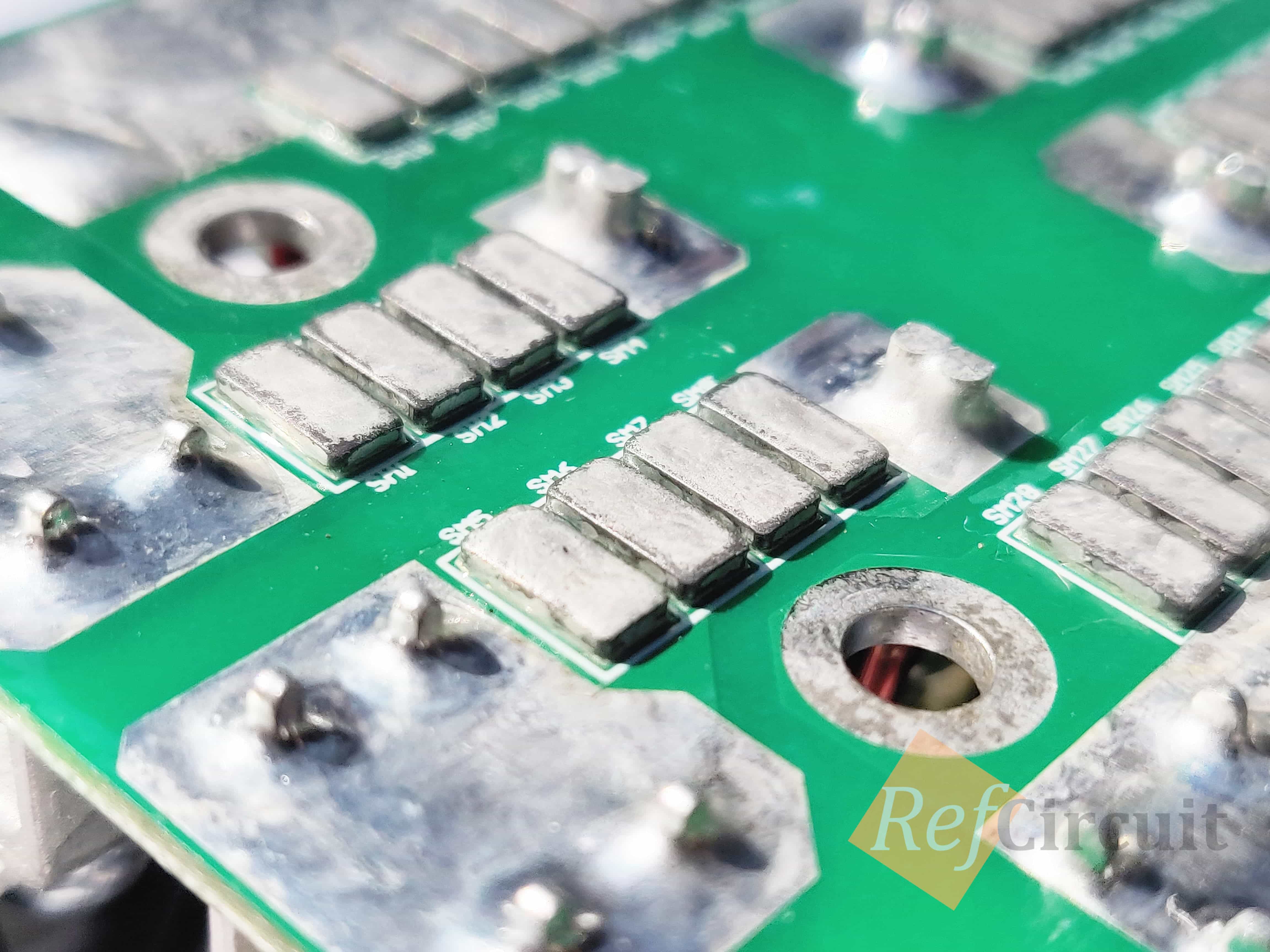

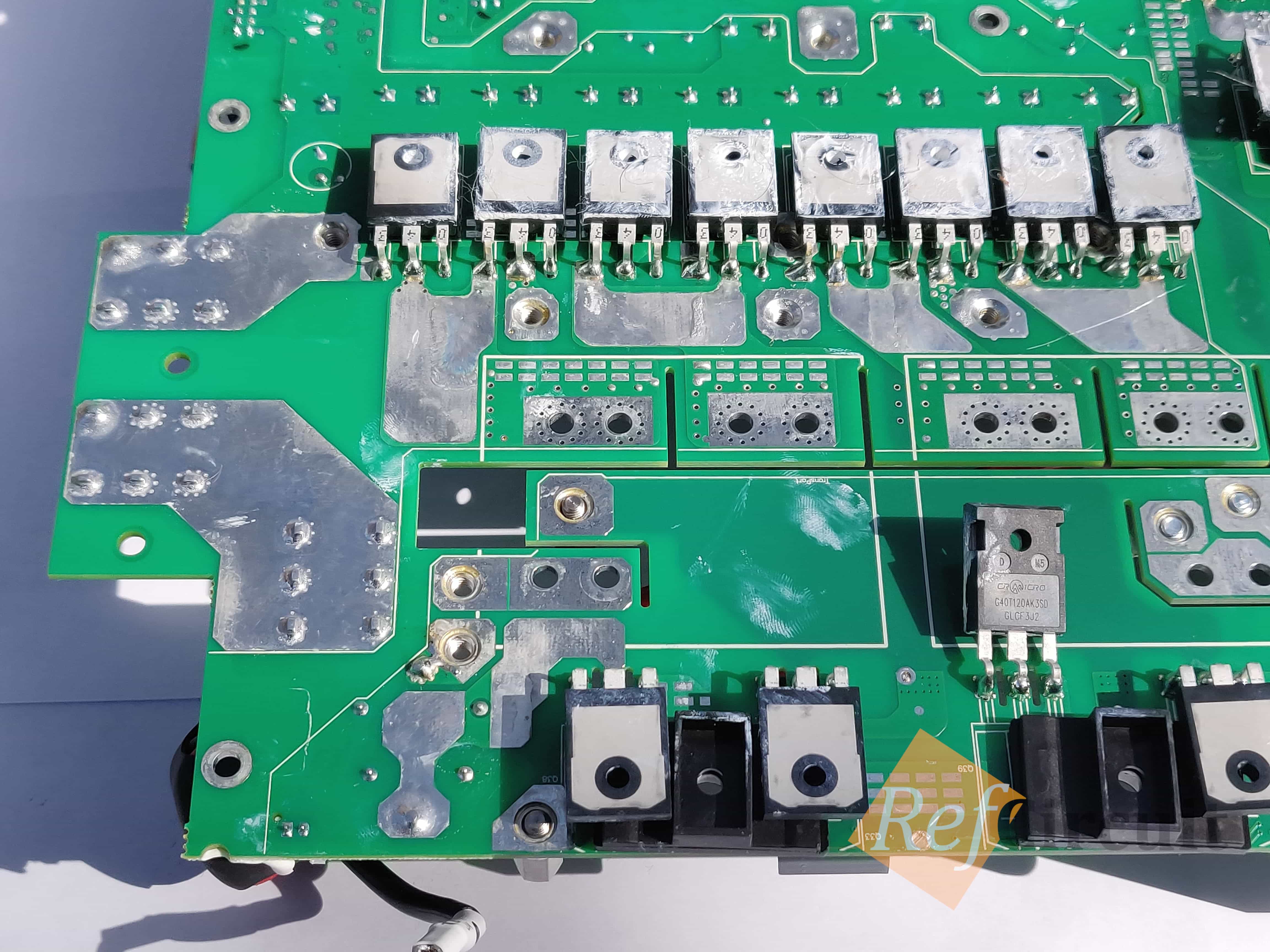

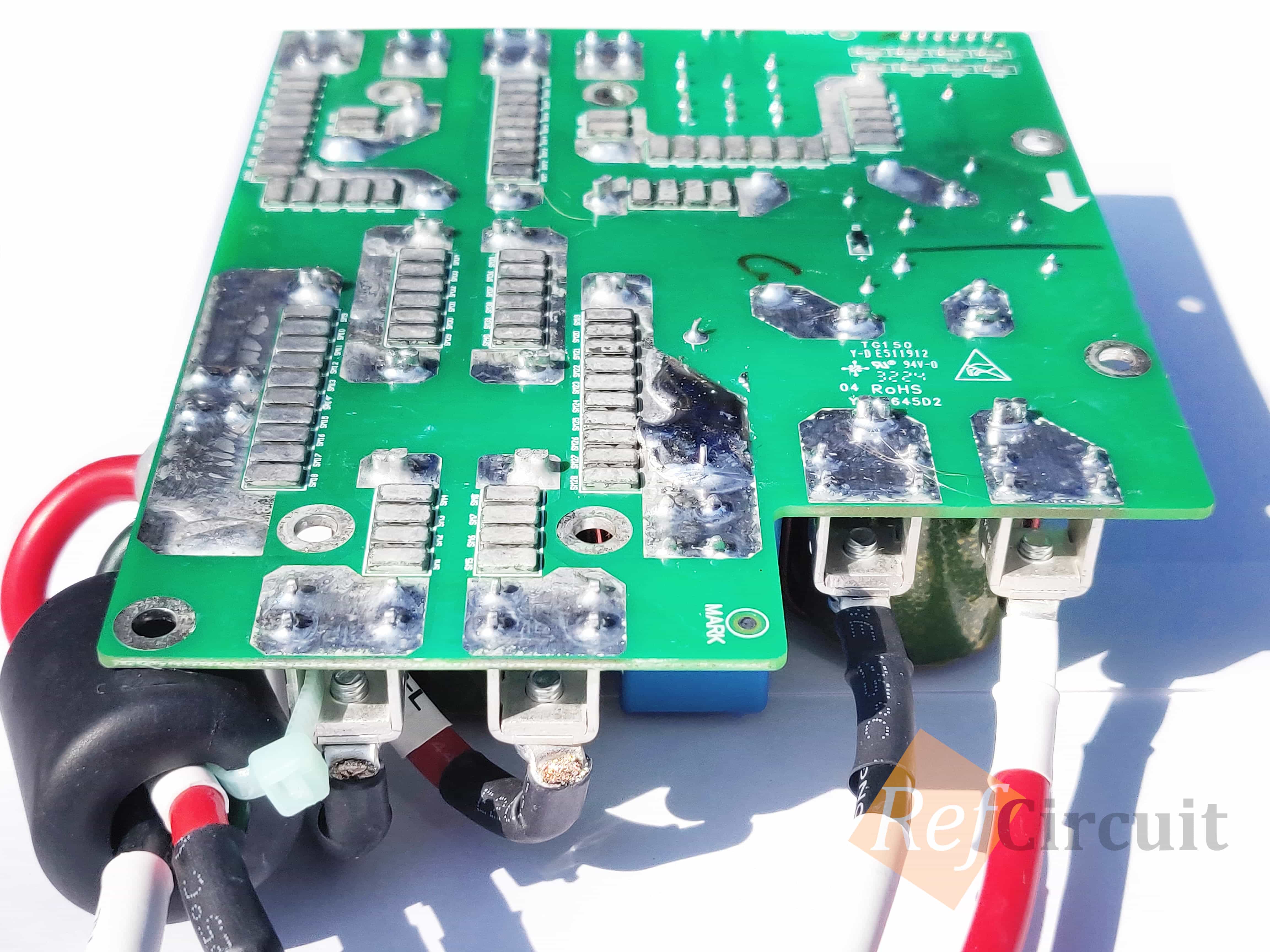

Bottom tracks of battery inputs has no mask to increase current capacity.

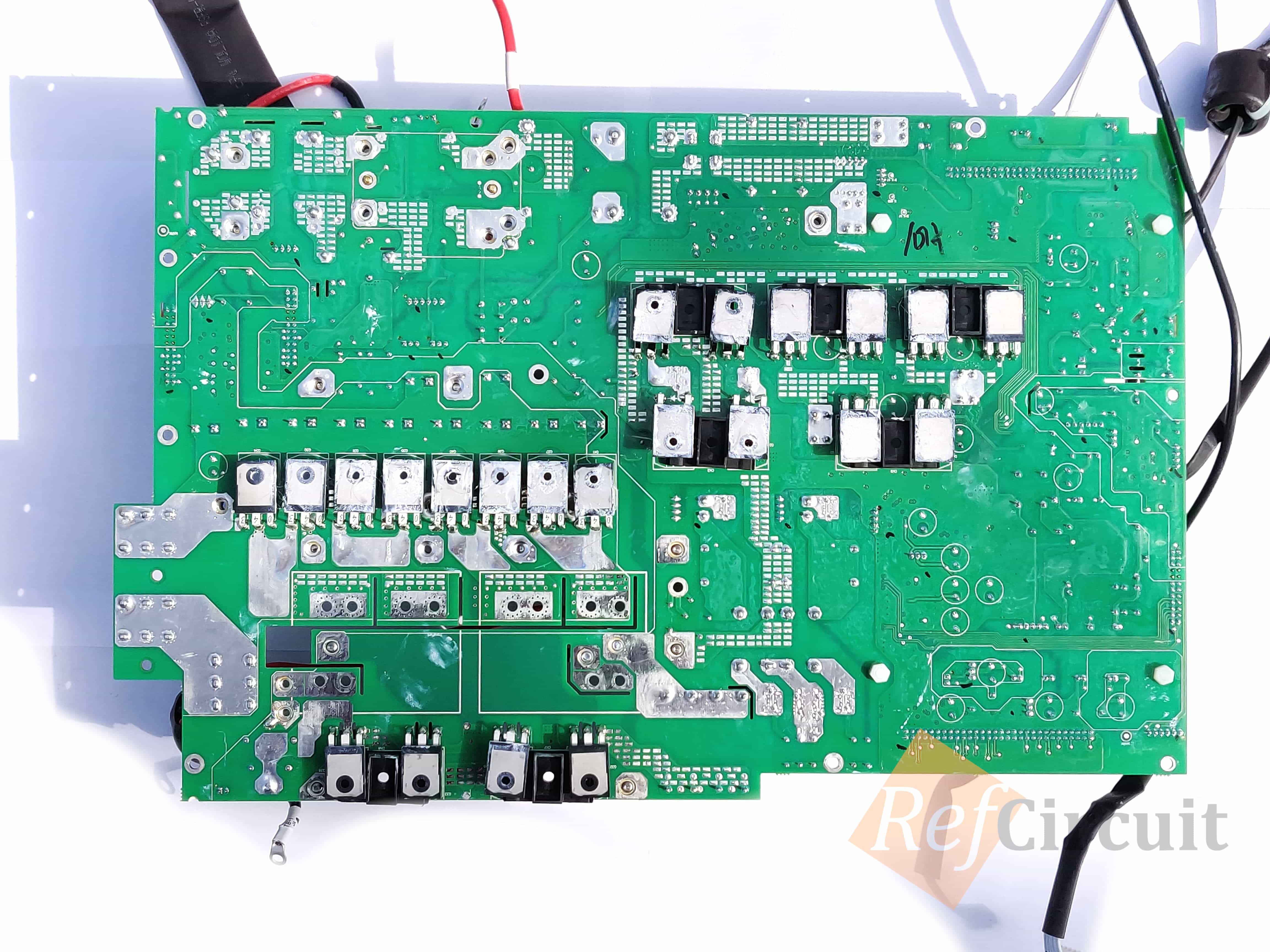

Transistors manually soldered on the bottom side.

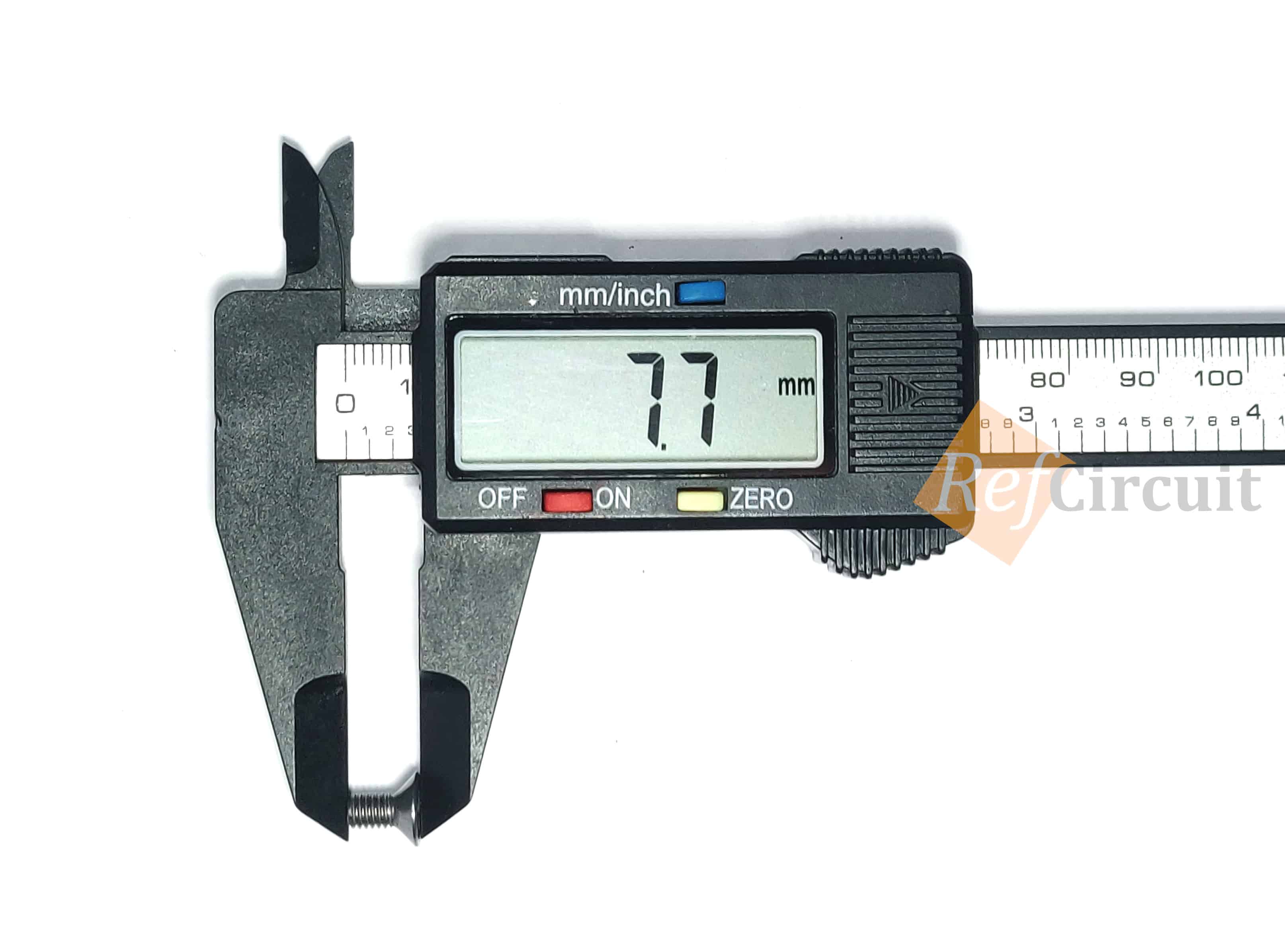

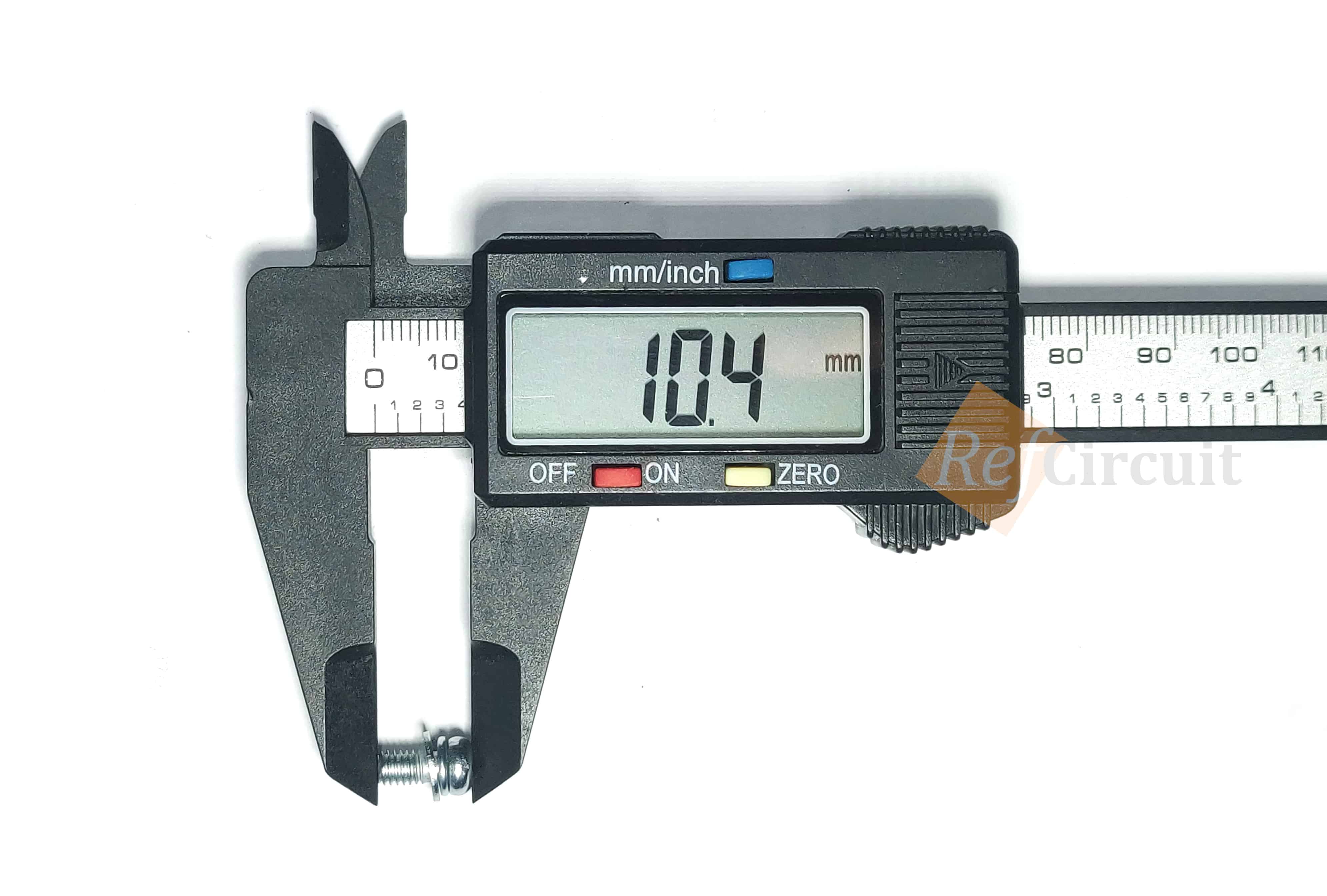

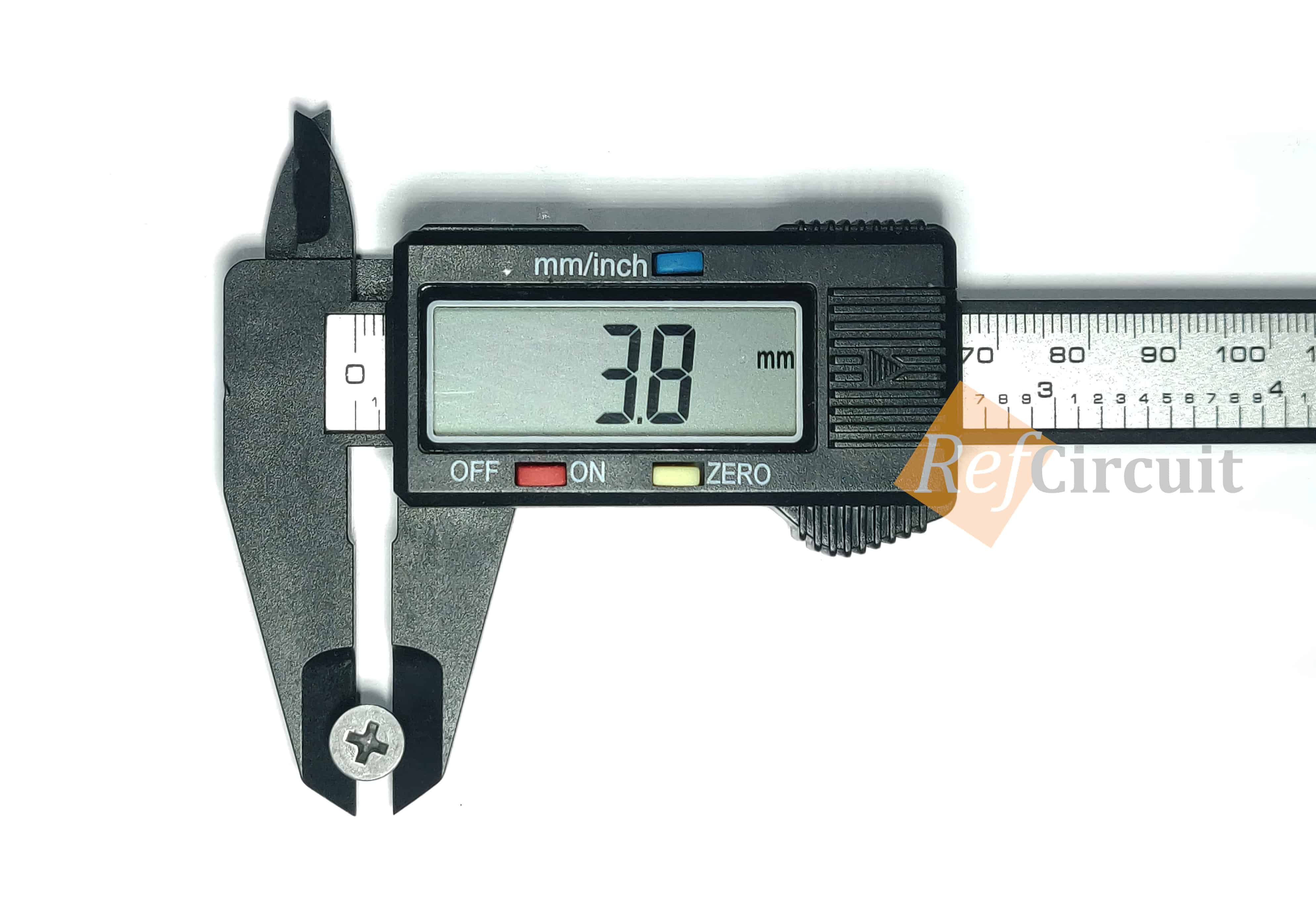

Sime holes plated and electrically connected to the transformer board using screws.

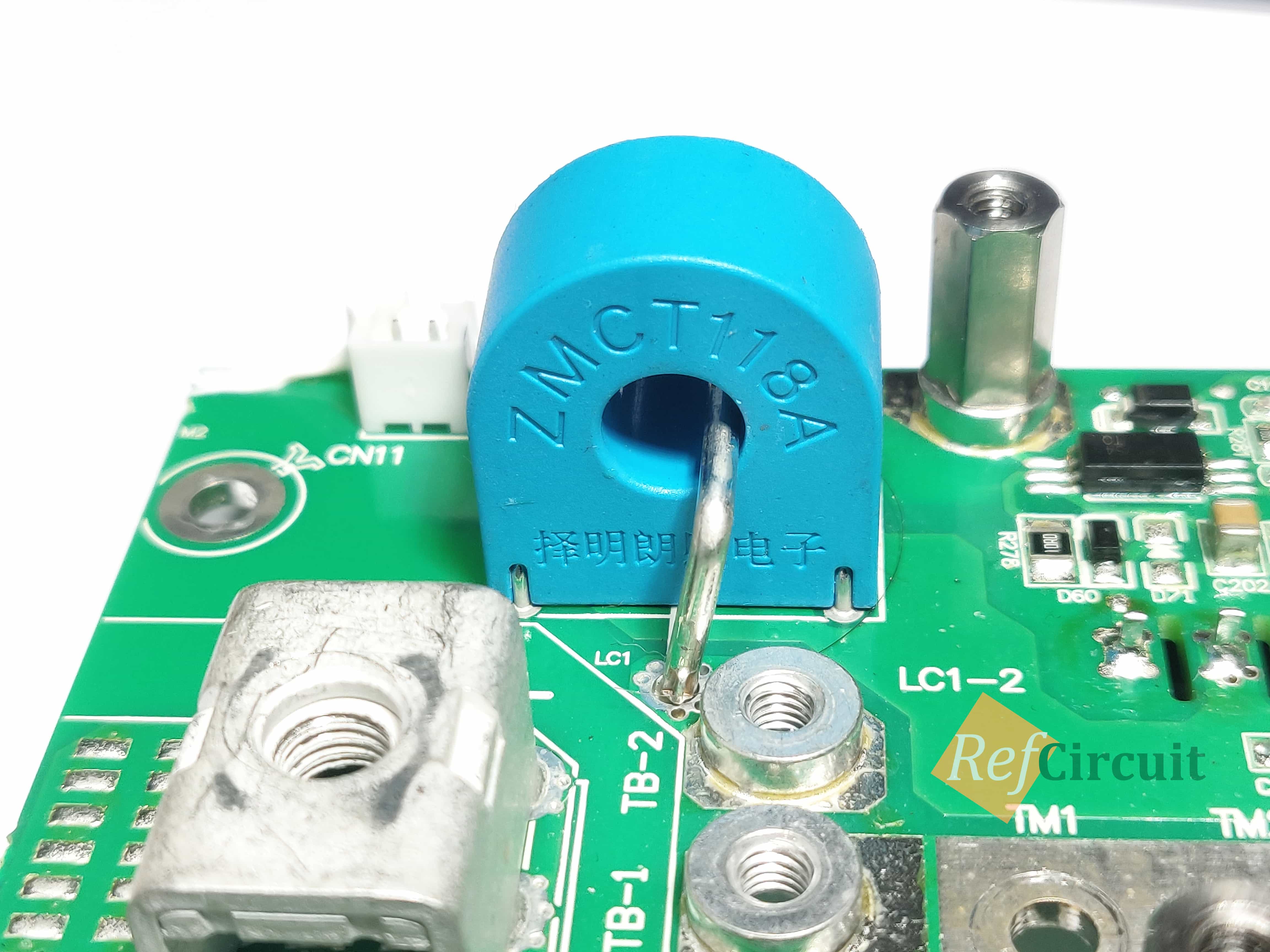

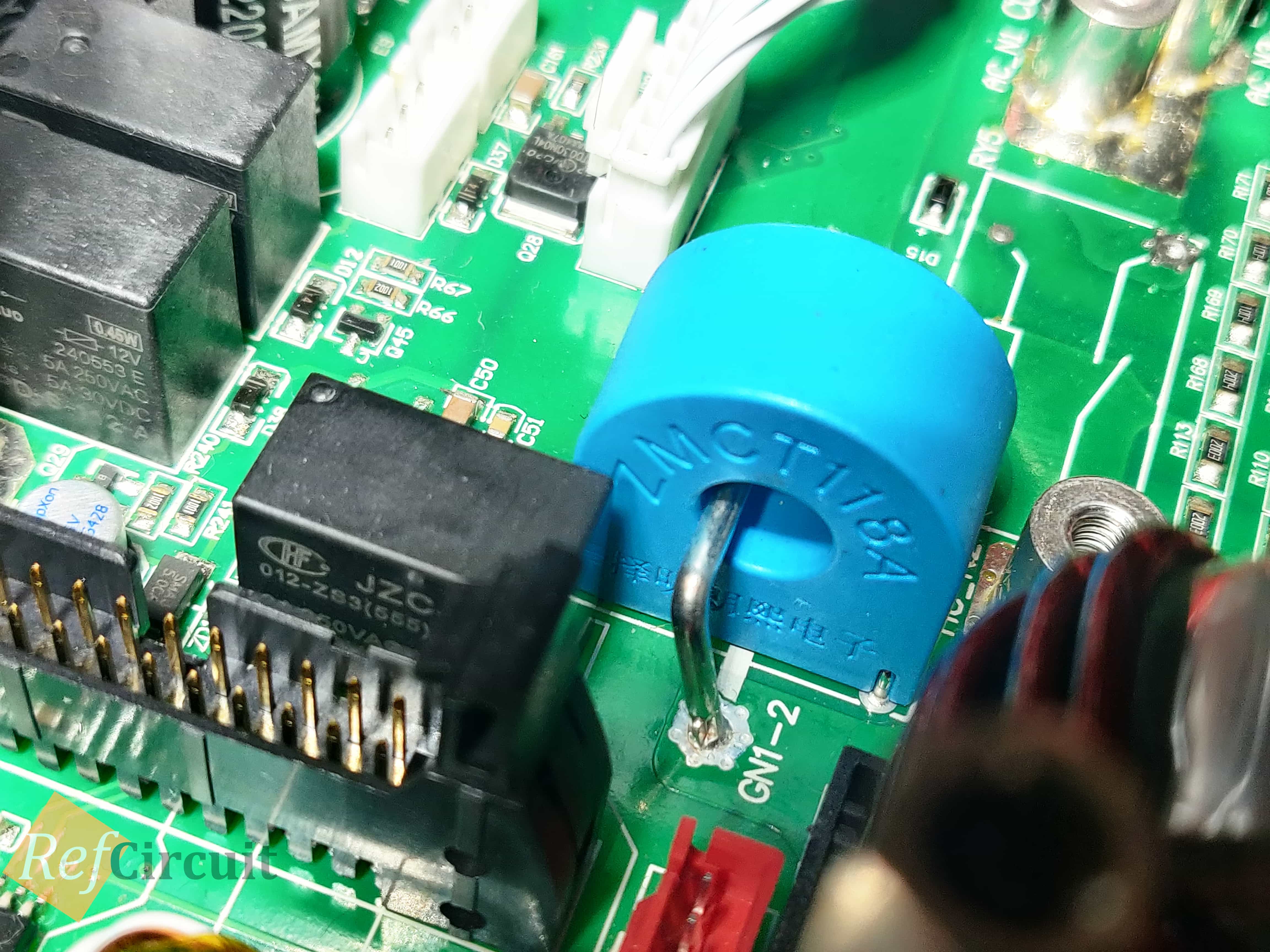

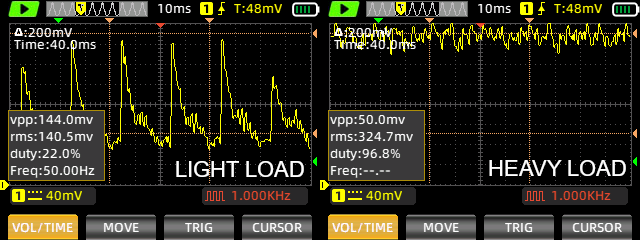

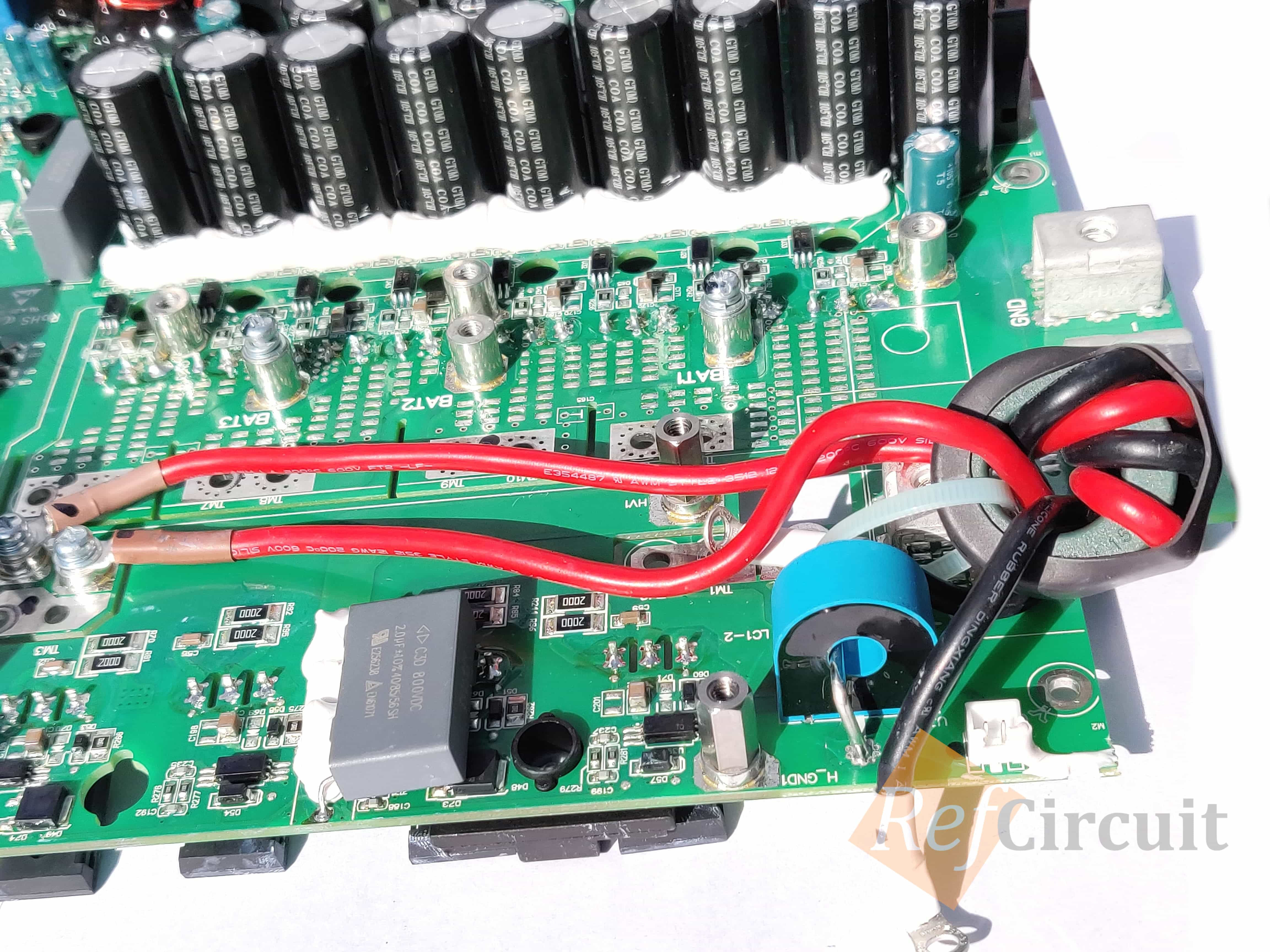

ZMCT118A

Pretty common current transformer (CT).

  1. First on the solar side (between transformer and transistors).
  2. Second on the inverter side.

Specs:

  • 5A (Rated)
  • 2.5mA
  • 2000:1
  • (Need external burden resistor).

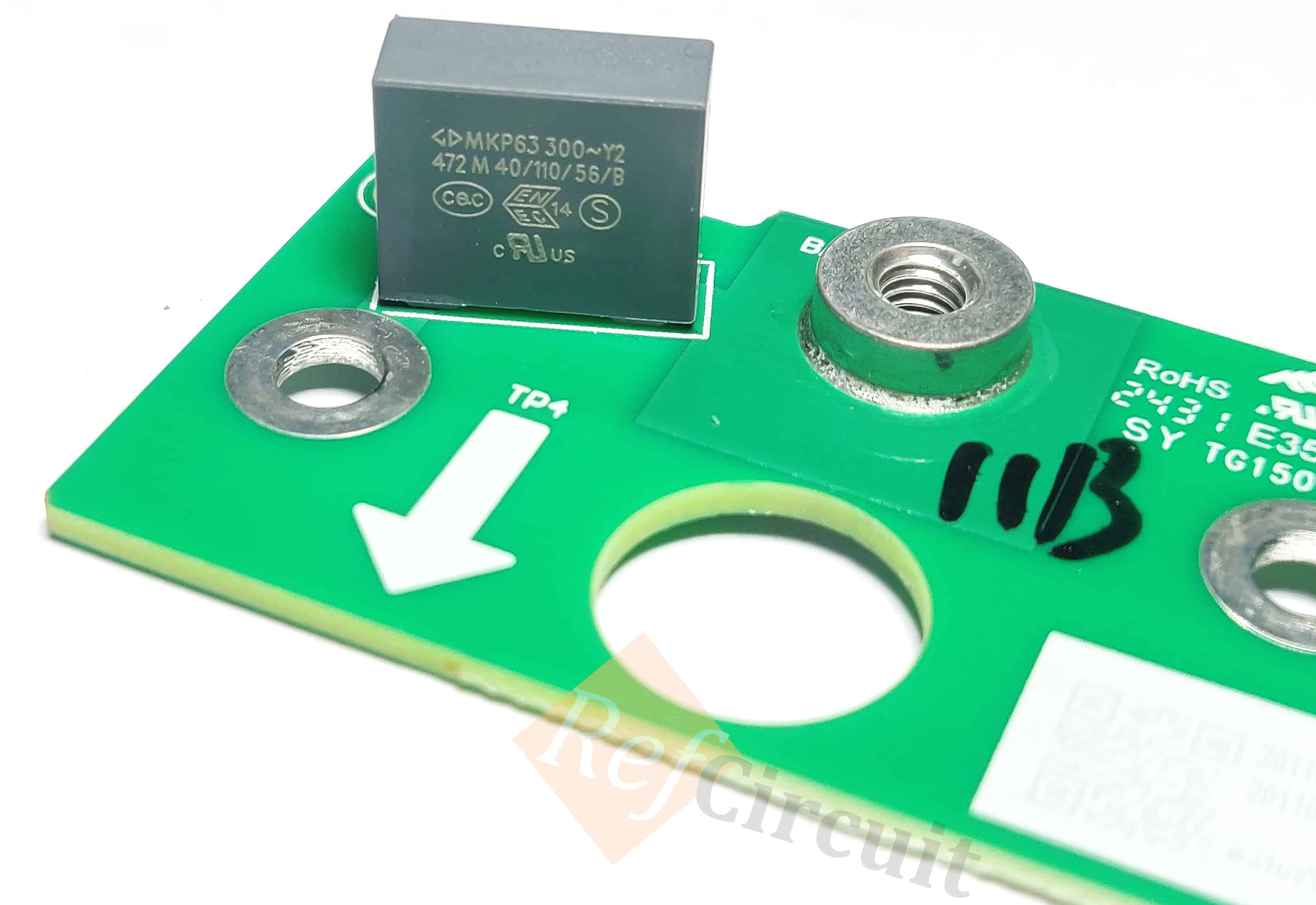

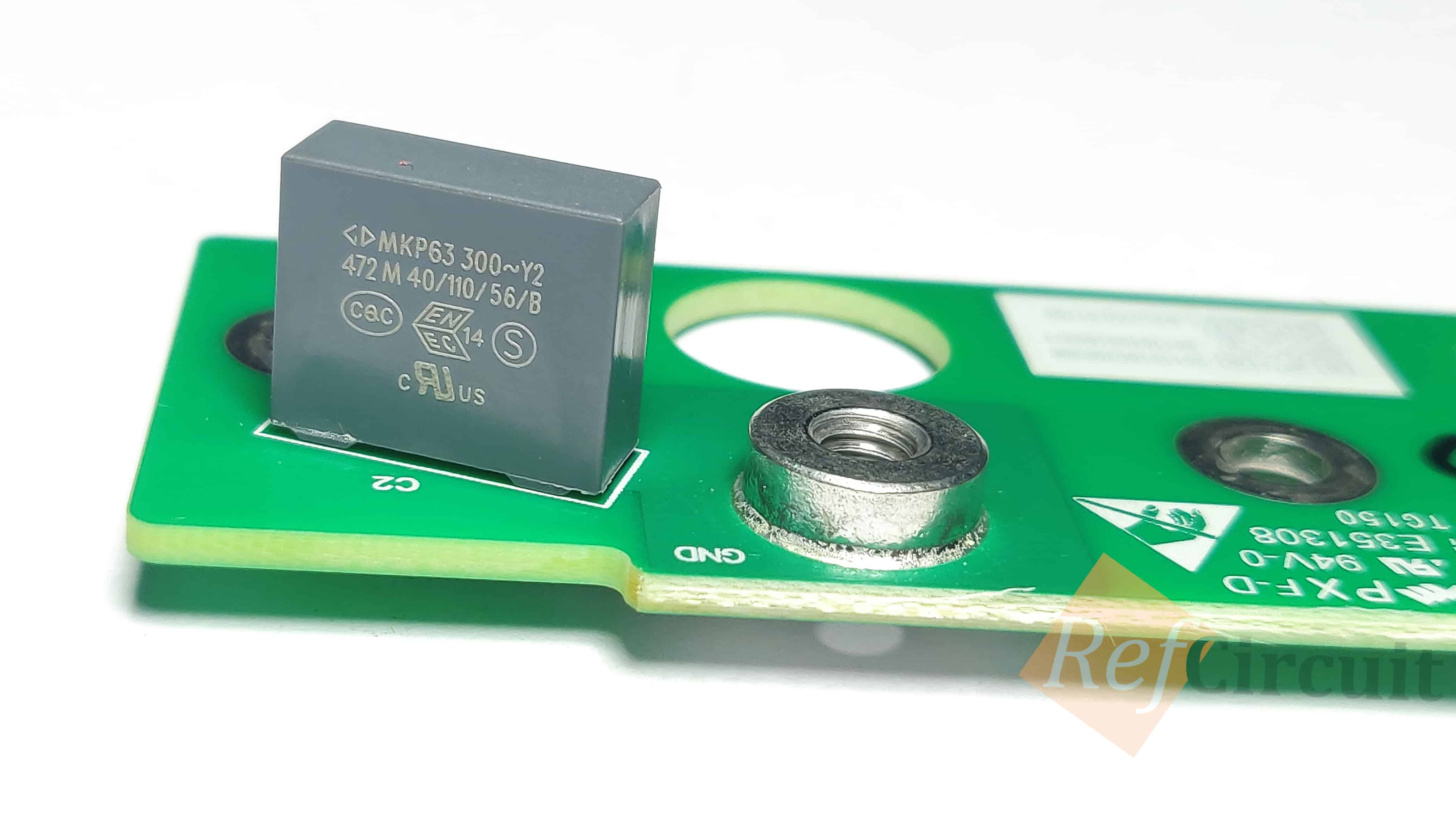

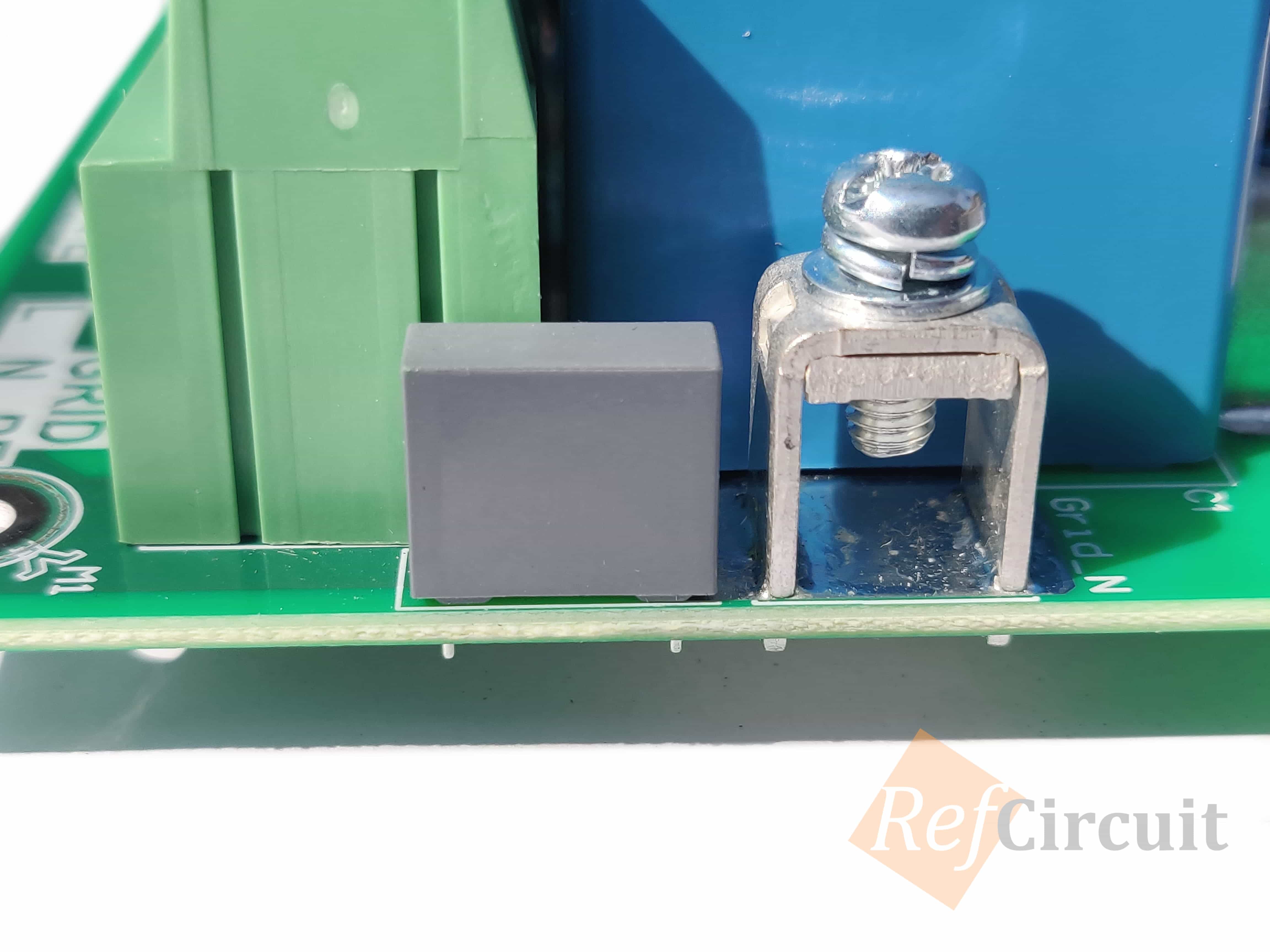

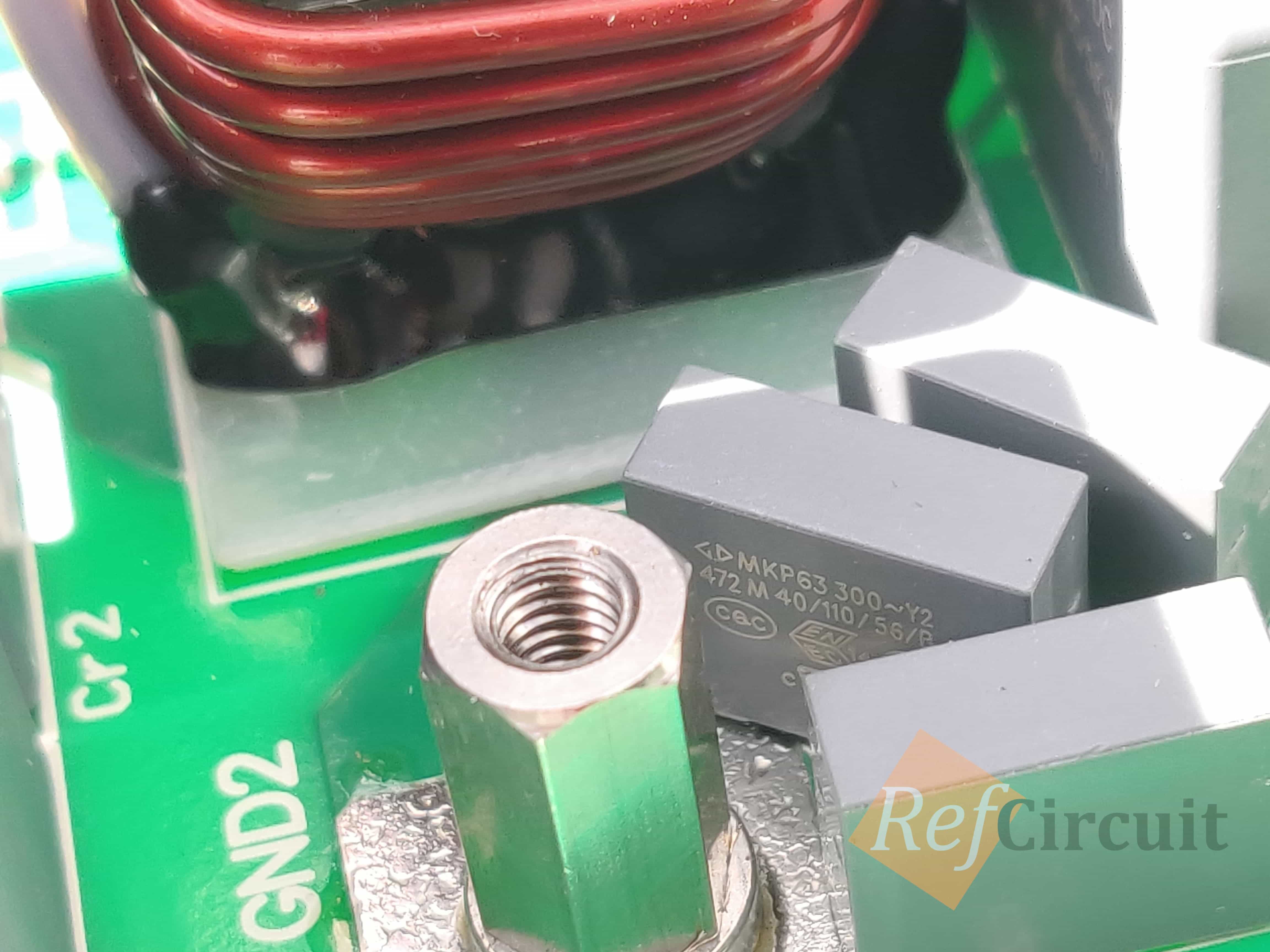

MKP63 300~Y2 472 M 40/110/56/B

In series and between PV- and PV1+/PV2+

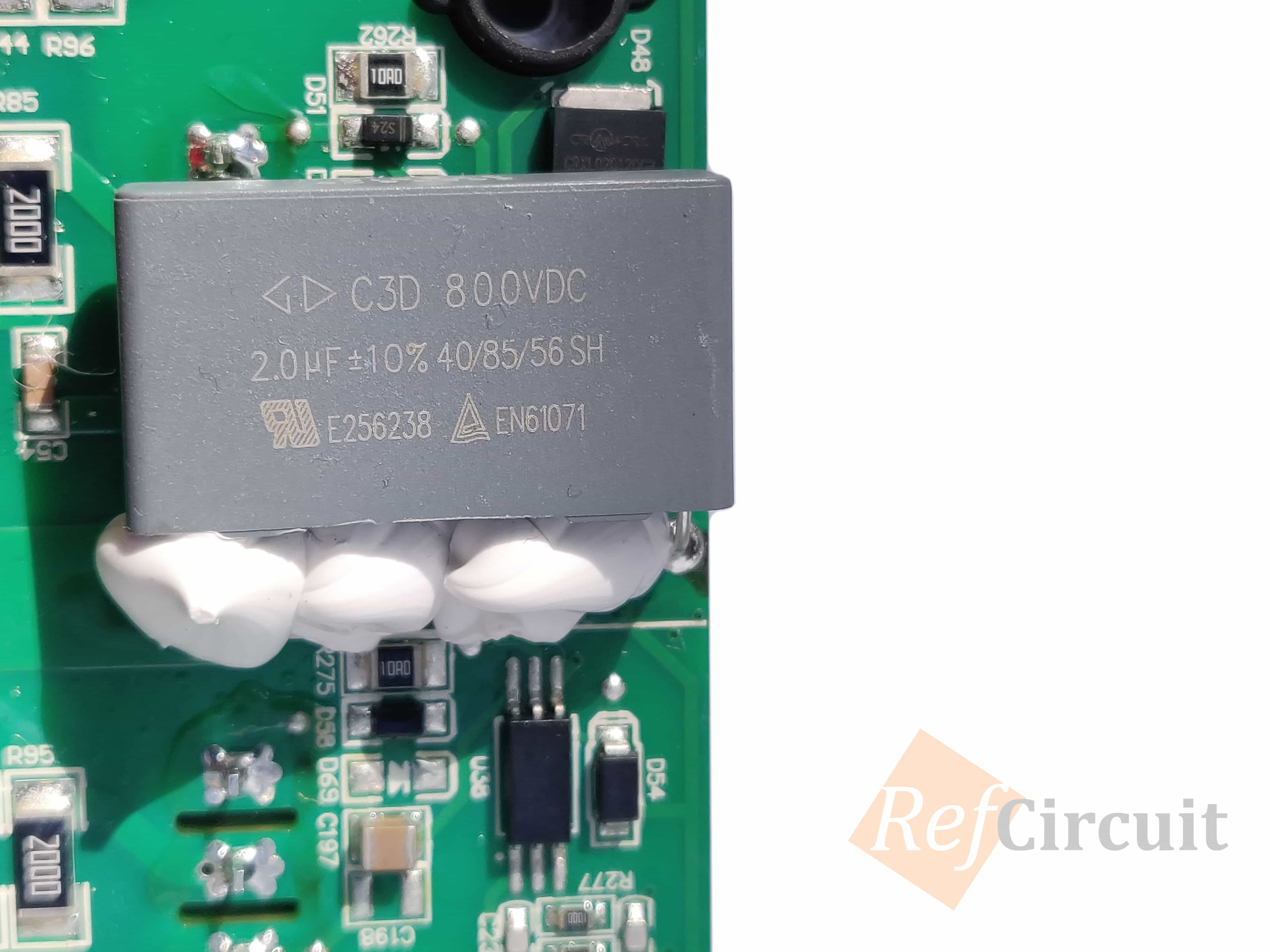

2.0uF 10% 40/95/56 SH C3D 800VDC

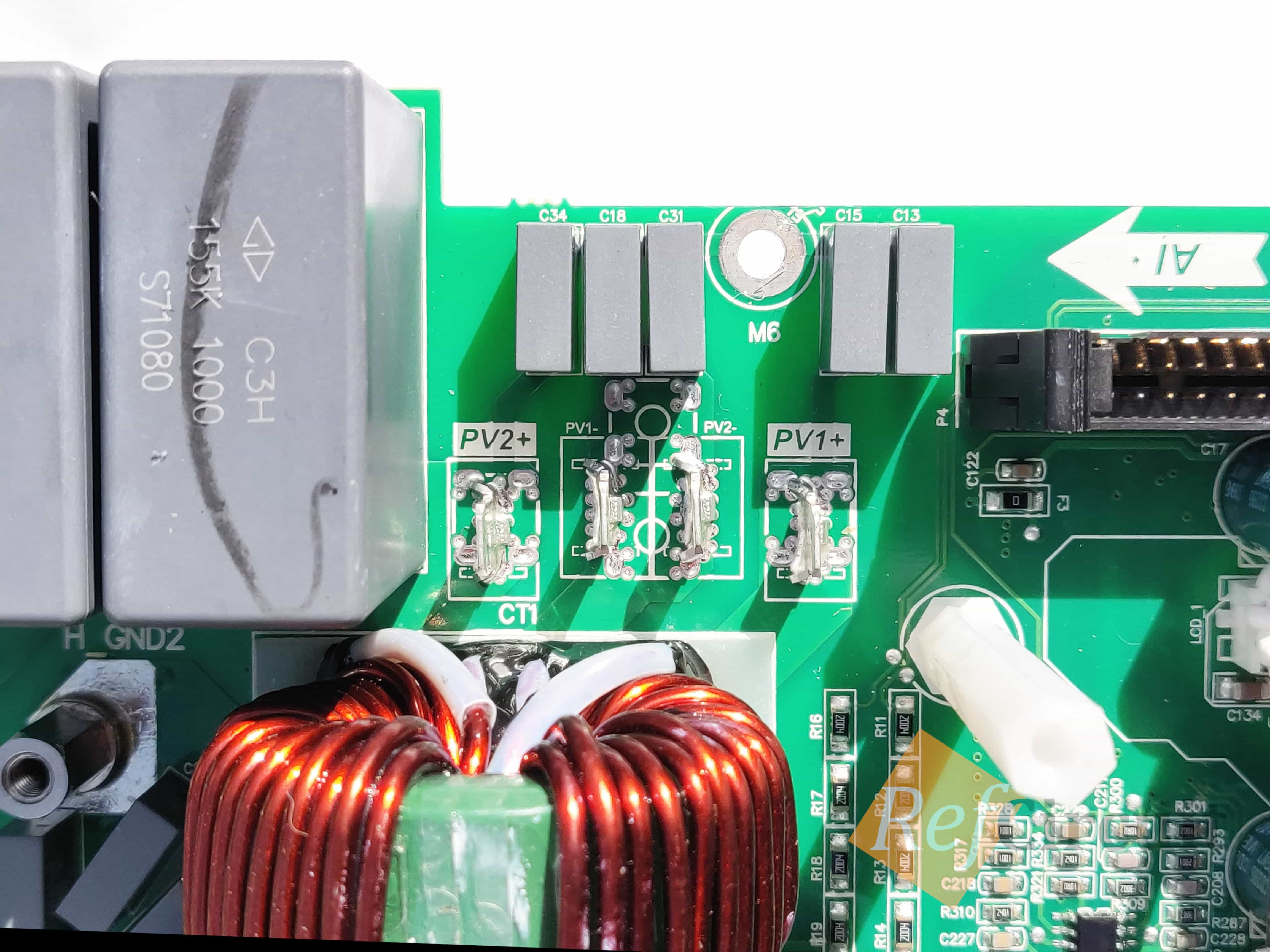

Connection between PV (solar) positive and negative (after filter)

  • LCR: C=1.930uF@1kHz

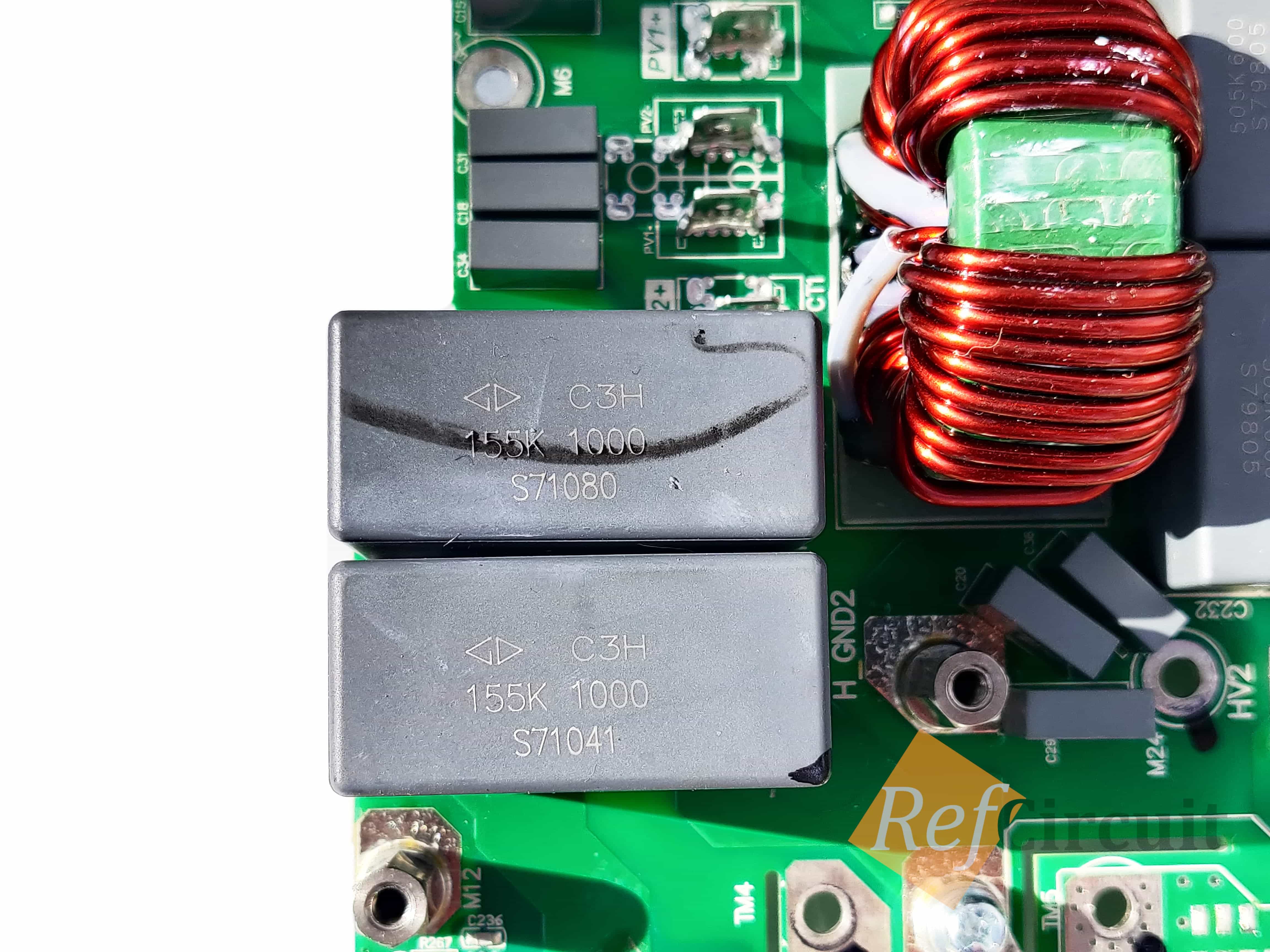

1.5uF 1000V (155K 1000 C3H)

Two in parallel:

Connected in series with HV winding of IGBT switch (resonance capacitor)

  • LCR: C=2.900uF@120Hz

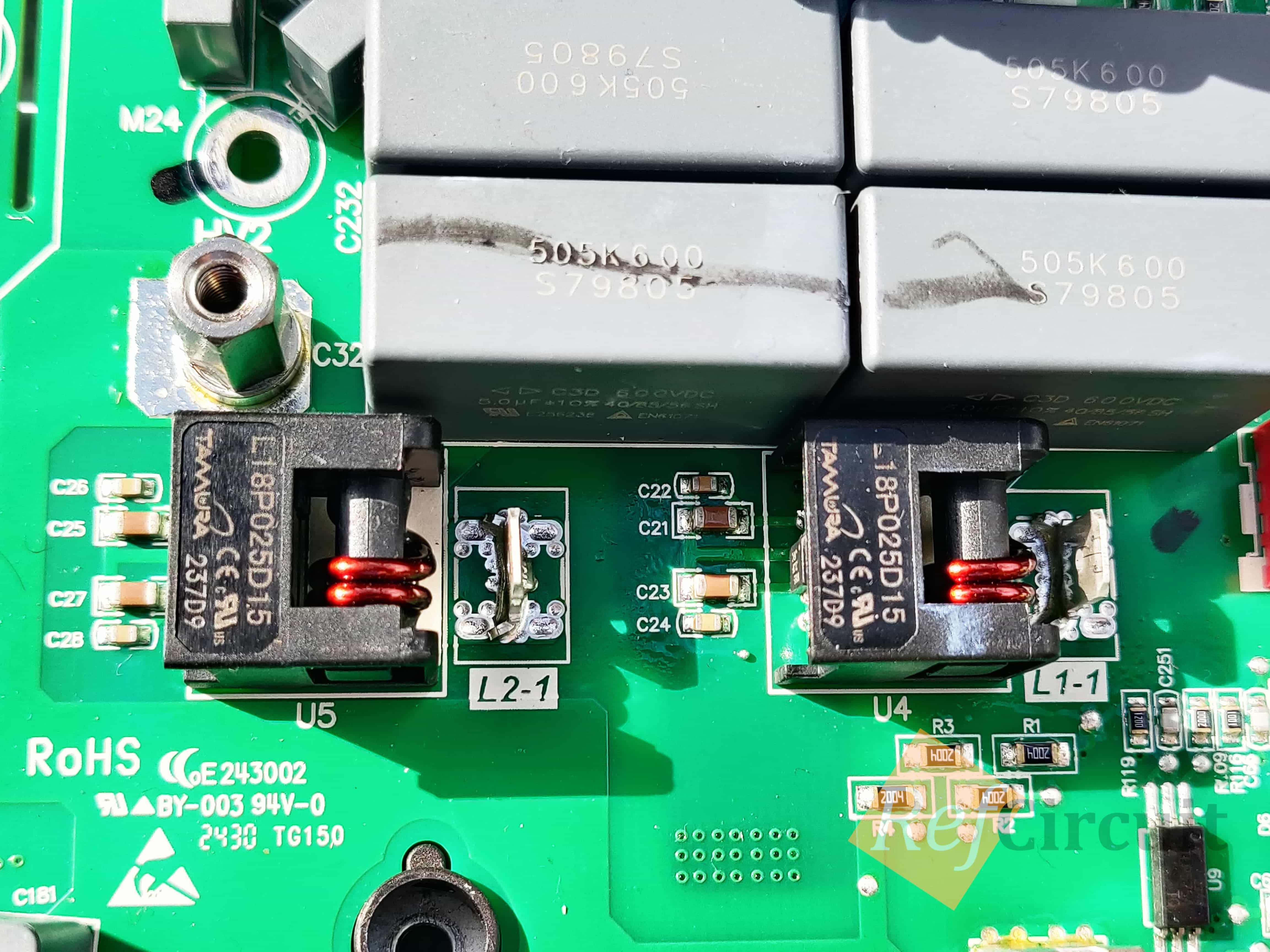

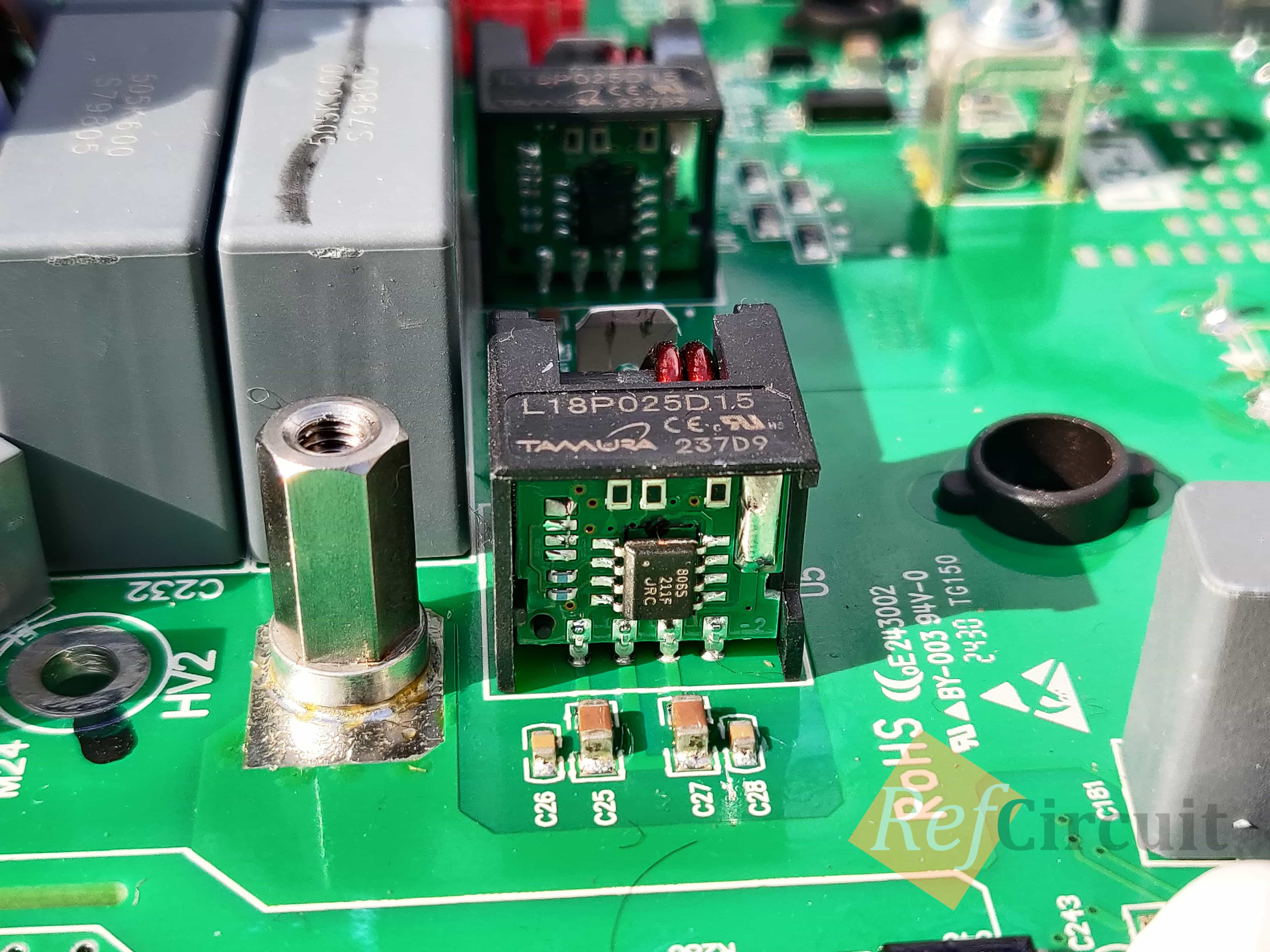

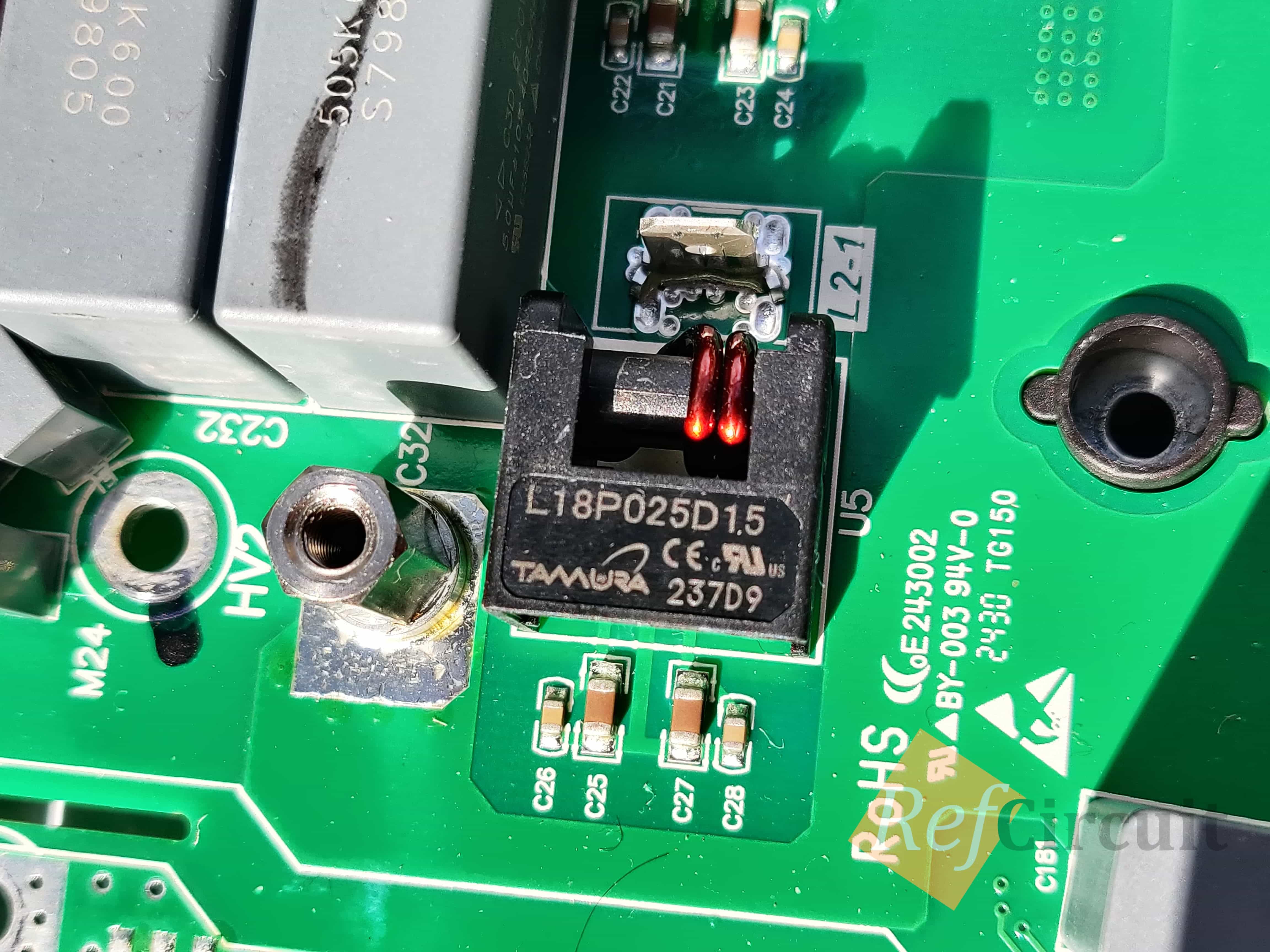

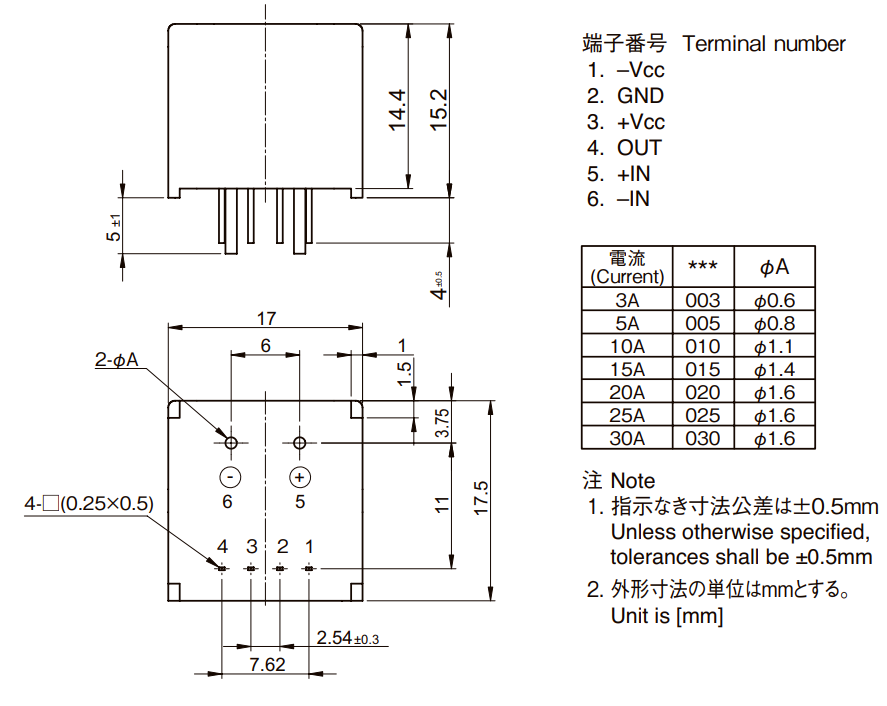

Current Sensor for each PV Input

L18P025D15 TAMURA

  • 25A
  • 15V
  • 0 Hz to 100 kHz
  • Response time: 5us
  • Primary wire: 1.6mm
  • Rated output voltage: 4V
  • Power supply: 15V


L18P025D15.pdf

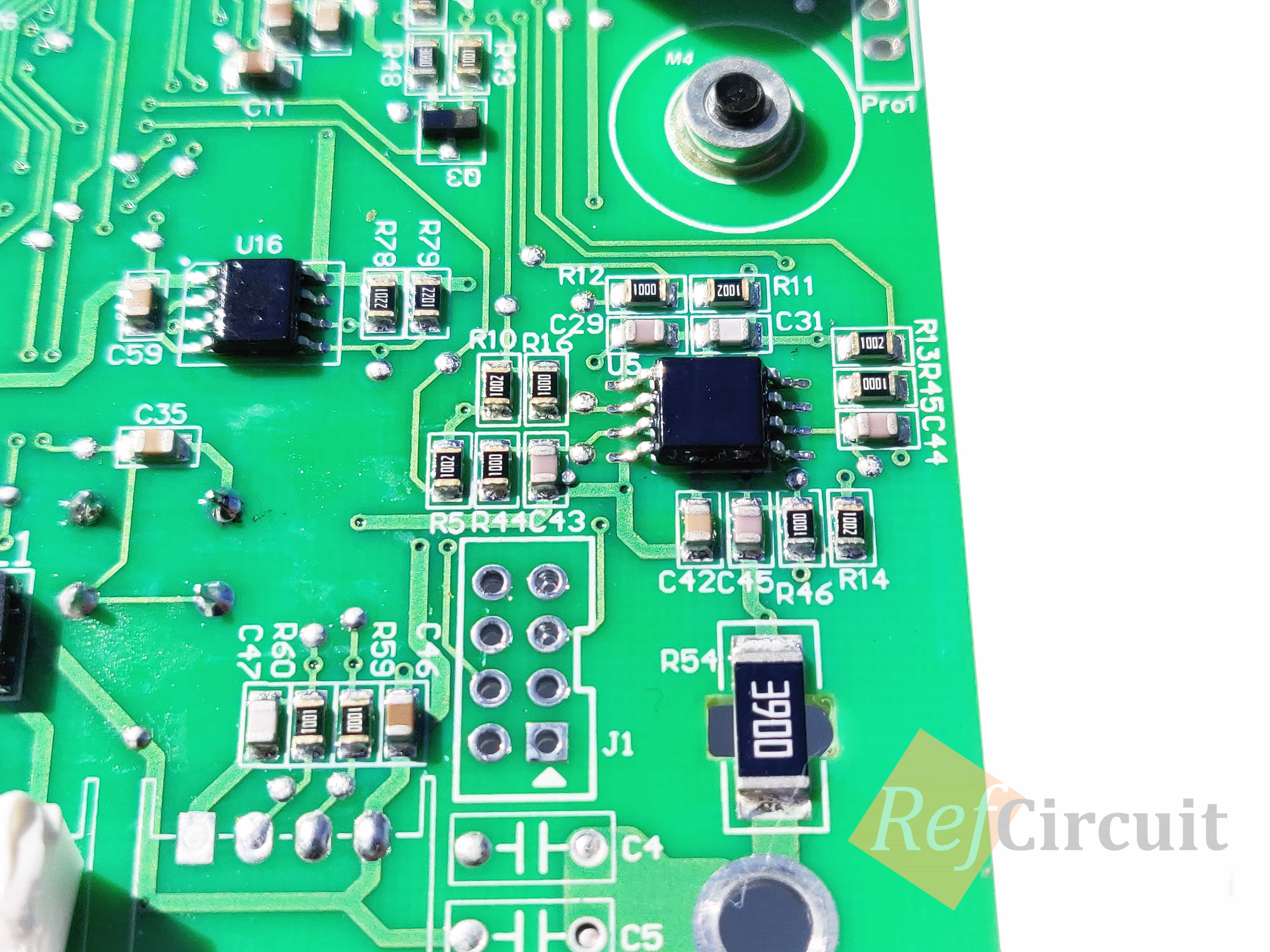

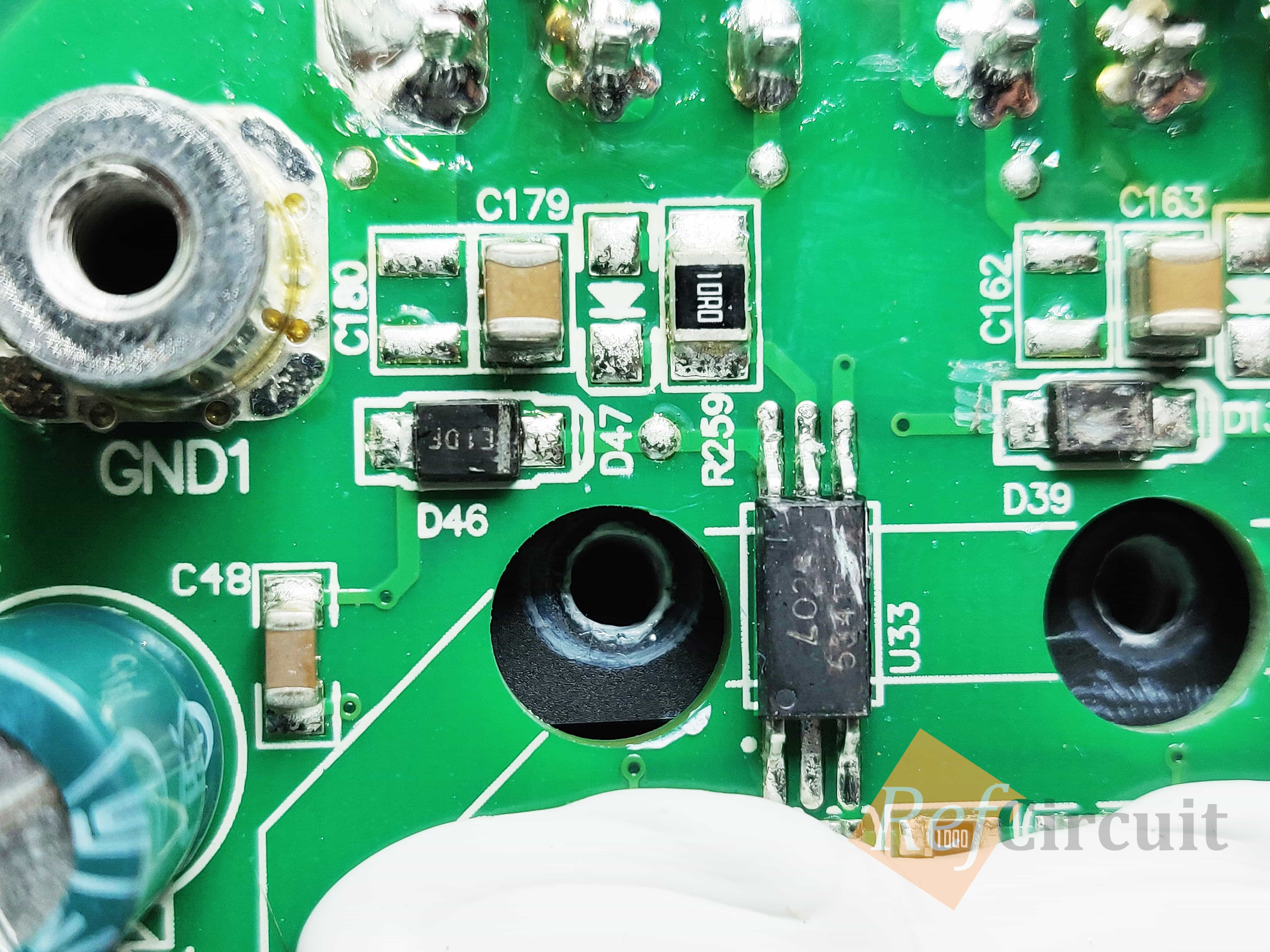

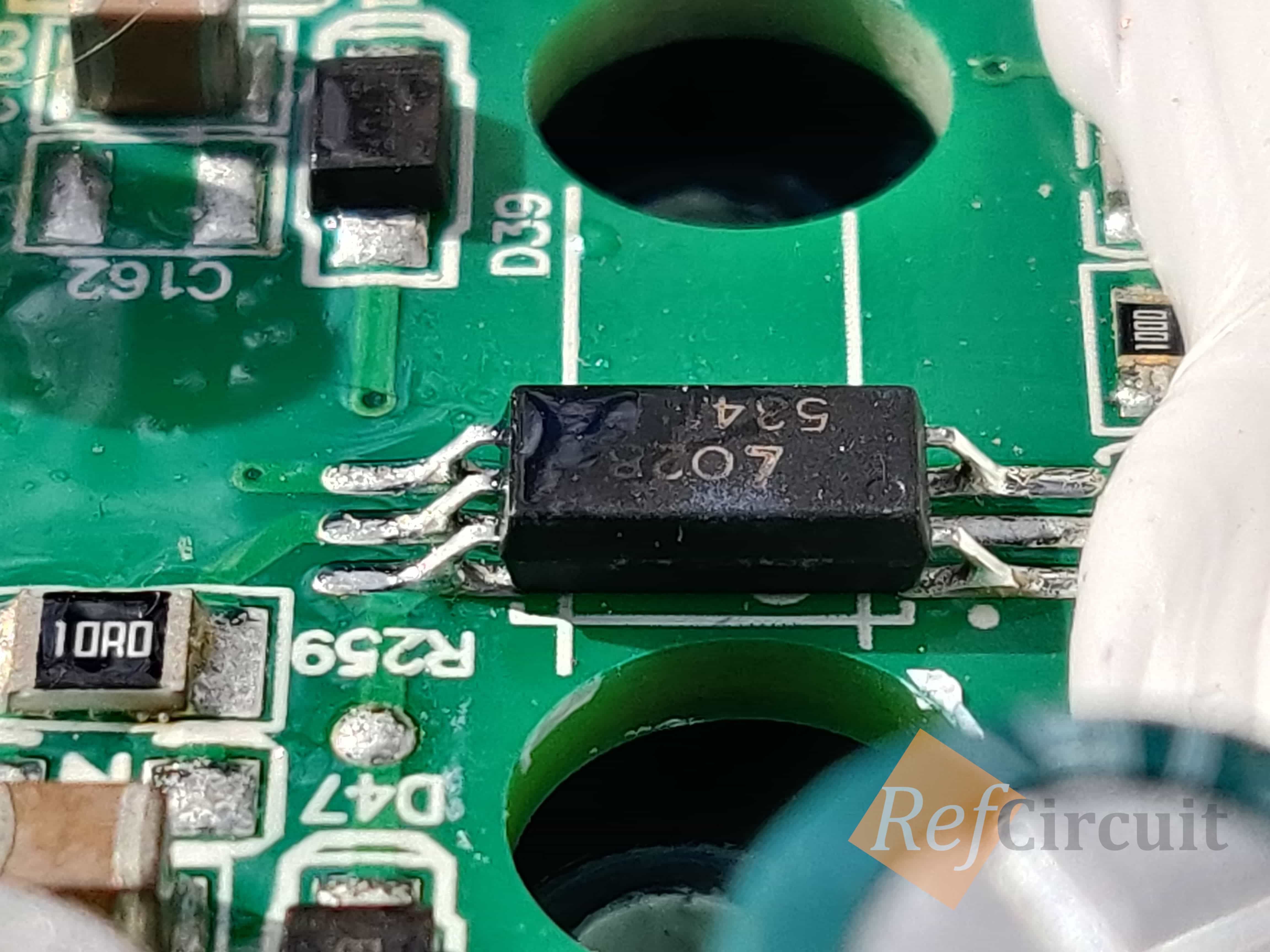

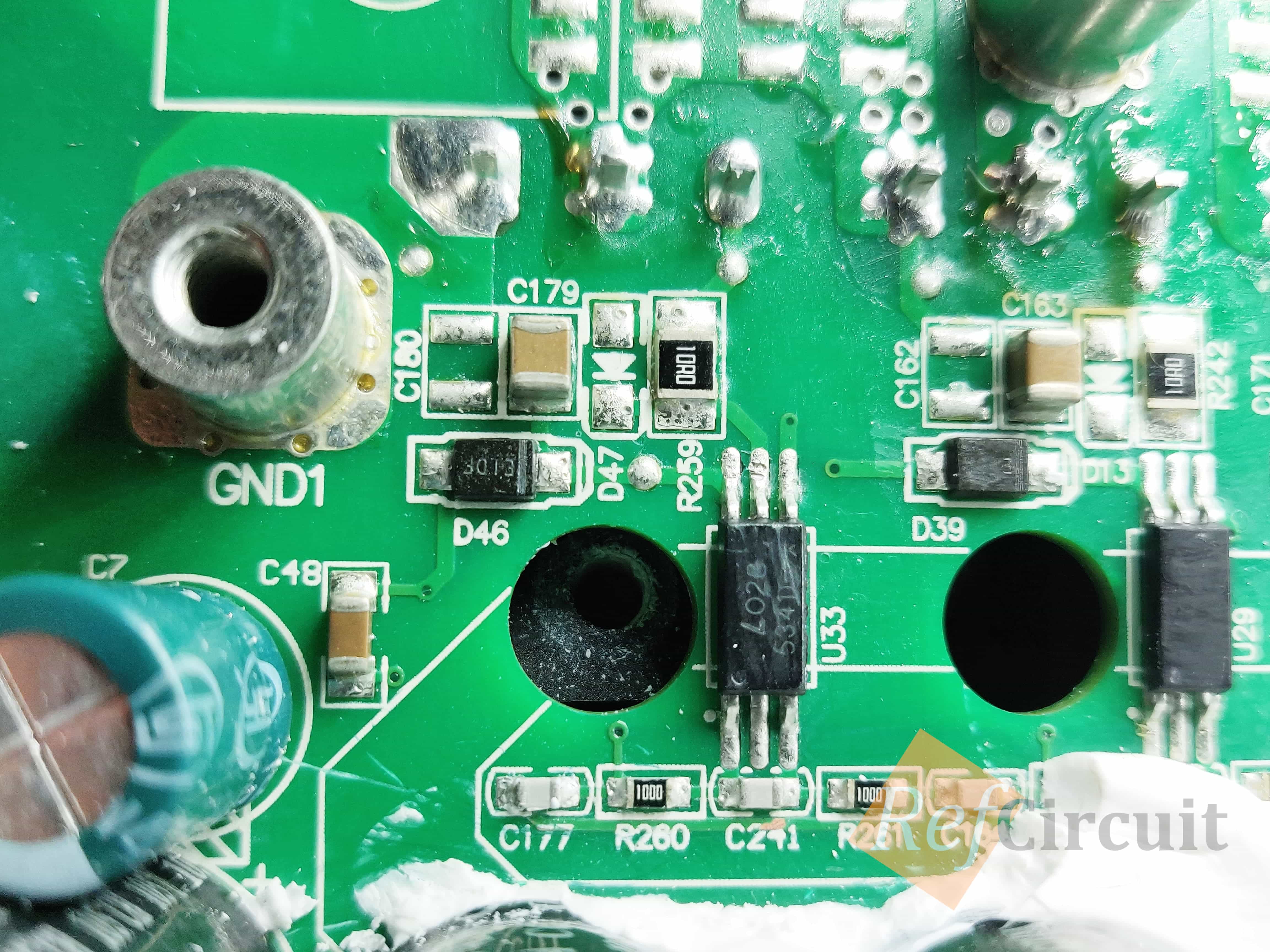

LV SIDE ISO DRIVERS




Battery Side (LV — Low Voltage) Isolated Transistor Drivers

LTV-5341-TP1

  • 15V to 30V VCC
  • 3A (Peak)
  • 150ns (Propagation Delay)
  • SOP-5-300mil

Driver's input have high-frequency filter:

  • 10nF 0805
  • 100 Ohm 0805
  • Fast-discharge diode not installed (DNP)
  • Capacitor 10uF 1210 used as local fast energy source for powering driver; Second capacitor not installed (DNP)
  • Resistor 1 Ohm 1210 connected between driver output and transistor's gate
  • E1DF diode connected in series to power (30A 35ns 200V 1V@1A 1A SMAF(DO-214AD) )

Additionally, to provide stable voltage during current spikes drivers have (before diode):

  • Electrolytic capacitor 470uF 35V
  • Ceramic capacitor ~0.1uF 1206

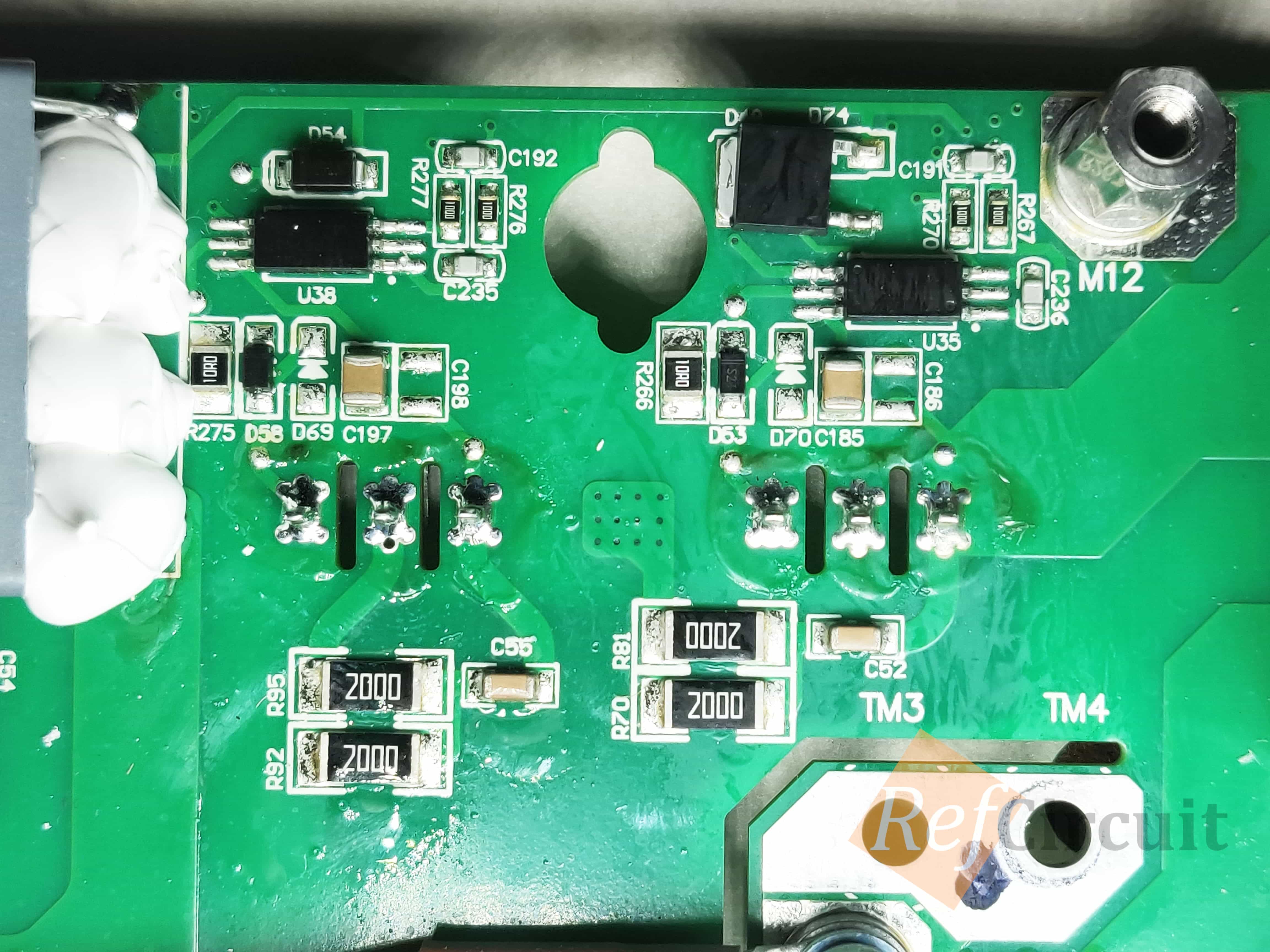

HV SIDE ISO DRIVERS


Solar Side (HV — High Voltage) Isolated Transistor Drivers

TLP5754(TP,E(T

  • 15V to 30V VCC
  • 4A (Peak)
  • 150ns (Propagation Delay)
  • SOIC-6-300mil

Driver's input have high-frequency filter:

  • 10nF 0805
  • 100 Ohm 0805
  • S24 fast-discharge diode (40V; 2A; SBD)
  • Capacitor 10uF 1210 used as local fast energy source for powering driver; Second capacitor not installed (DNP)
  • Resistor 10 Ohm 1210 connected between driver output and transistor's gate

Different drivers use different diodes for powering:

  • HS1M diode connected in series to power (1000V; 1A; 75ns) (TOP IGBT)
  • CRXL02D120G2 (1200 V; 2A; 11.2 nC) (BOT IGBT)

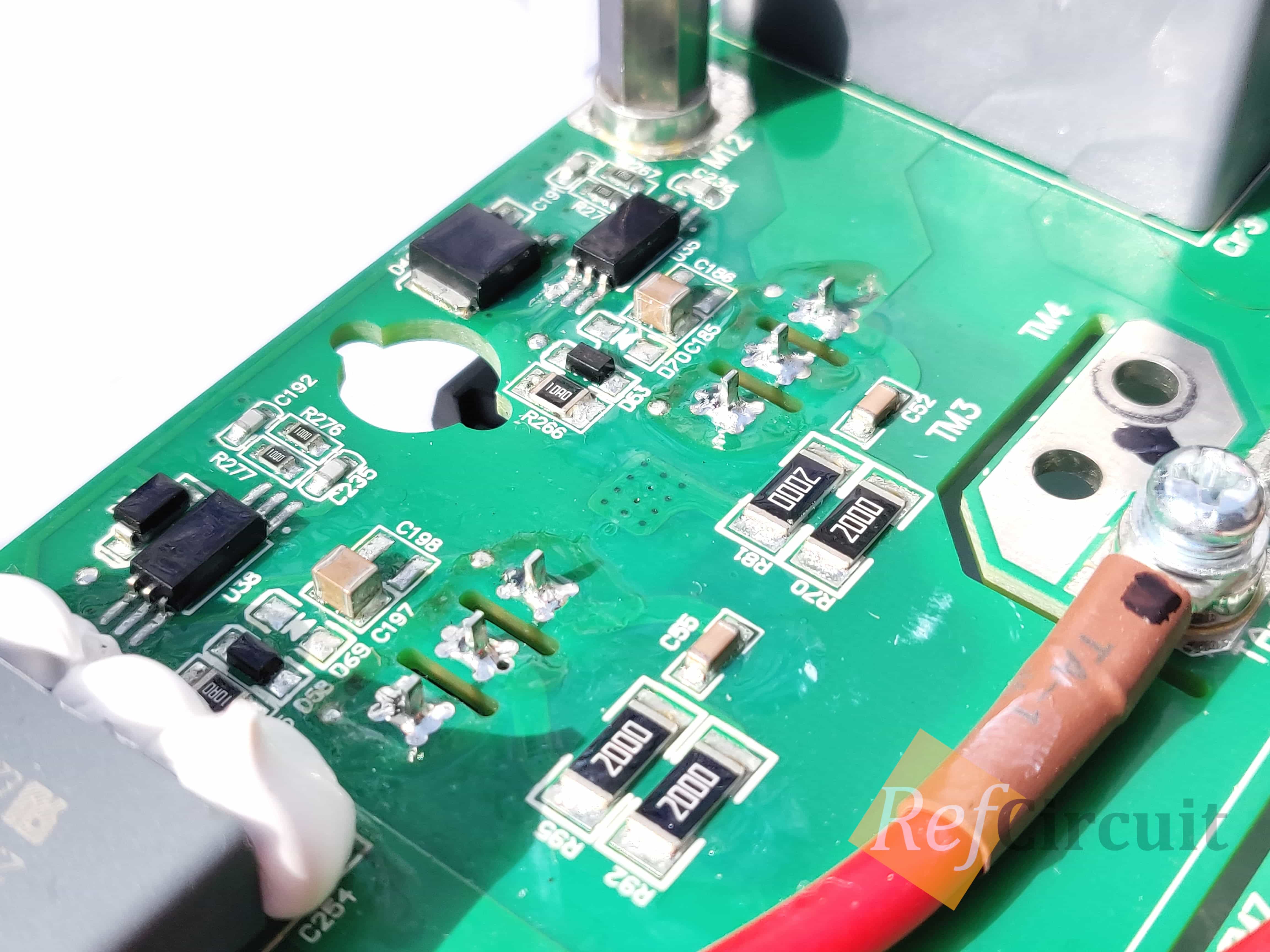

Additionally HV (Solar) Side have snubber circuit (Two resistors 2512 200 Ohm in parallel (100 Ohm Total) and Capacitors 200nF 1206 in series) between COLLECTOR AND EMITTER

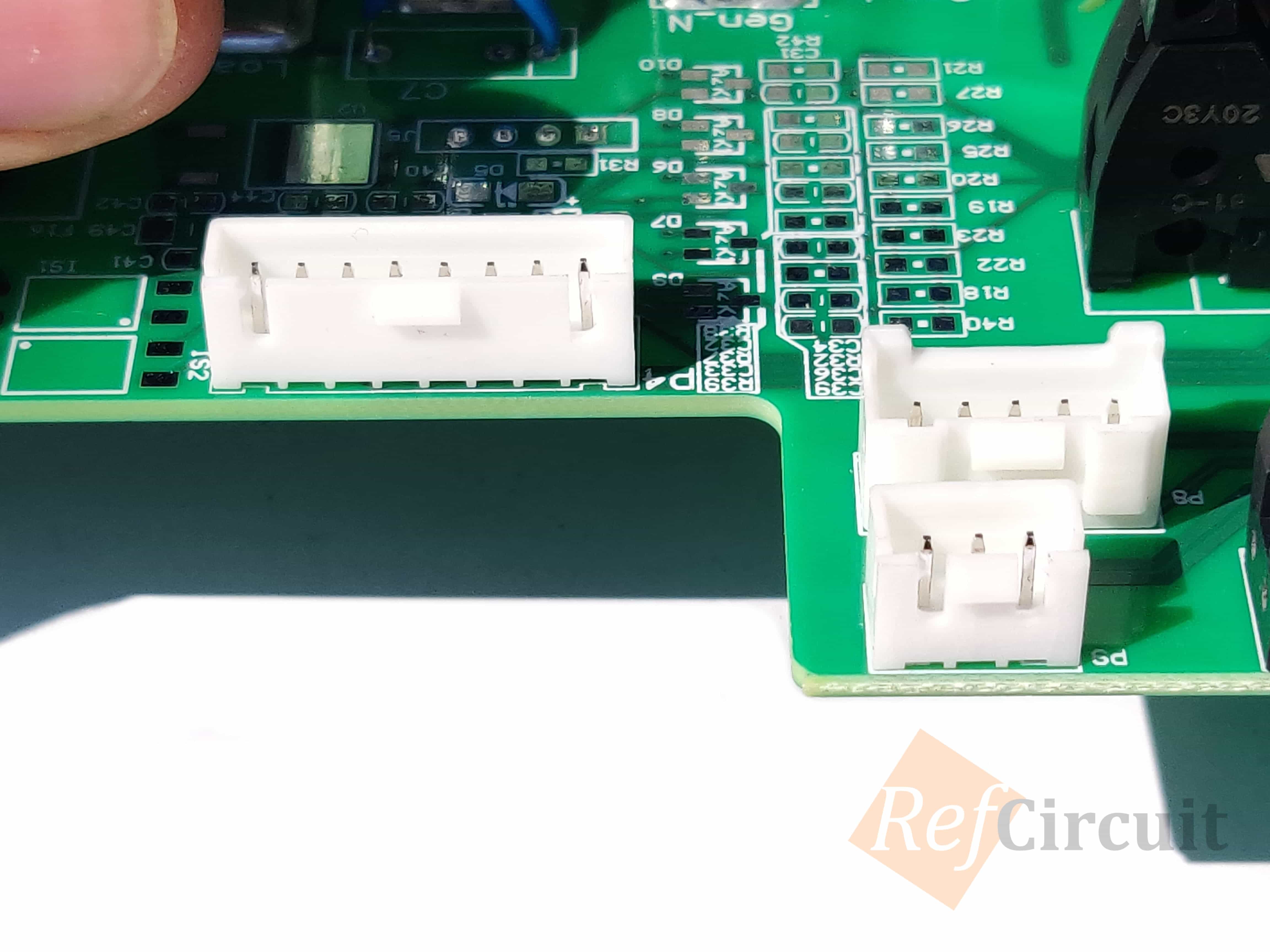

ImageWhite connector XH 2.54mm on the right bottom corner used for transformer NTC TS sensor

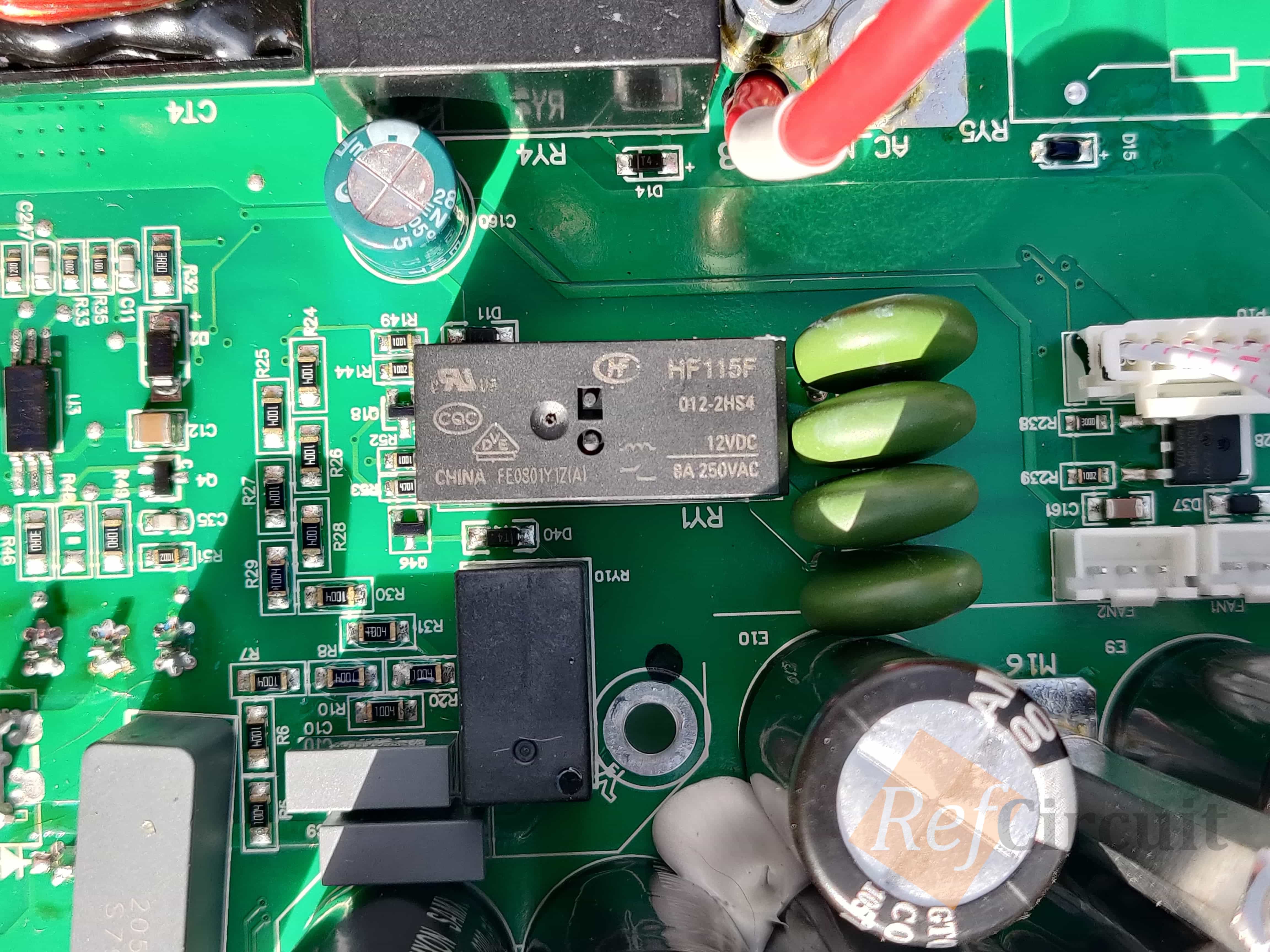

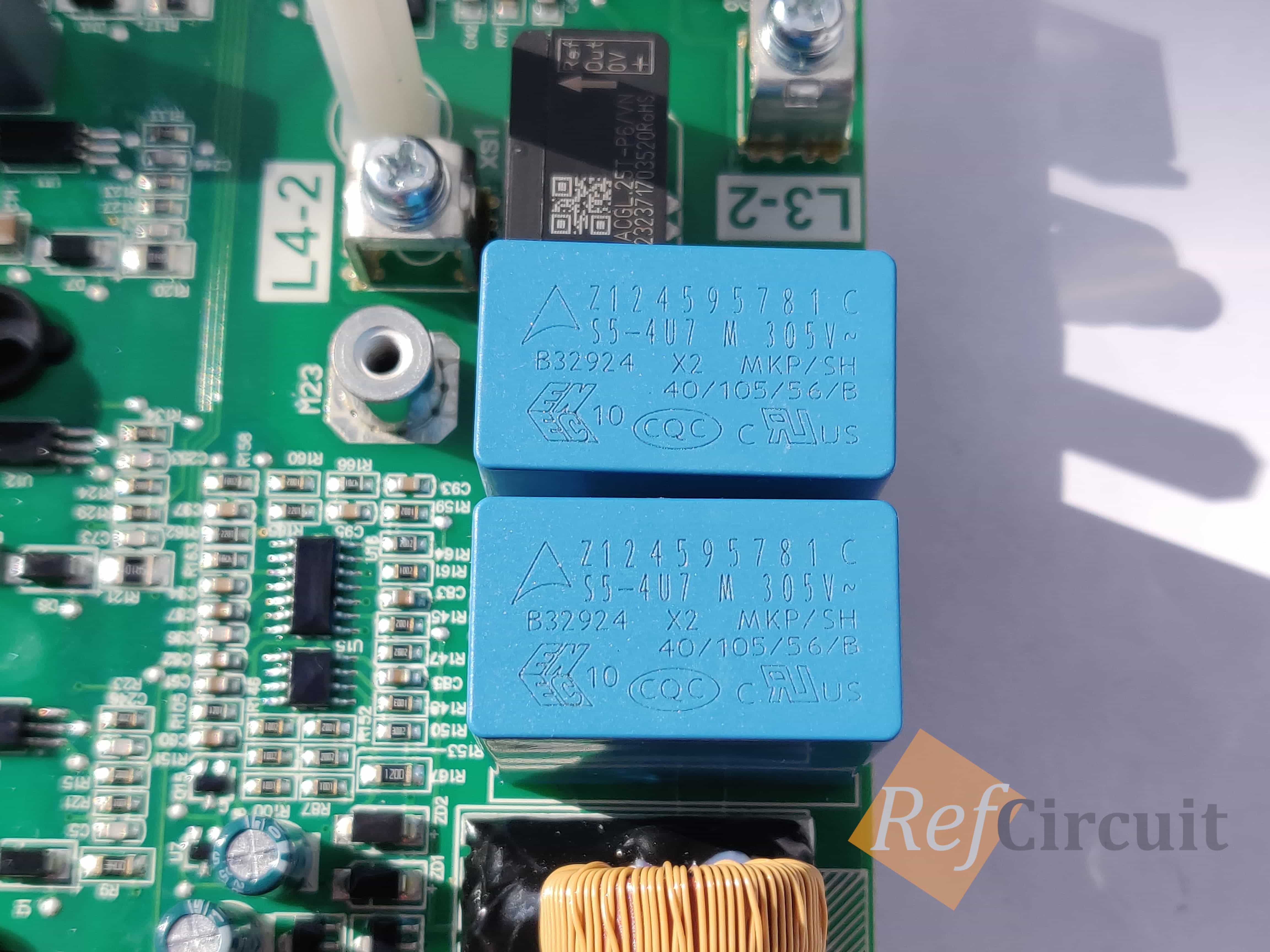

ImageRelated to the inverter

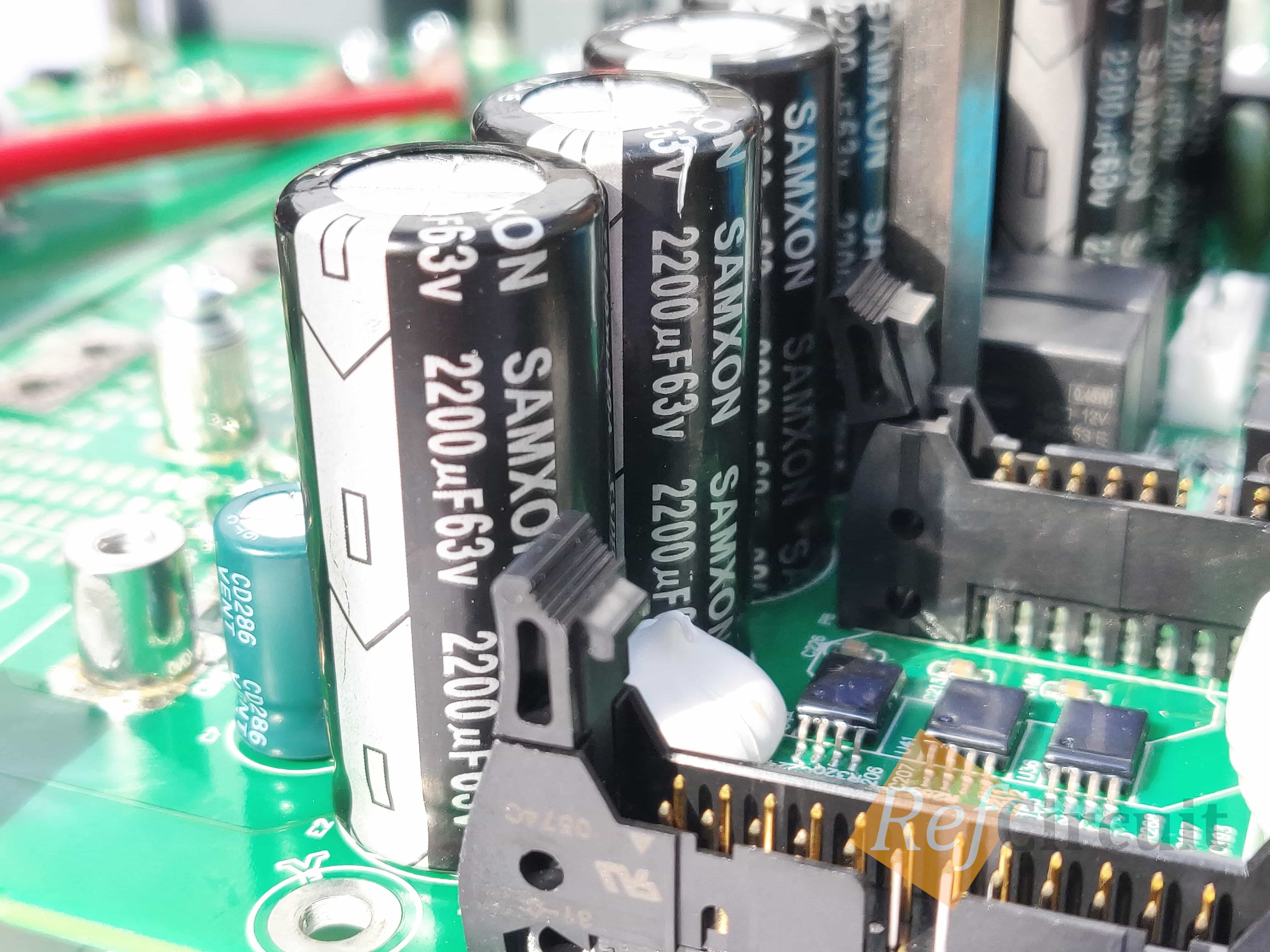

2200uF 63V Electrolytic Capacitors at battery inputs

11PCS in parallel = 2200uF*11=24.2mF

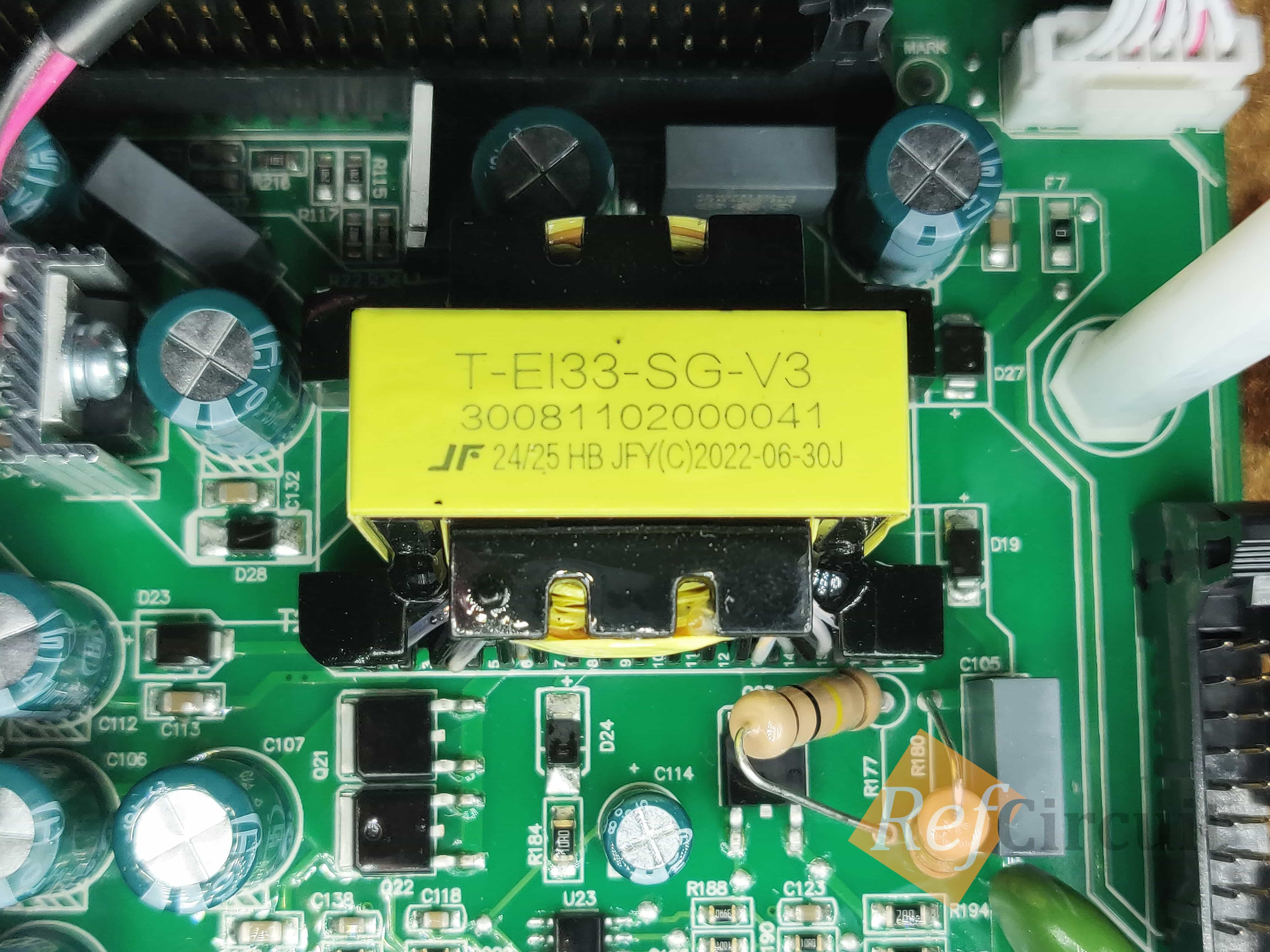

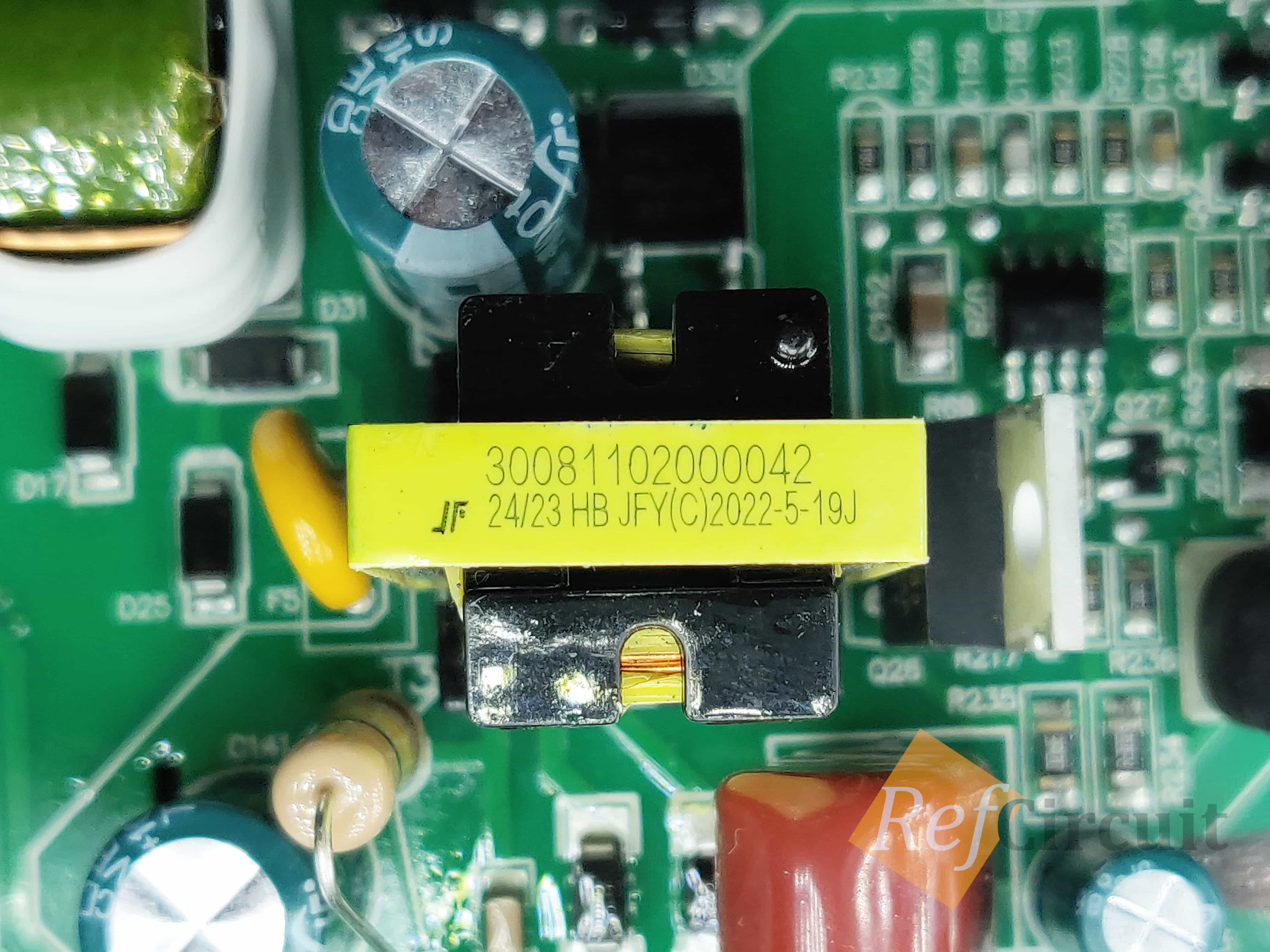

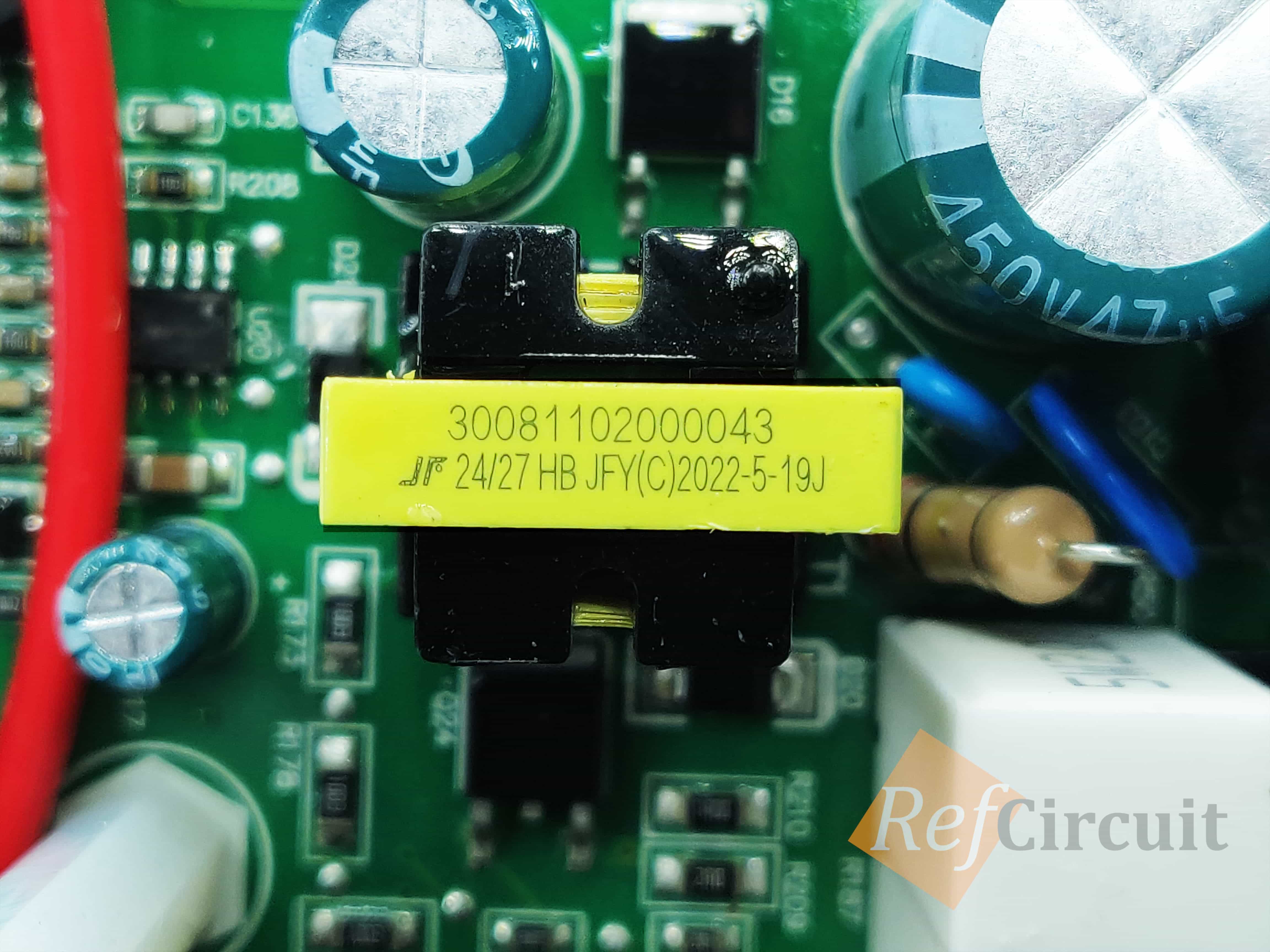

ImageAC-DC Power Supply (from inverter)

Transistors

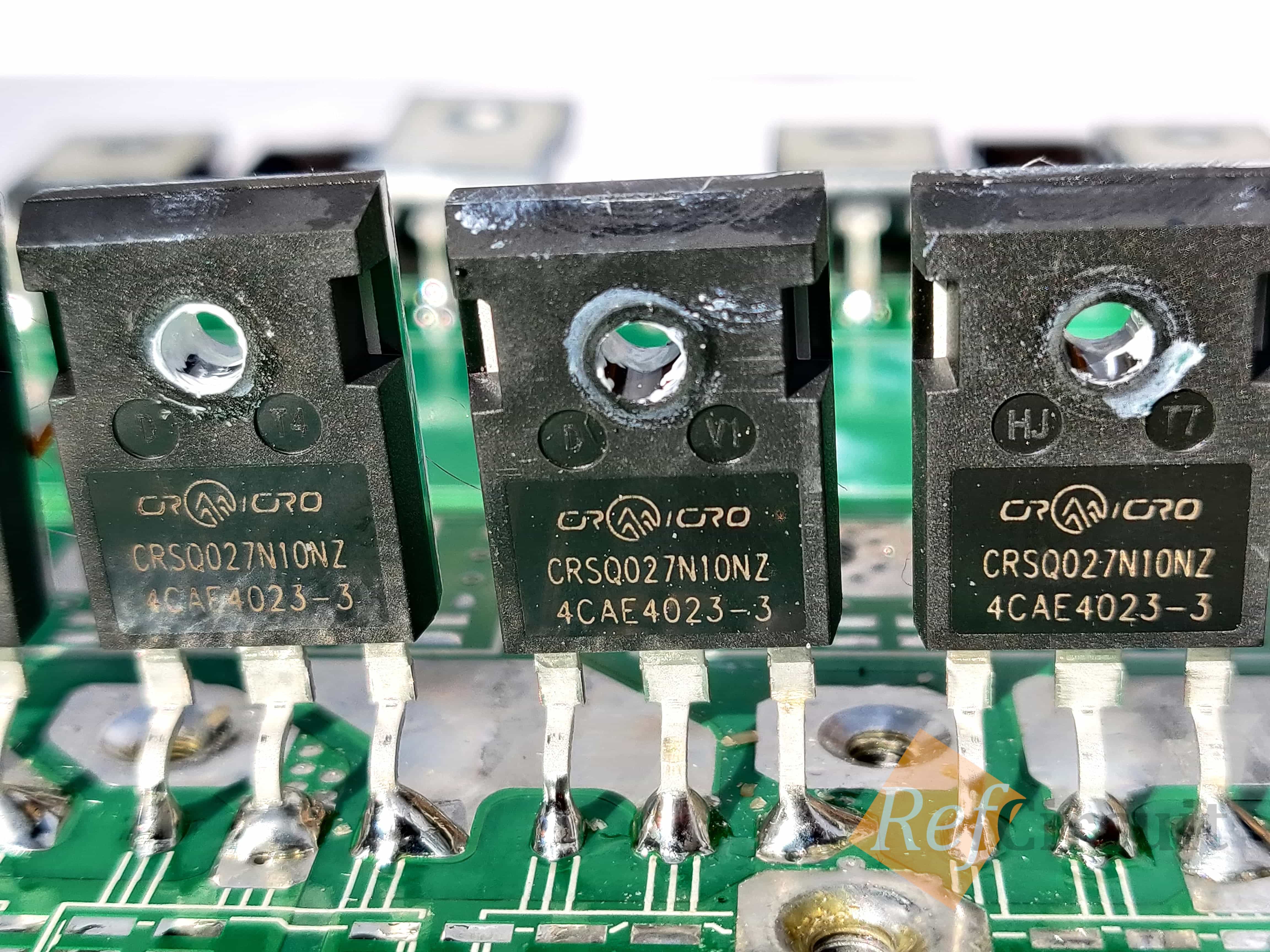

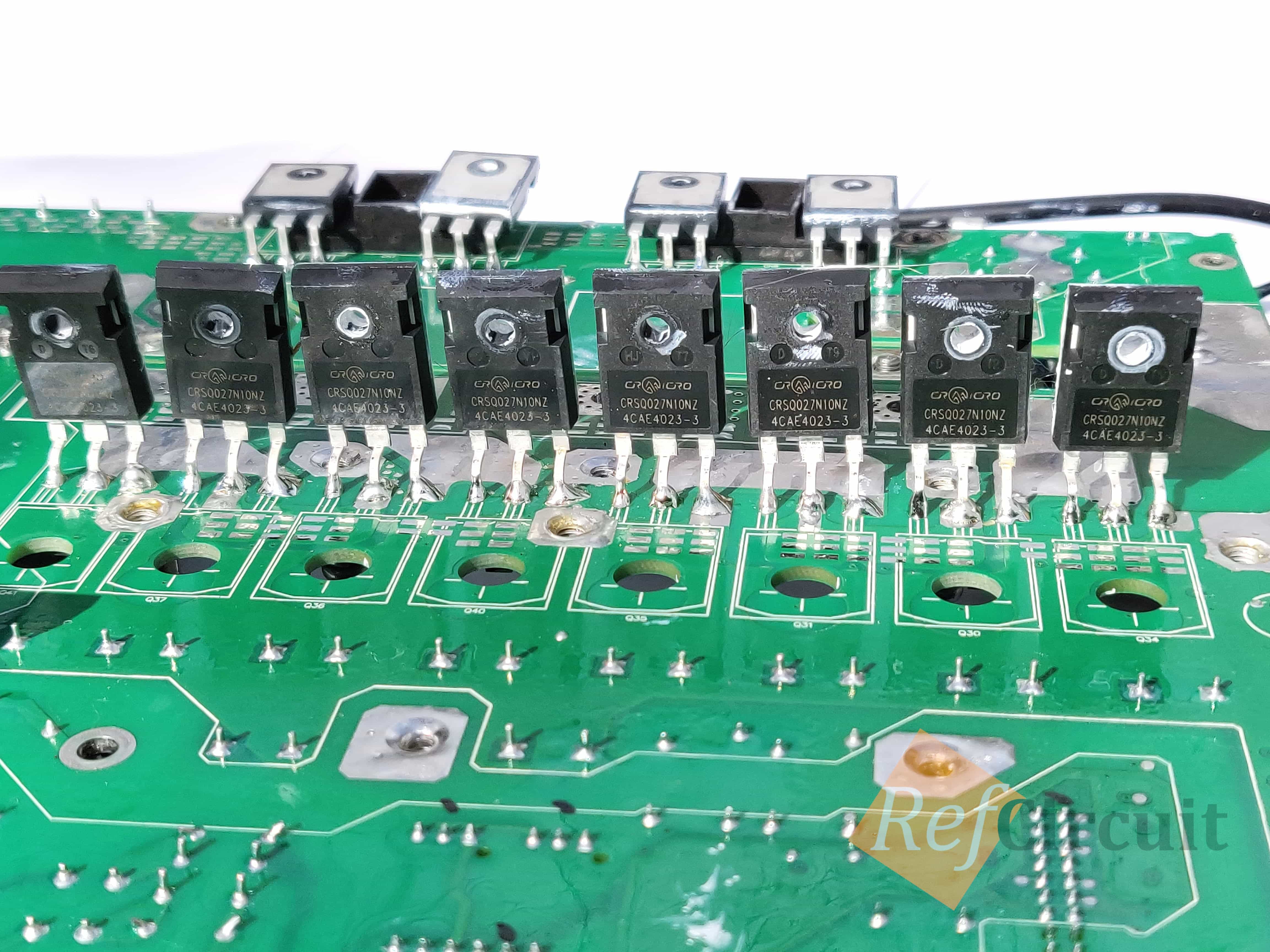

Low Voltage (Battery) Side Transistors (8PCS)

  • CRMICRO
  • CRSQ027N10NZ 4CAE4023-3
  • N-MOSFET 100V; 180A; 2.6mOhm
  • Qg=169 nC
  • Ciss=11355 pF
  • TO-247

Because inverter designed for 48V (16S), so 100V FET's are fine

CRSQ027N10NZ_NFET_Datasheet.pdf

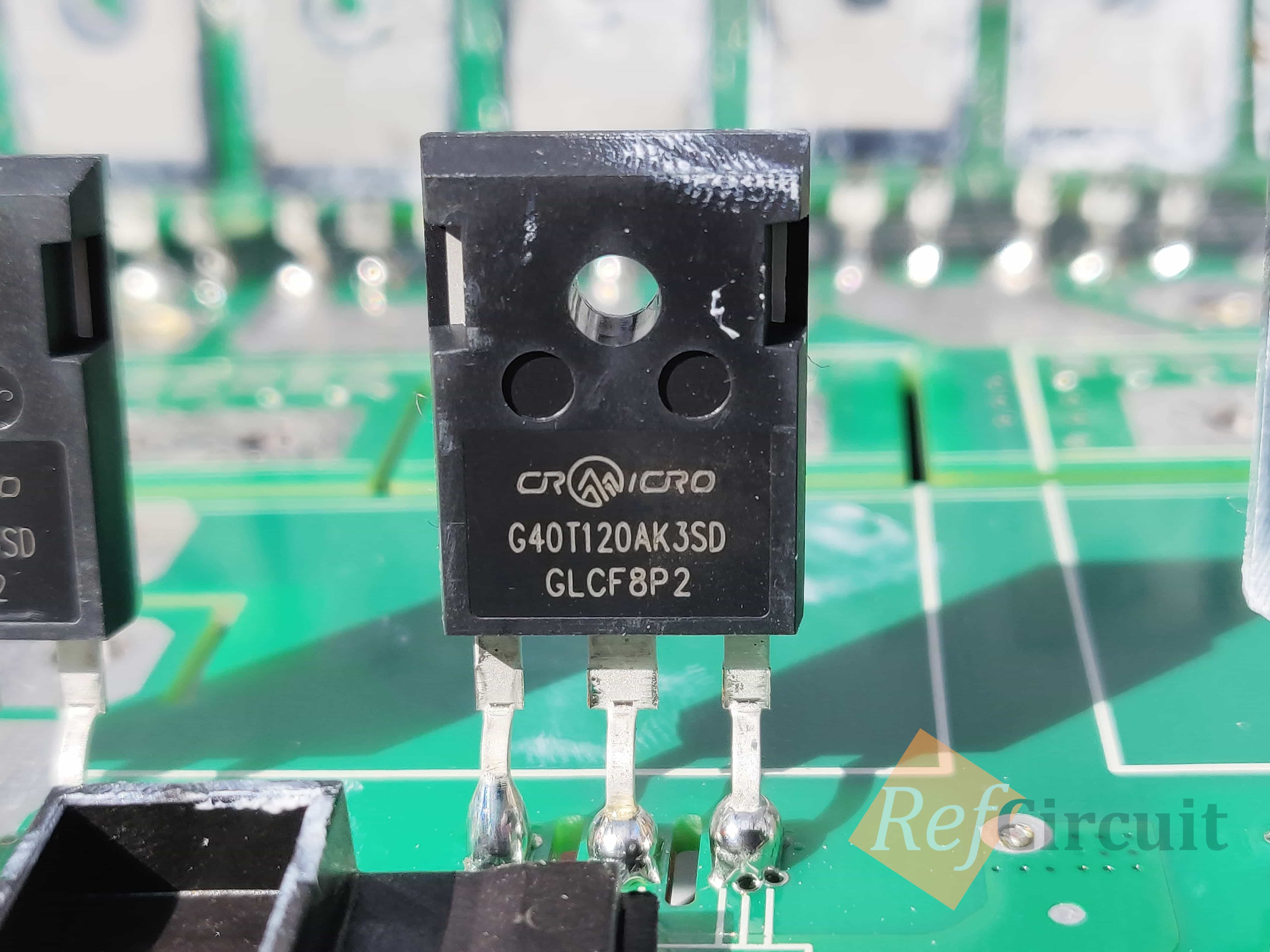

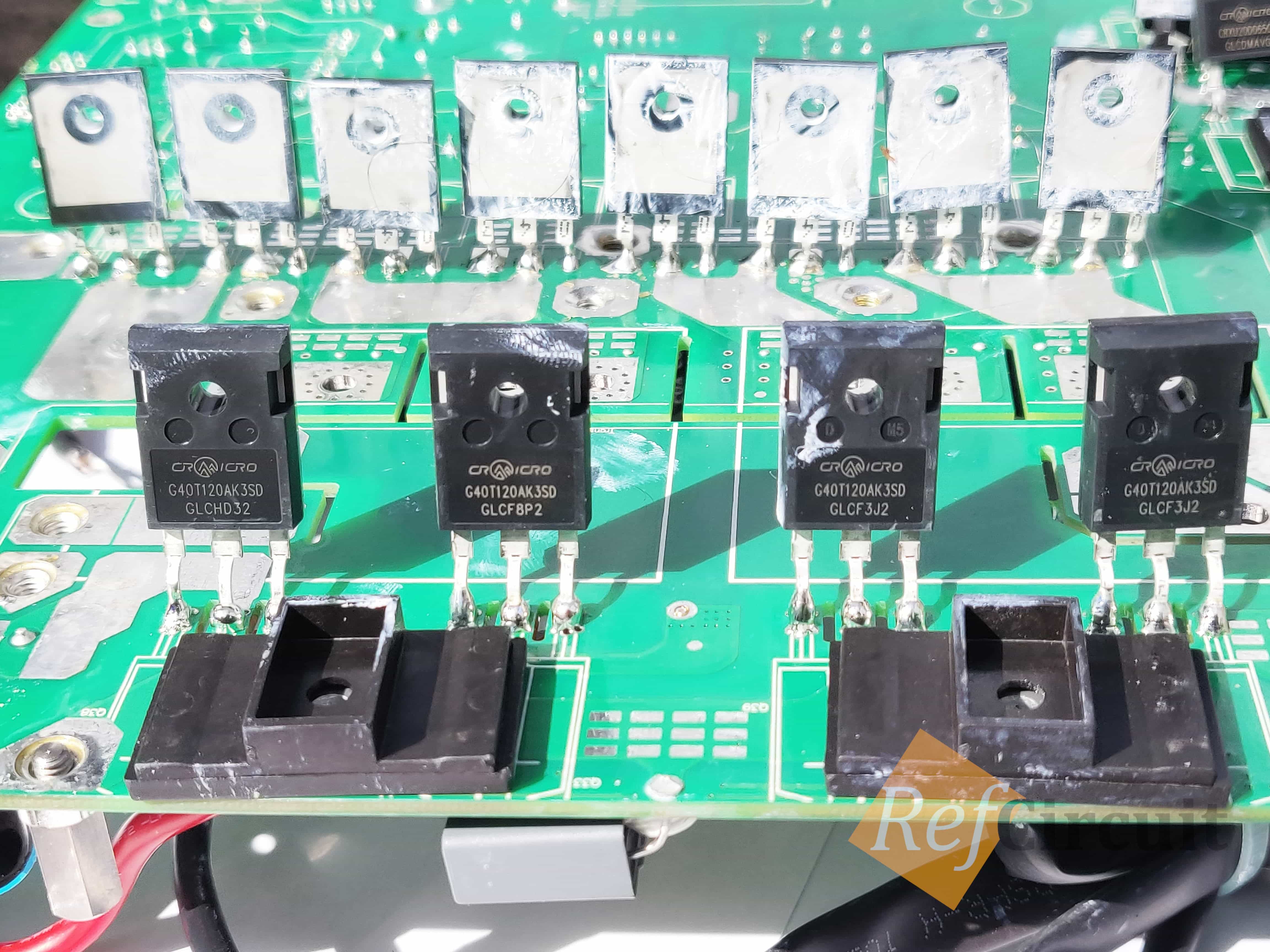

High Voltage (Solar) Side Transistors (4PCS)

  • CRMICRO
  • CRG40T120AK3SD GLCF8P2
  • IGBT 1200V; 40A; 333W
  • Vce=1.9V
  • TO-247

CRG40T120AK3SD_IGBT_Datasheet.pdf

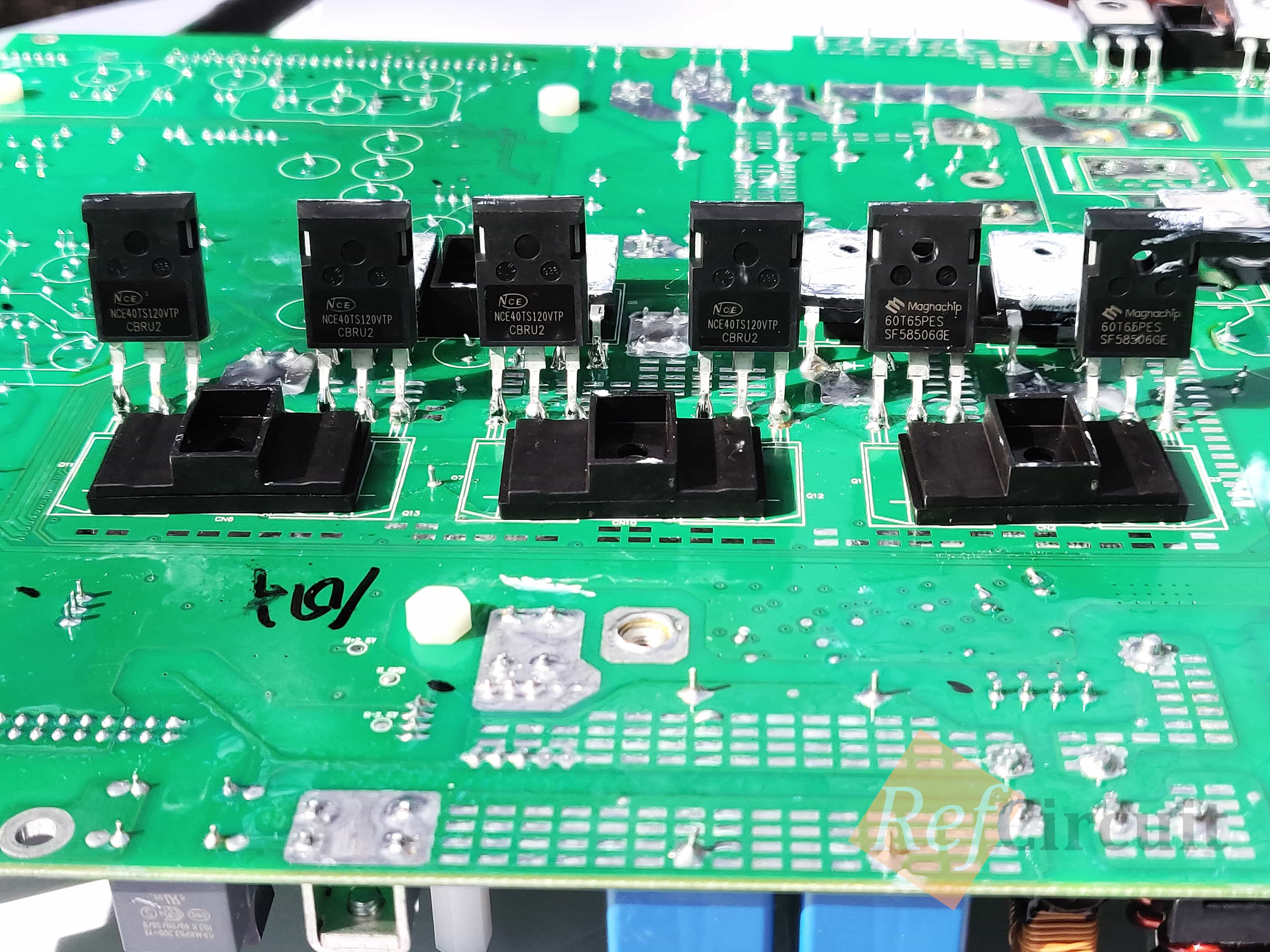

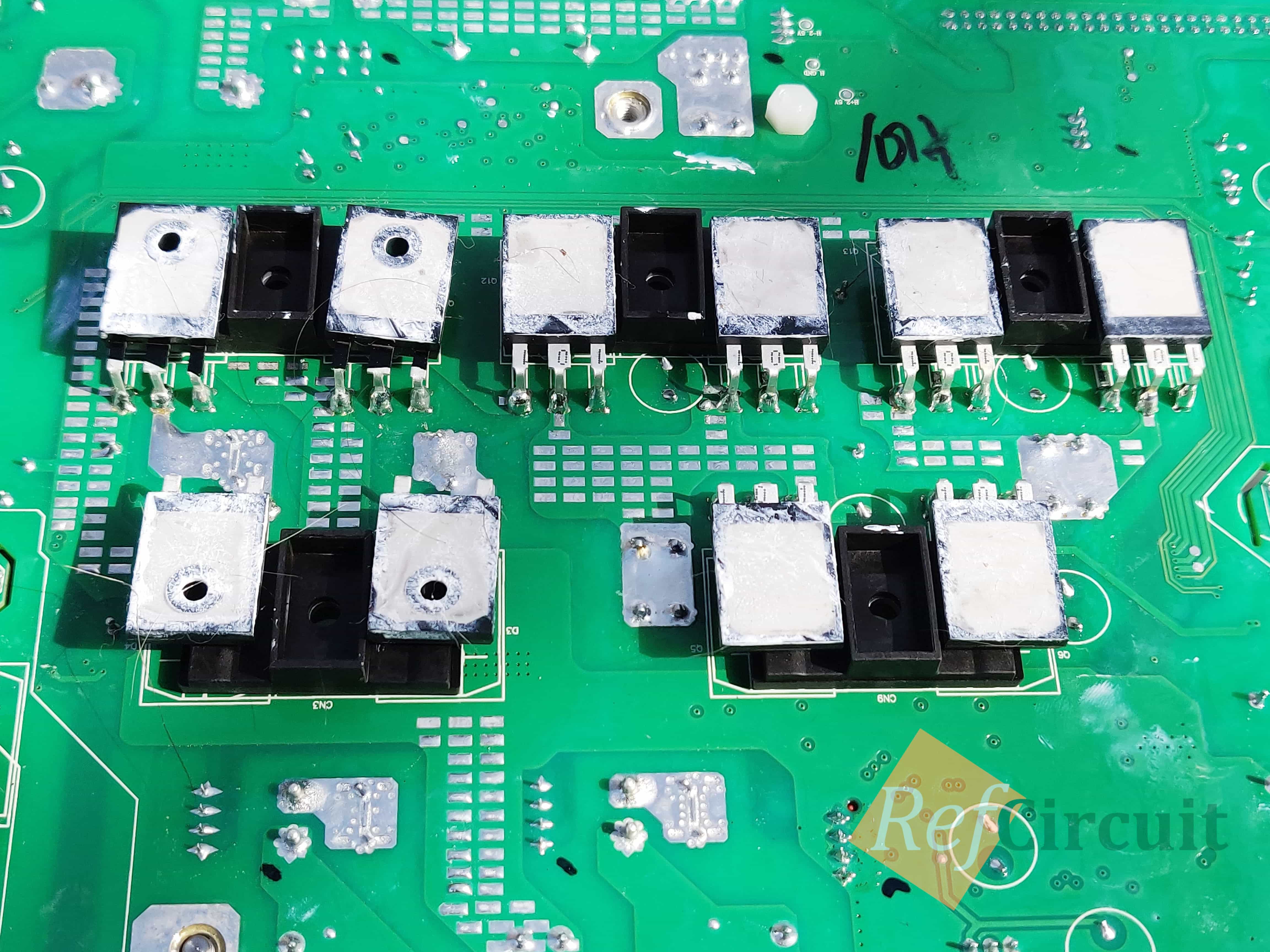

Transistors of Inverter (8PCS)

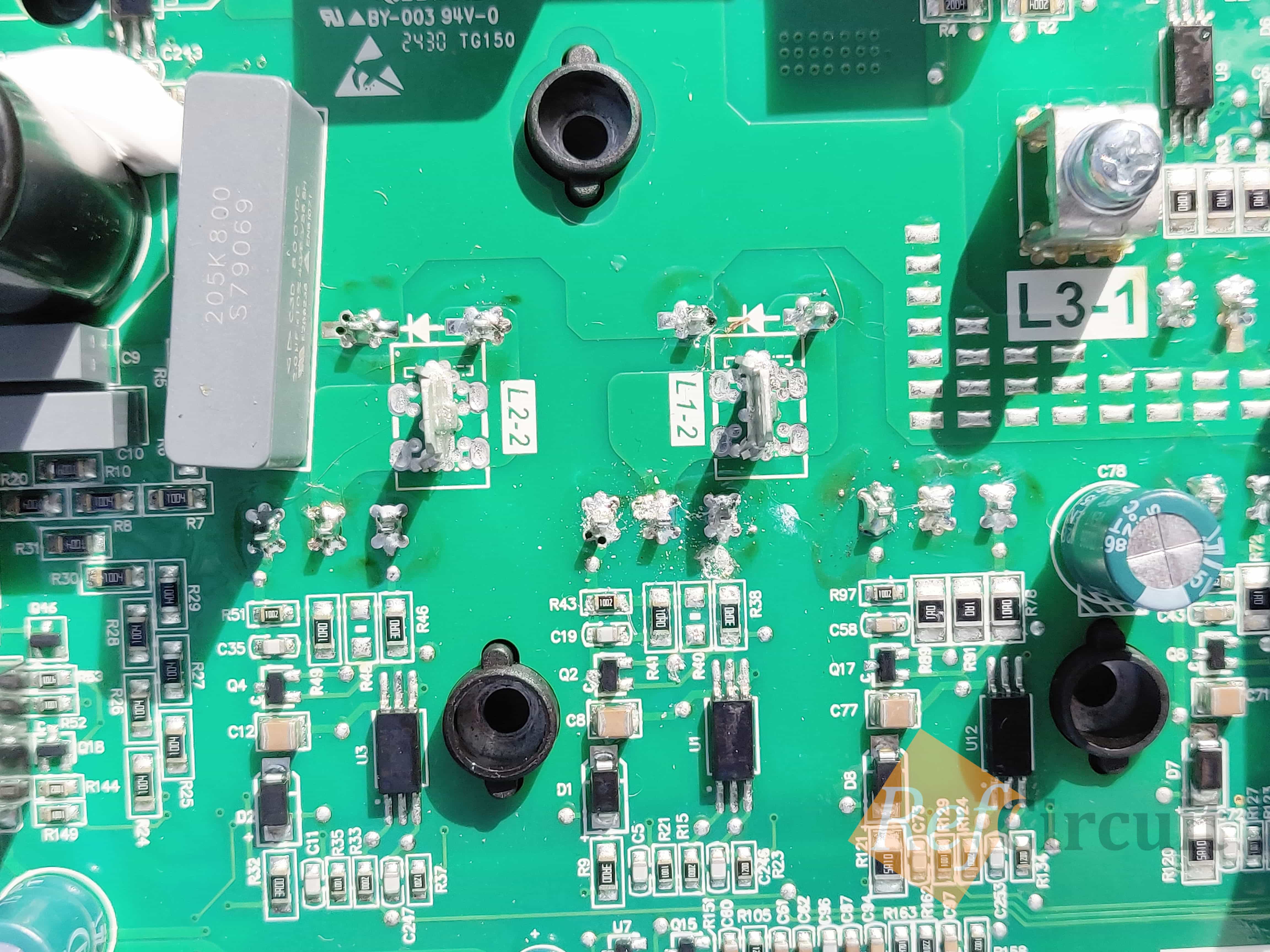

Transistors of Boost converter (1PCS/PV BOOST)

with diodes (1PCS/PV BOOST)

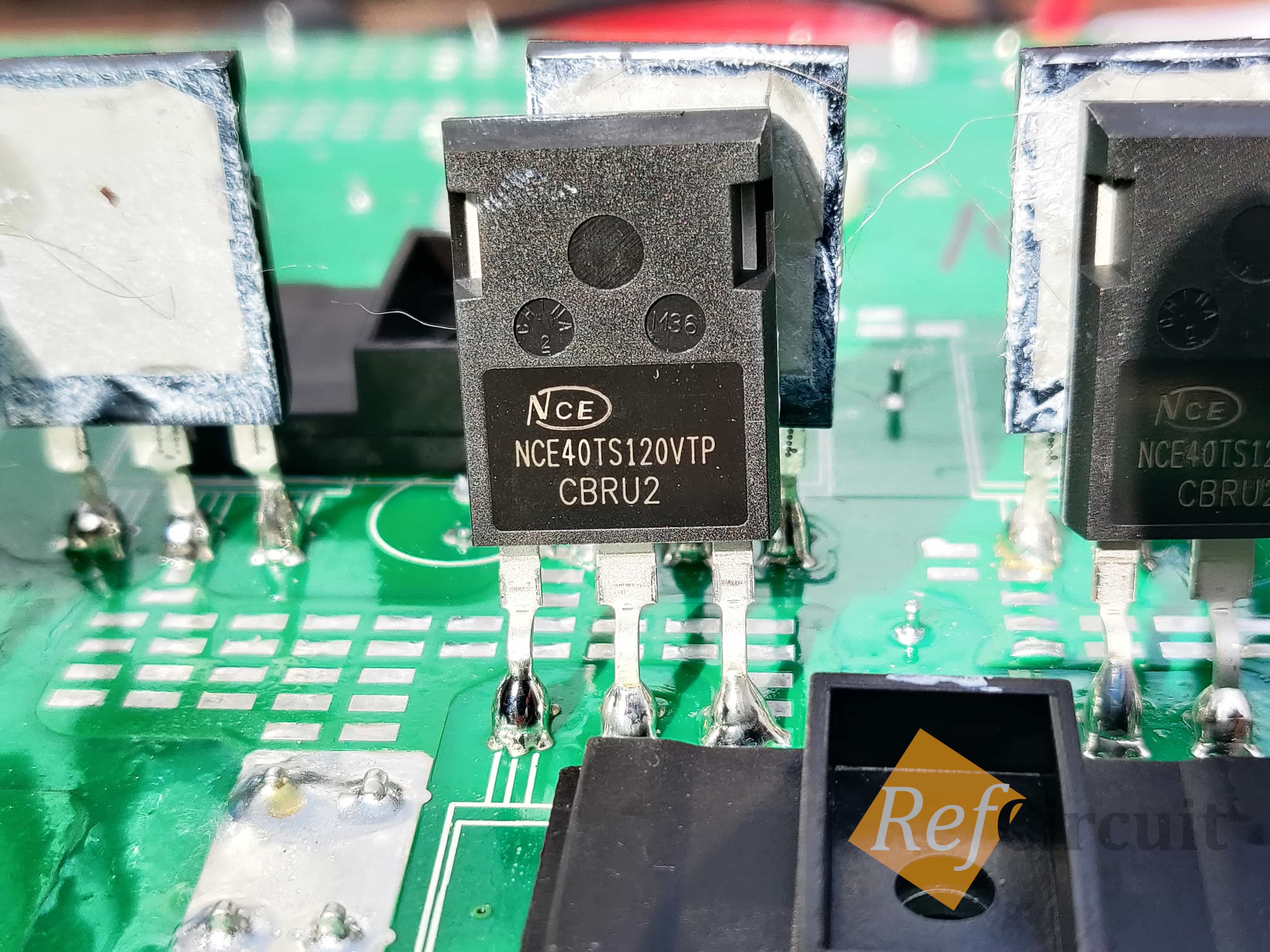

NCE40TS120VTP CBRU2

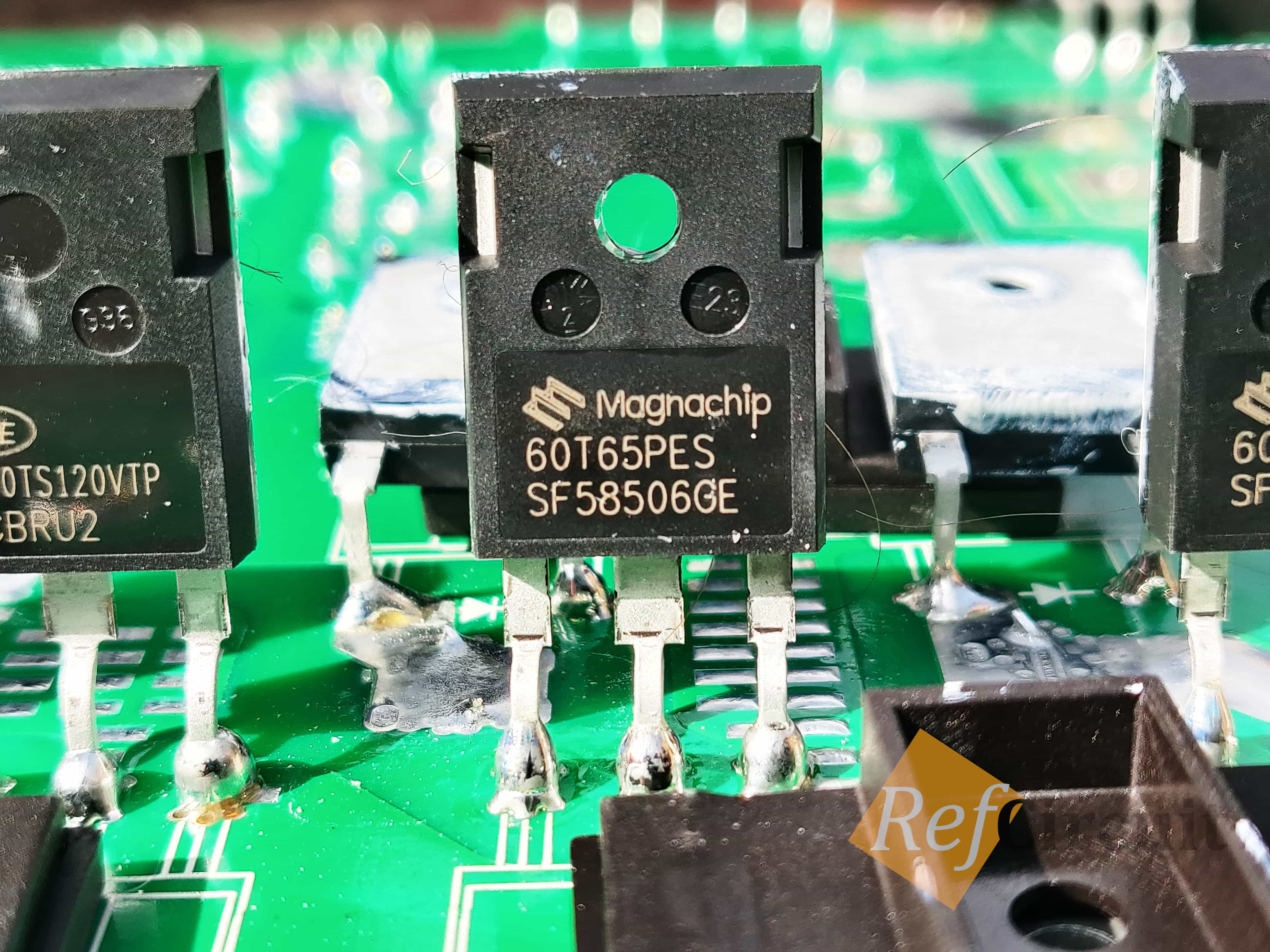

60T65PES SF58506GE

ImageNCE40TS120VTP CBRU2
Image60T65PES SF58506GE

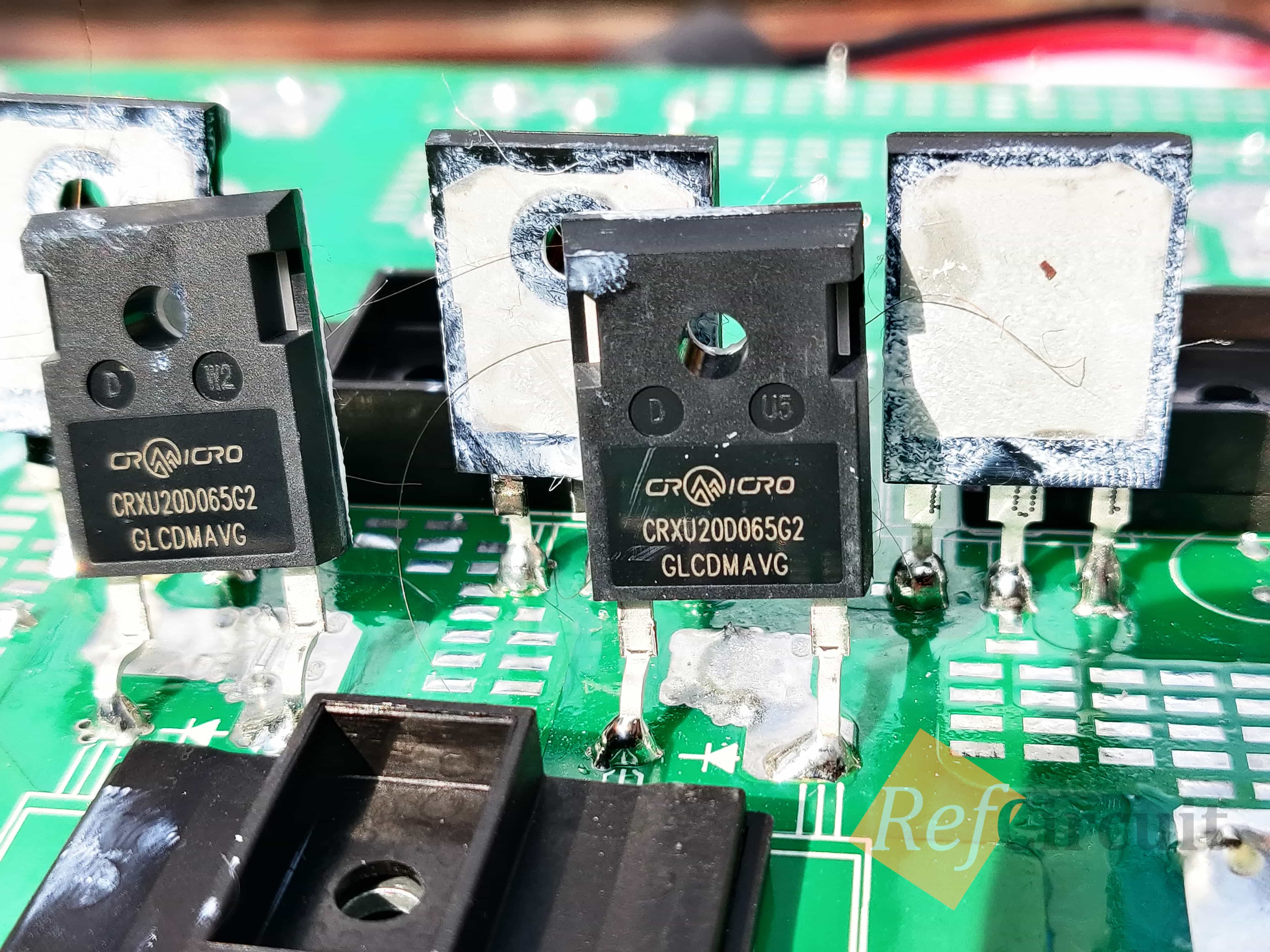

Diodes of the PV BOOST

  • CRXU20D065G2 GLCDMAVG
  • Silicon Carbide Schottky Diode (SBD)
  • 650V; 20A; 56nC
  • TO-247-2

CRXU20D065G2_SBD_Datasheet.pdf

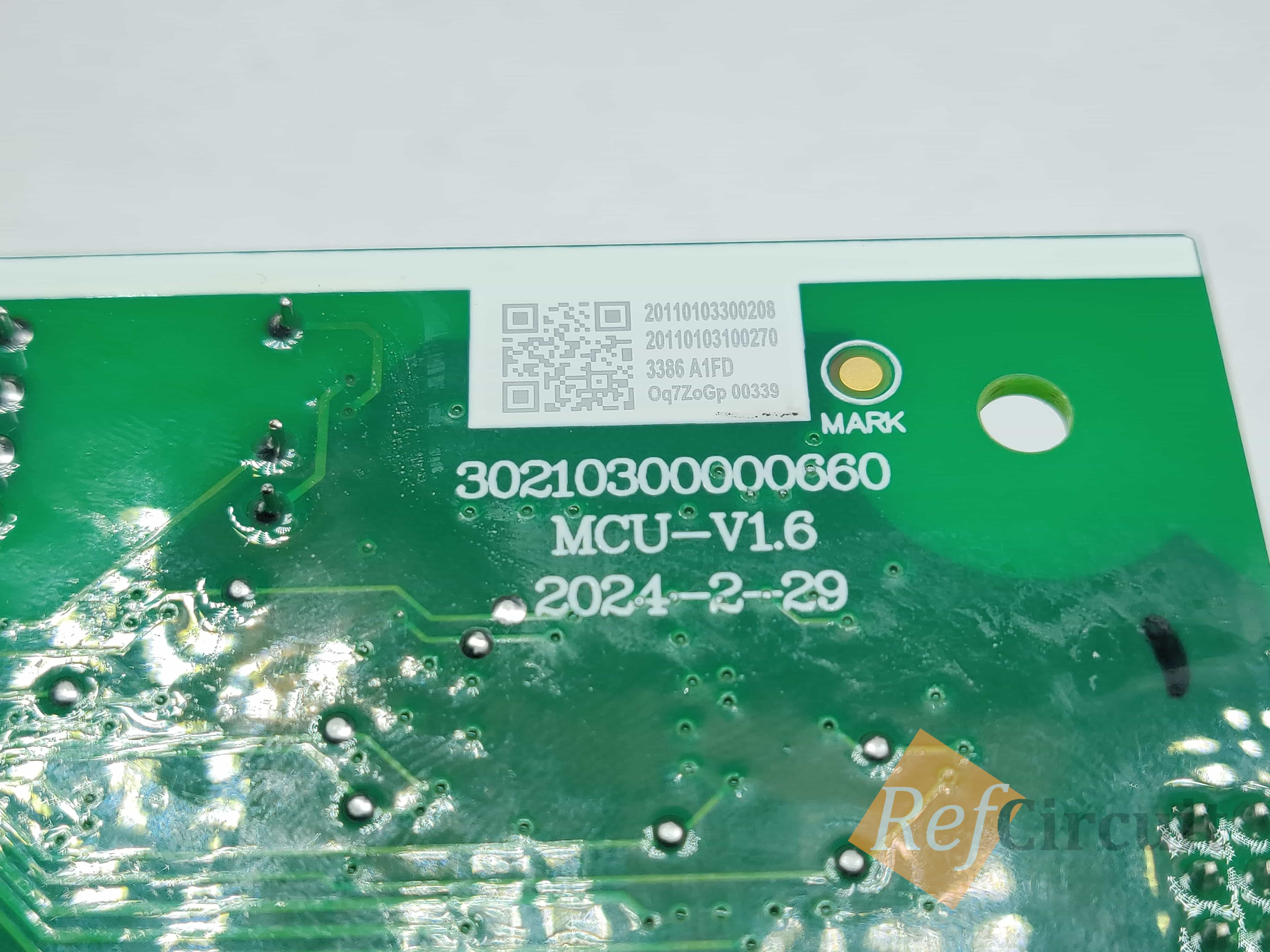

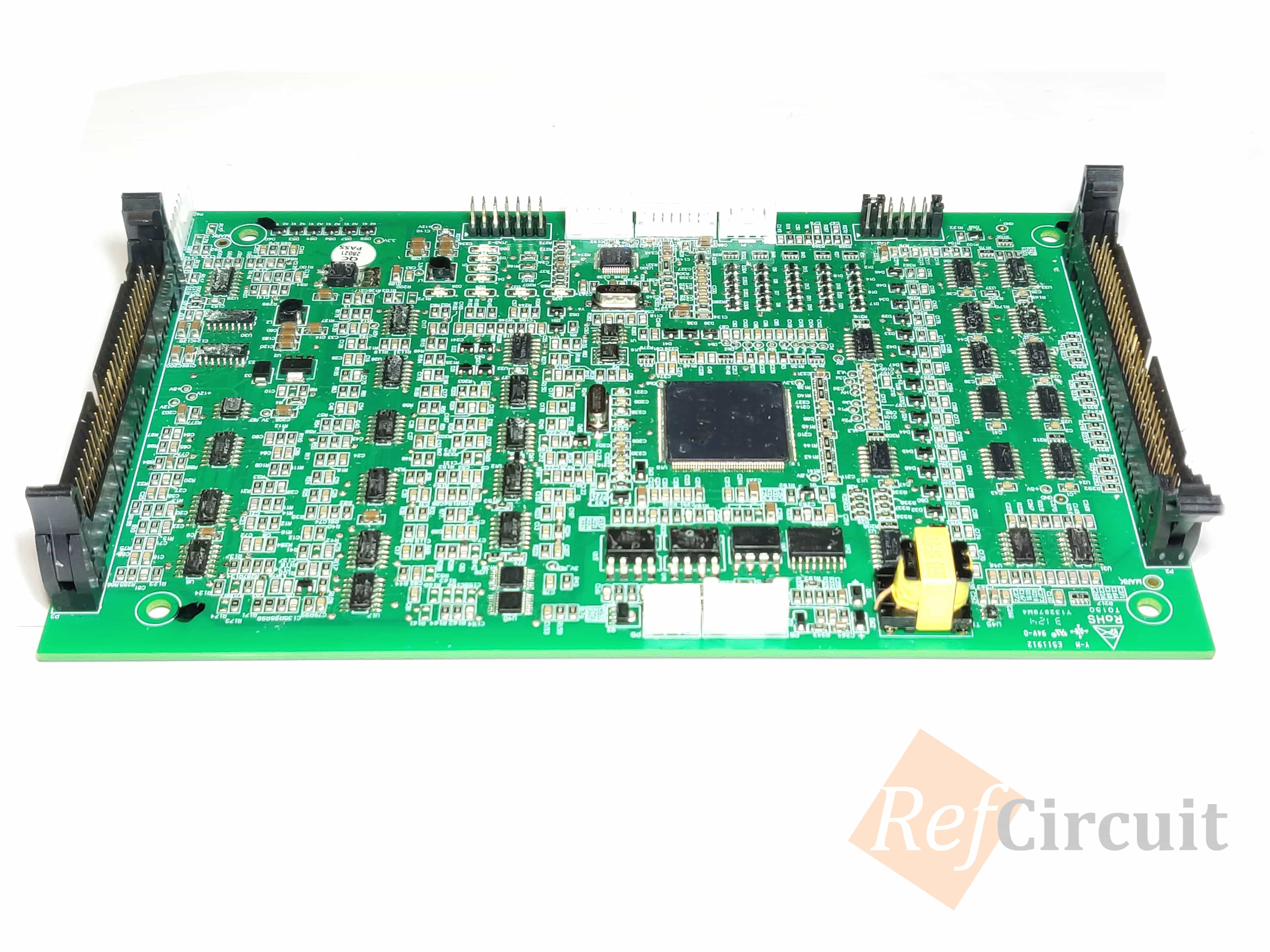

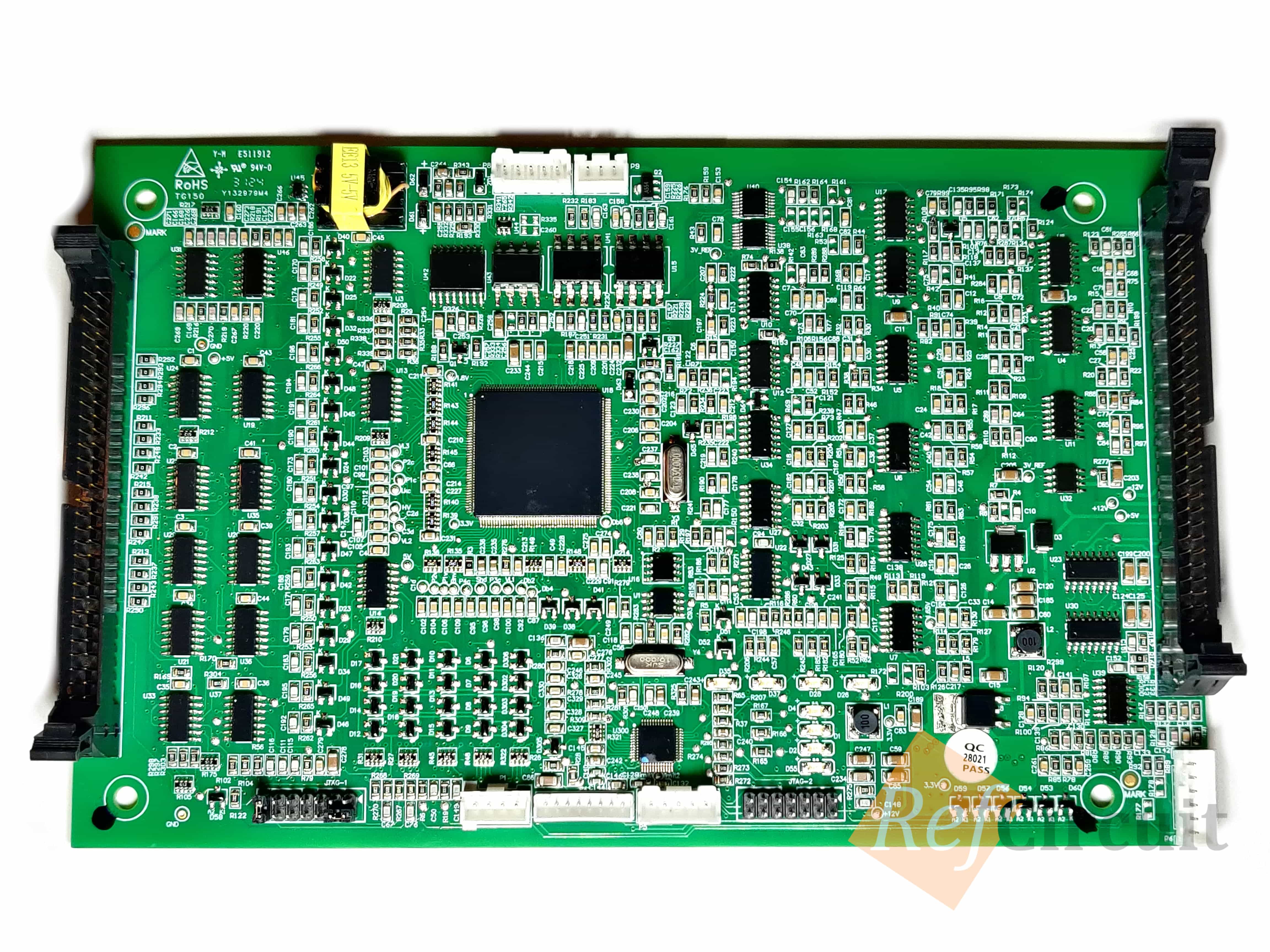

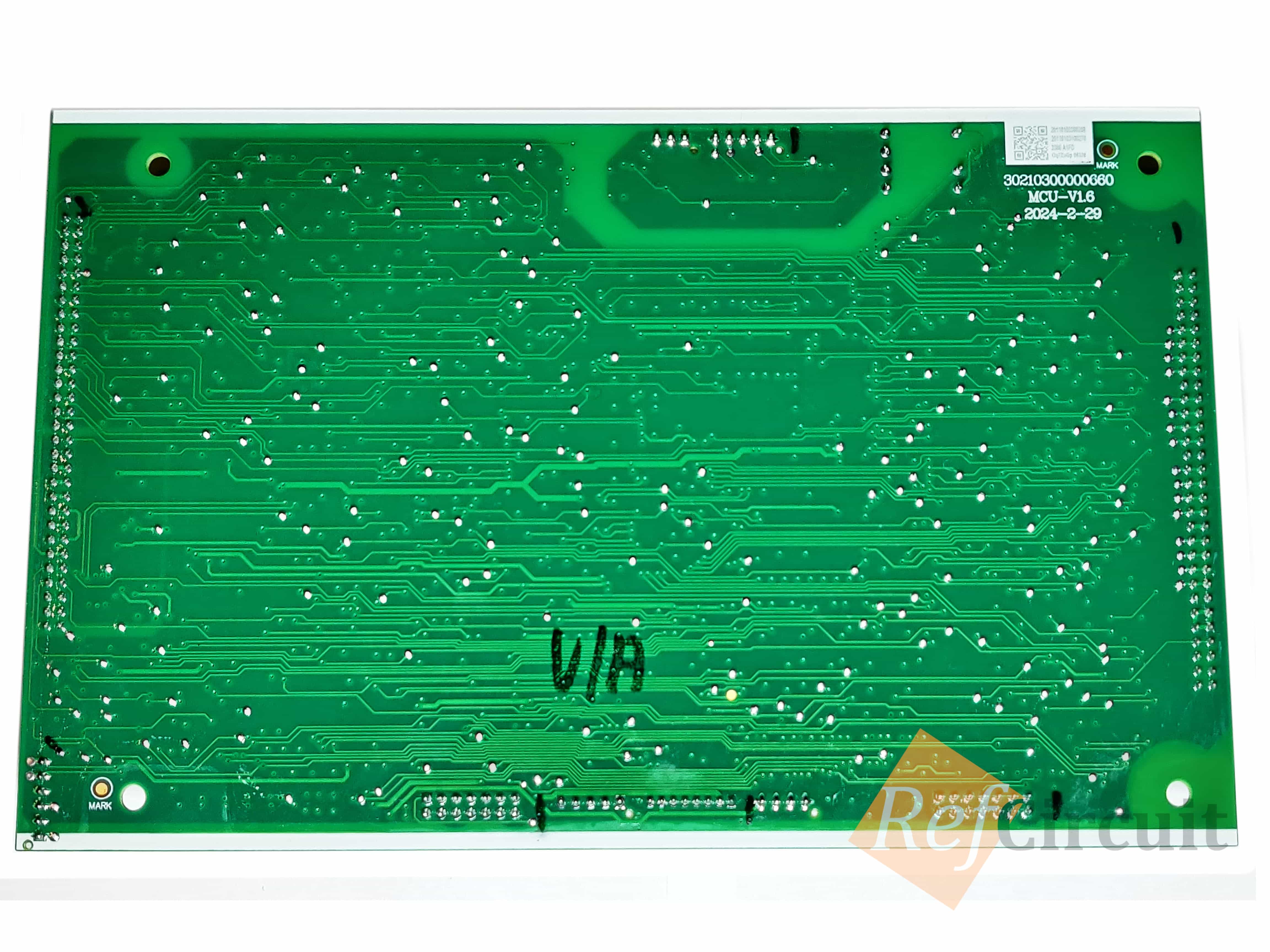

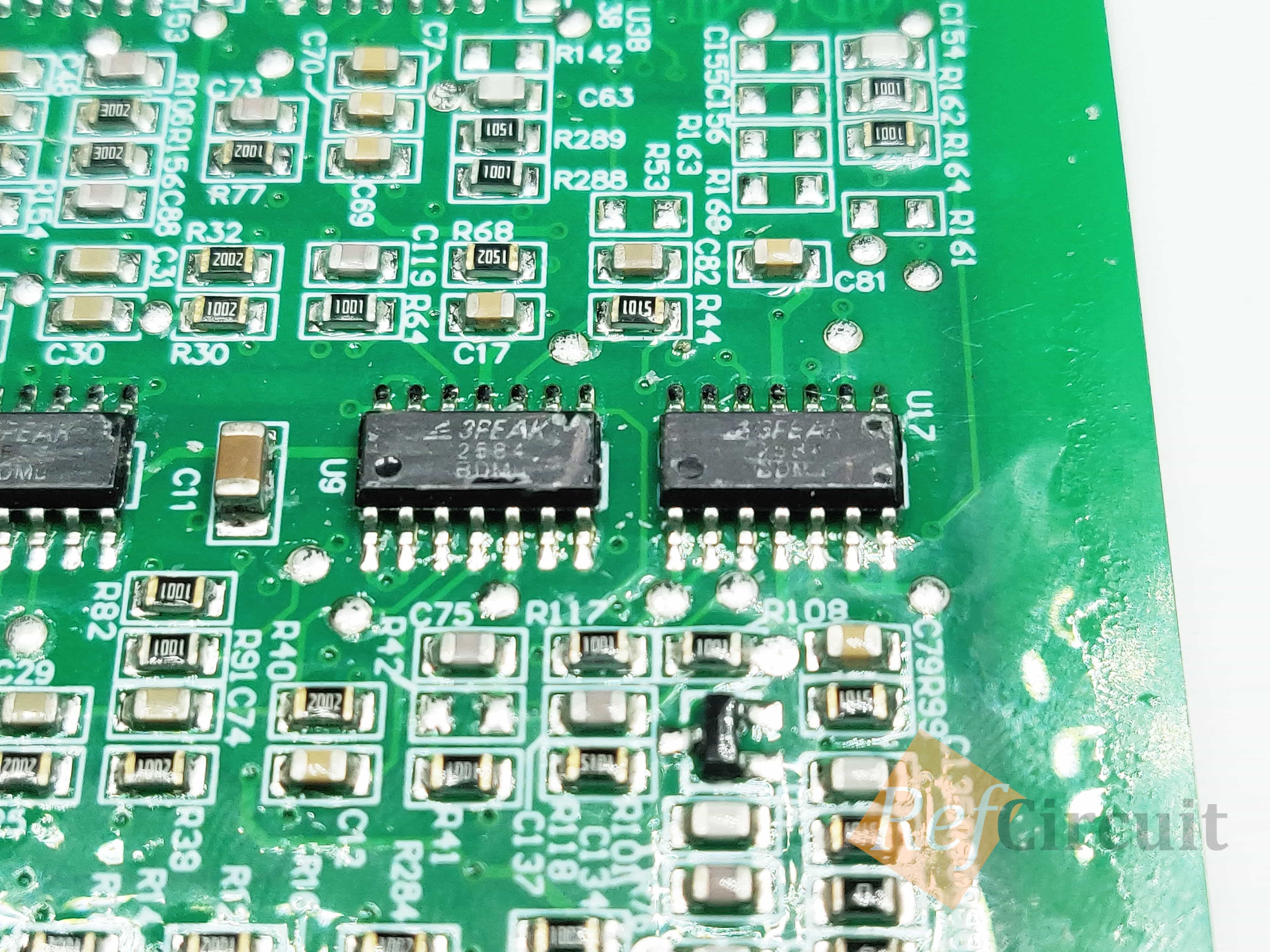

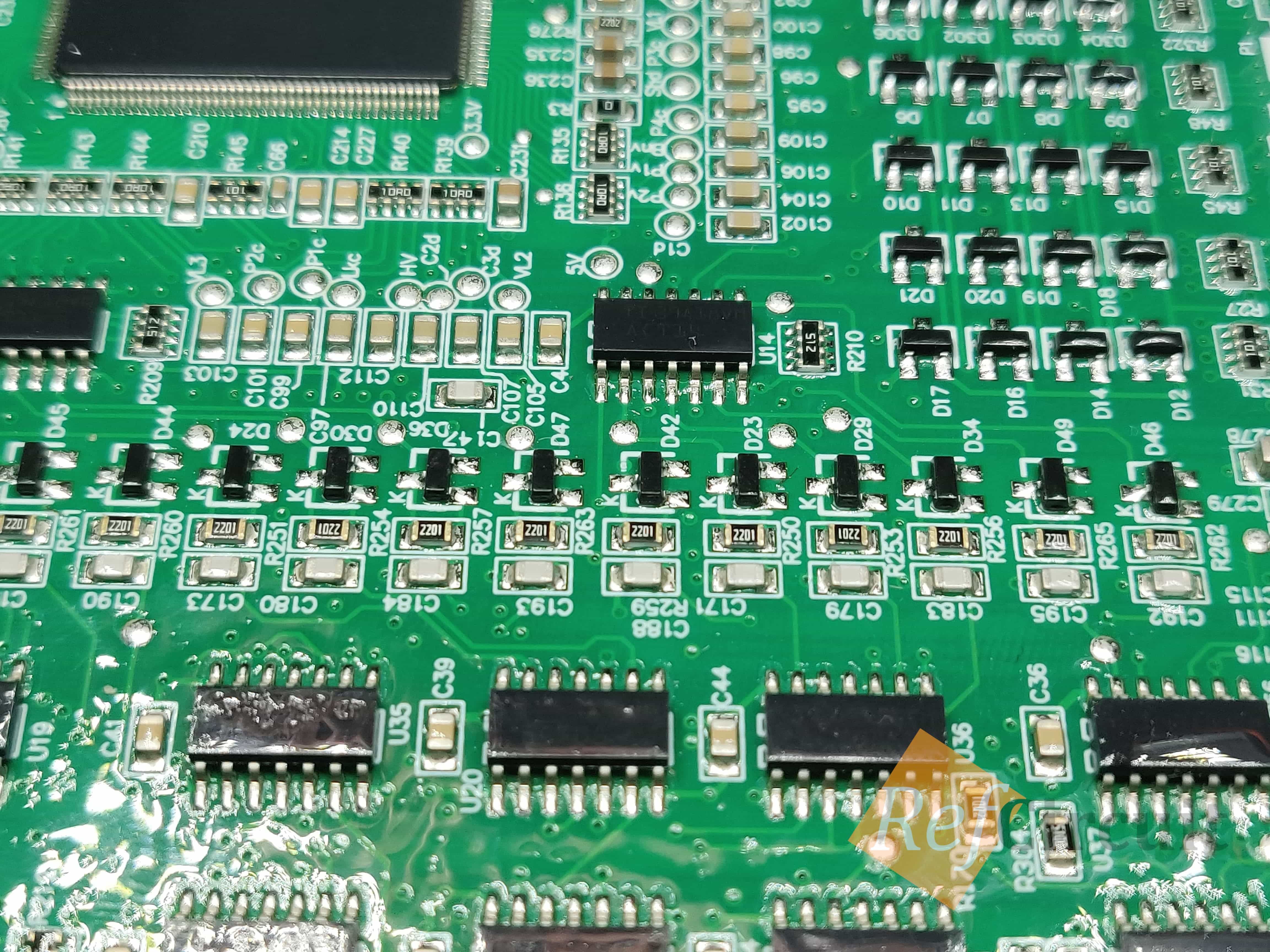

MCU-V1.6 (2024-2-29)

  • 2L
  • xmm
  • Top side
  • Size:



Considering the time it takes to manufacture and assemble, the board is very new.

30210300000660

2024-02-29

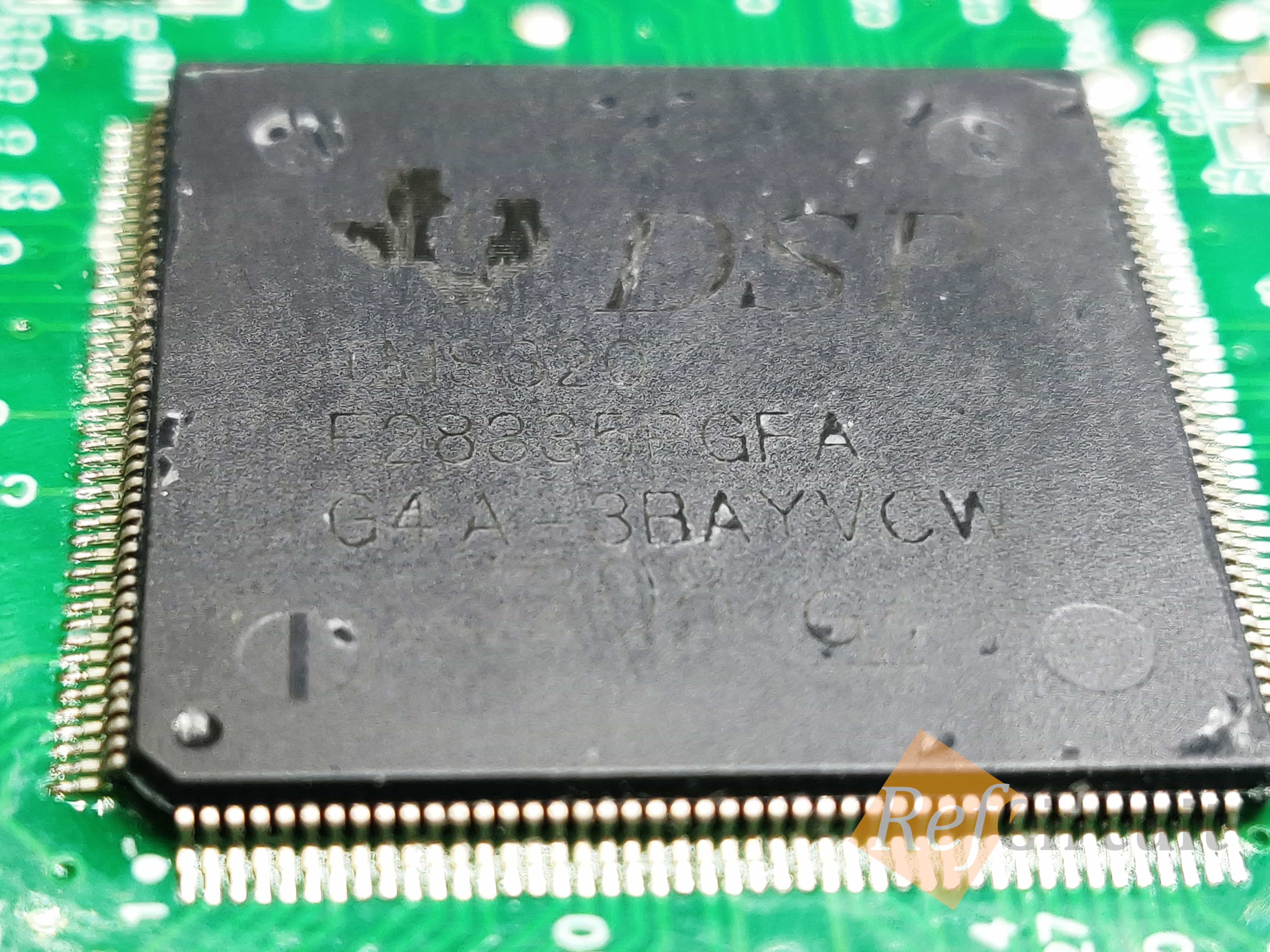

TMS320F28335 Real-Time Microcontroller (Primary MCU)

  • 150MHz
  • 256K × 16 flash, 34K × 16 SARAM
  • 12-bit ADC, 16CH, 80-ns conversion rate
  • Up to 18 PWM outputs
  • Up to 6 HRPWM outputs with 150-ps MEP resolution

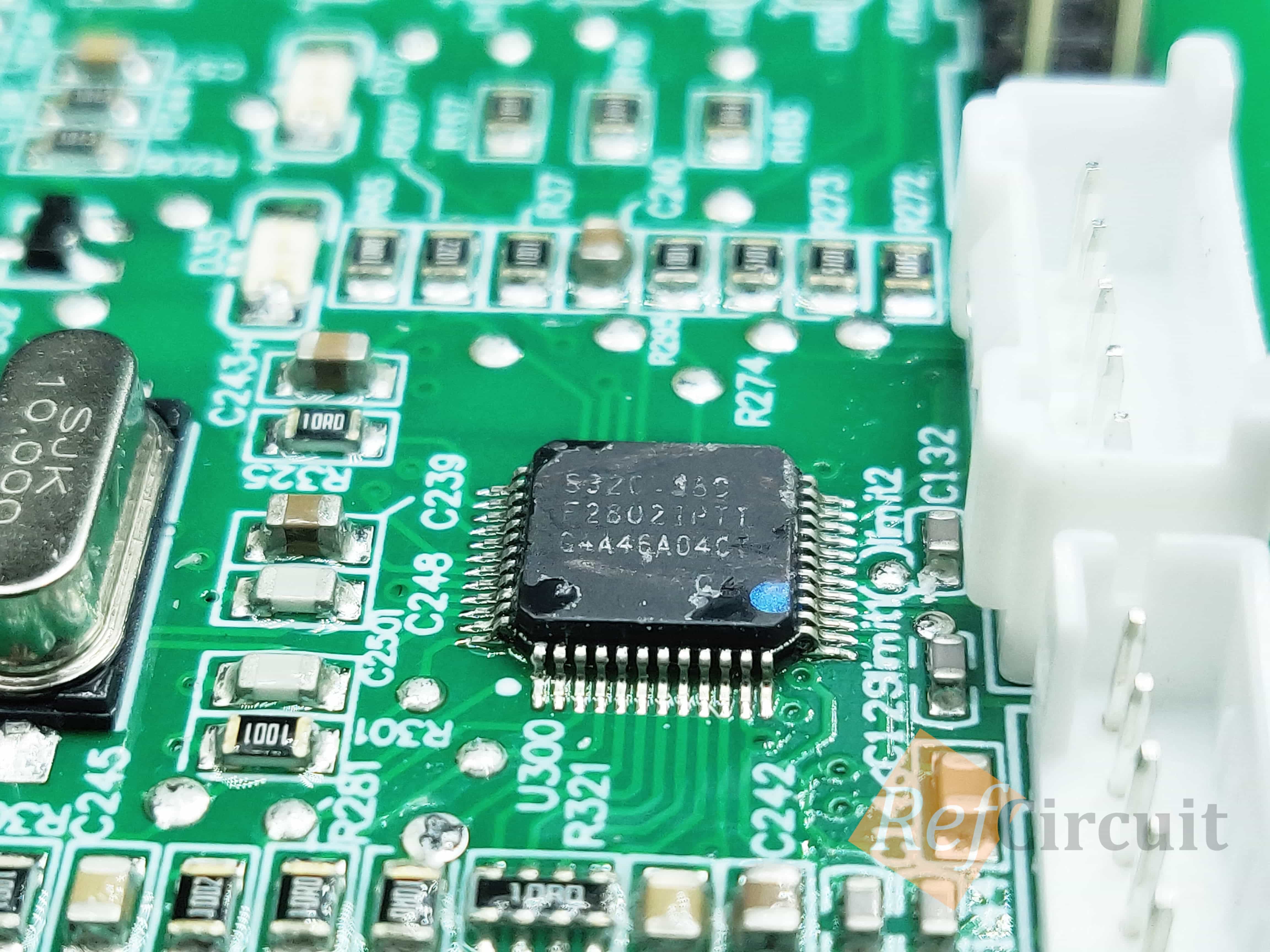

TMS320F2802 Digital Signal Processors (Secondary MCU)

  • 100 MHz
  • 32K × 16 flash, 6K × 16 SARAM
  • 12-bit ADC, 16CH, 160-ns conversion rate
  • Up to 16 PWM outputs
  • Up to 6 HRPWM outputs

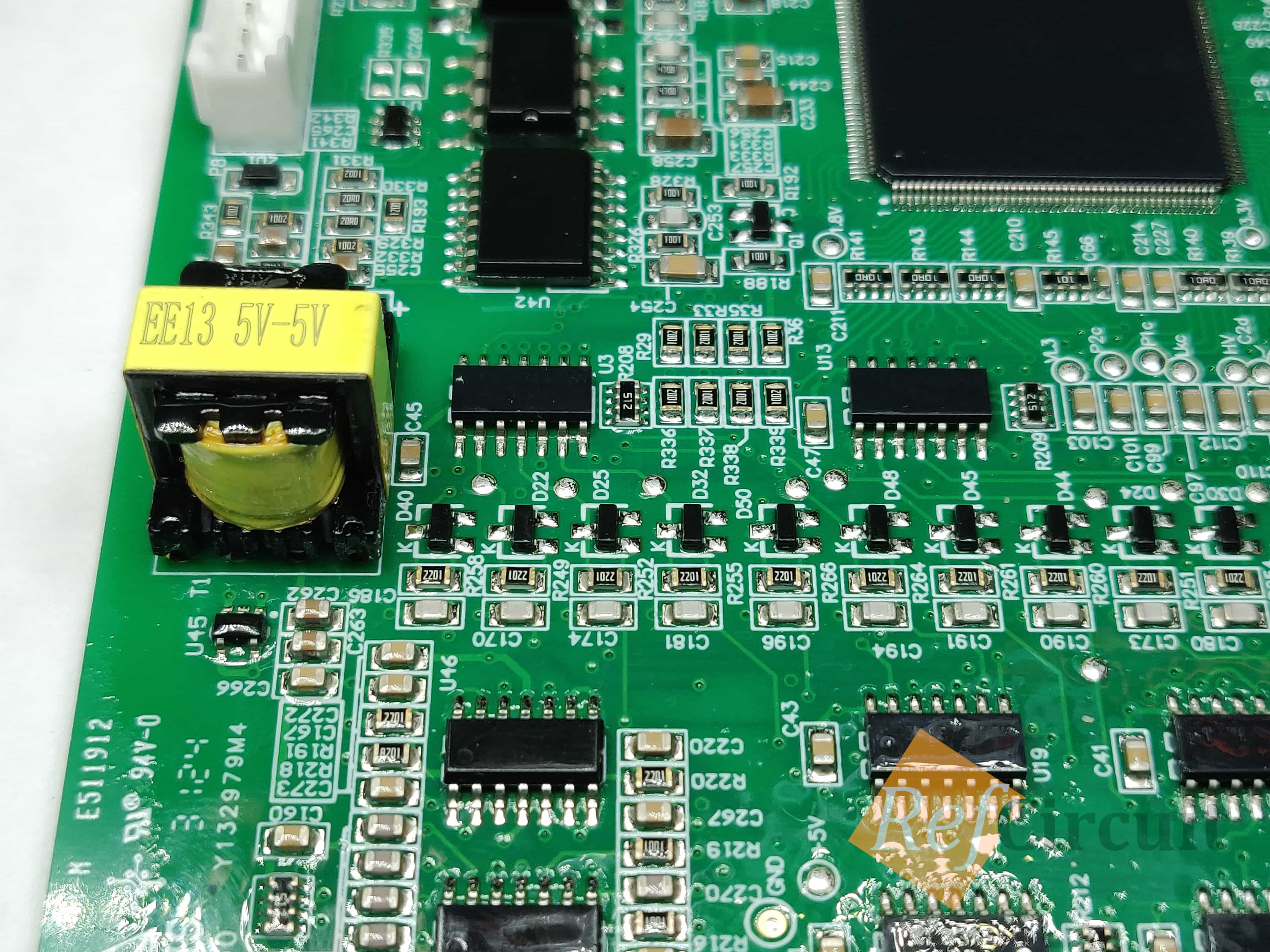

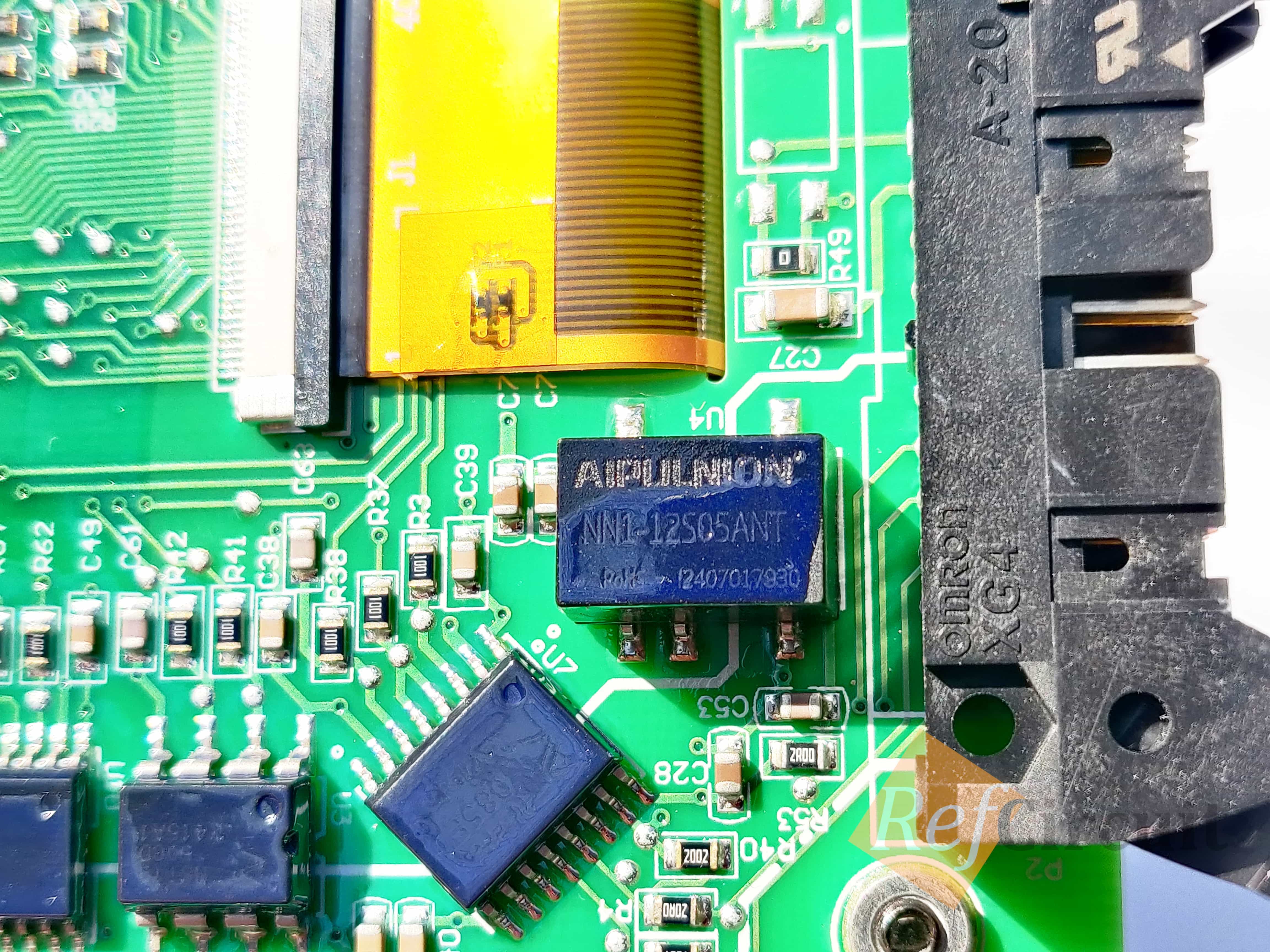

ImageIsolation Transformer 5V

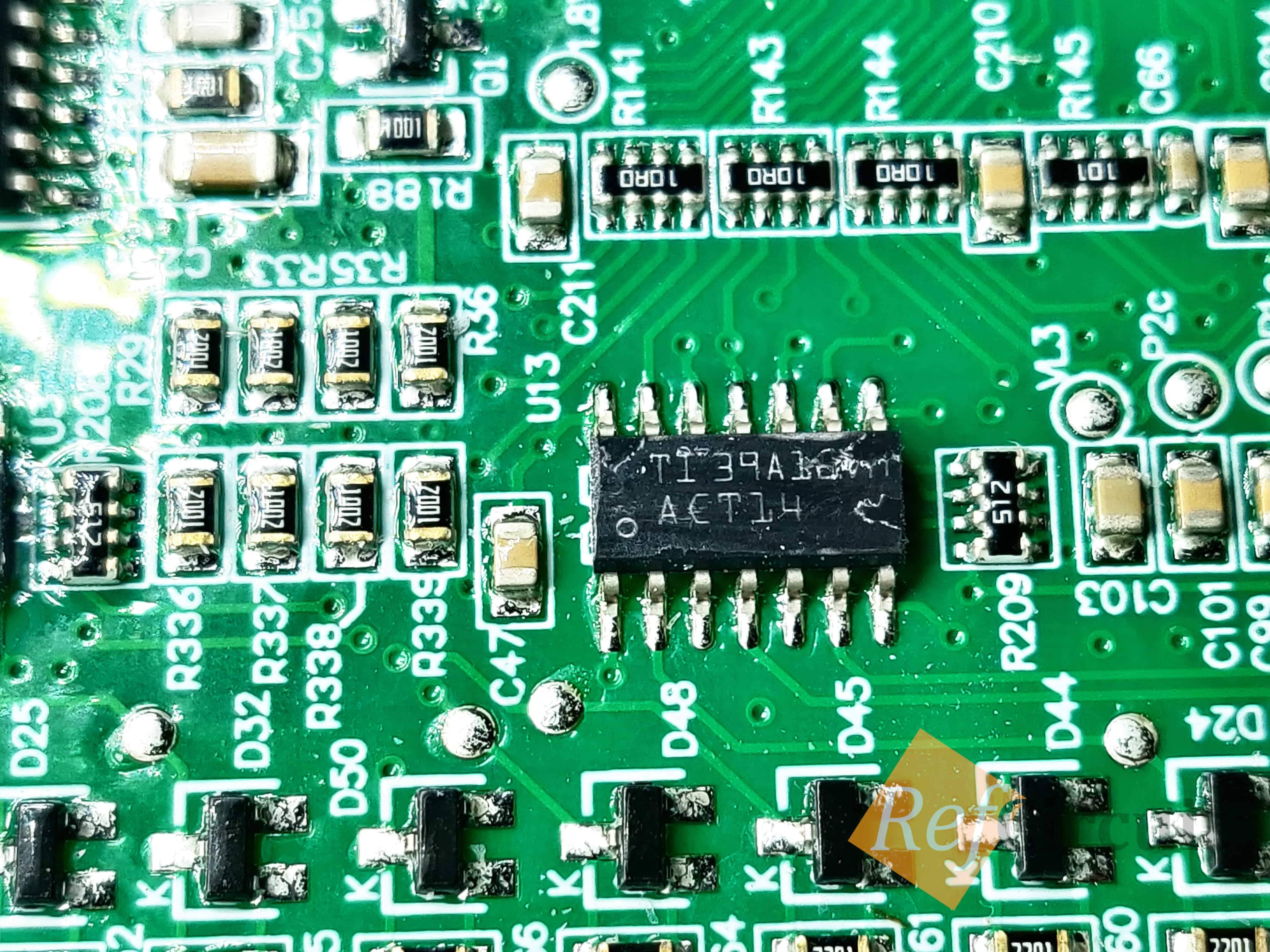

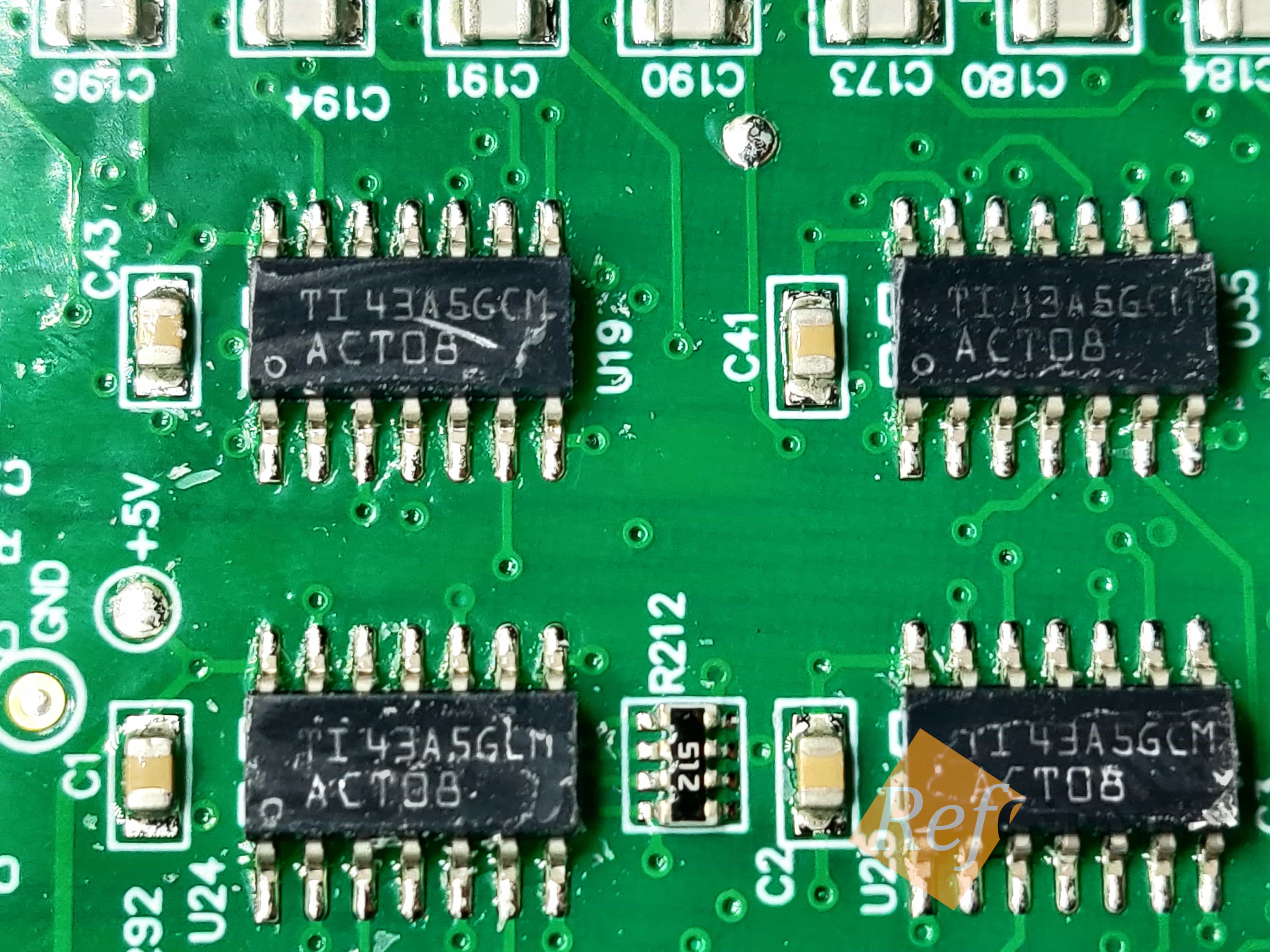

SNx4ACT14 Hex Schmitt-Trigger Invert

  • VCC is optimized at 5V
  • Allows up voltage translation from 3.3V to 5V

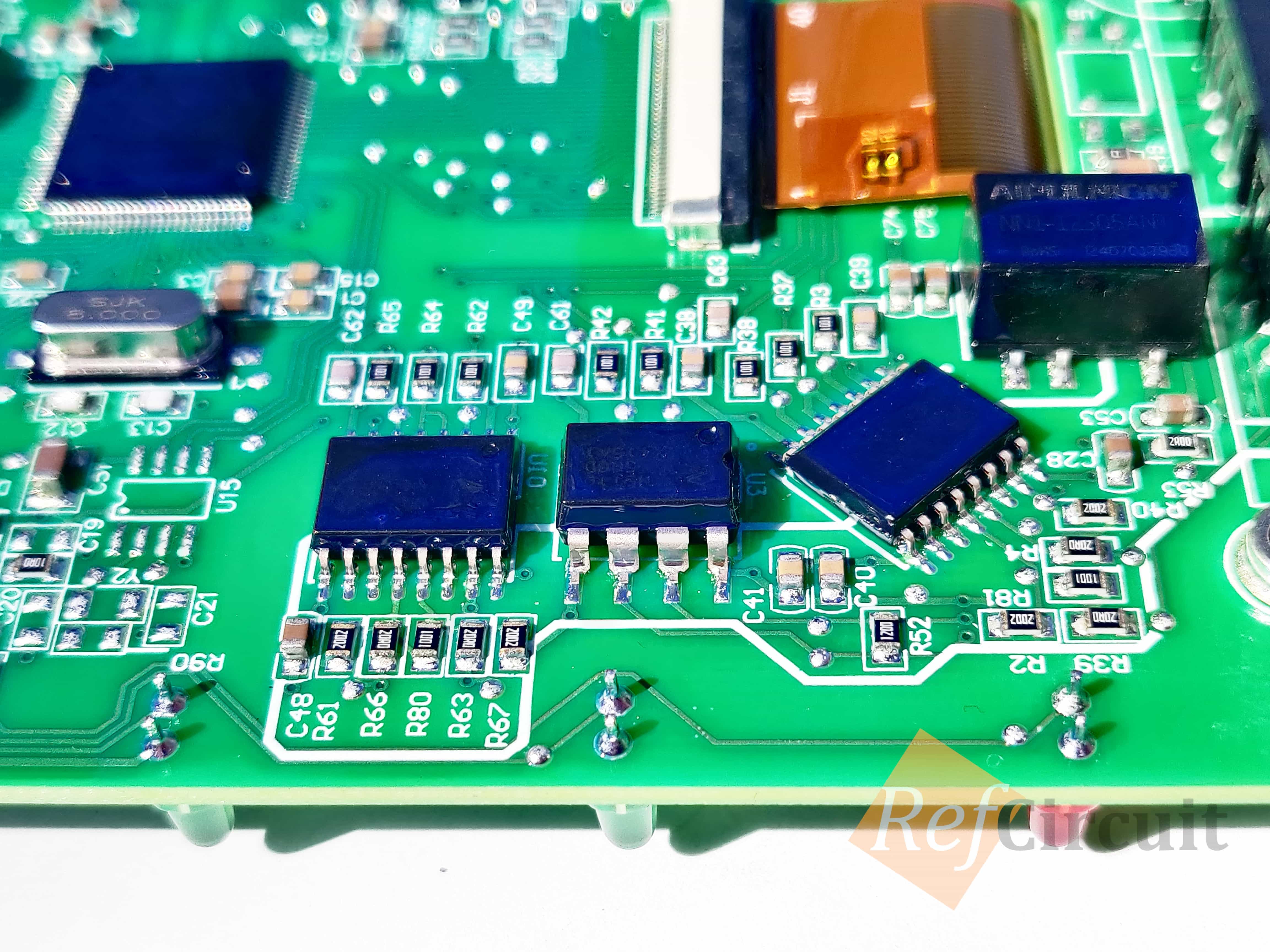

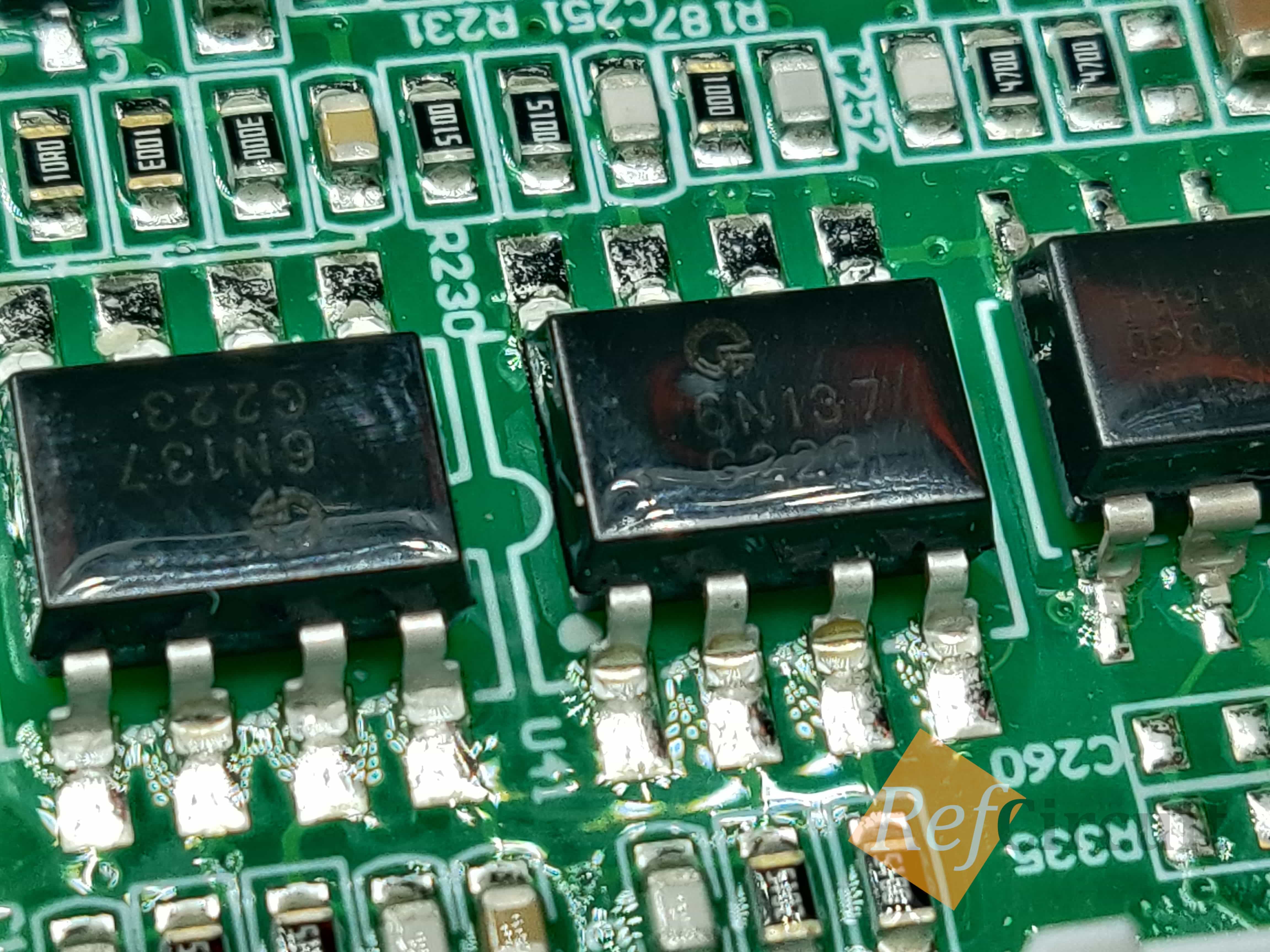

6N137 High Speed Optocoupler

  • Single Channel
  • High speed: 10 MBd typical
  • +5 V CMOS compatibility
  • Open drain NMOS-transistor output

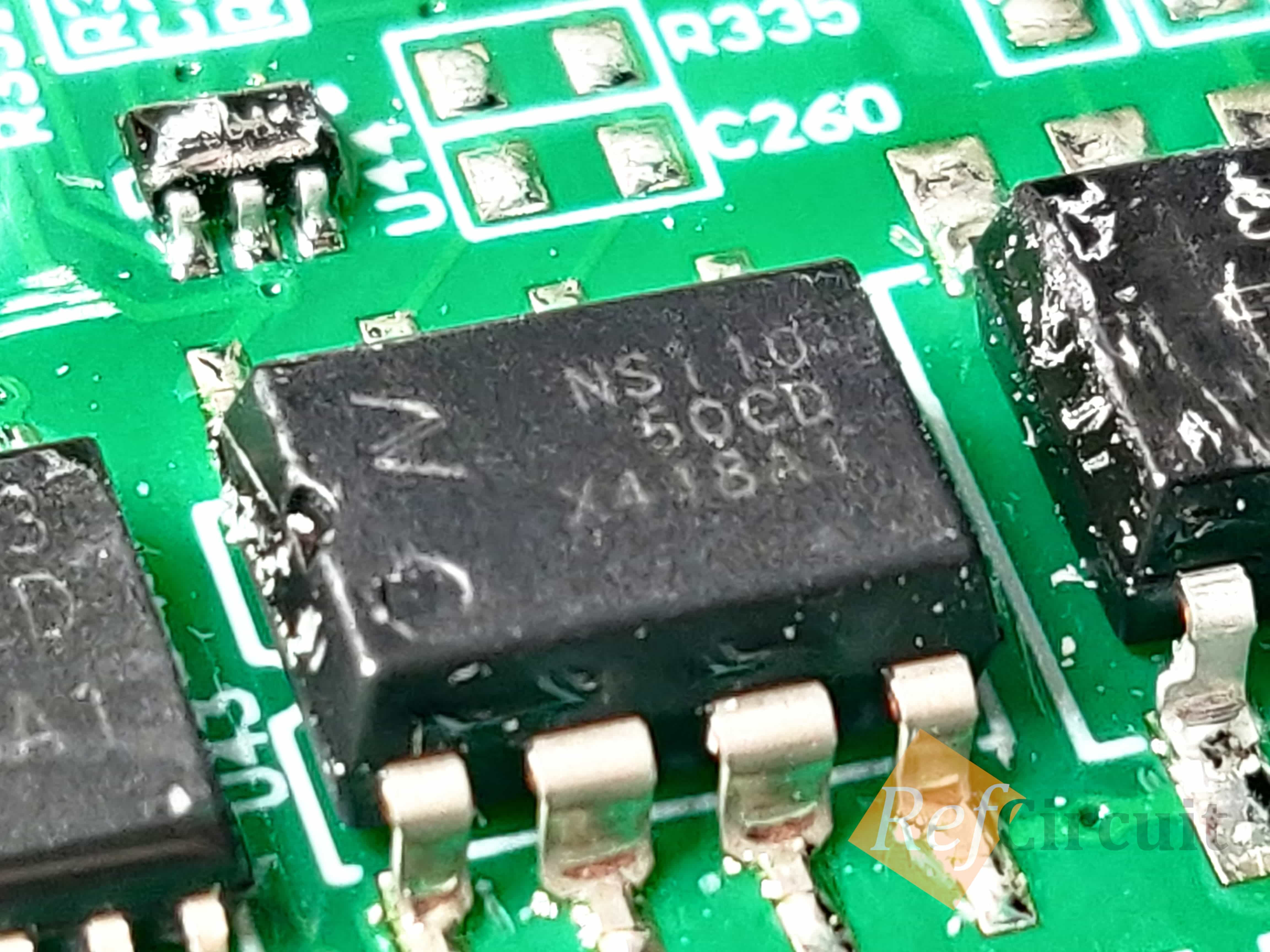

NSi1050 Isolated CAN Transceiver

  • VDD1: 2.5V to 5.5V
  • VDD2: 4.5V to 5.5V
  • Date rate: up to 1Mbps

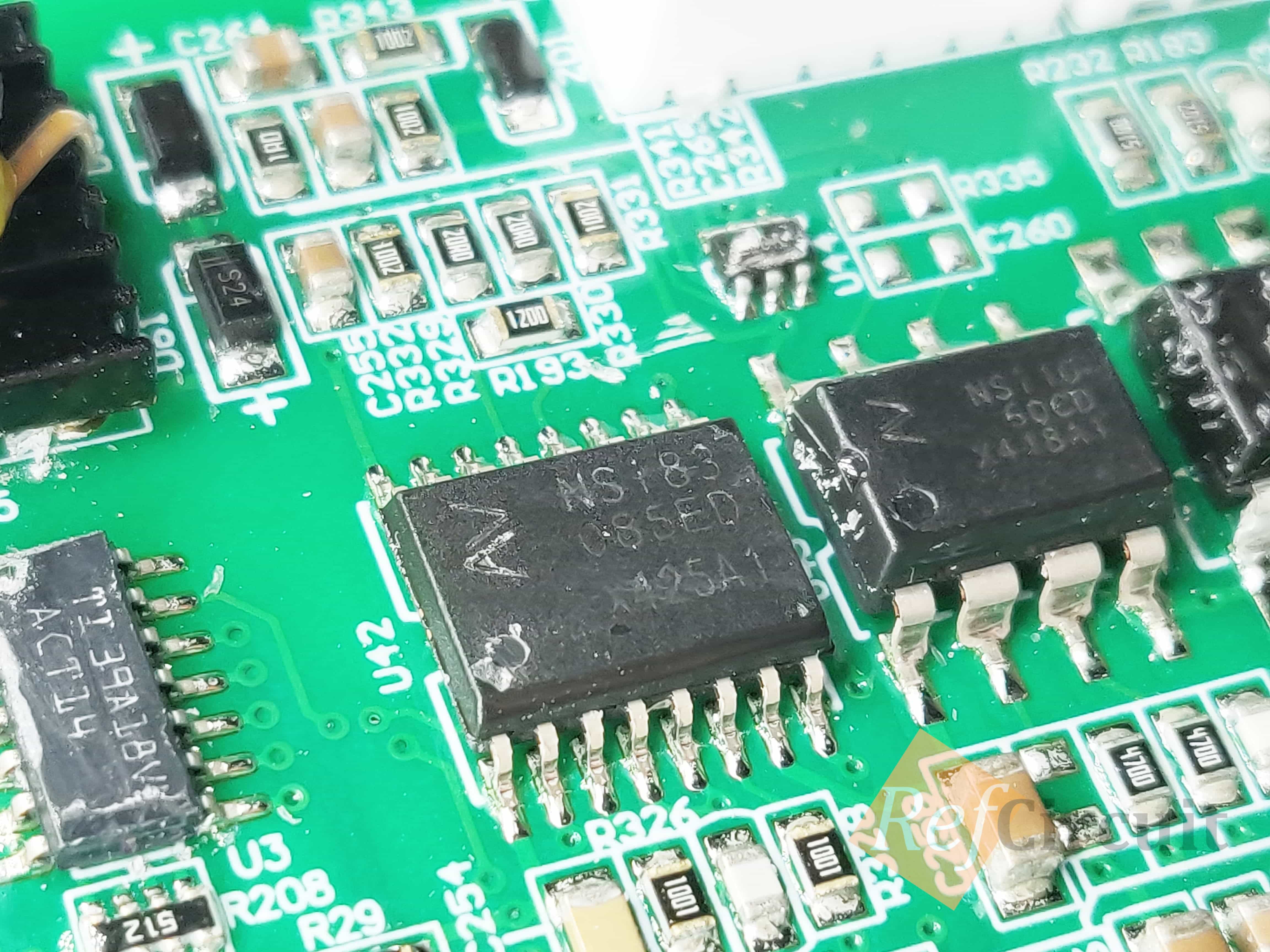

NSI83085E High Reliability Isolated Half and Full-Duplex RS-485 Transceivers

  • Bus side power supply voltage: 3.0V to 5.5V
  • VDD1 supply voltage: 2.5V to 5.5V
  • Data rate: up to 16Mbps.

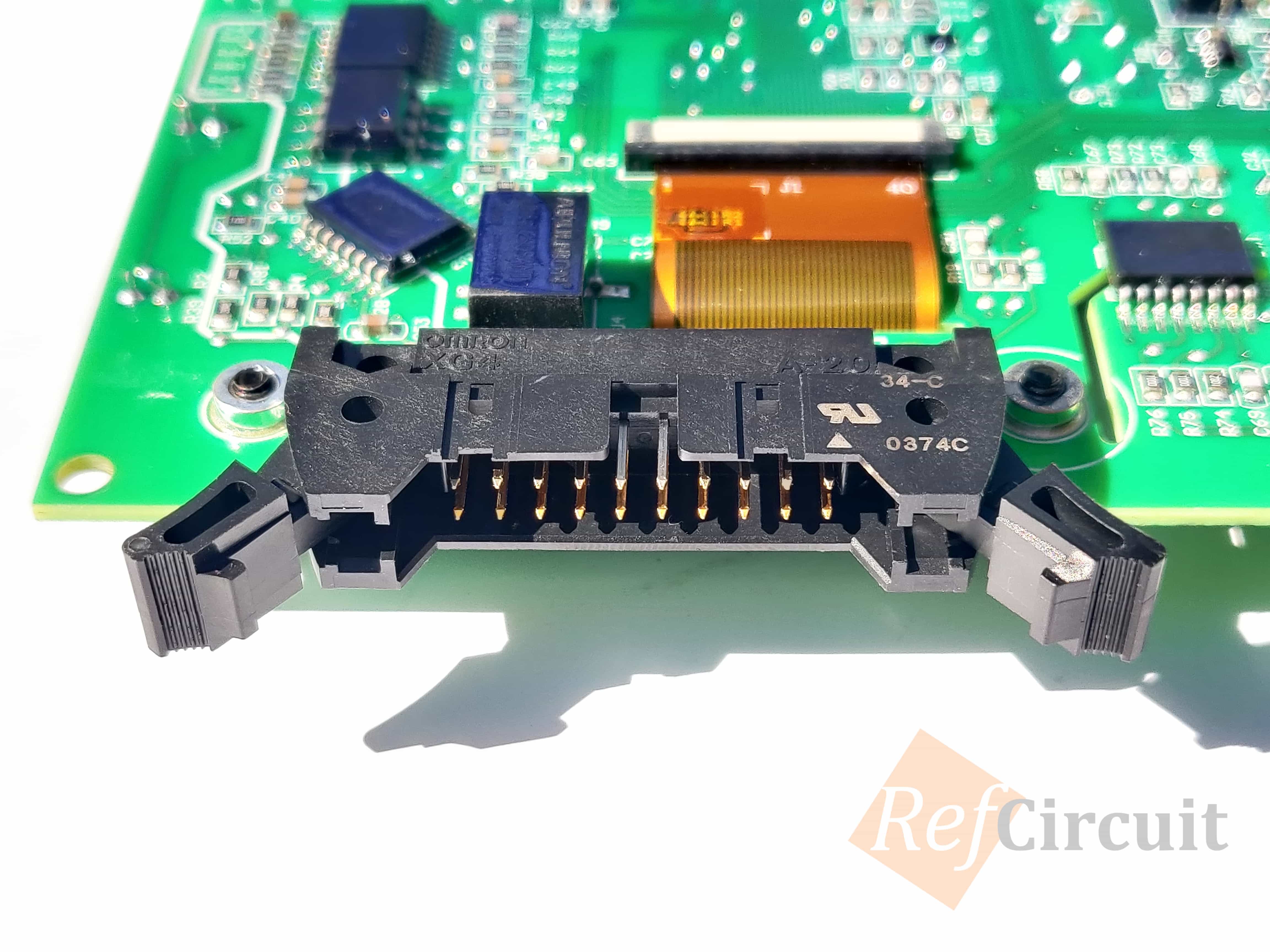

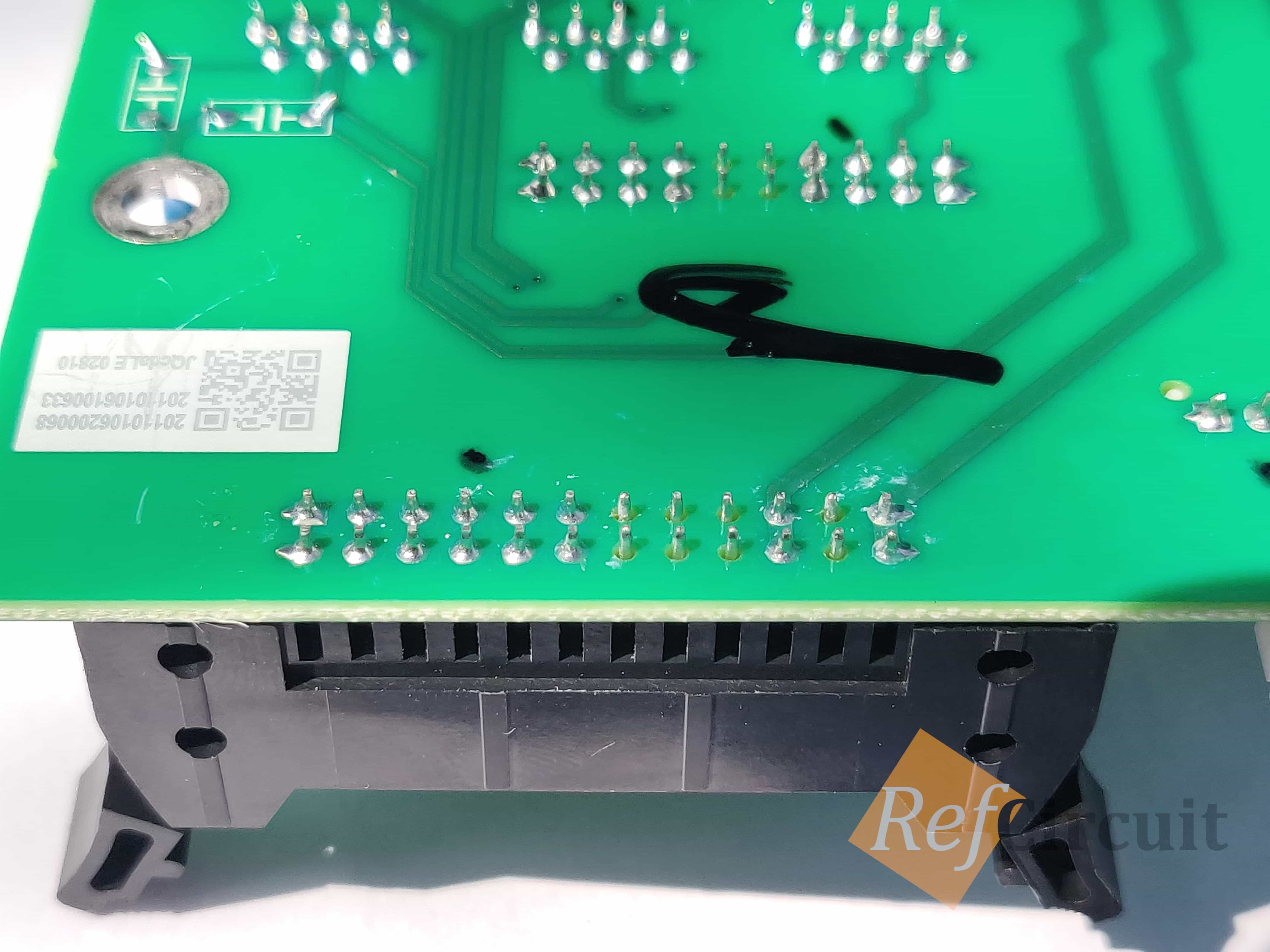

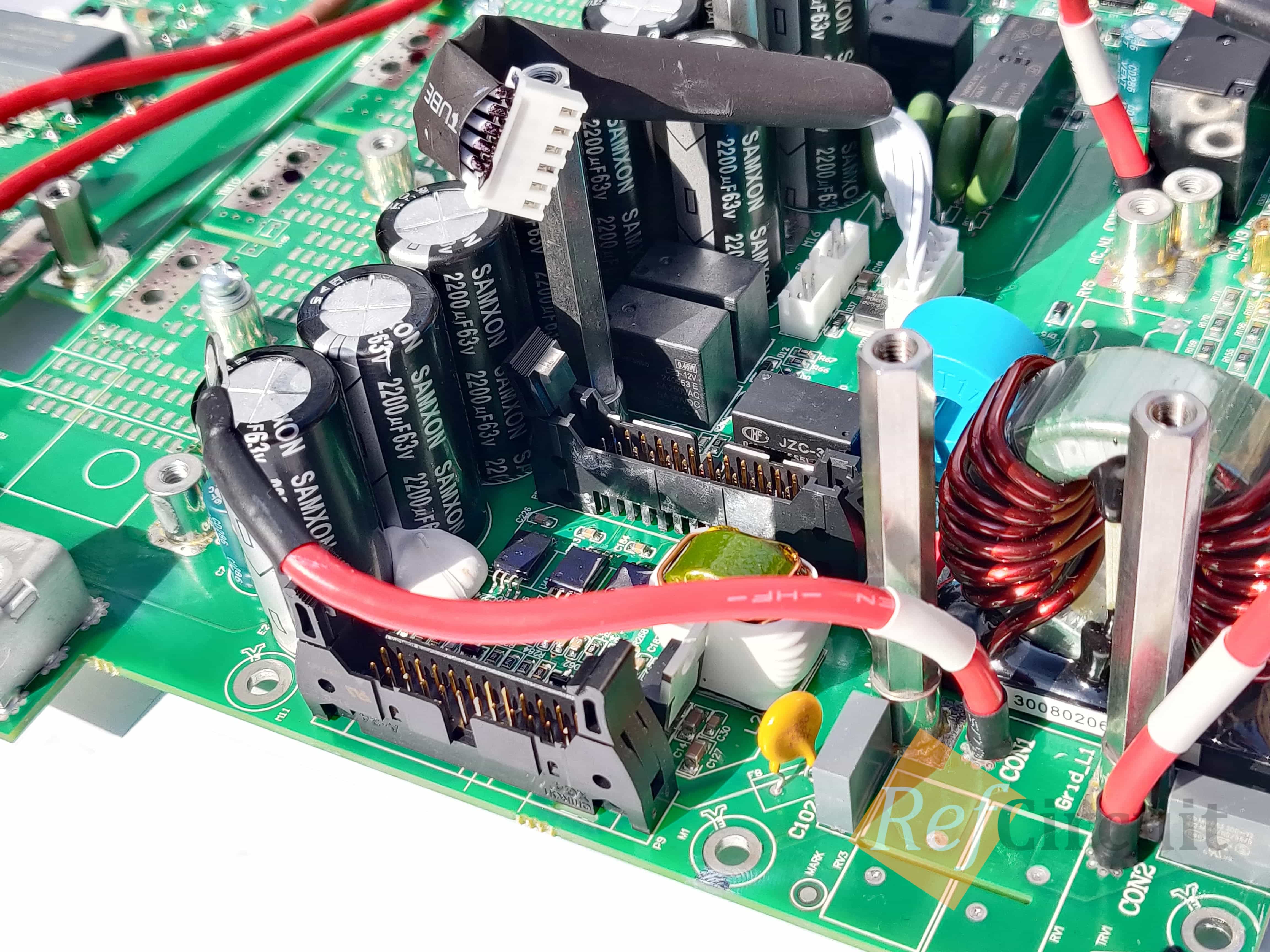

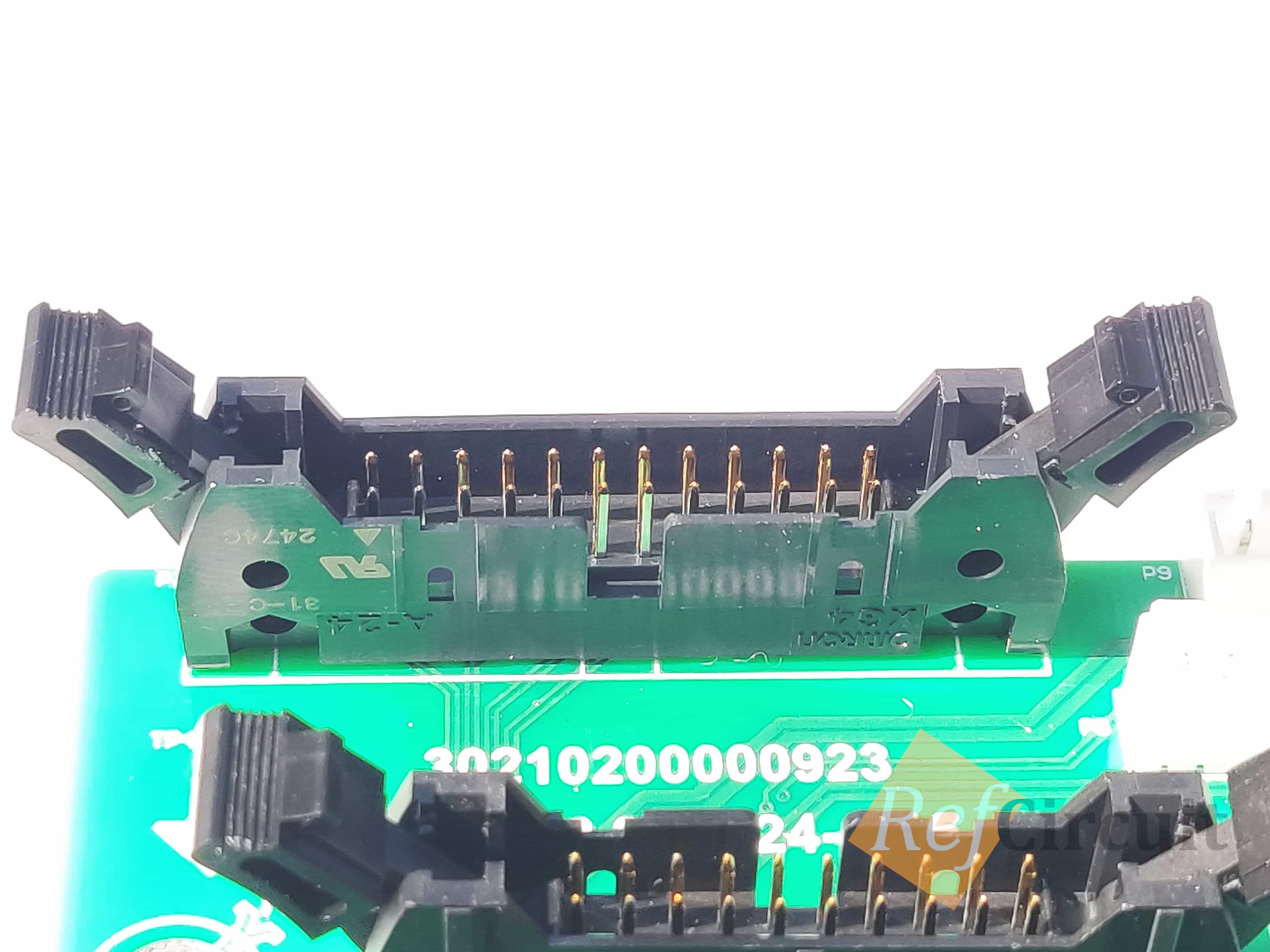

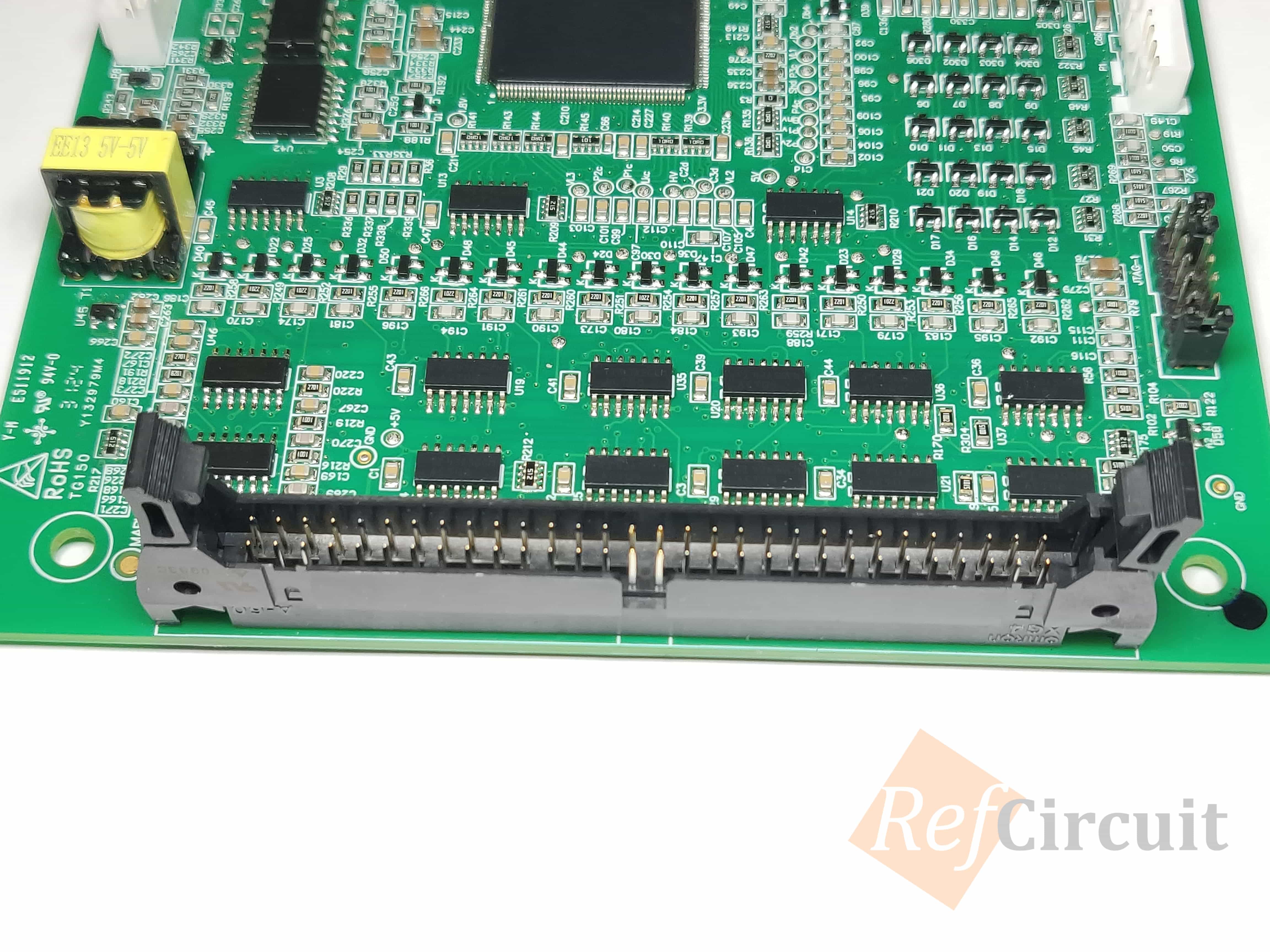

Image2.54mm 2x30 IDC connector with Buckle

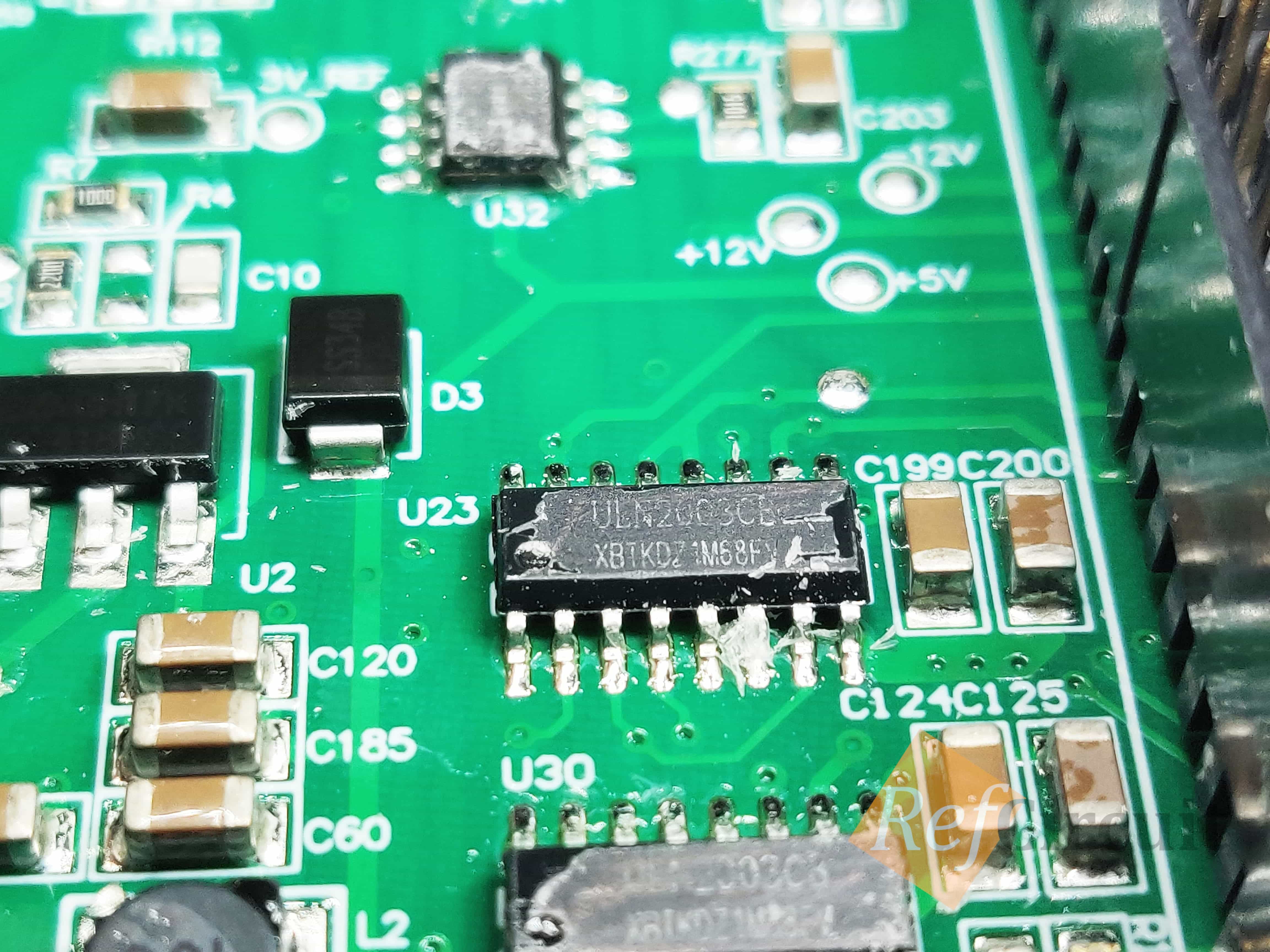

BJT

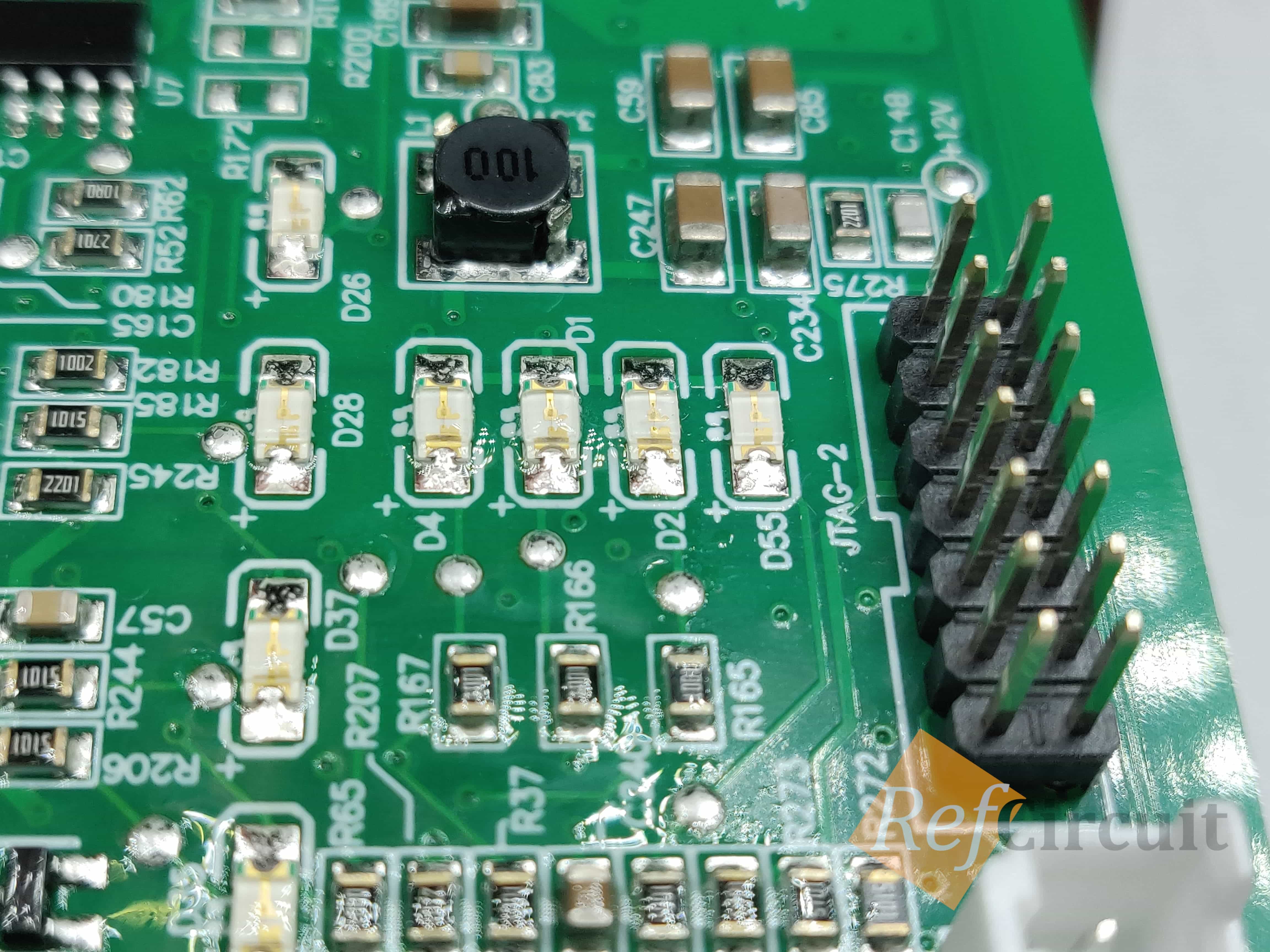

  • Indicator LED 1206 (Reverse Mount)
  • Debug JTAG connector (02x07 2.54mm Pin Header)

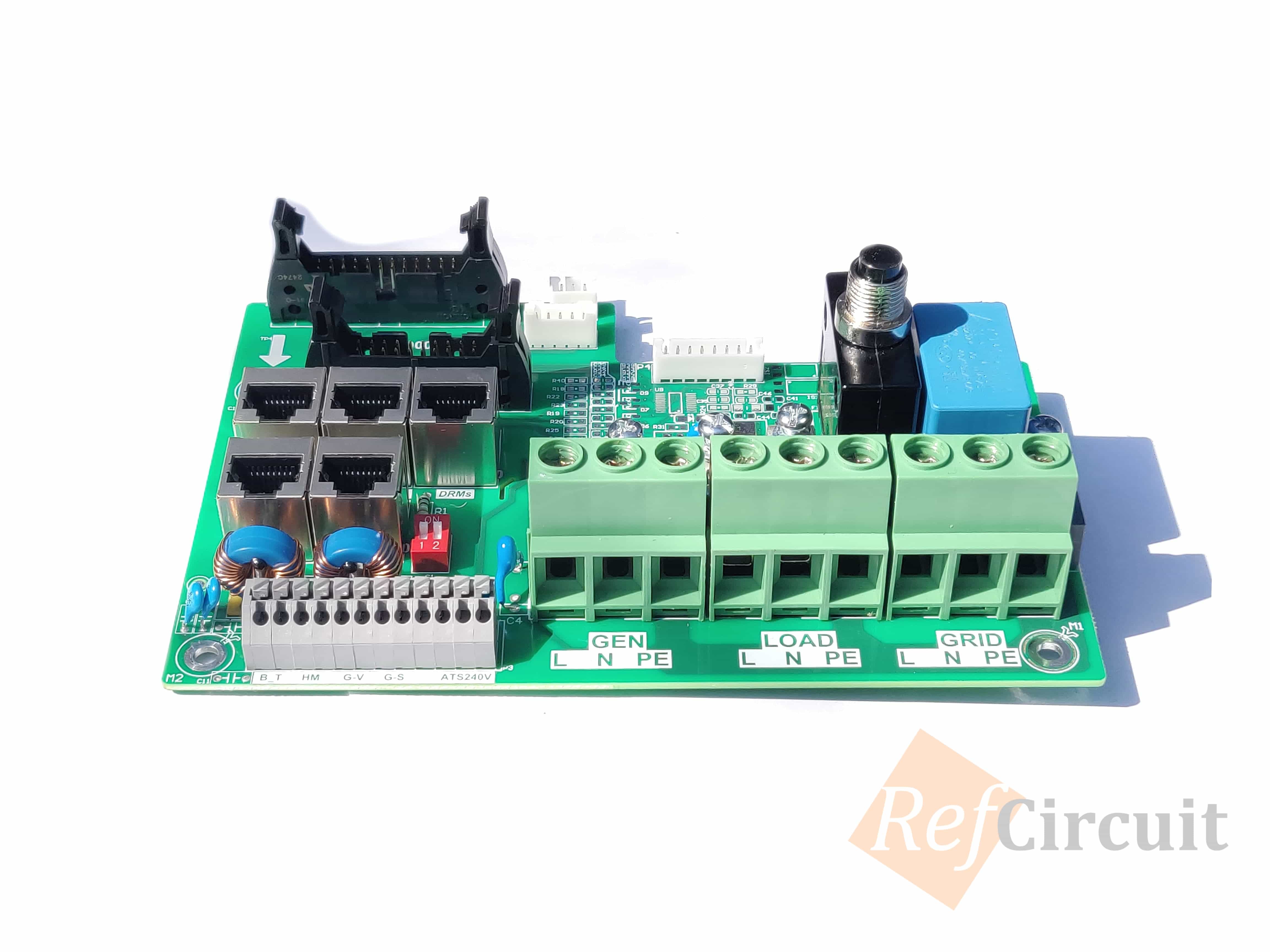

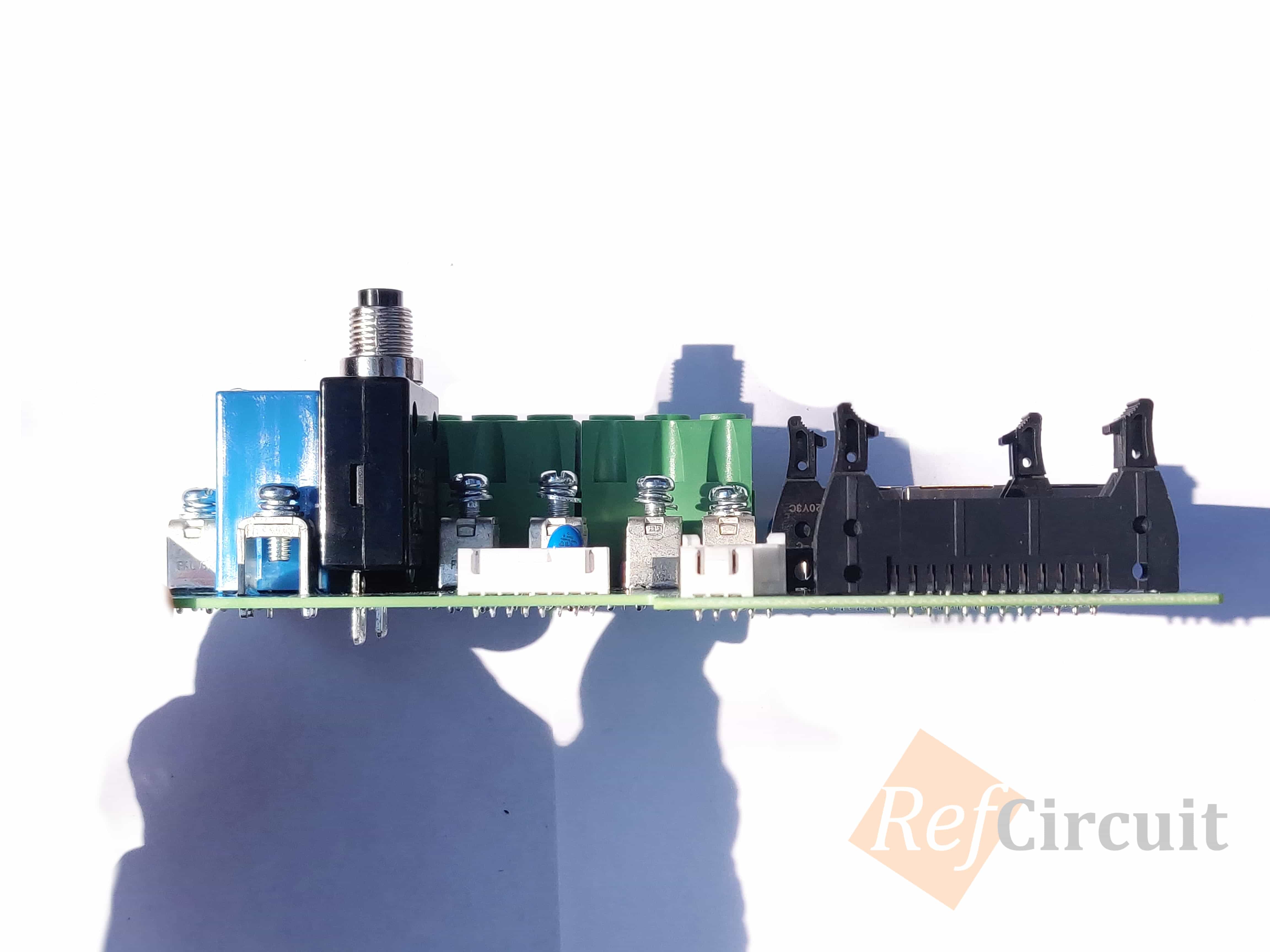

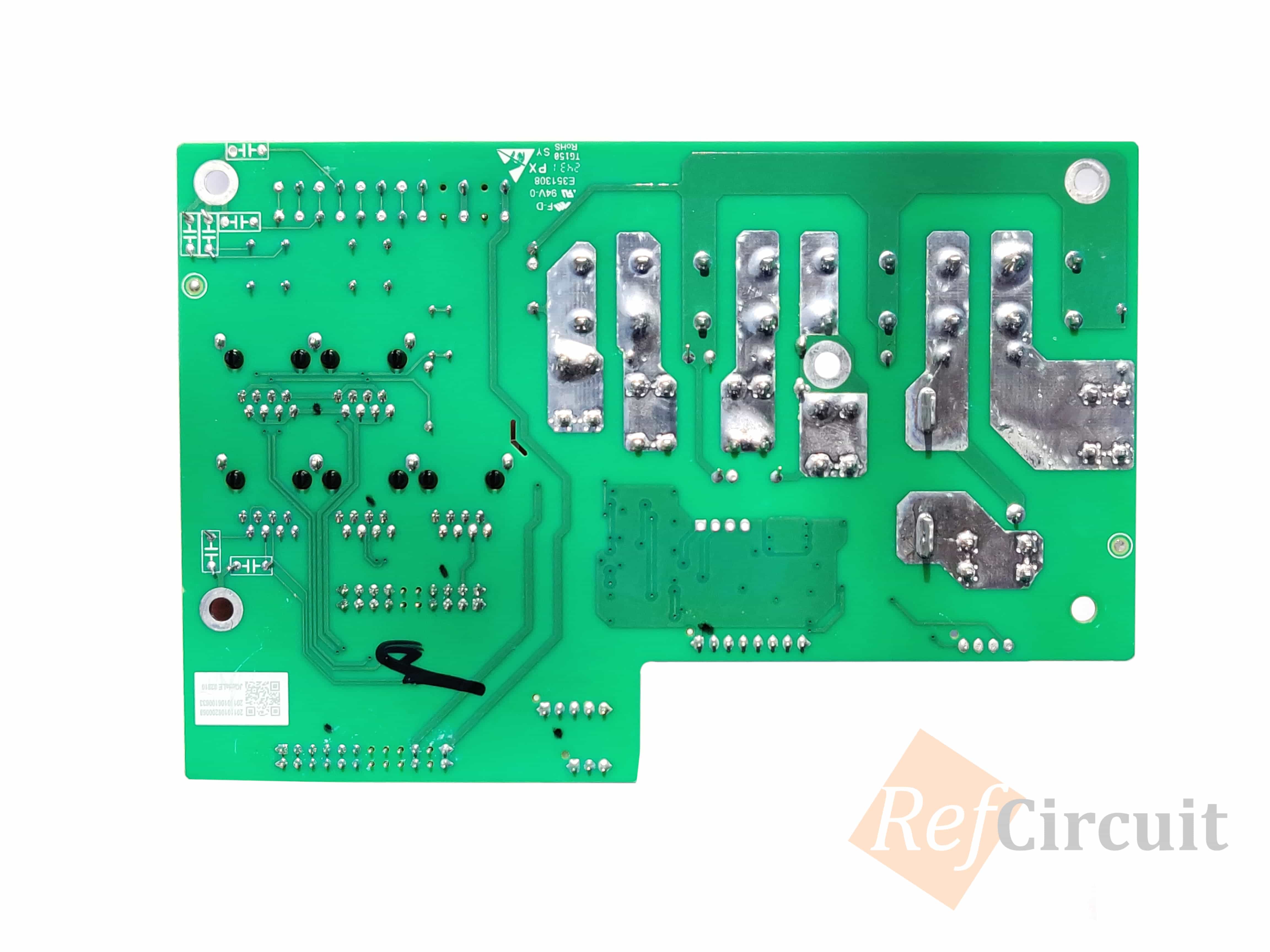

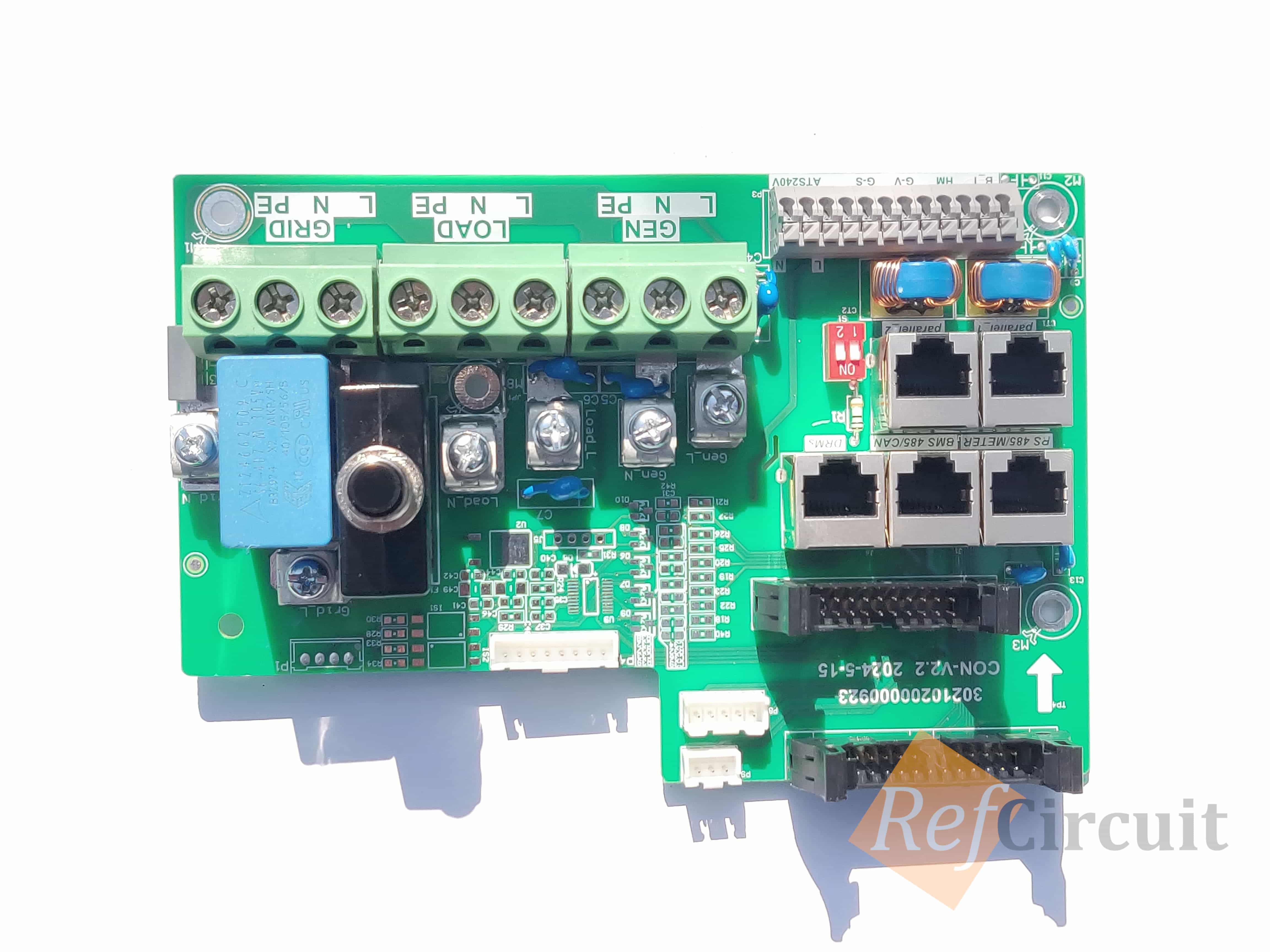

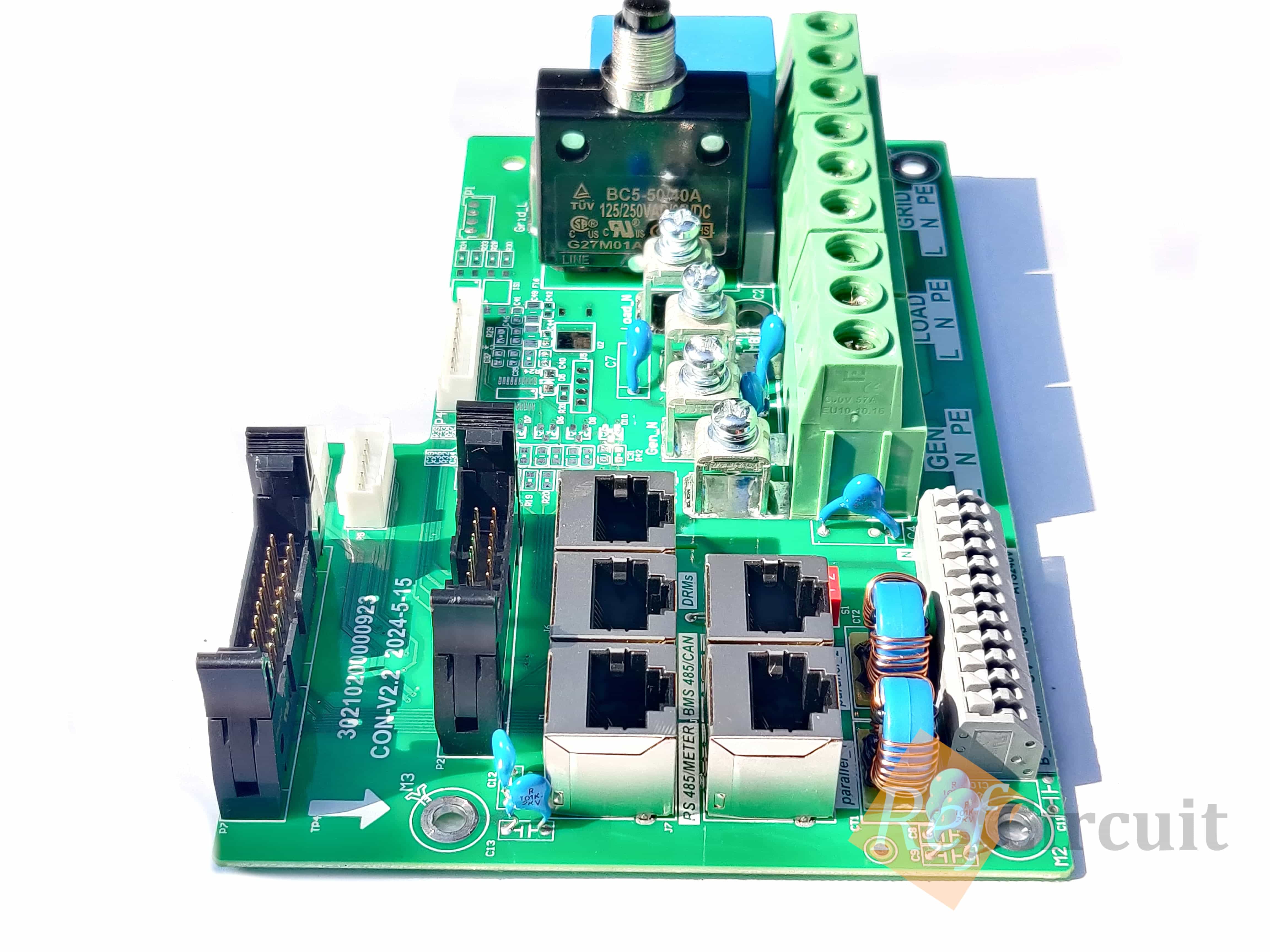

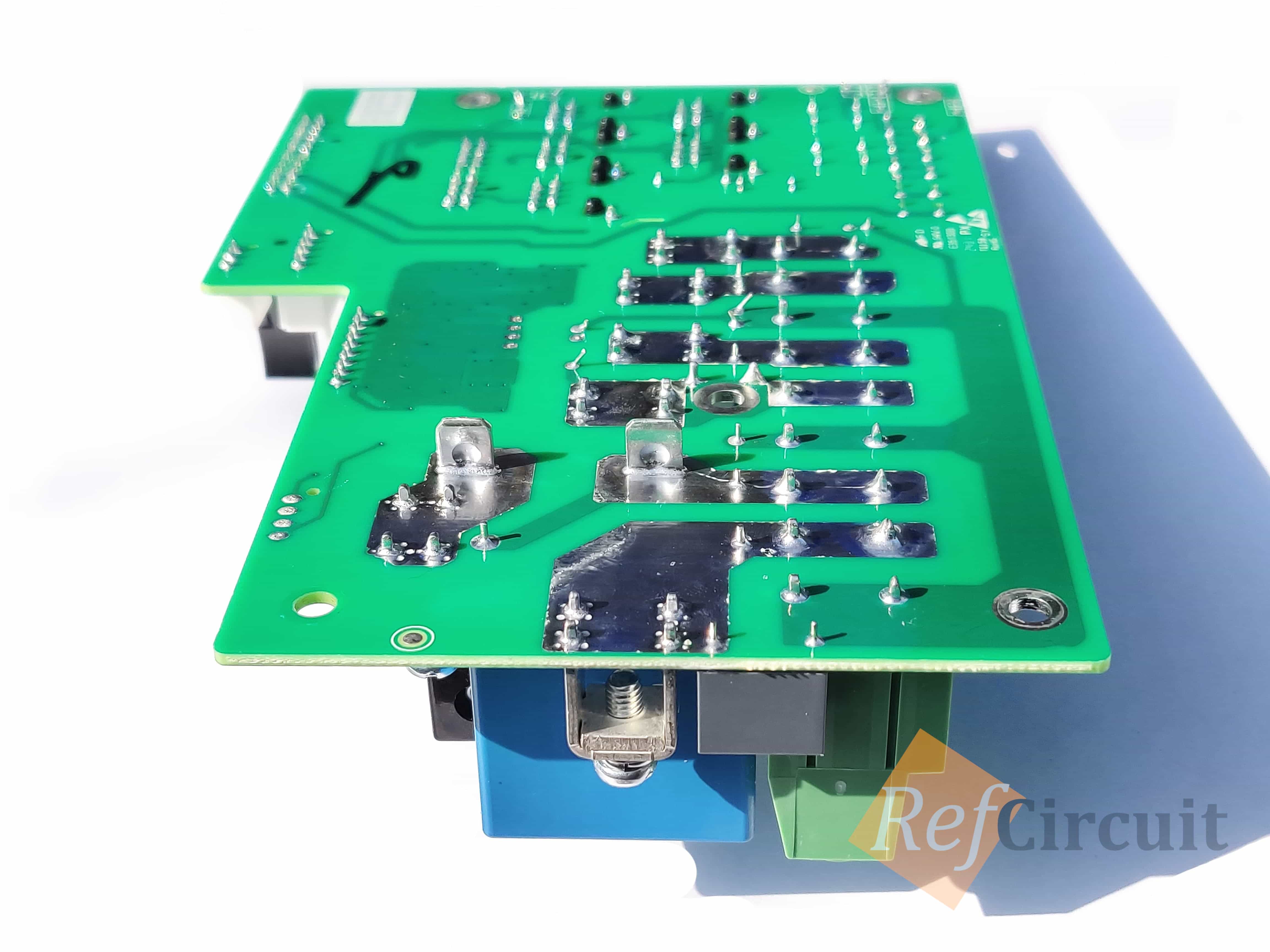

CON-V2.2 (2024-5-15)

  • Layers: 2L
  • Thickness: 1.3mm (or imprecise measurement)
  • Size: 164mm x 110mm x 58.6mm

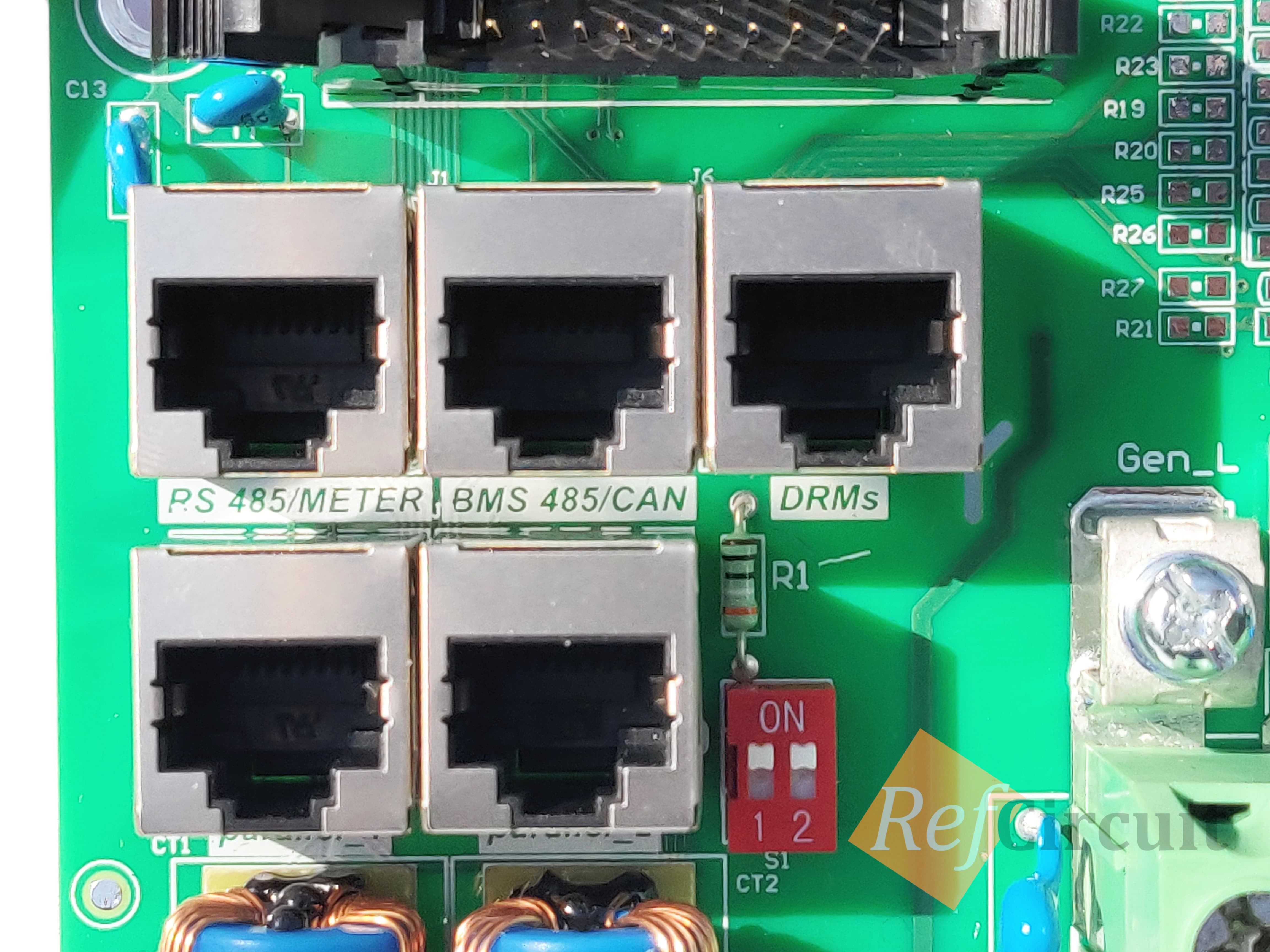

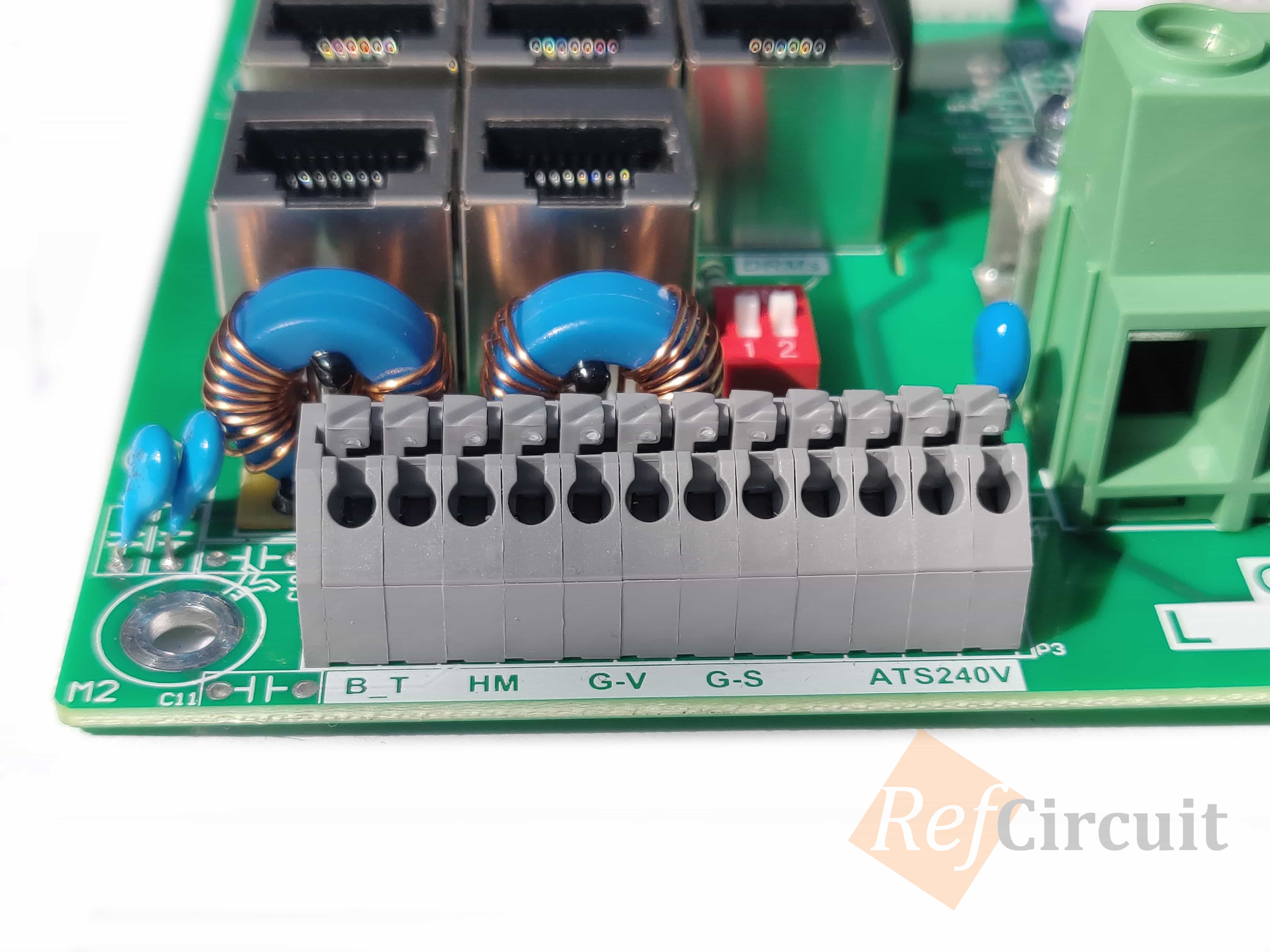

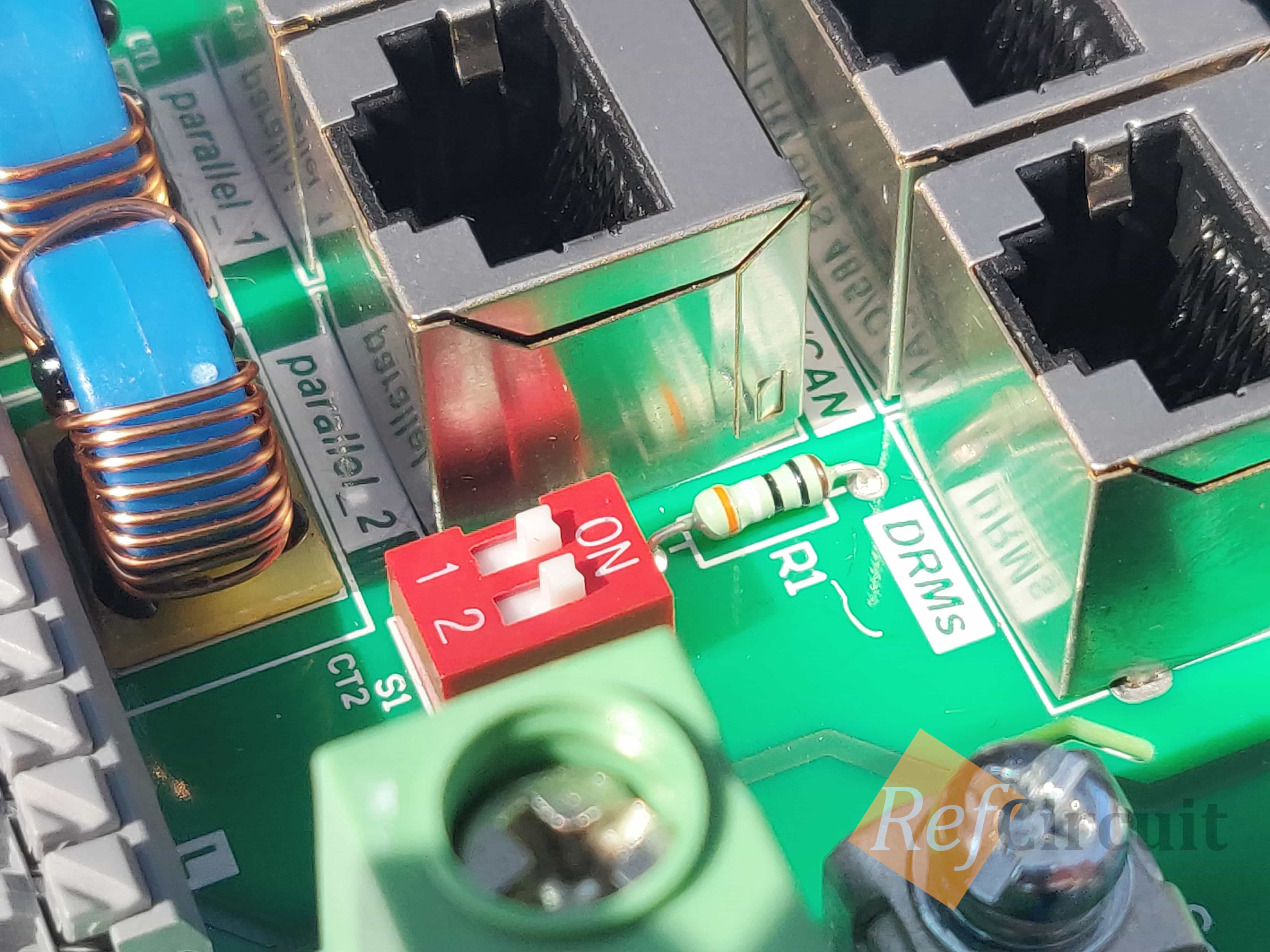

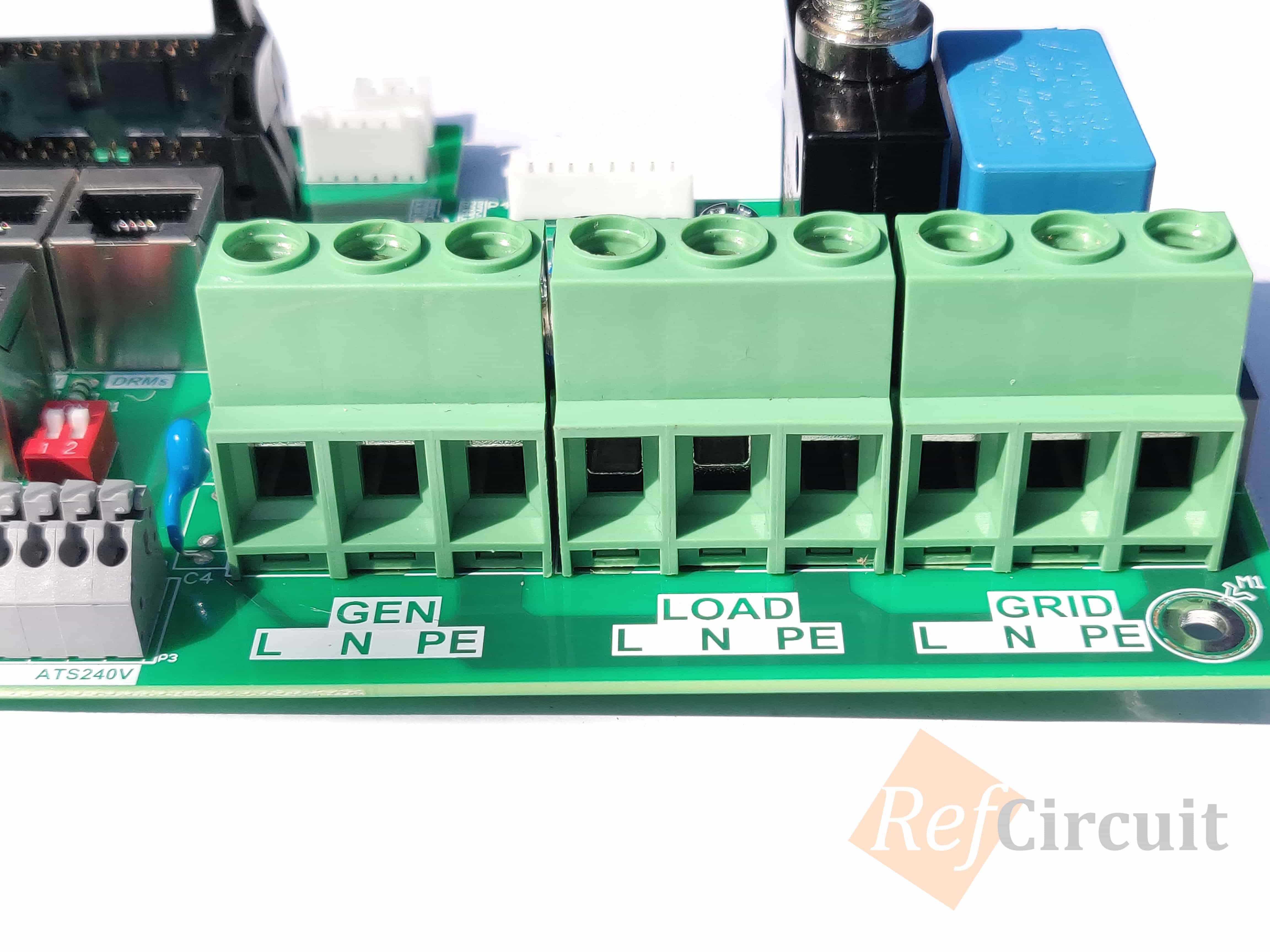

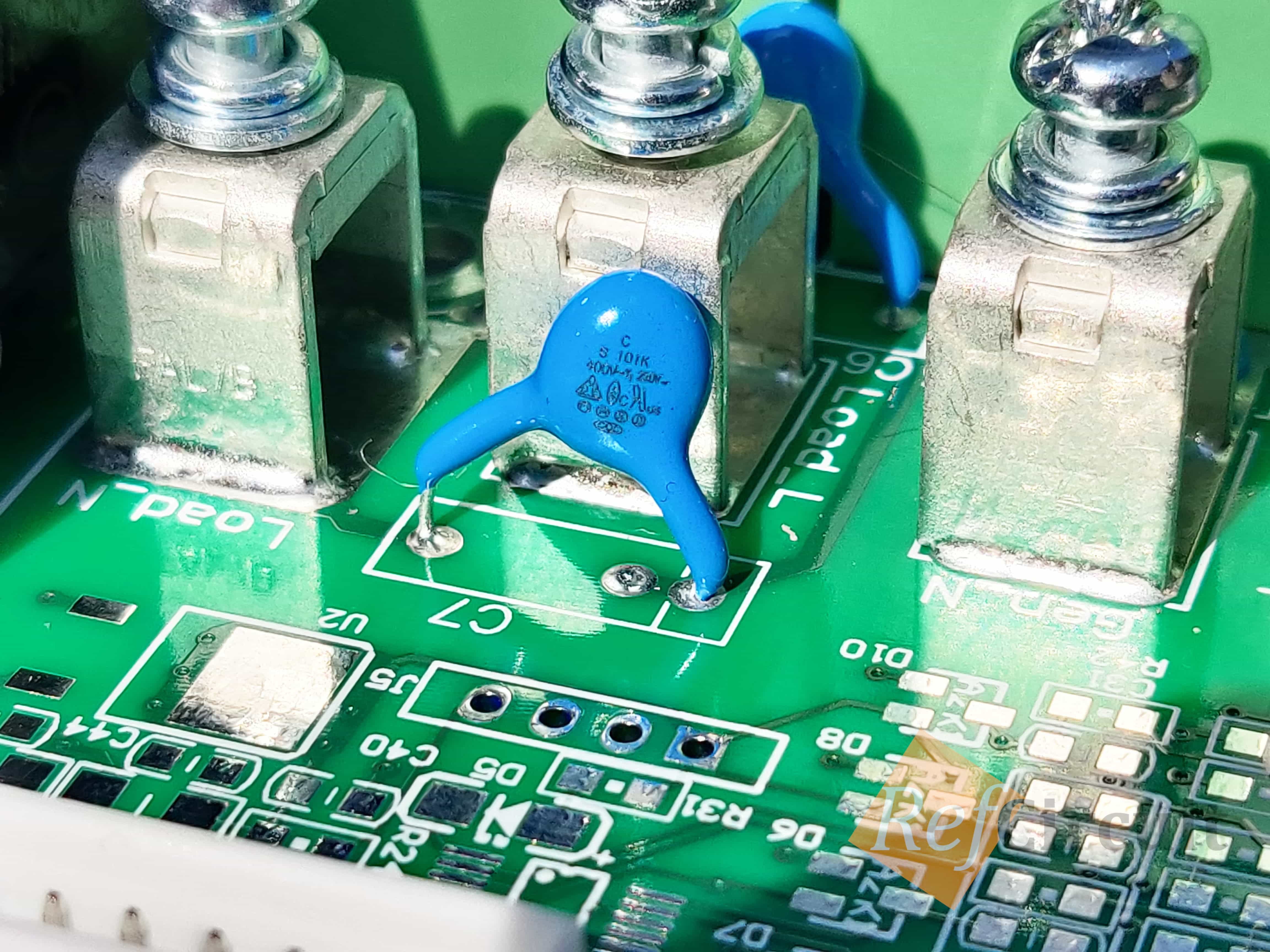

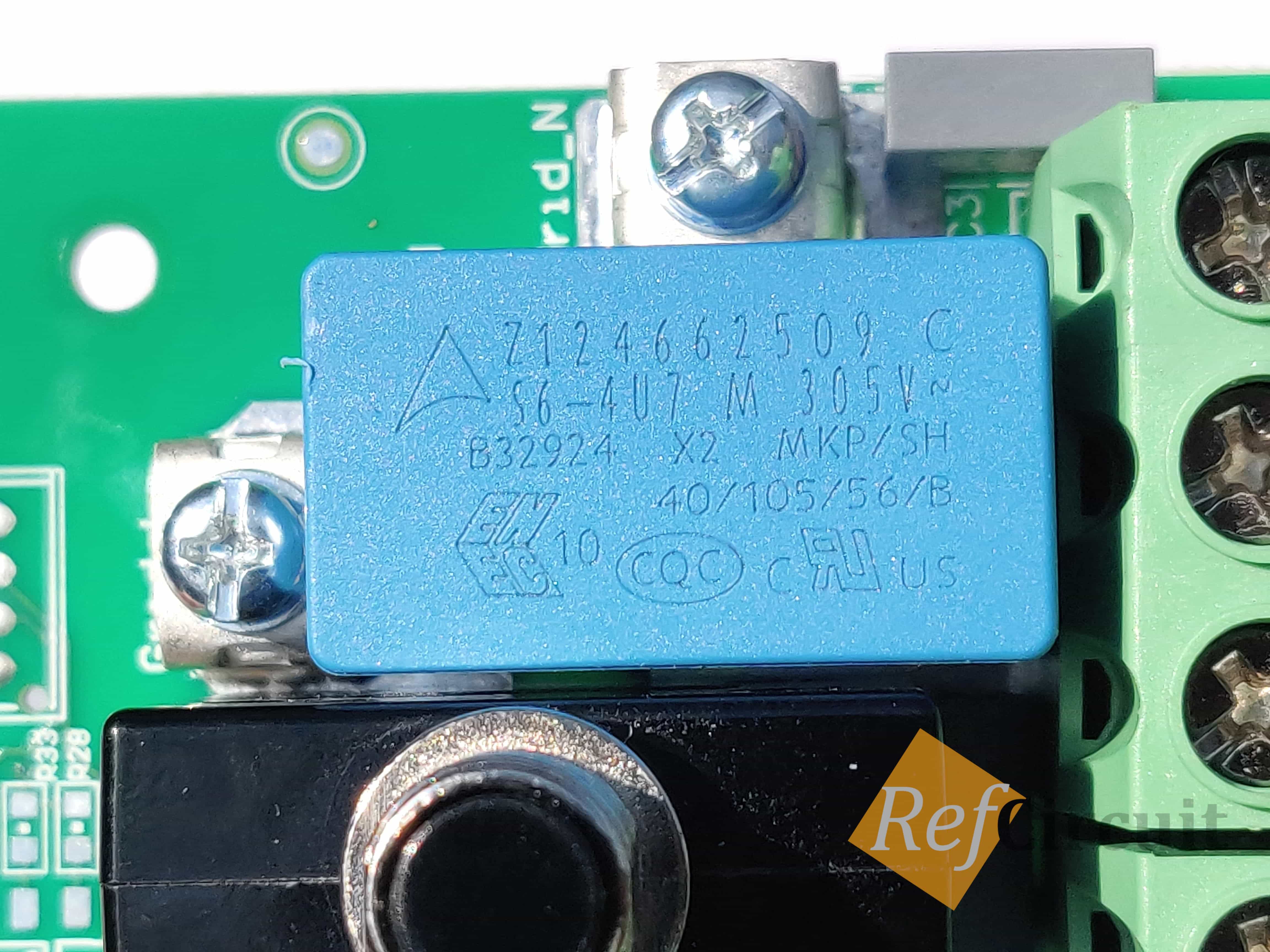

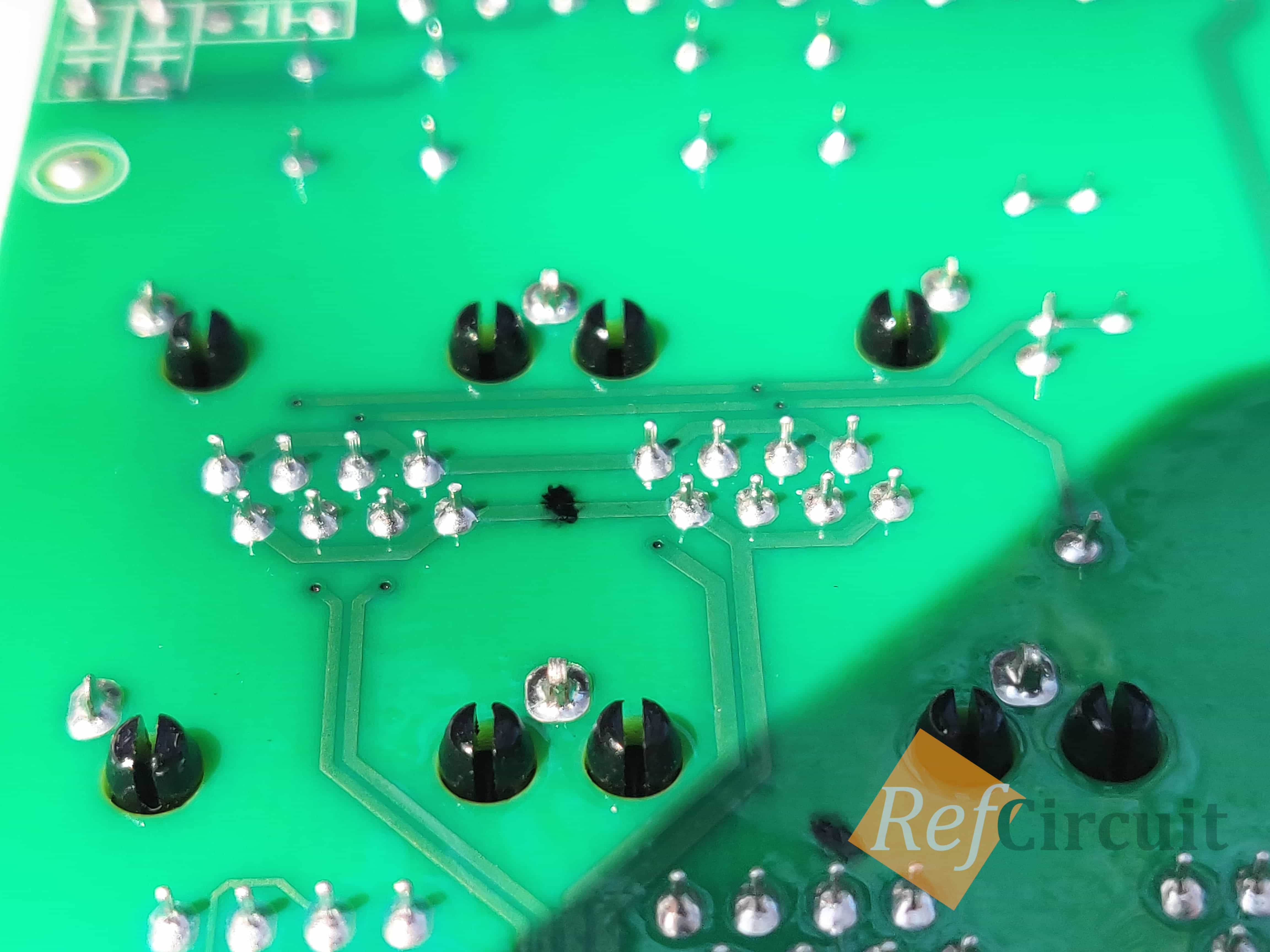

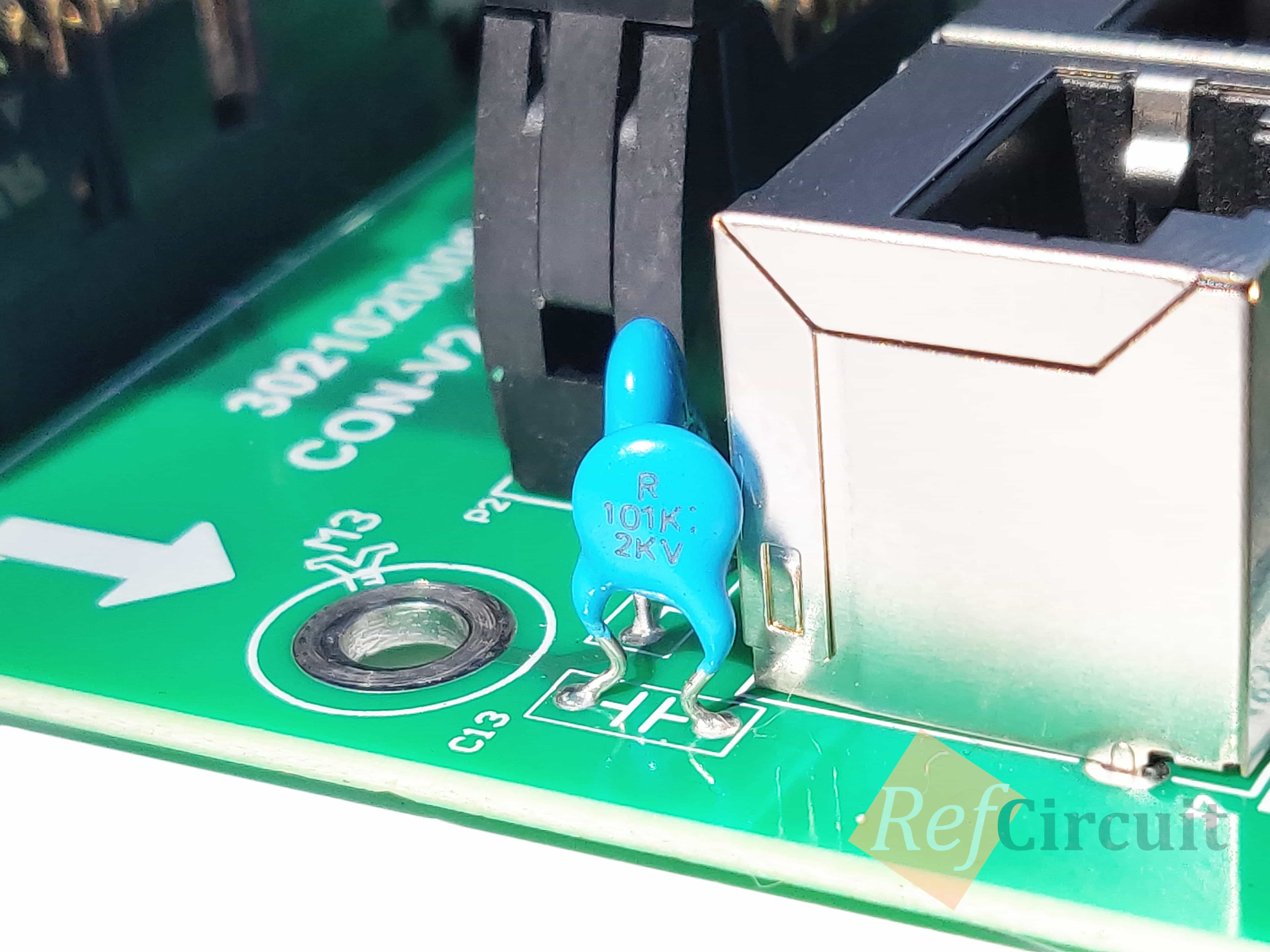

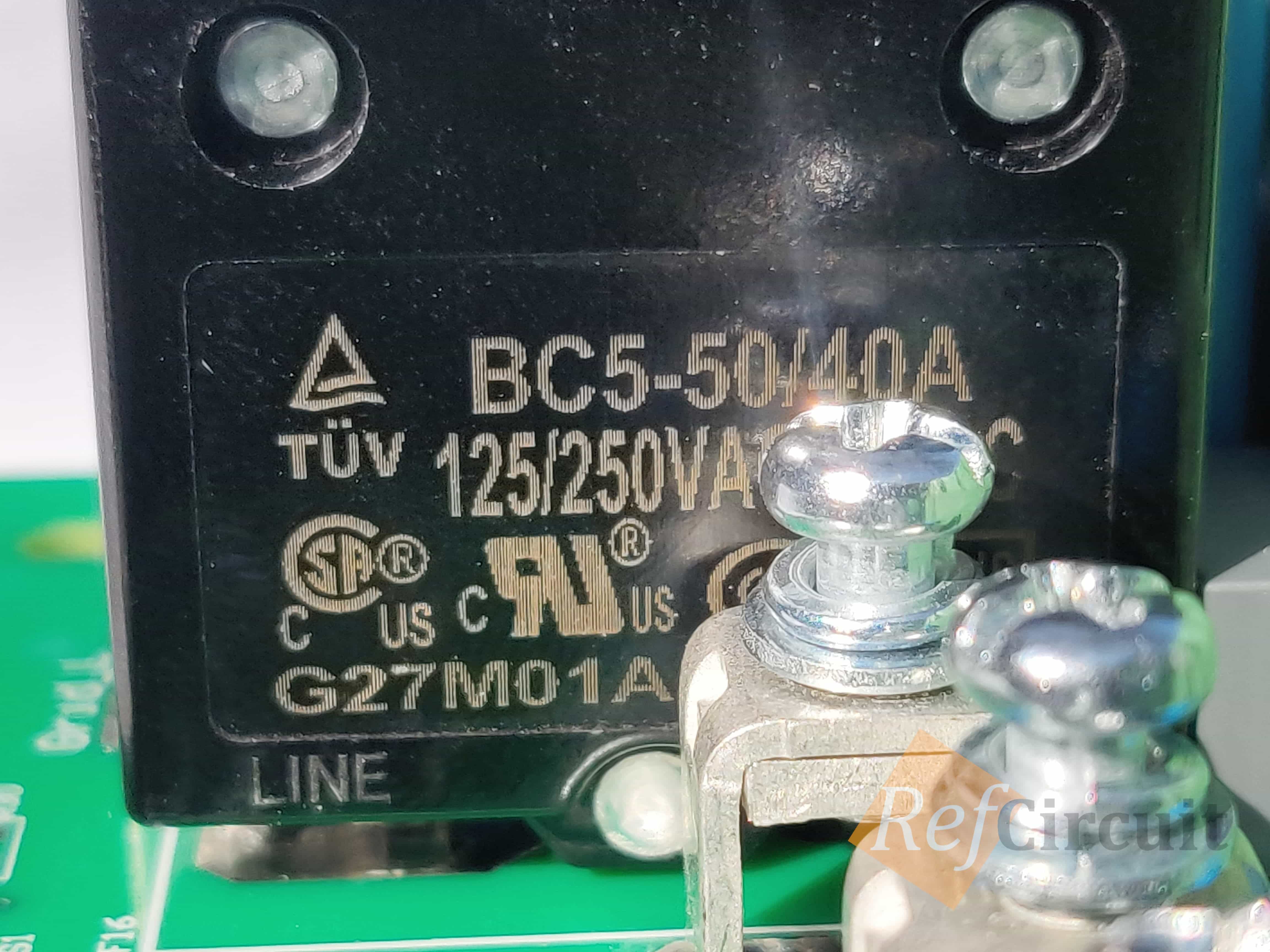

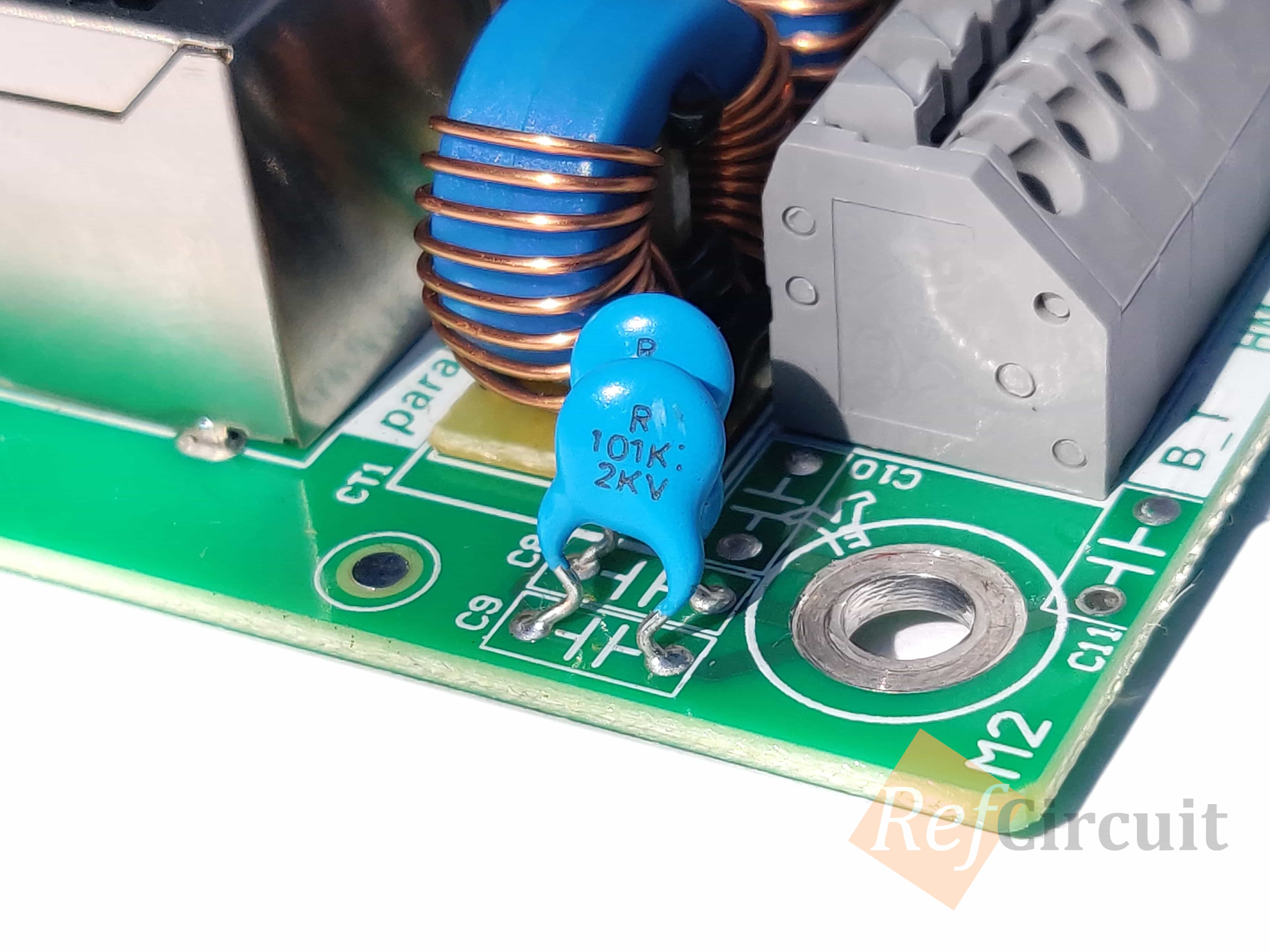

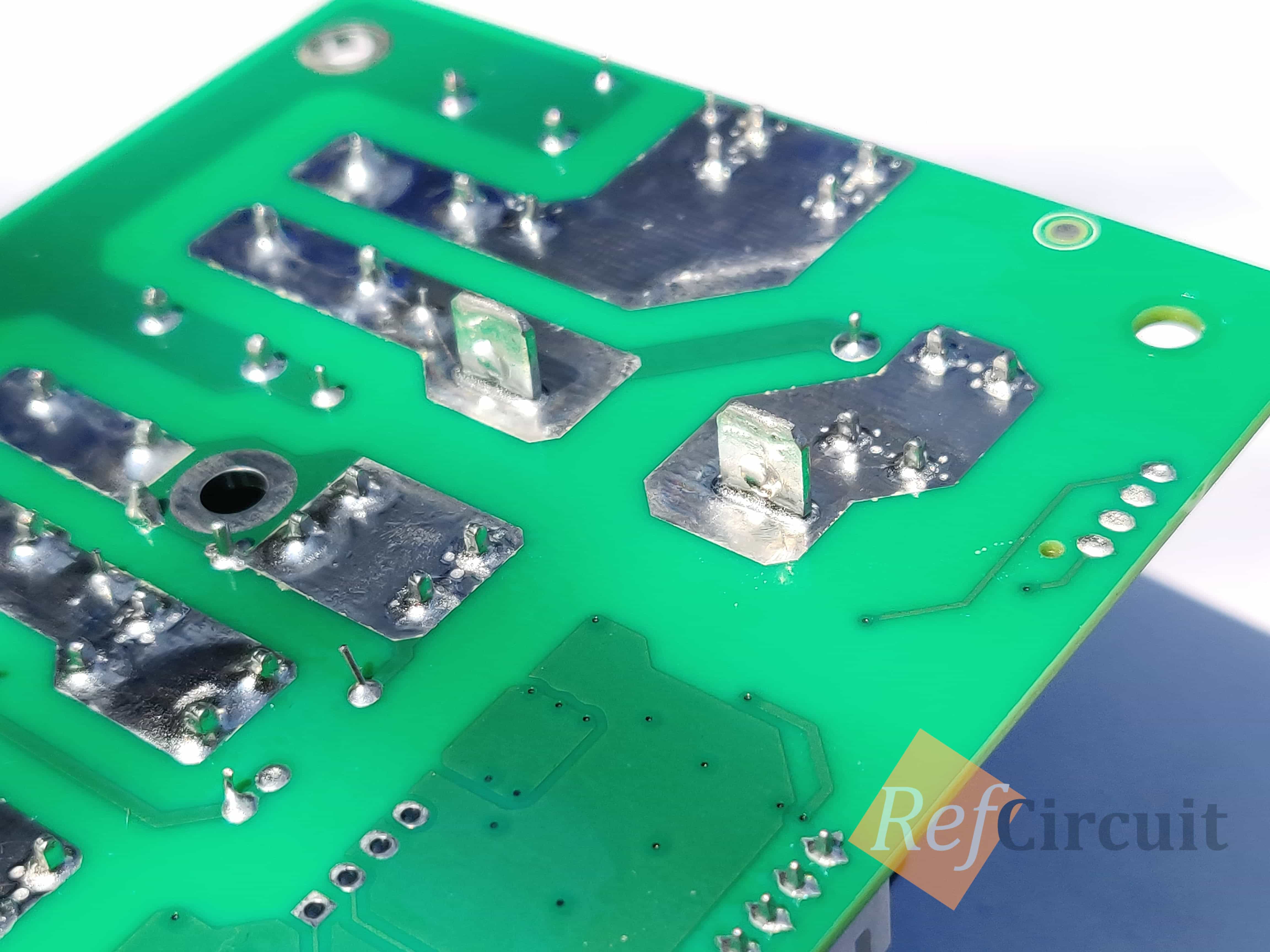

  • Description: Boar has powerful AC terminals for GRID, LOAD, GEN. Low voltage spring clamps terminal. RJ45 connectors for interfacing.

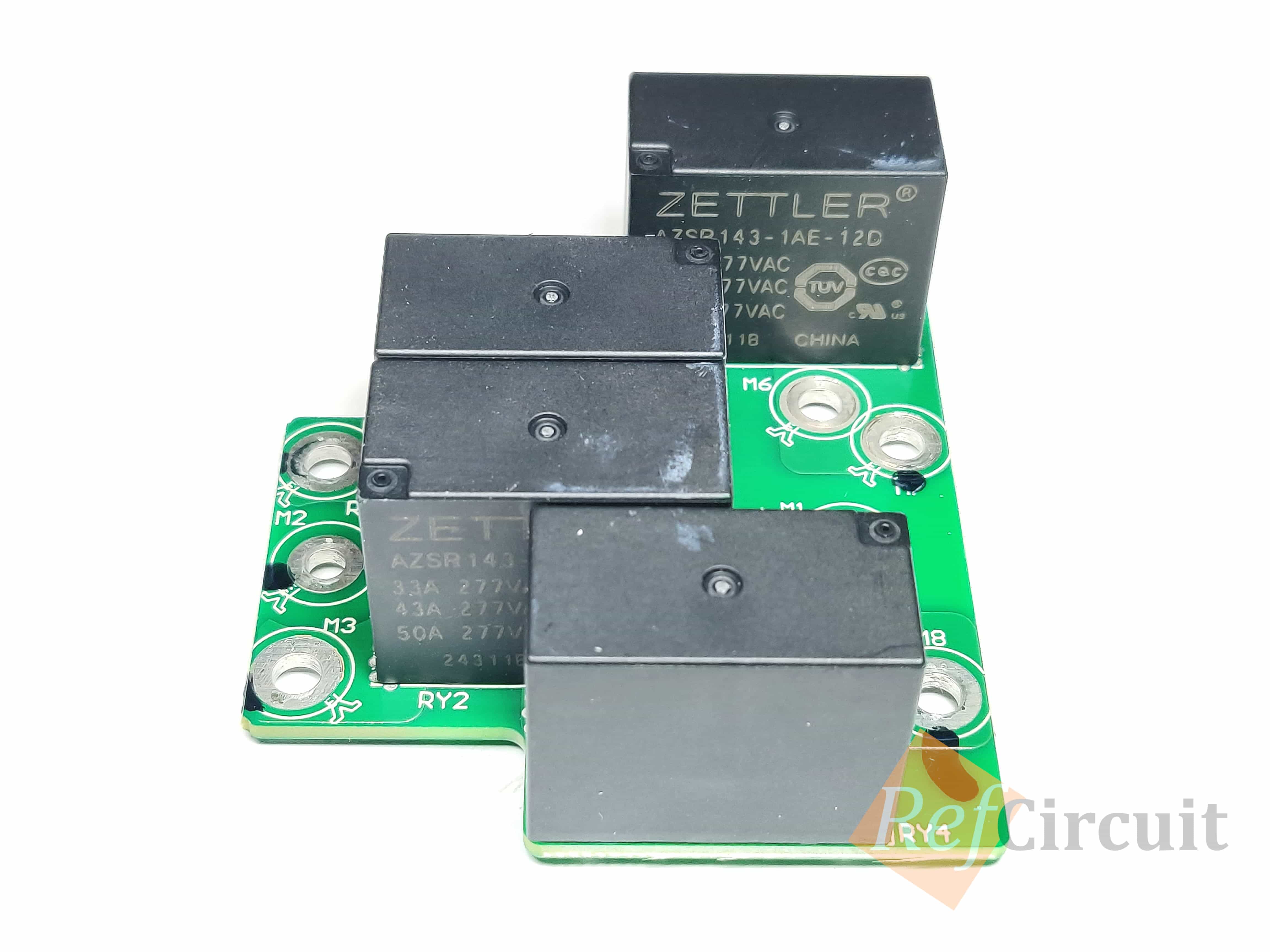

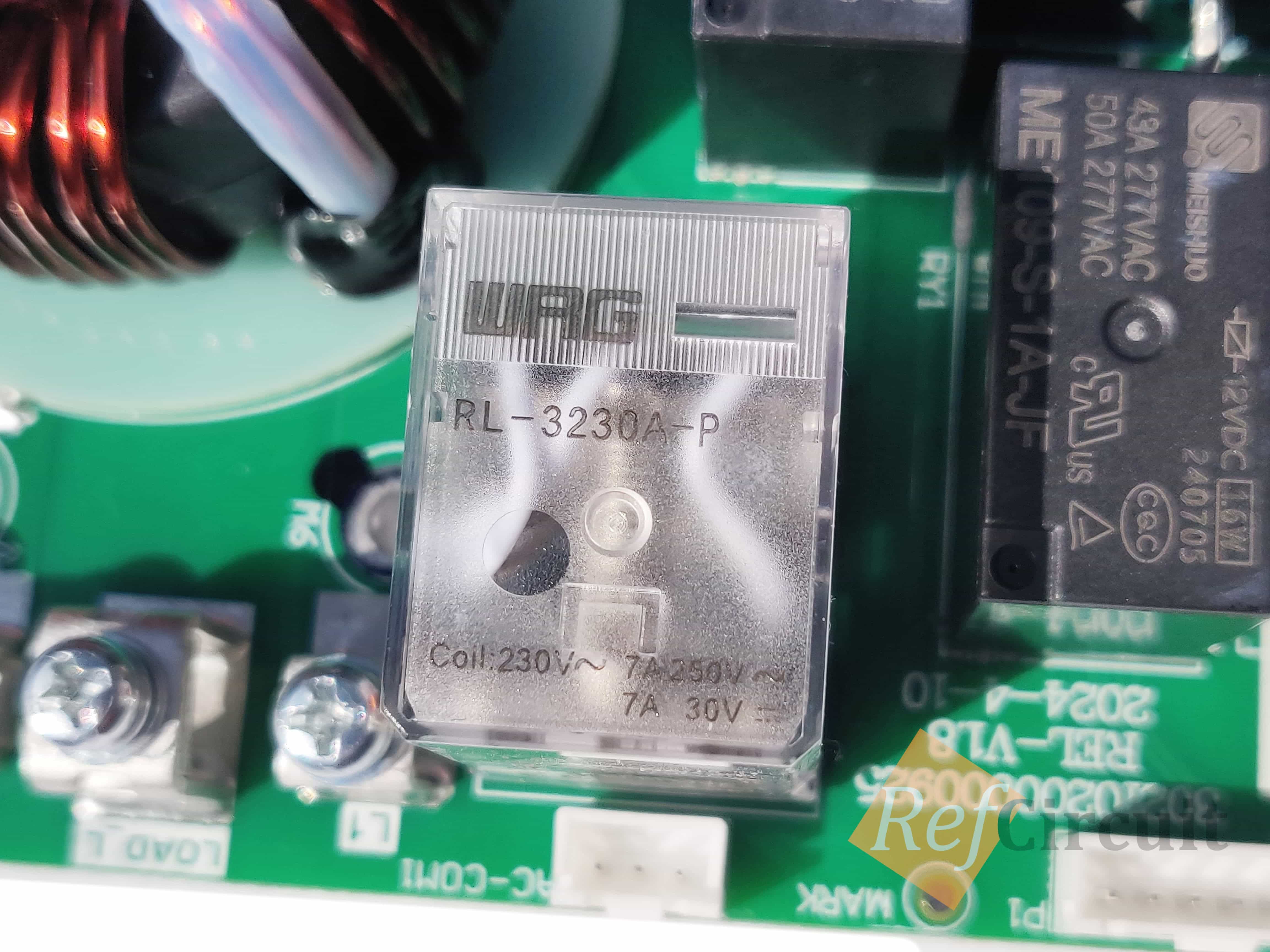

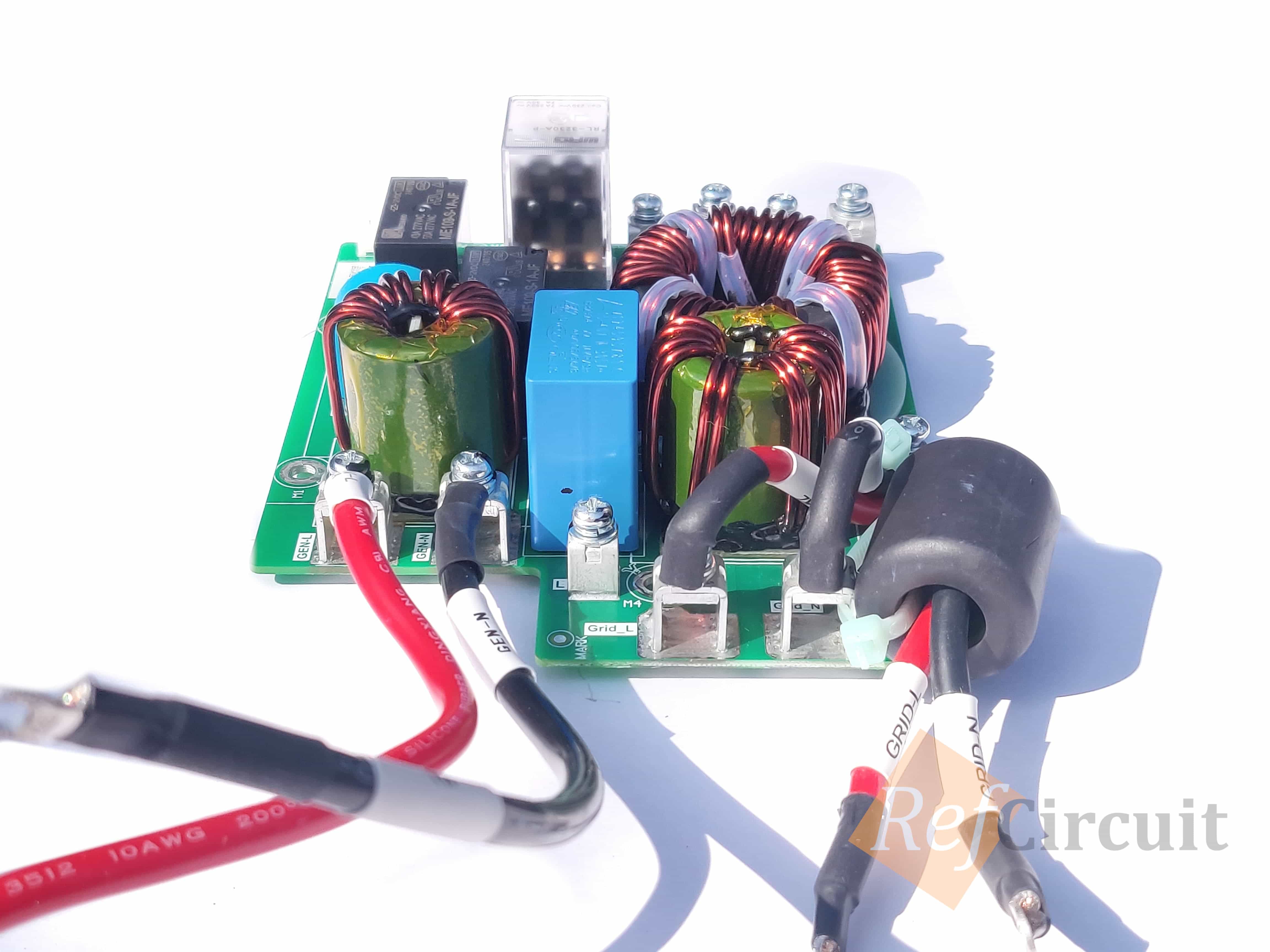

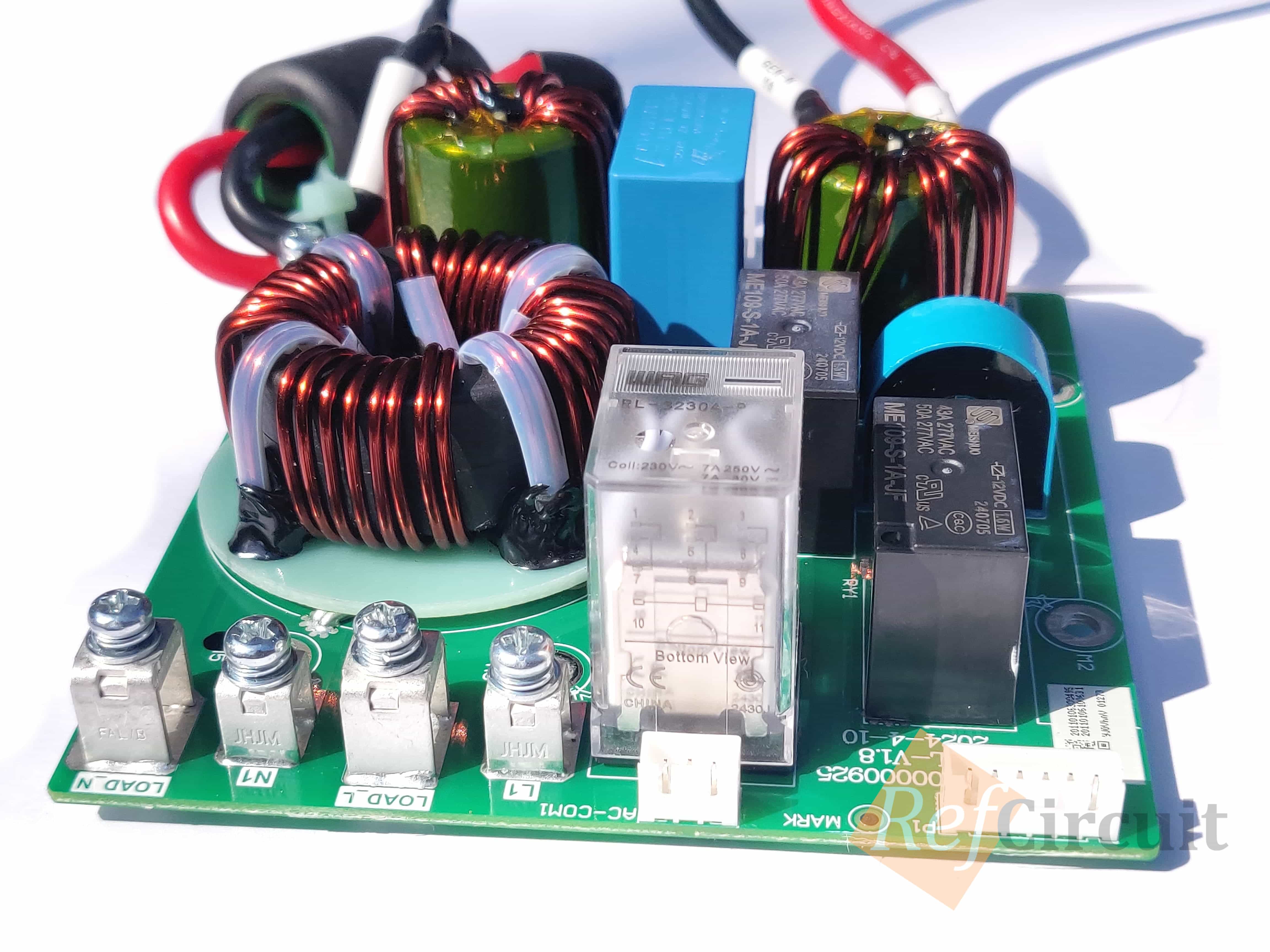

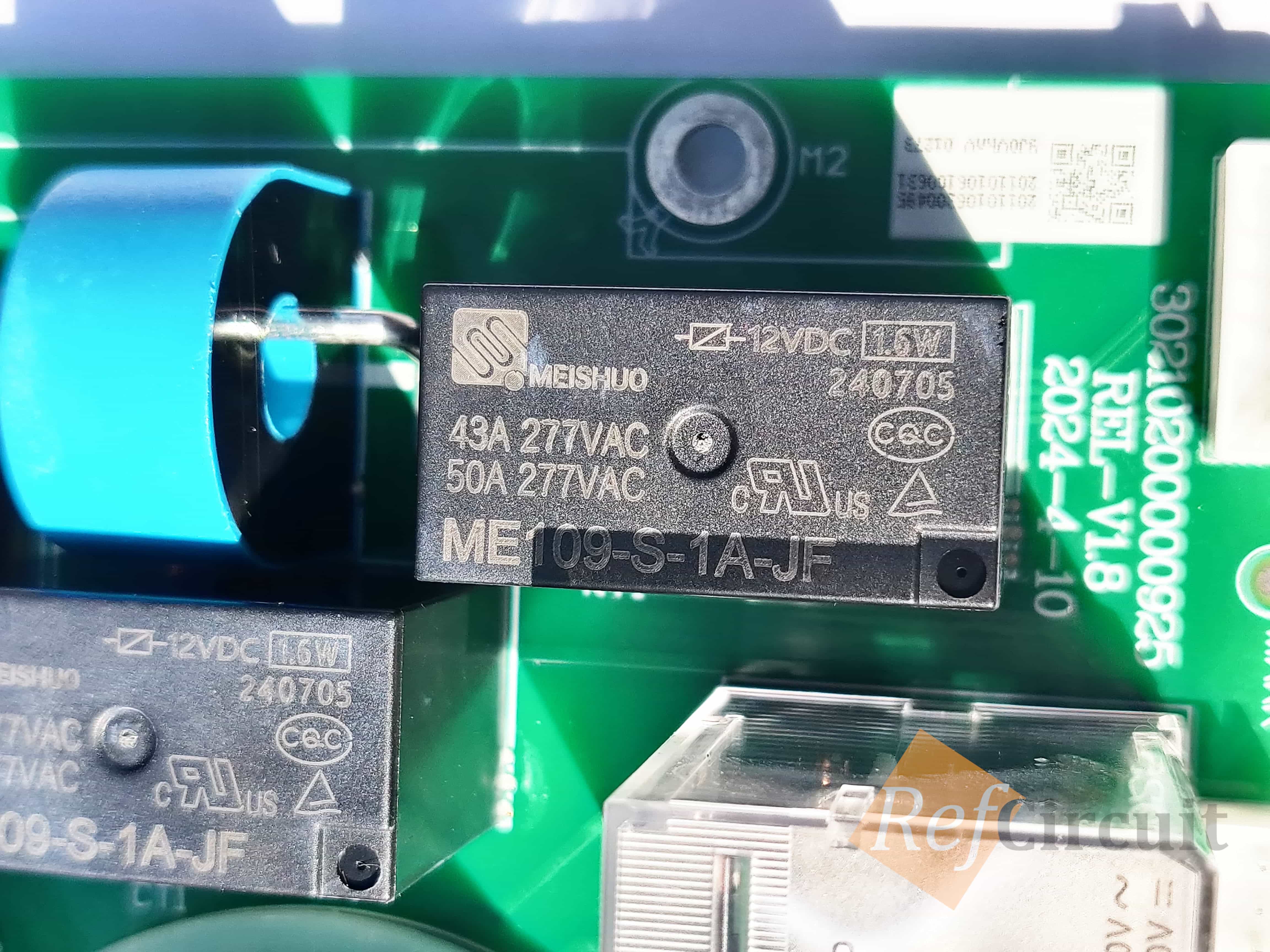

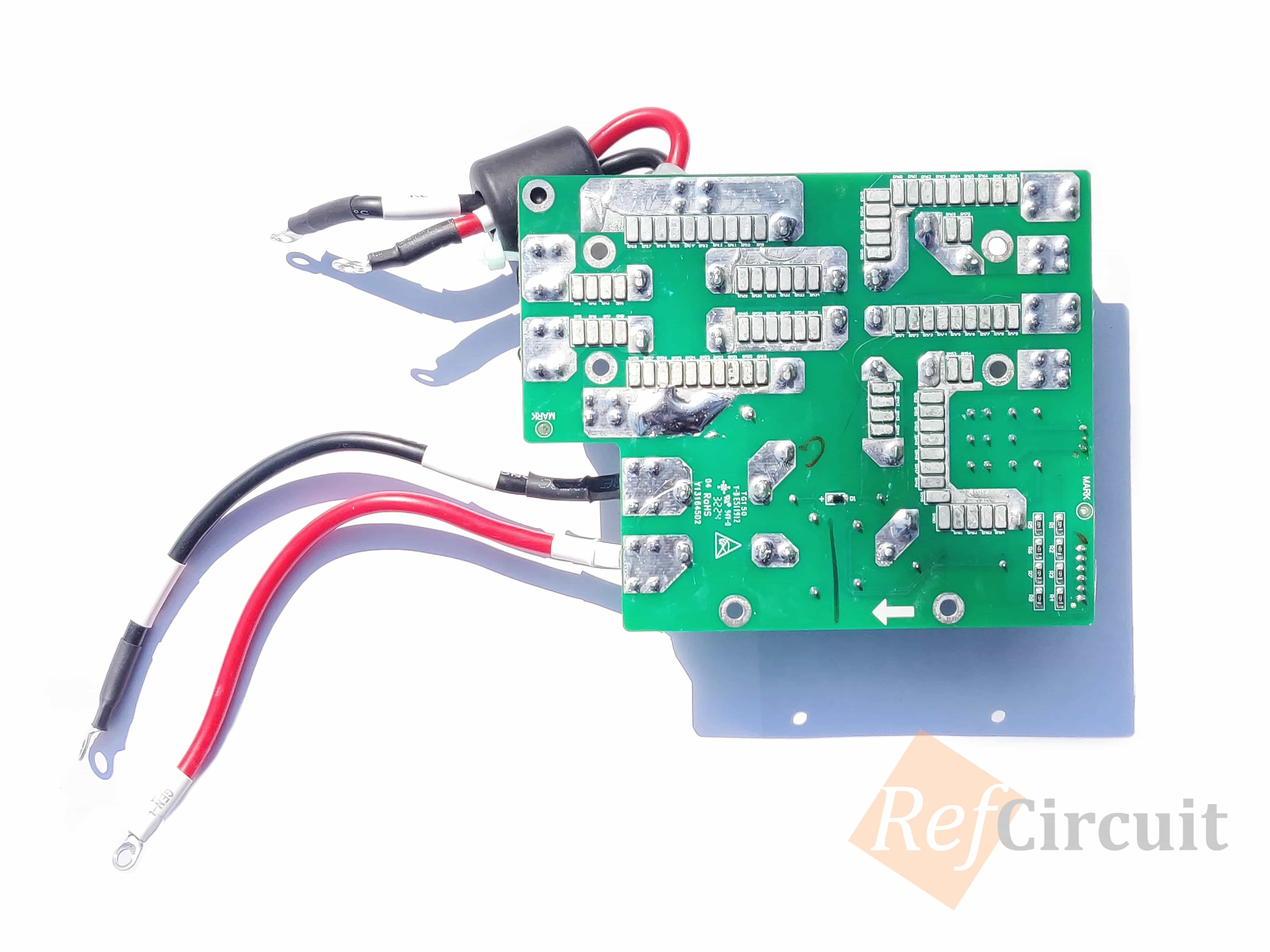

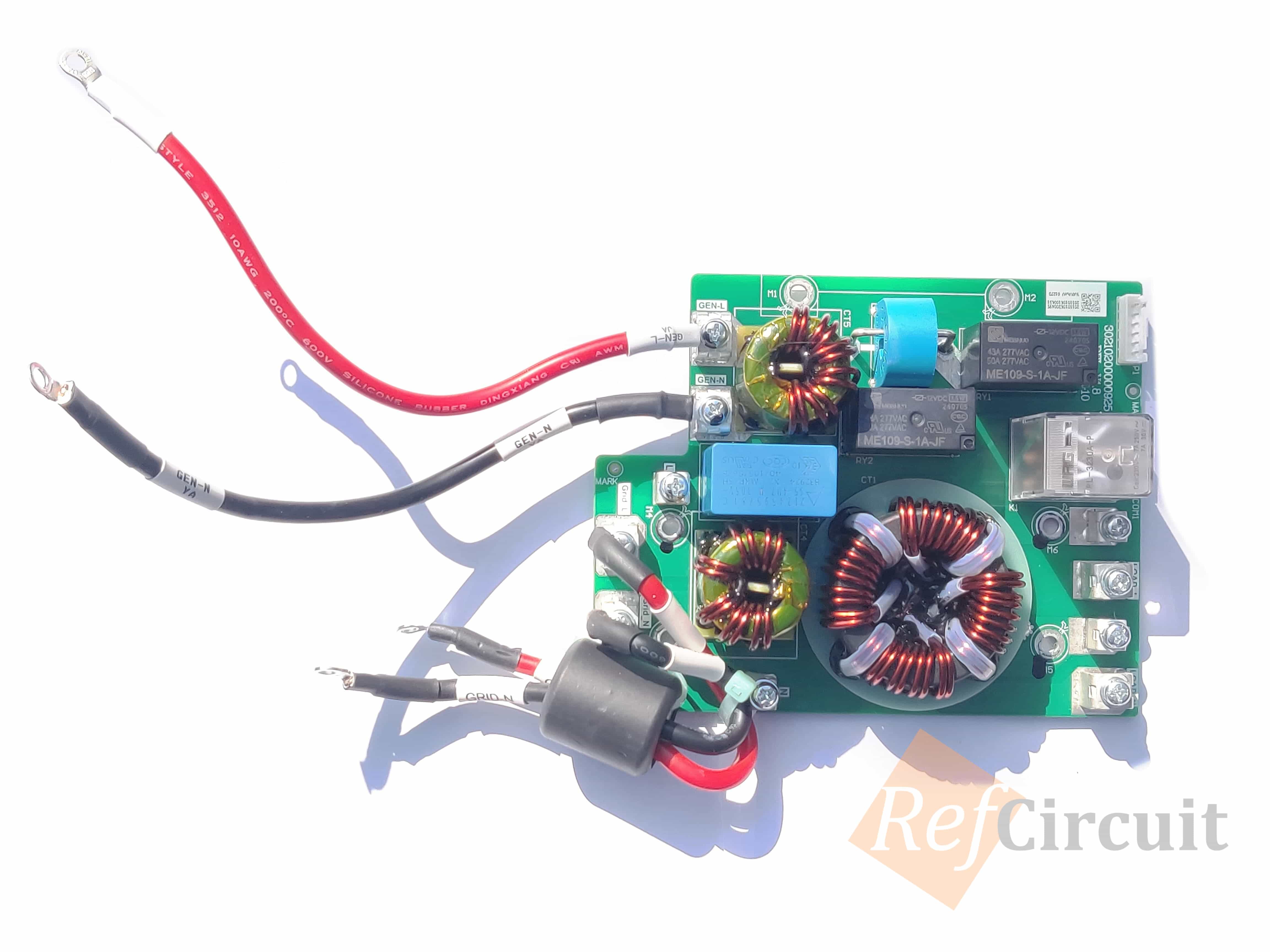

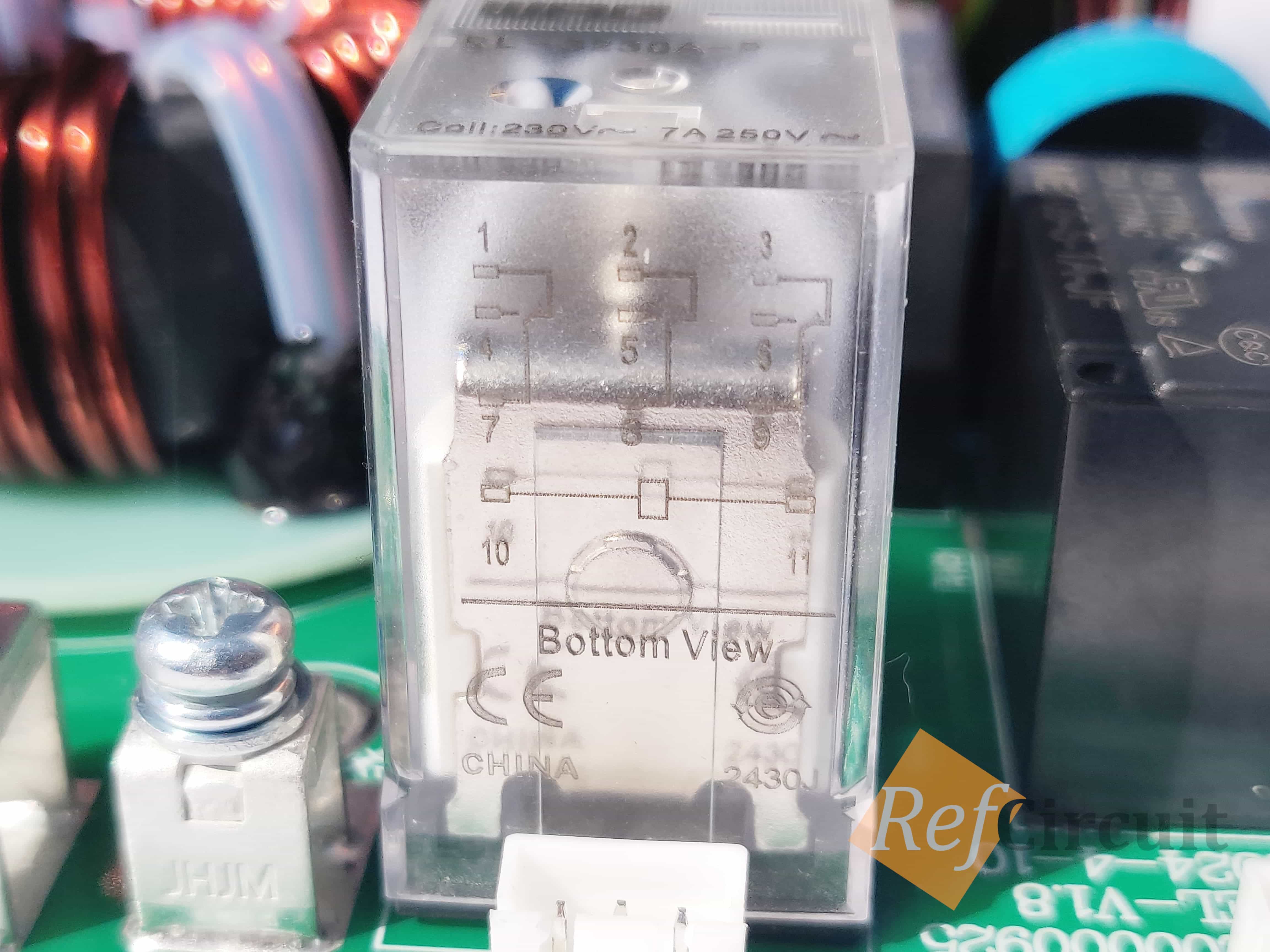

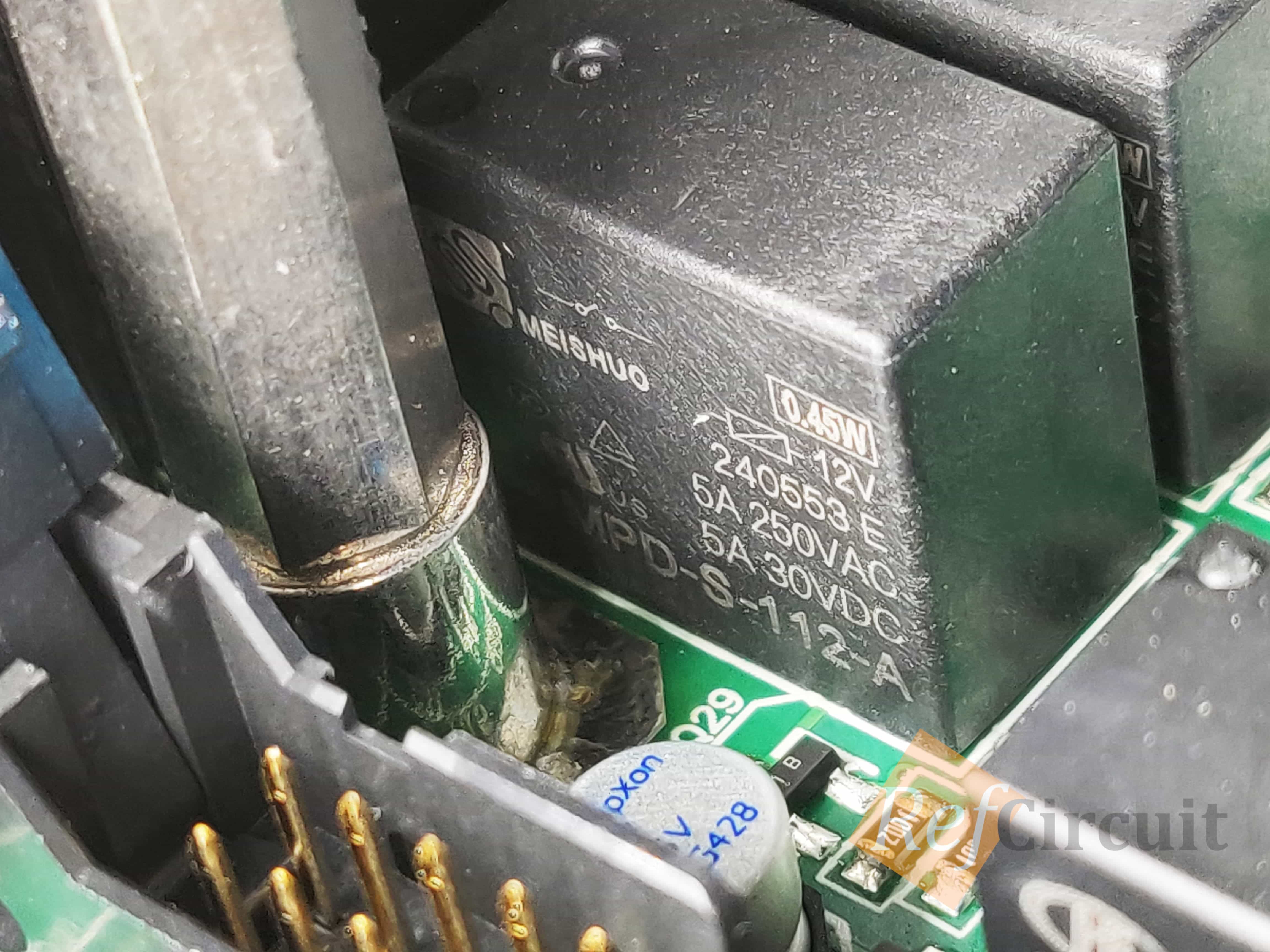

REL-V1.8 (2024-4-10)

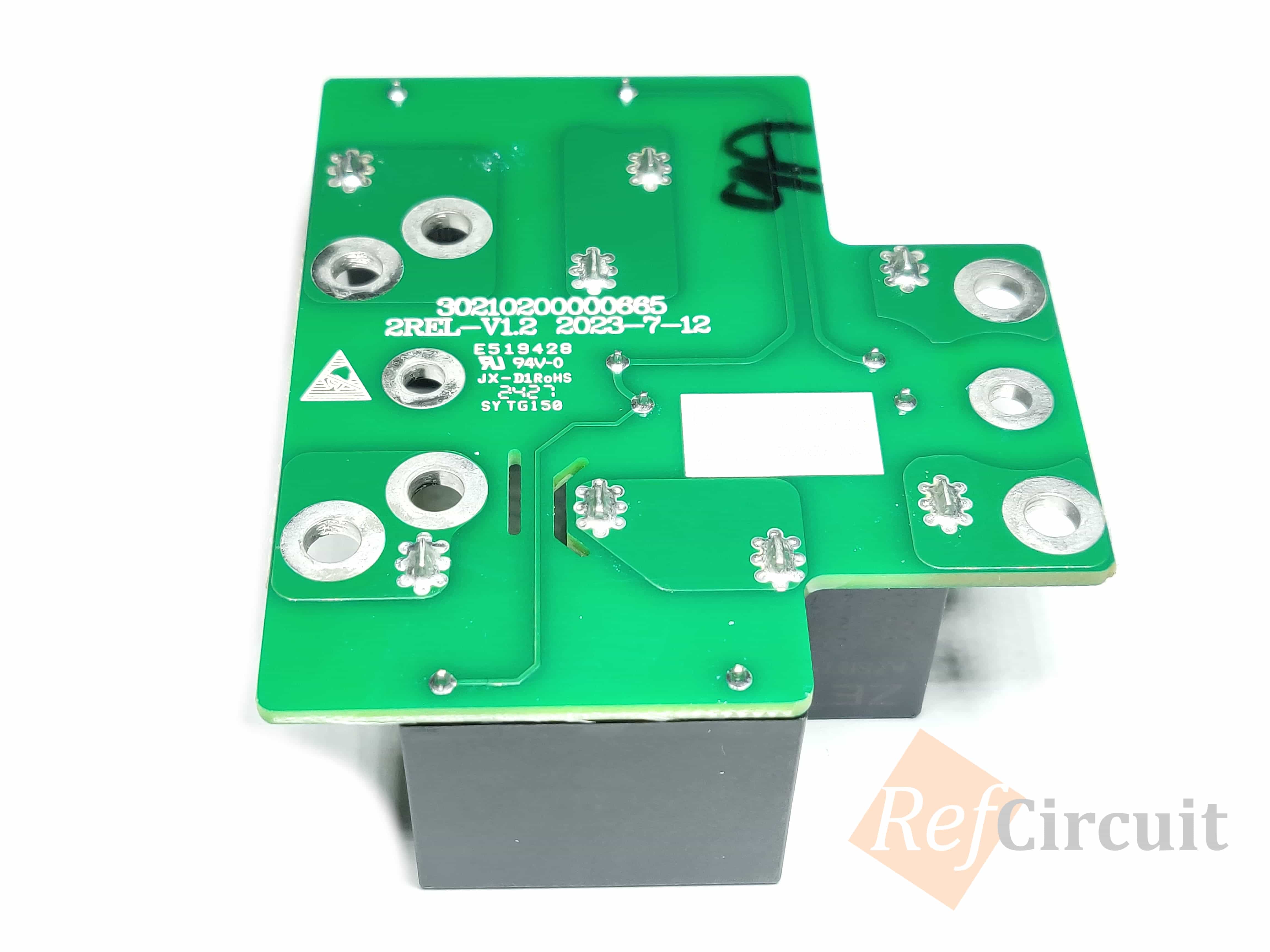

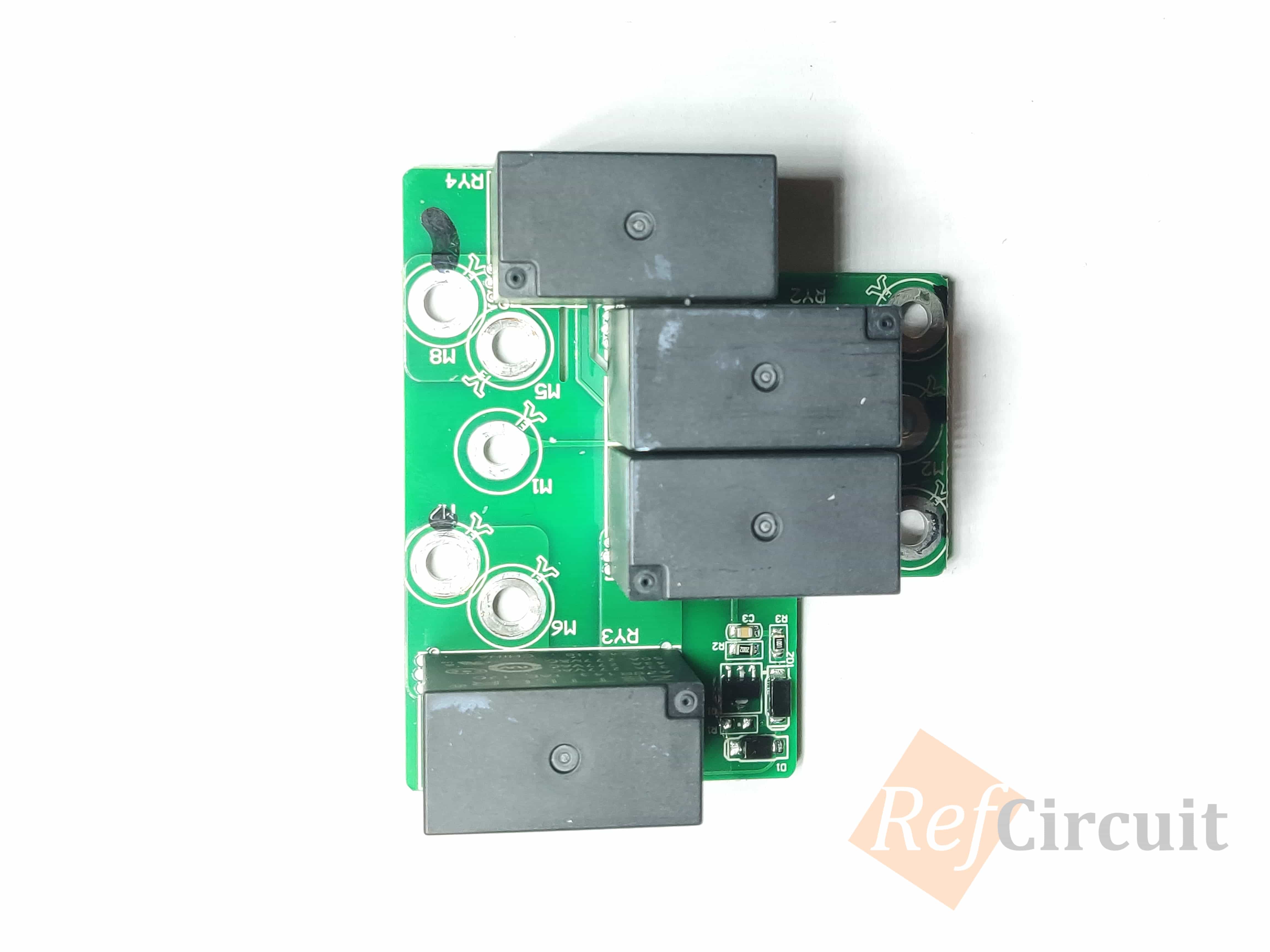

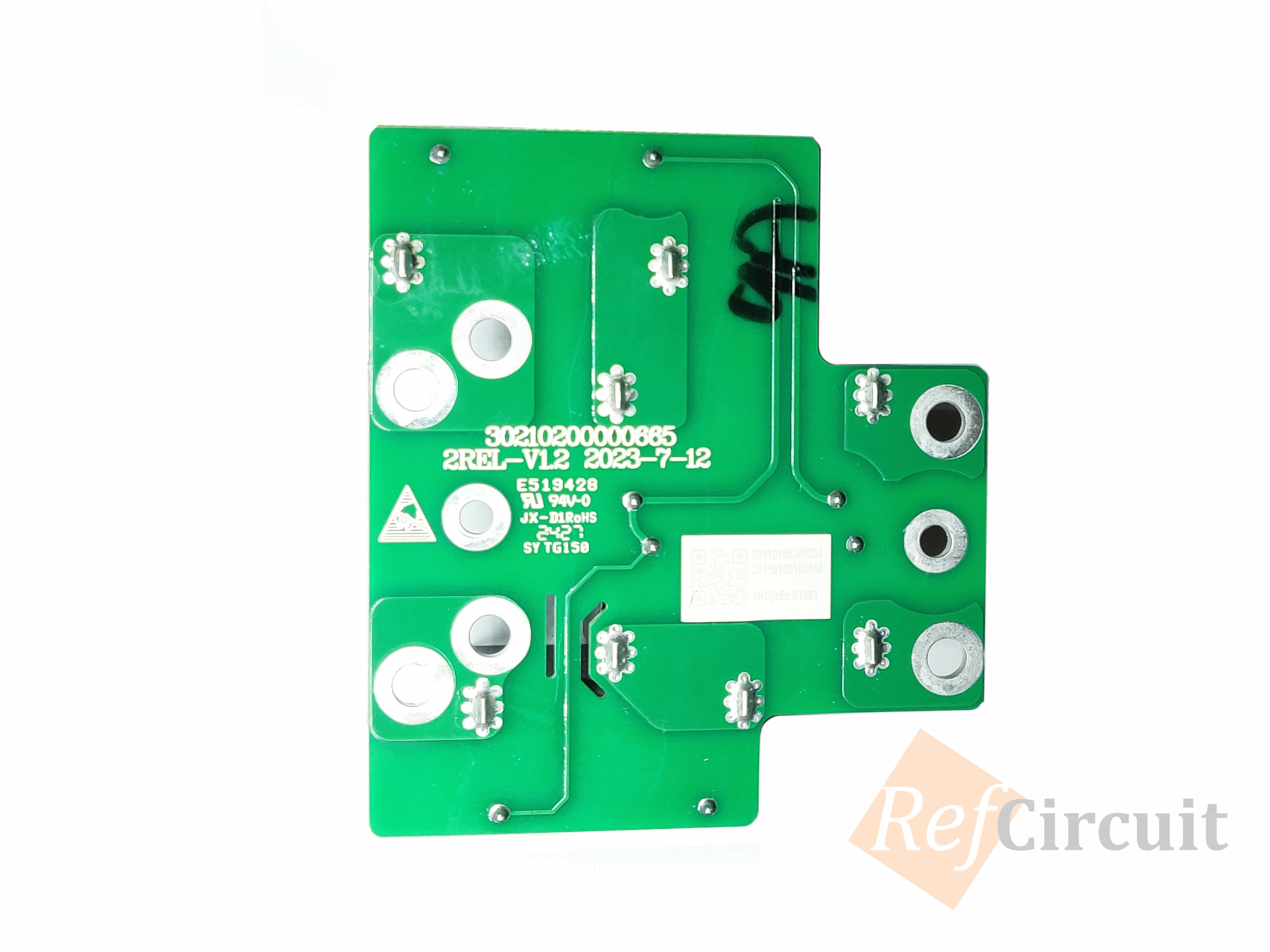

2REL-V1.2 (2023-7-12)

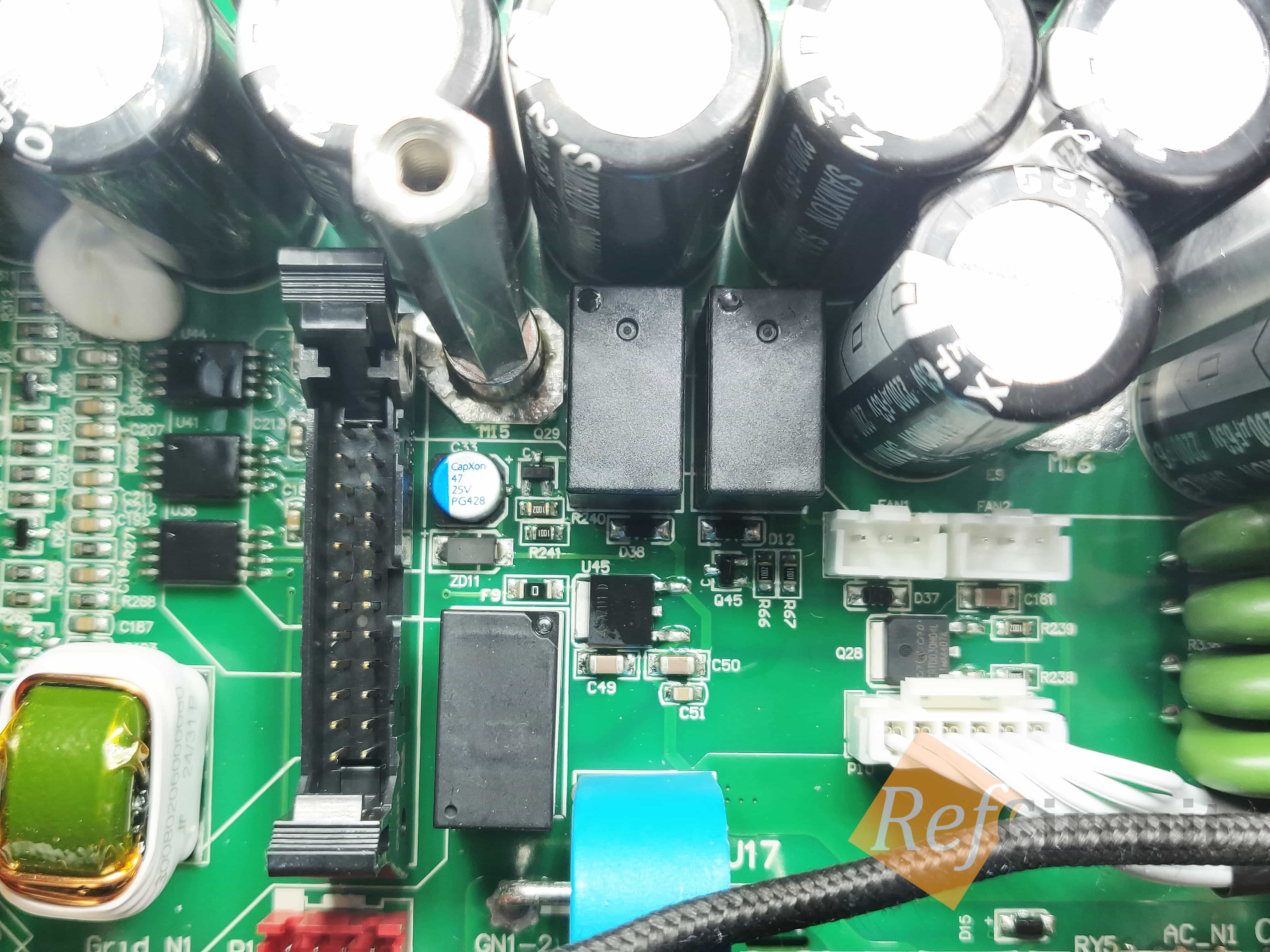

Four relays controlling two lines, so it able to connect/disconnect both N and L

Two relays connected in series for reliability (if one relay fails, the second one will remain)

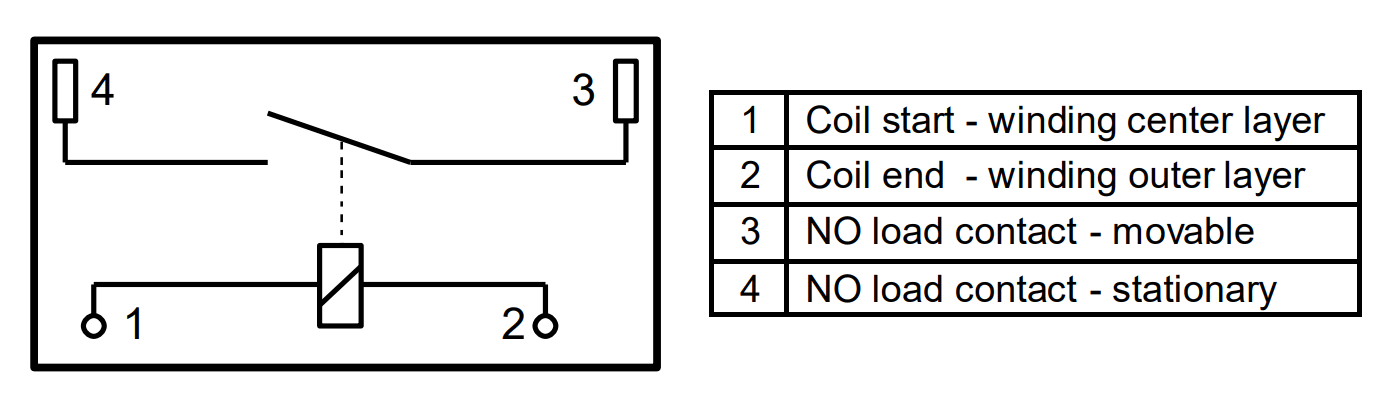

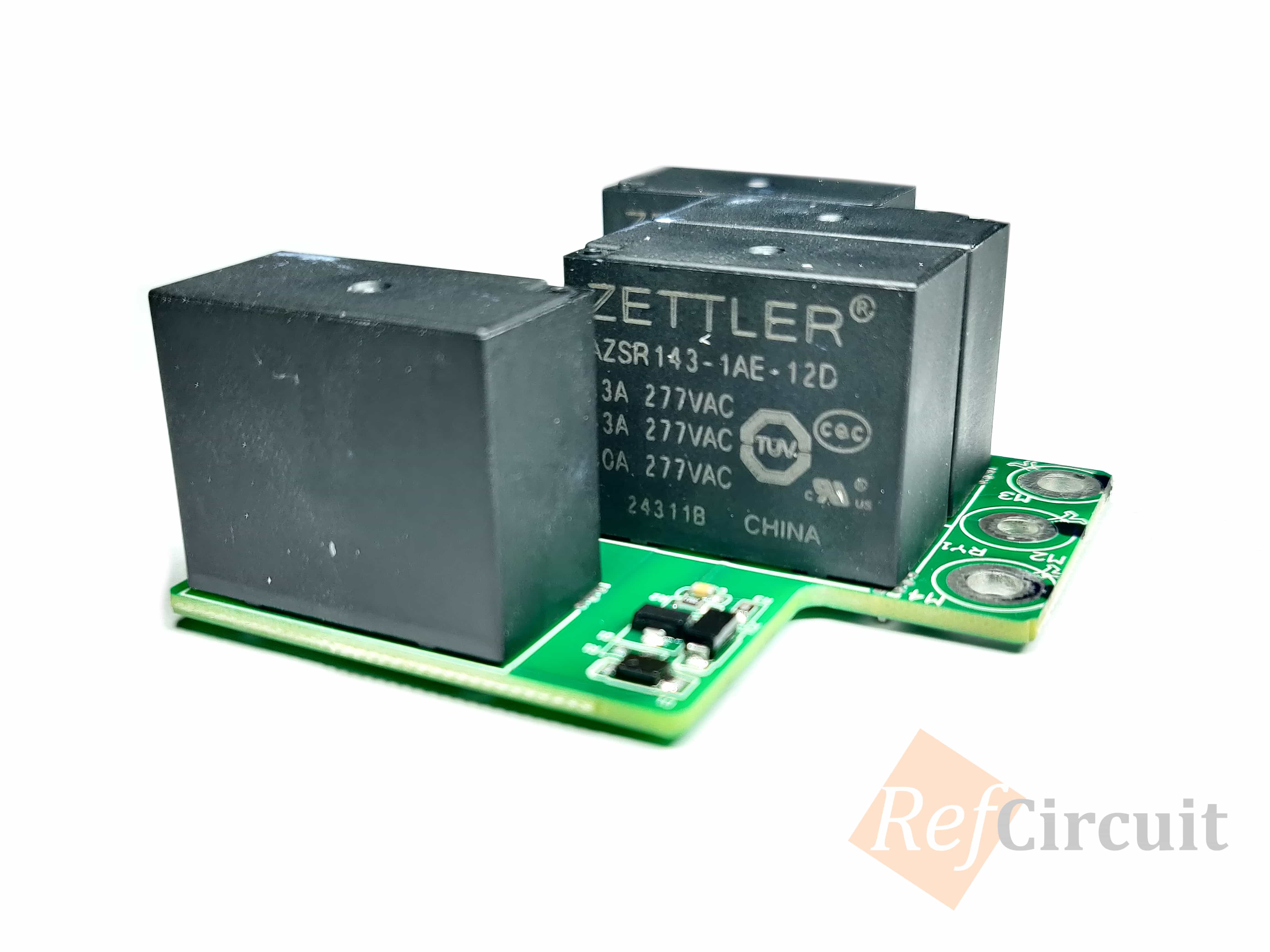

Relay ZETTLER AZSR143-1AE-12D


All Coils connected to one control signal?

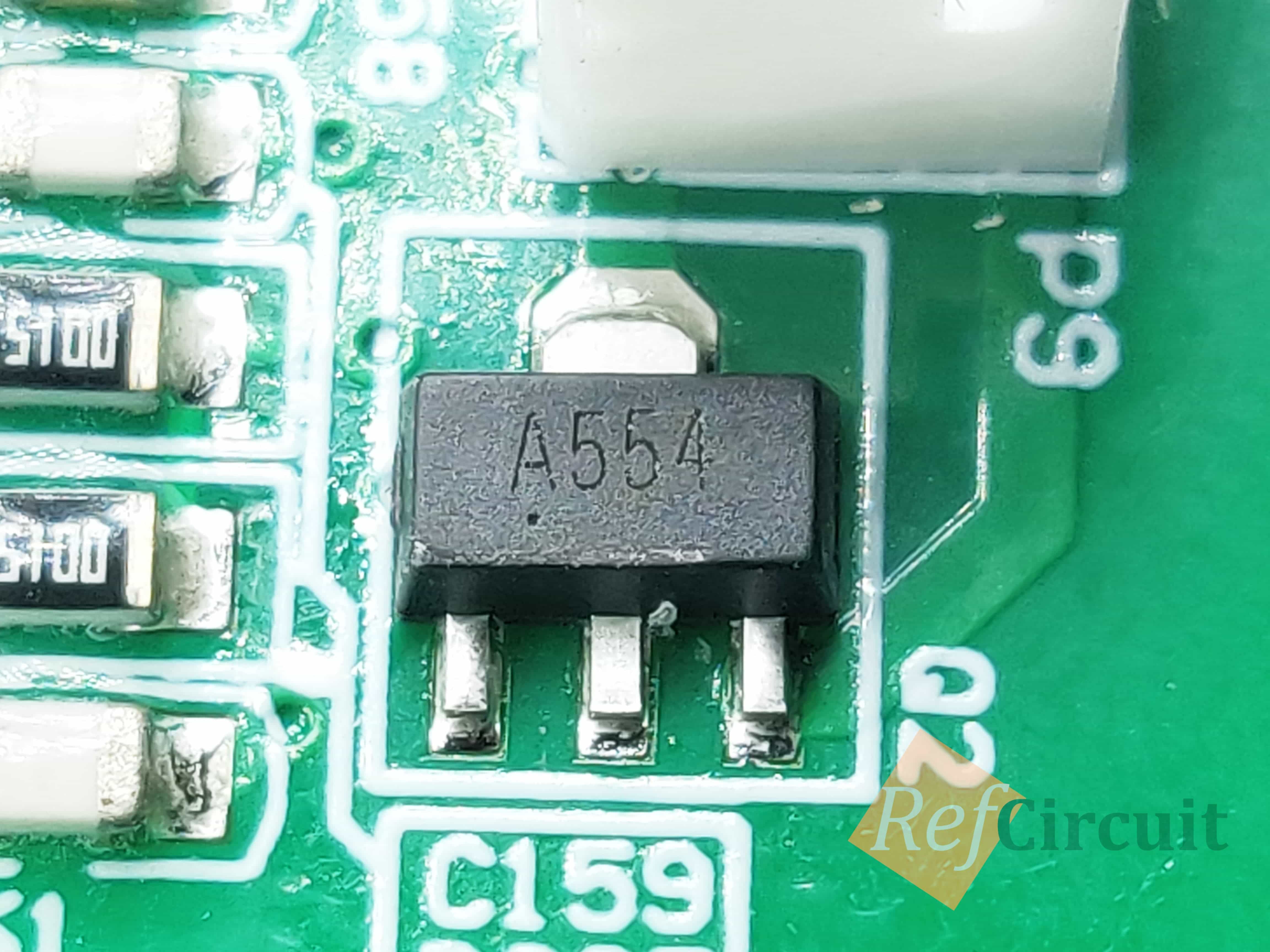

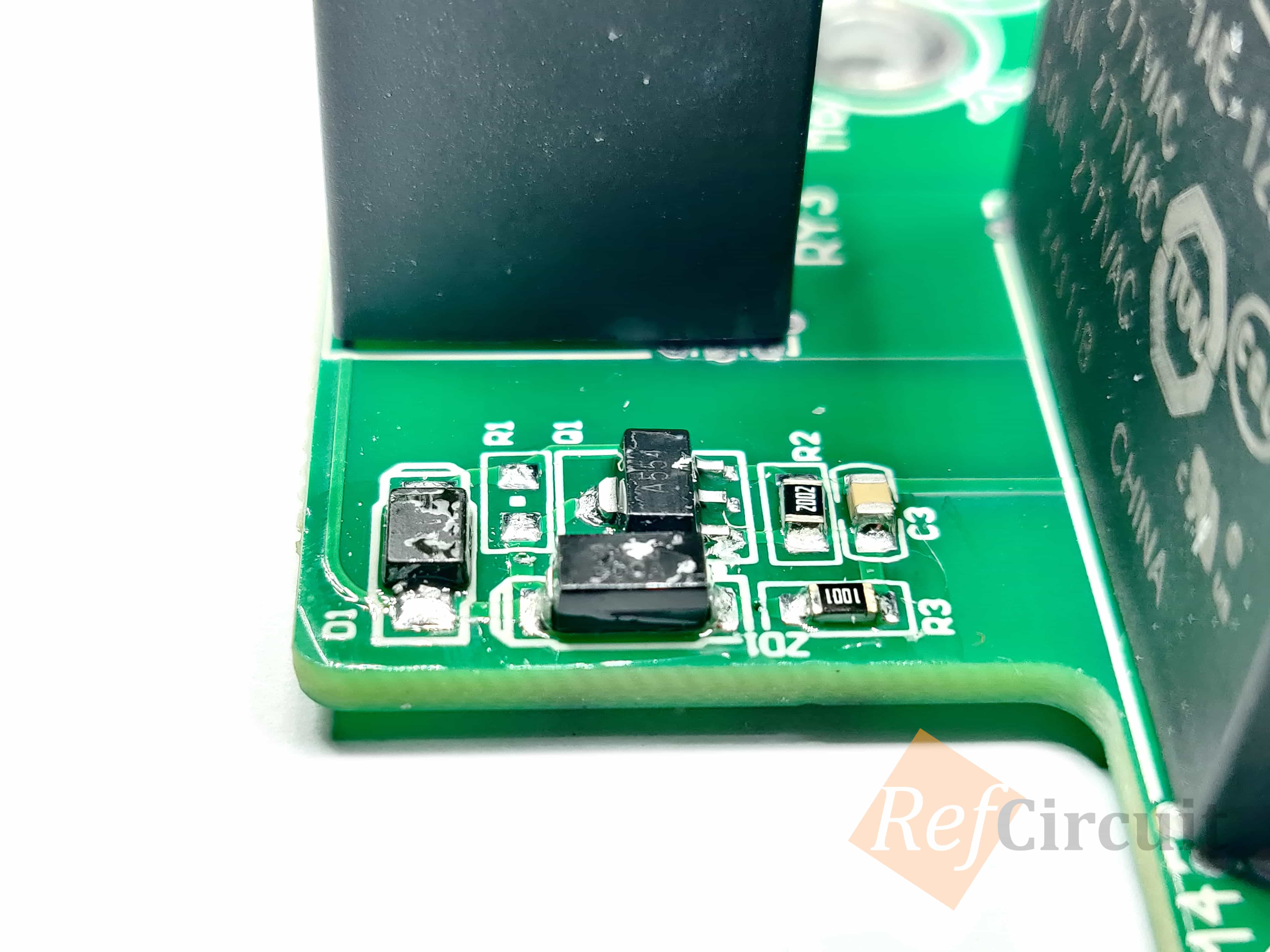

A554 — PNP BJT

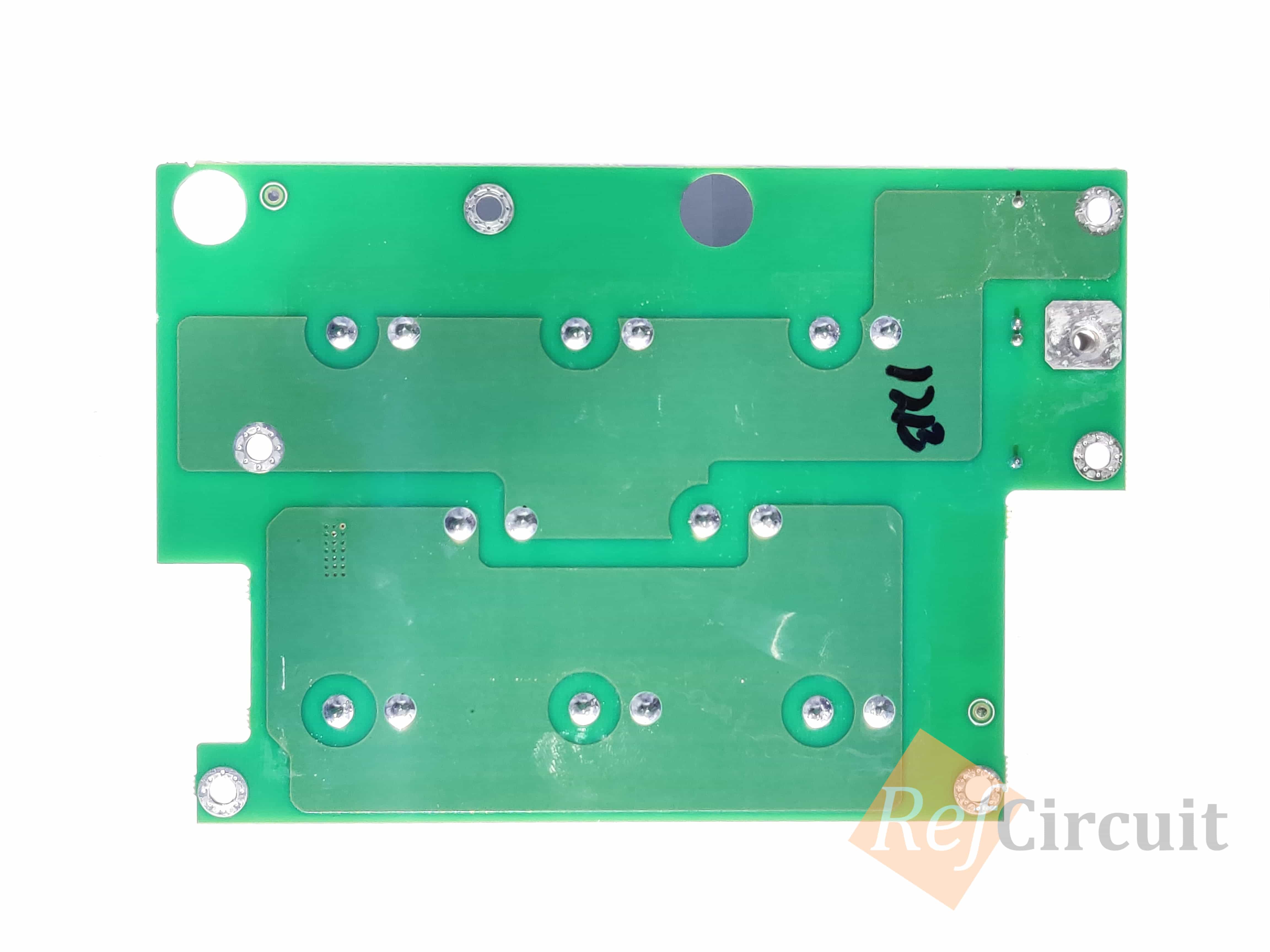

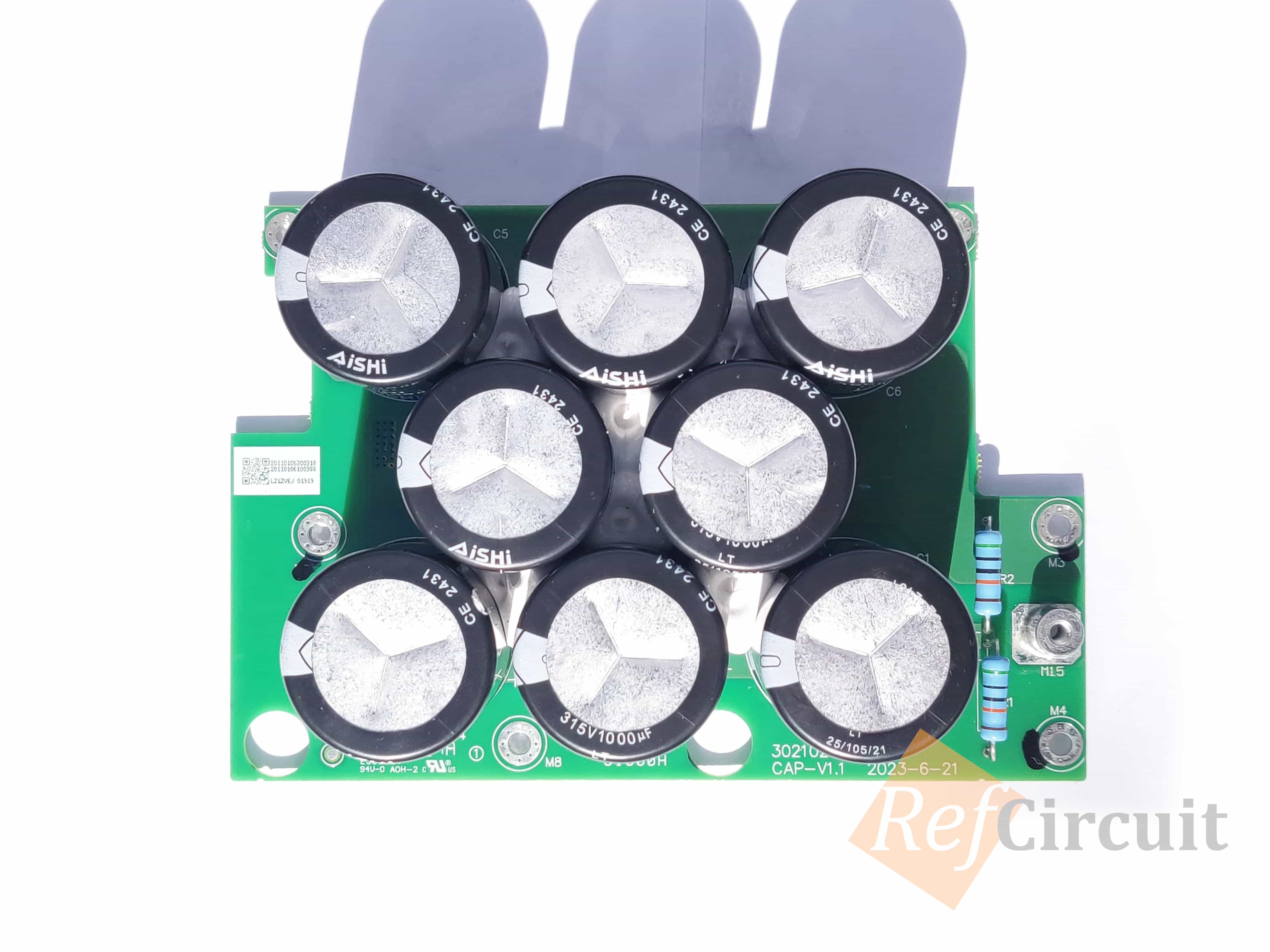

CAP-V1.1 (2023-6-21)

Size: 107.2mm x 158mm x 47.4mm

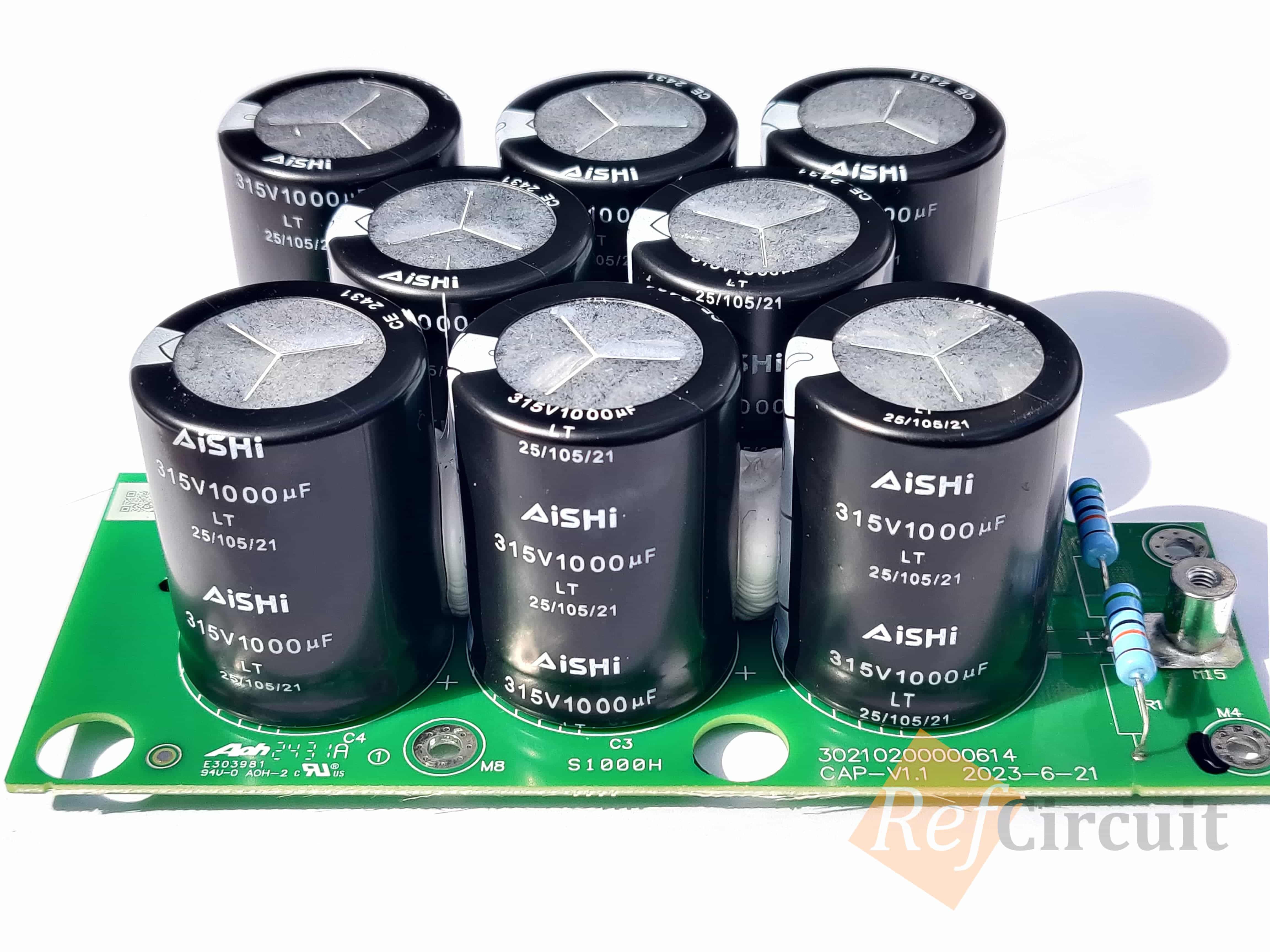

Solar Input Capacitors

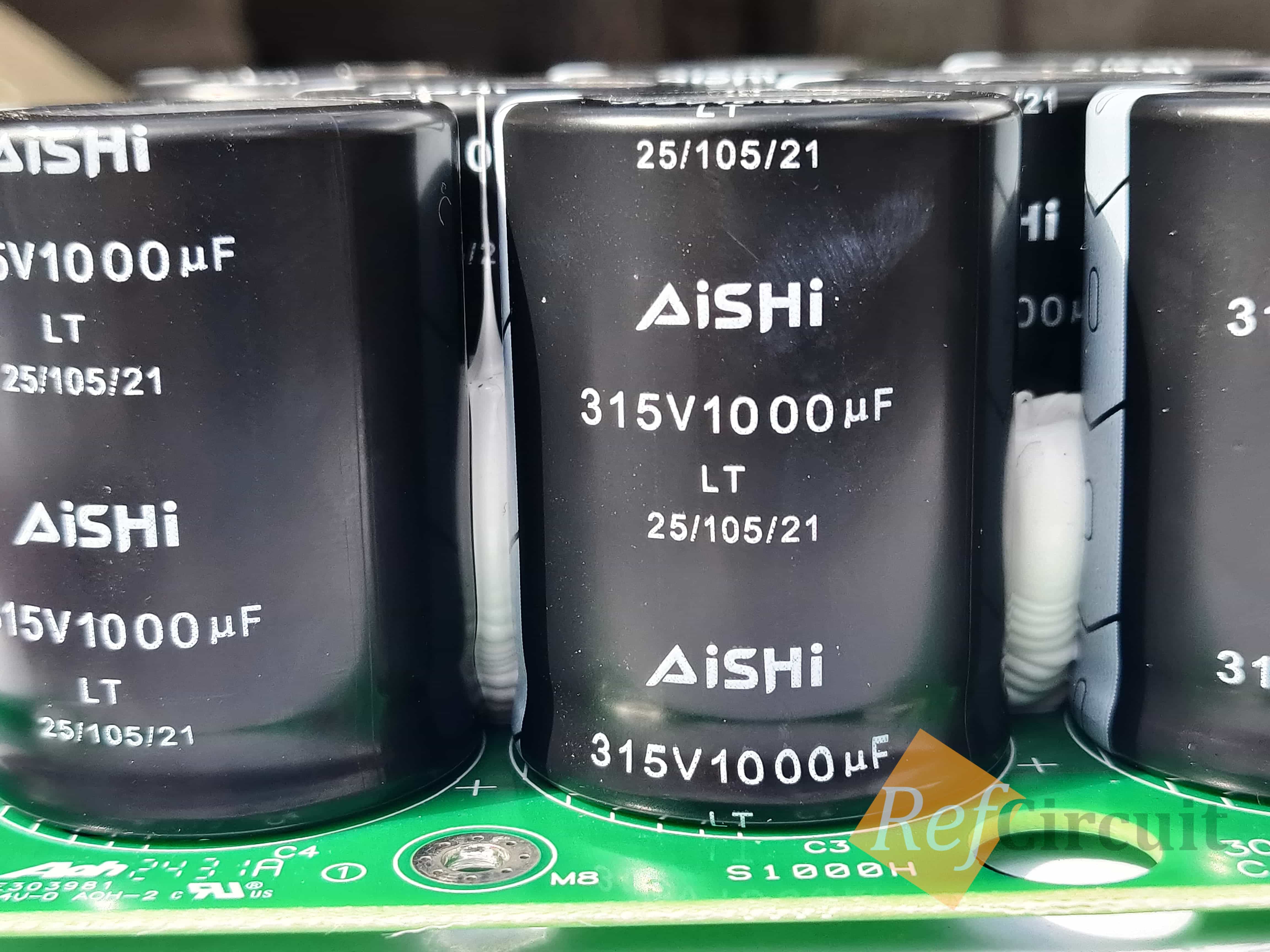

1000uF 315V AISHI

  • D=36mm; H=45mm; P=10mm
  • 4 in series to have 315V*2=630V
  • Total capacity: 8000uF/2=4000uF

LCR: 1.94mF@120Hz

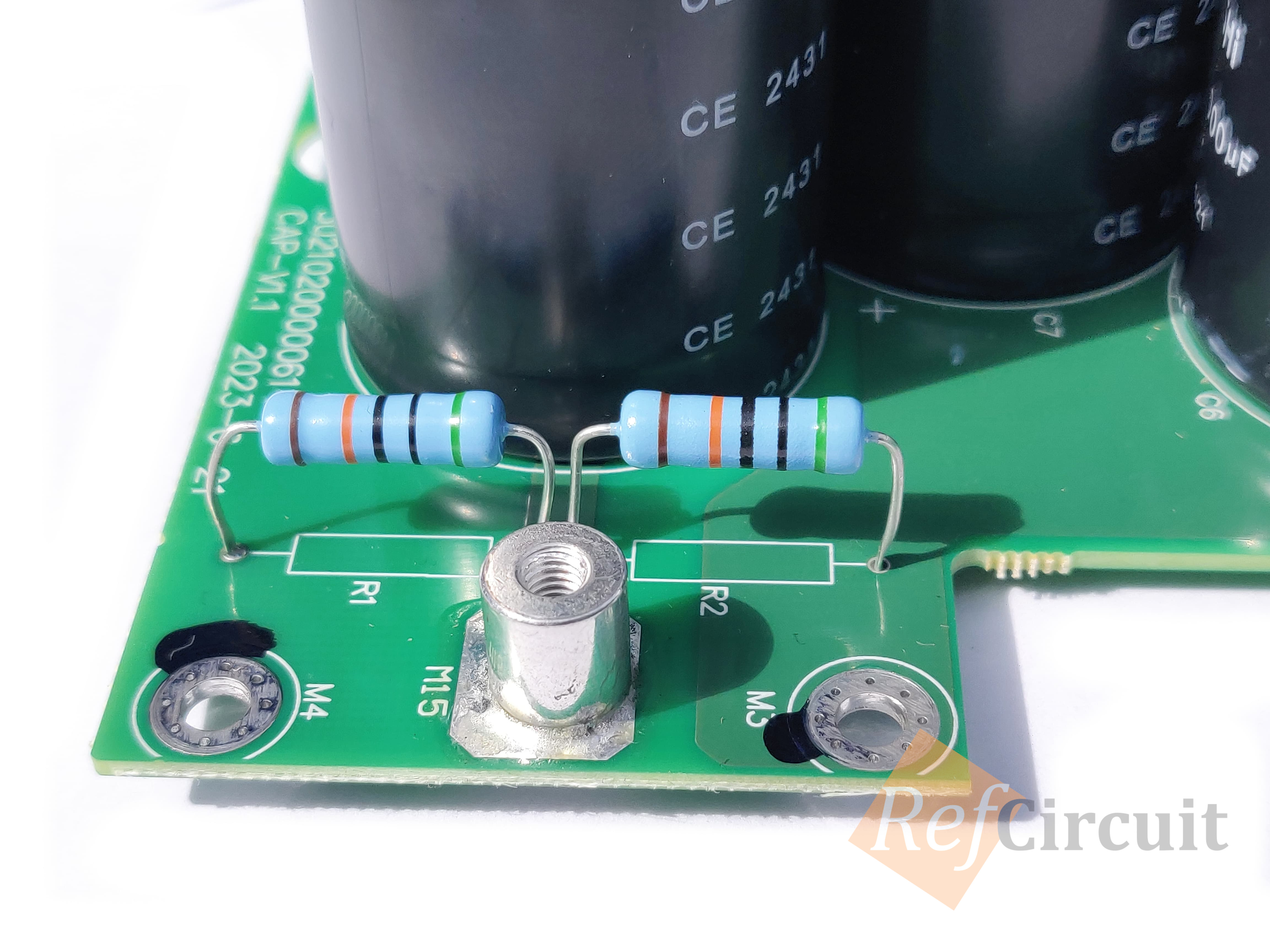

ImageDischarge THT resistors in parallel (necessary to slowly discharge high voltage)

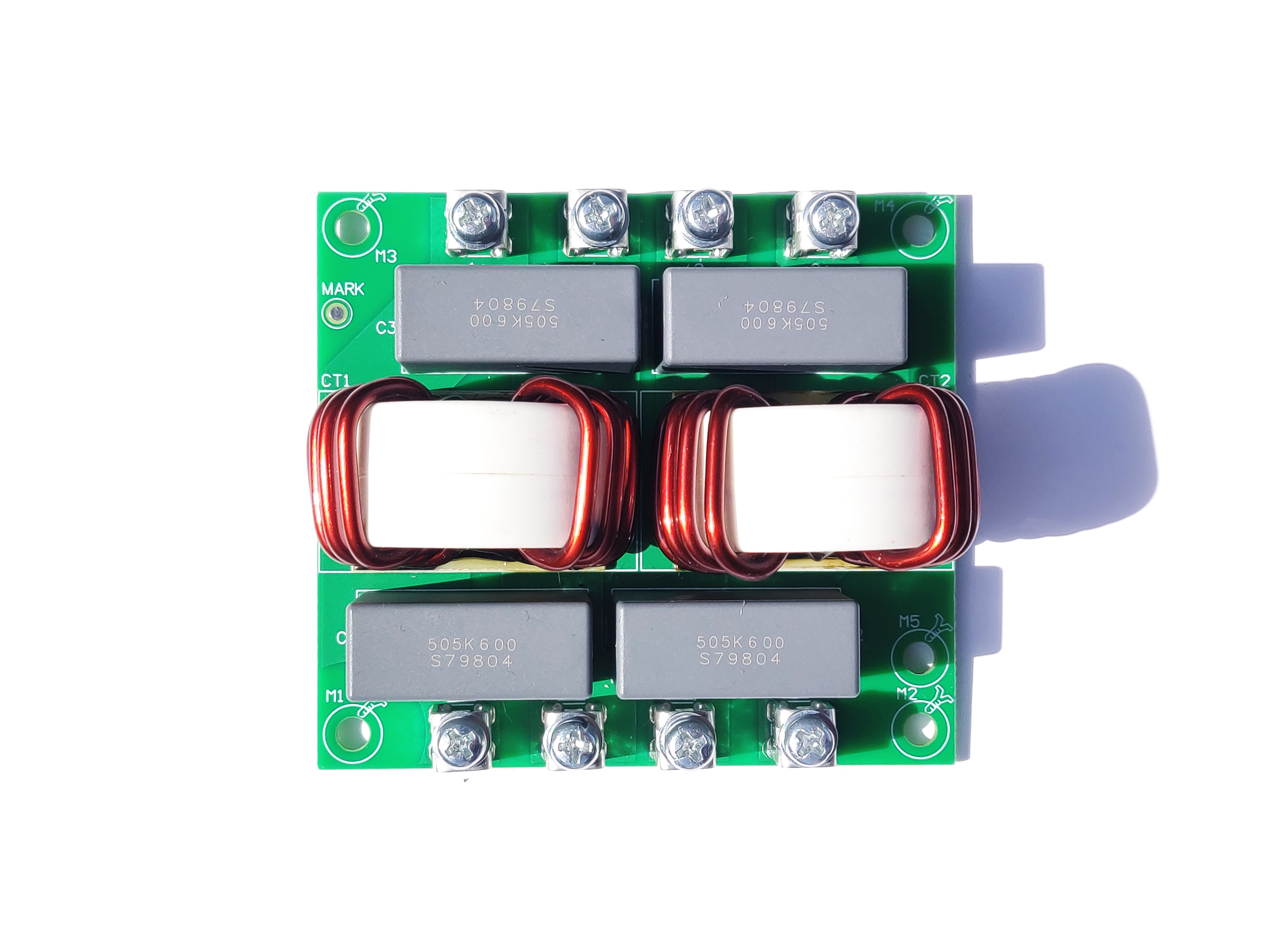

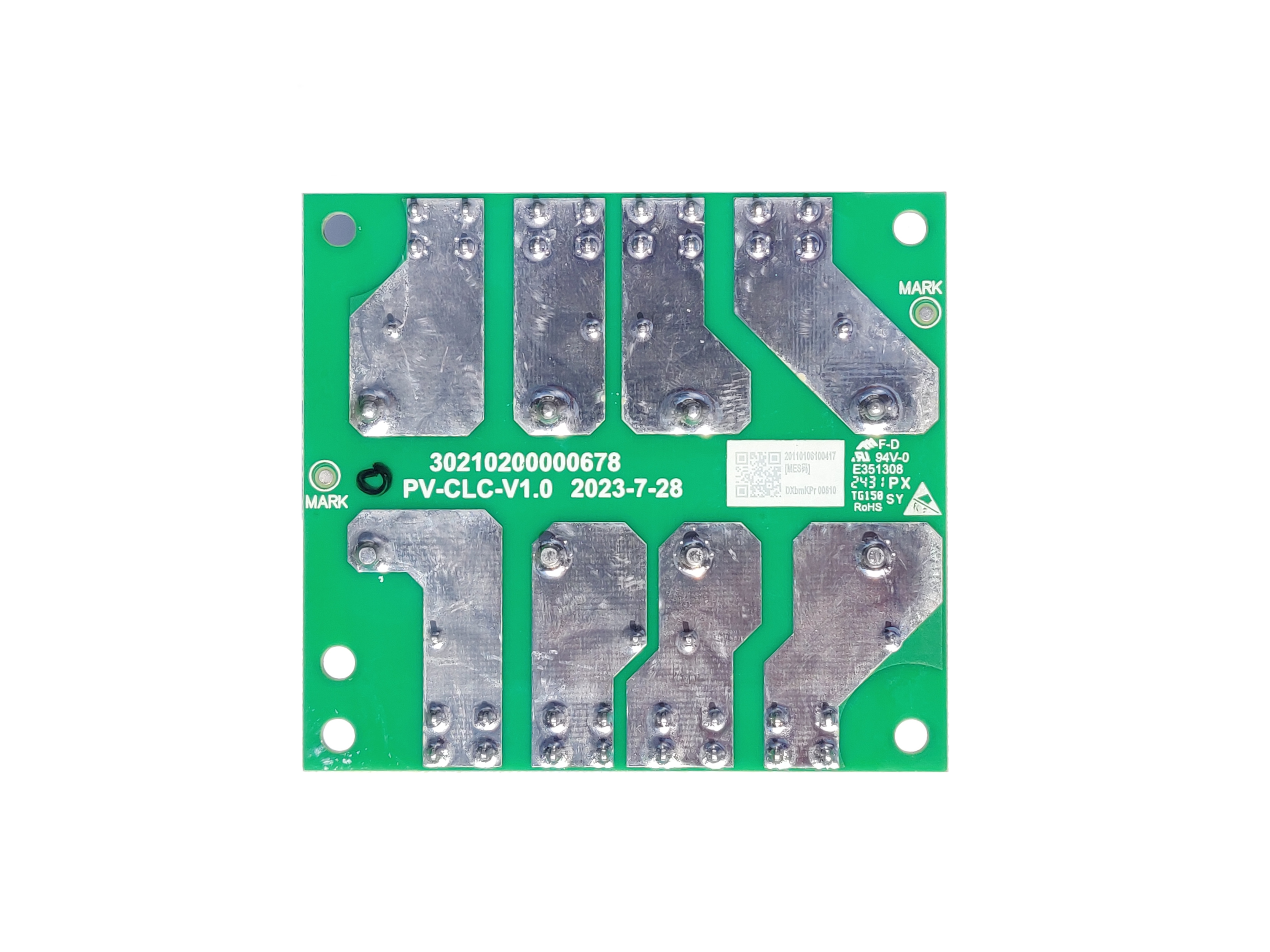

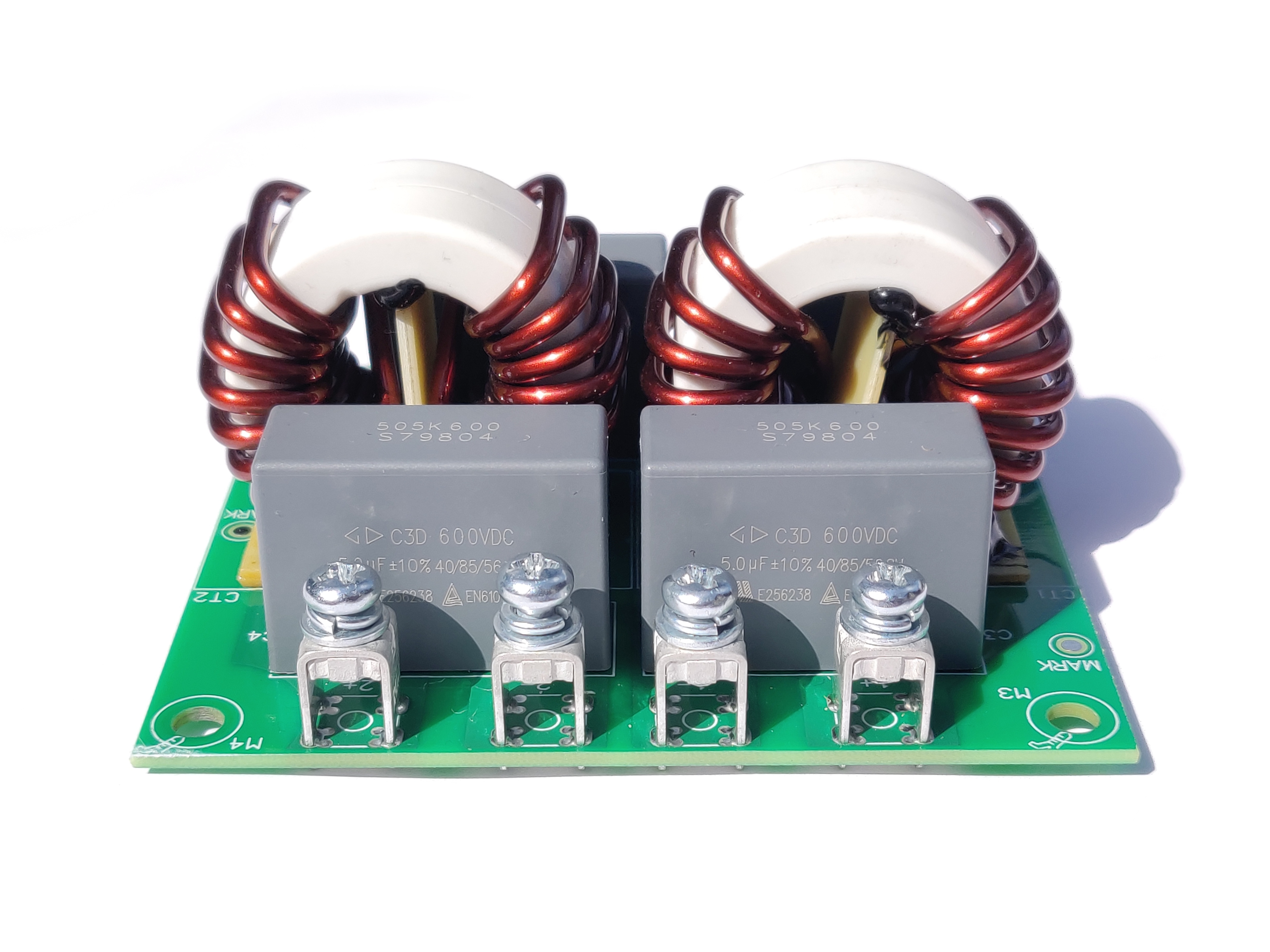

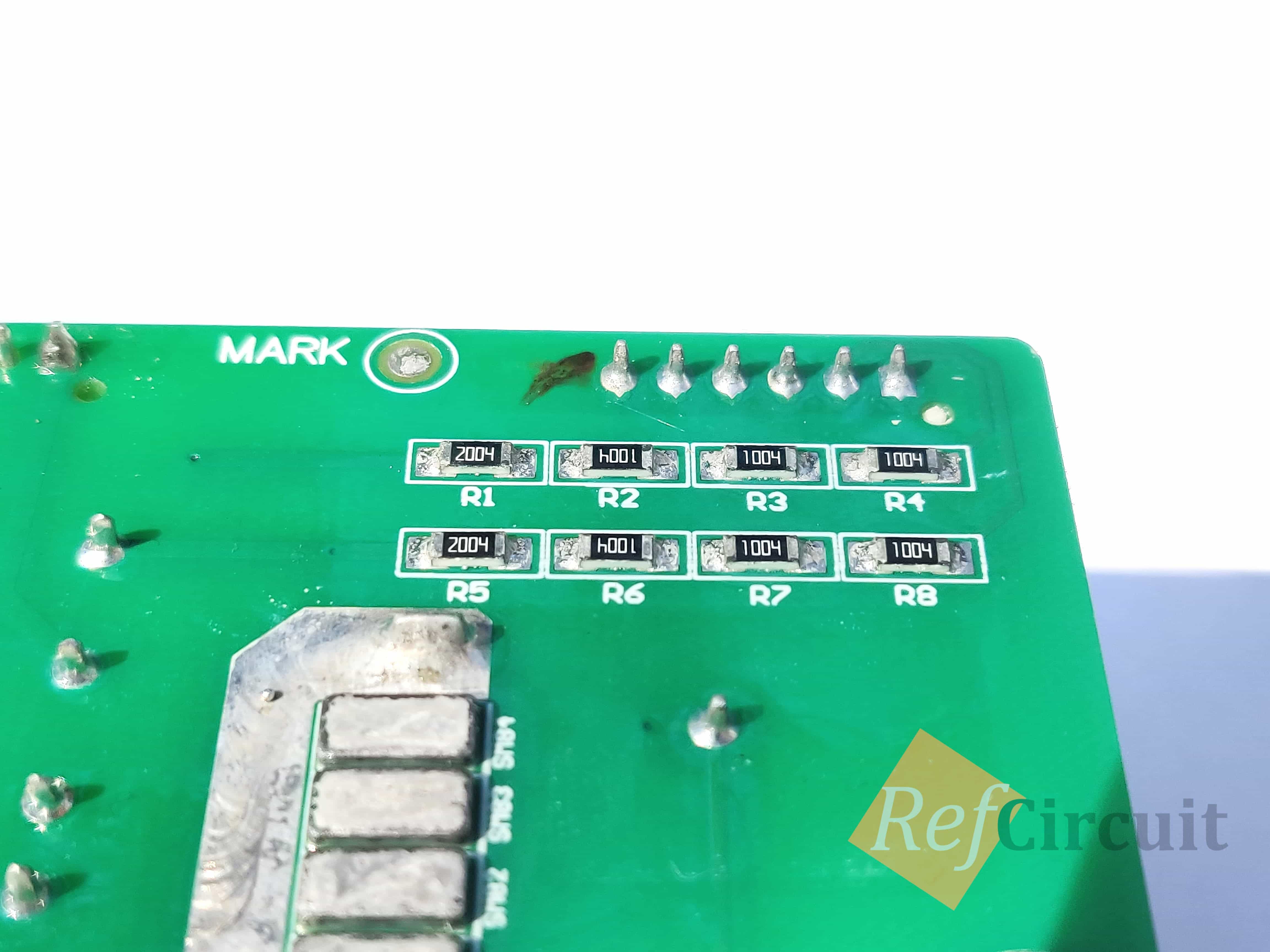

PV-CLC-V1.0 (2023-7-28)

PV inputs filter board (for two strings)

Capacitor: V3D 600VDC 5.0uF 10% 40/85/56 (31.5x12.7x21.5 P27.5mm)

Inductor: ES5884 33mm x 23mm x 15mm

LCR:

  1. 6.004mH@1kHz Rs: 6.994Ohm Q:5.3940
  2. 5.990mH@1kHz Rs: 6.859Ohm Q:4.5869
  3. 6.102mH Rs: 7.748Ohm Q:4.9488
  4. 6.118mH R: 5.519Ohm Q:7.3946

LCR: 9.890uF@120Hz (5uF connect in parallel through coils)

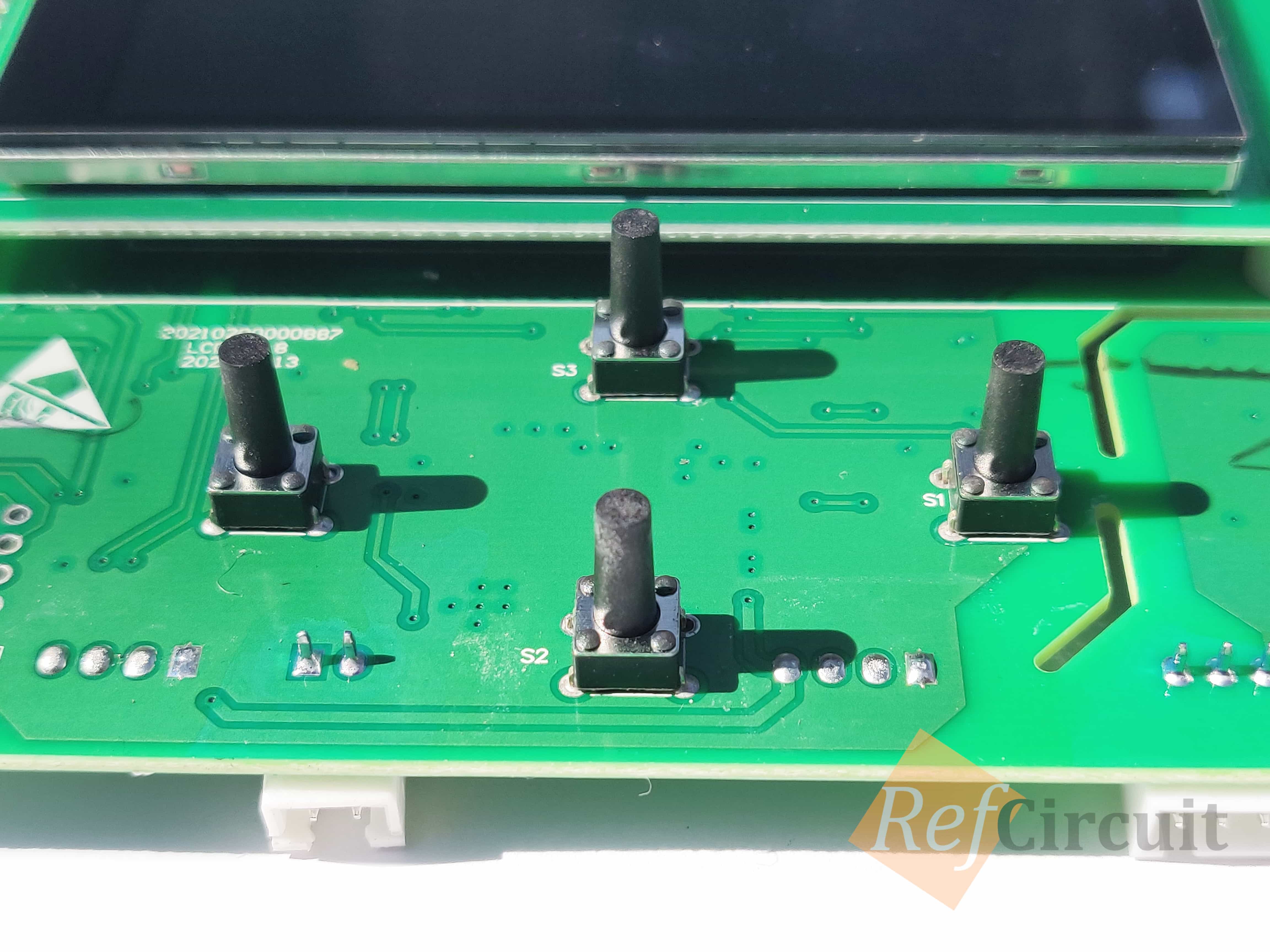

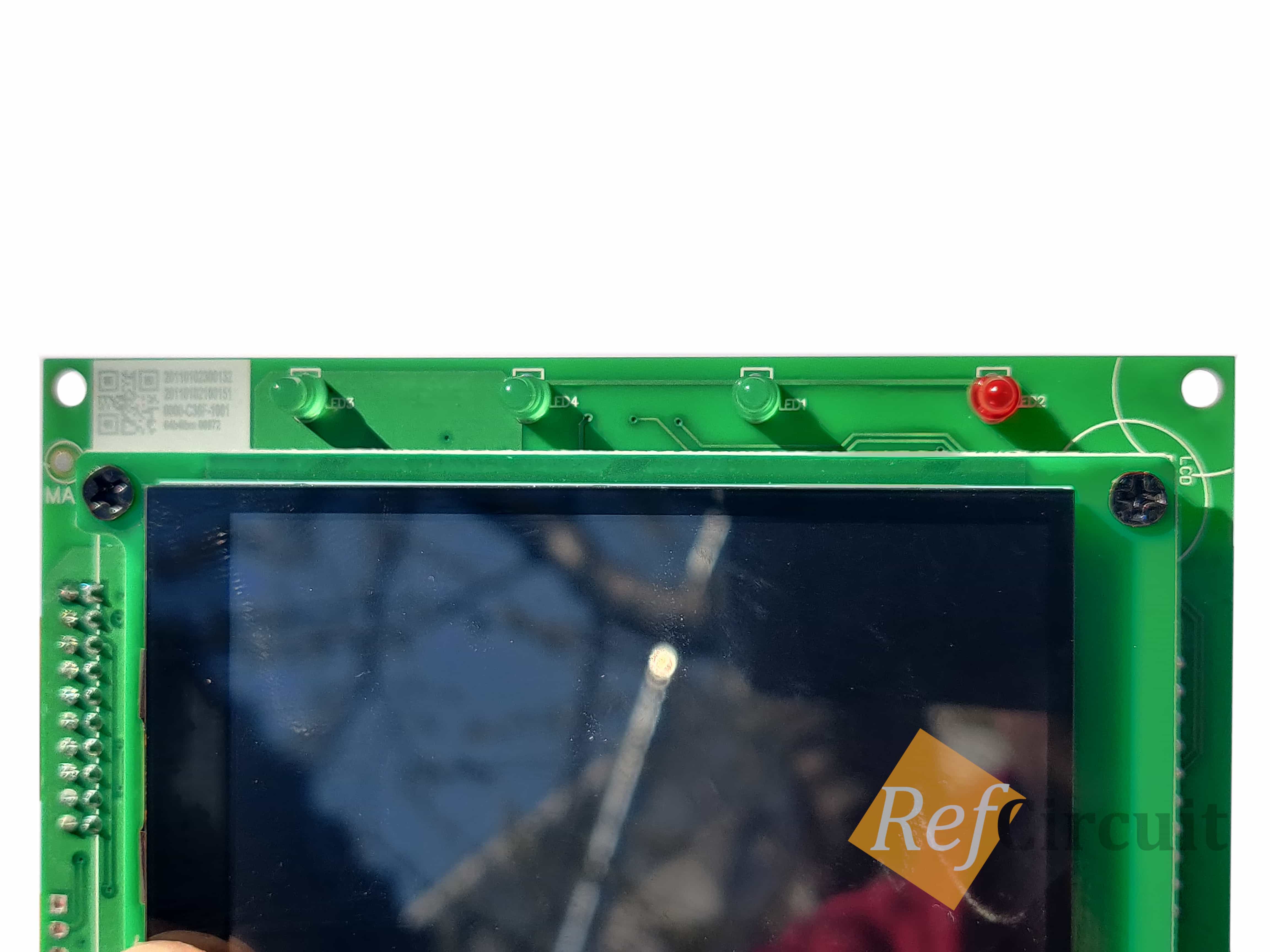

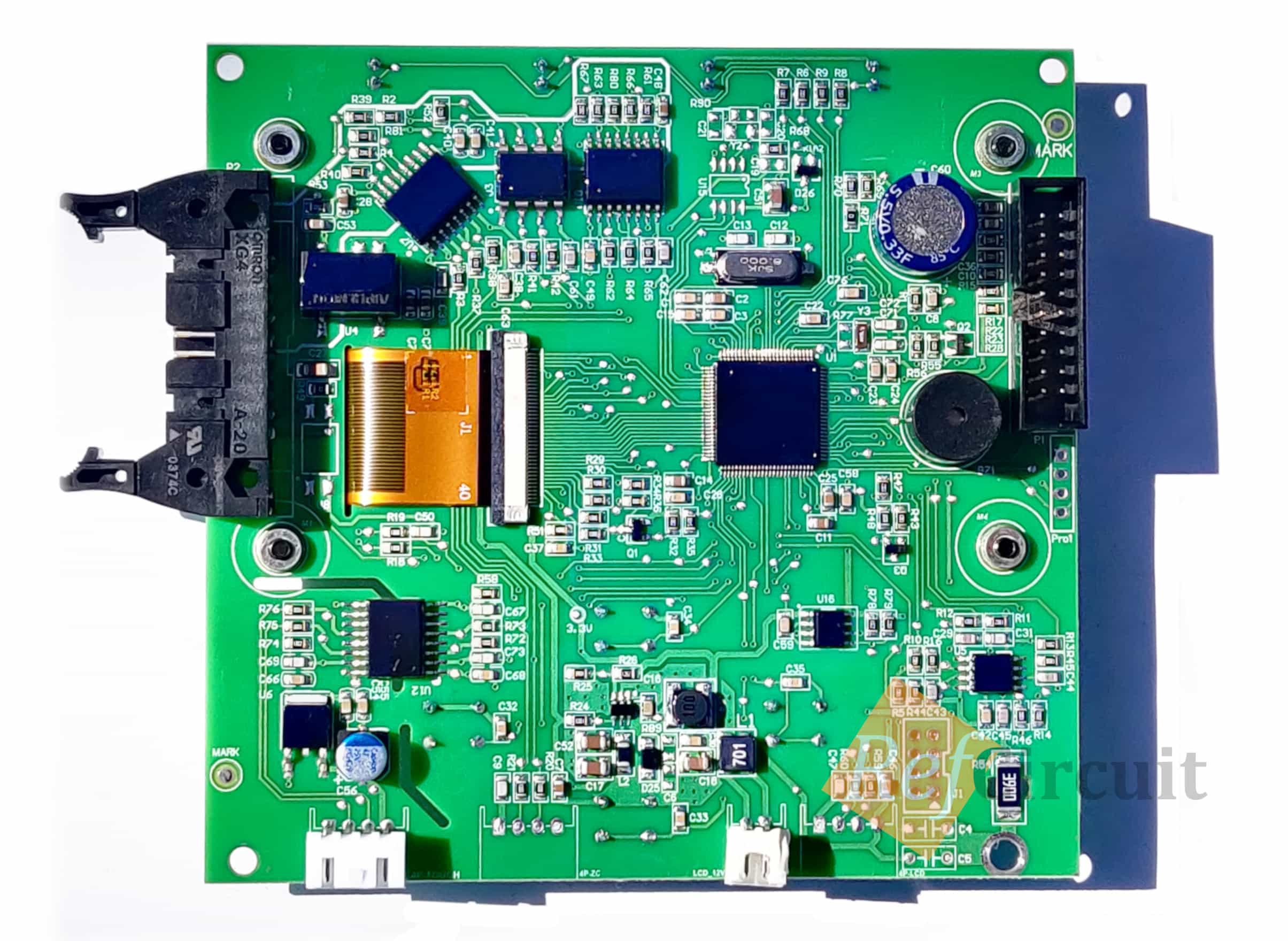

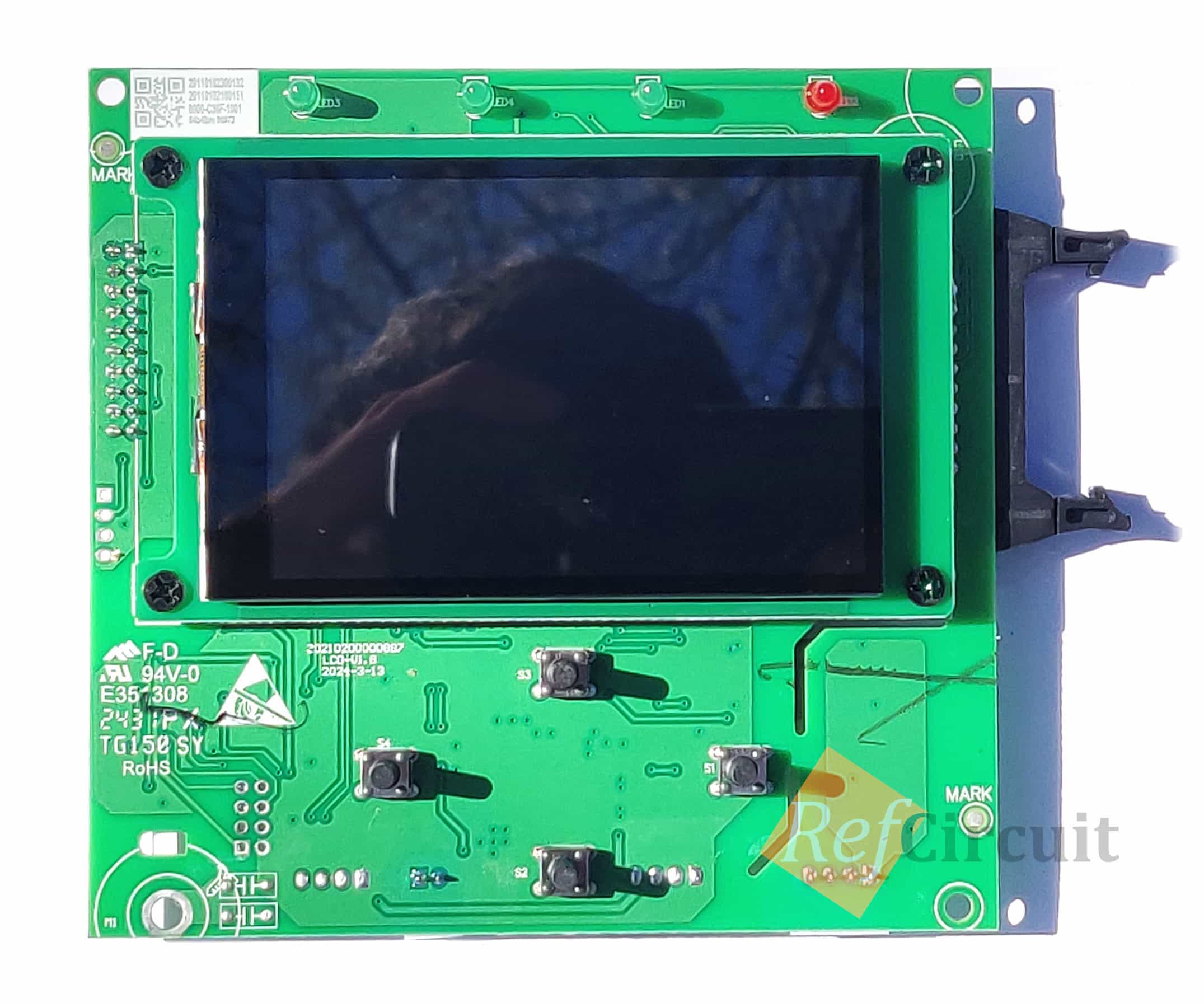

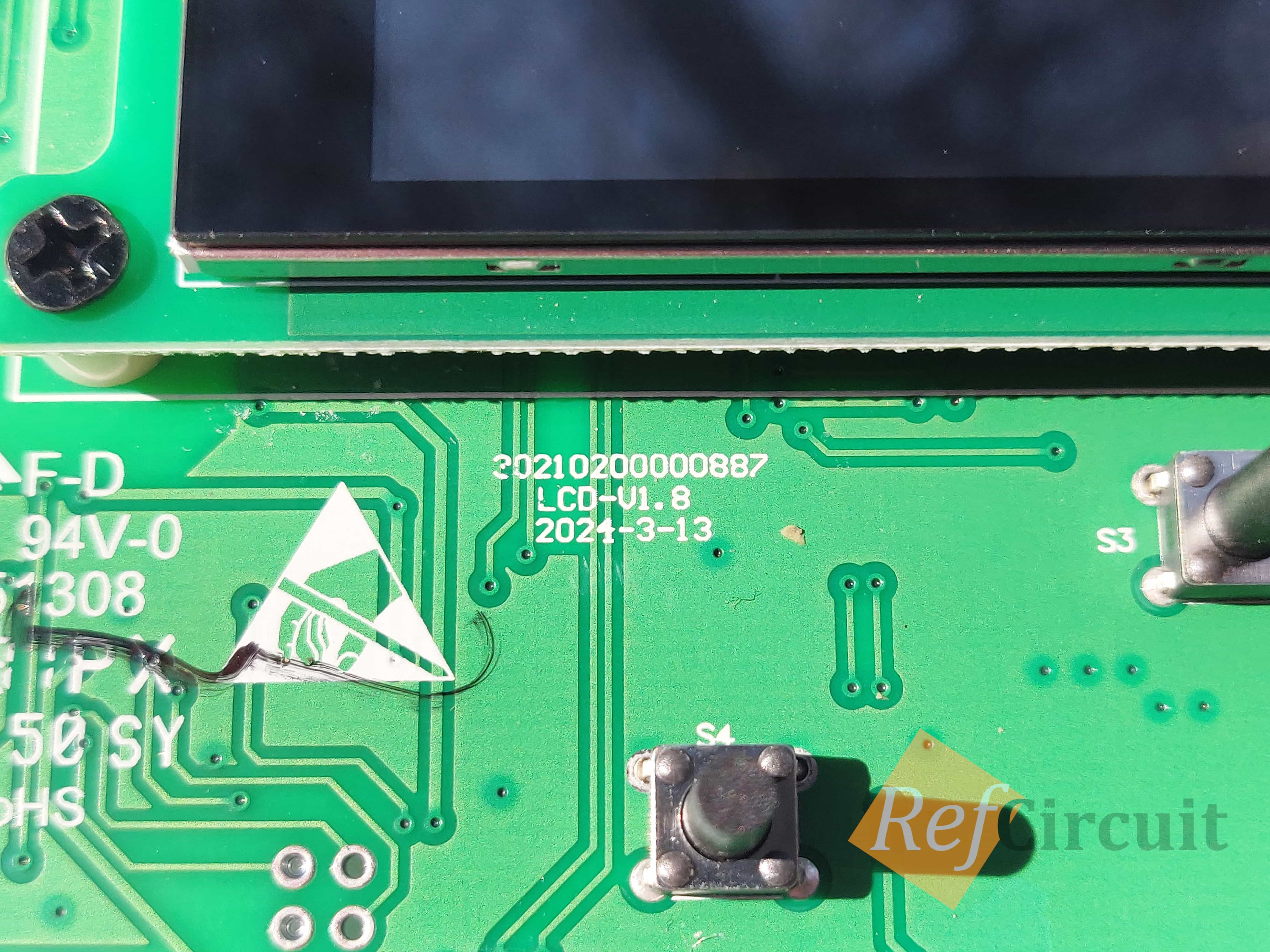

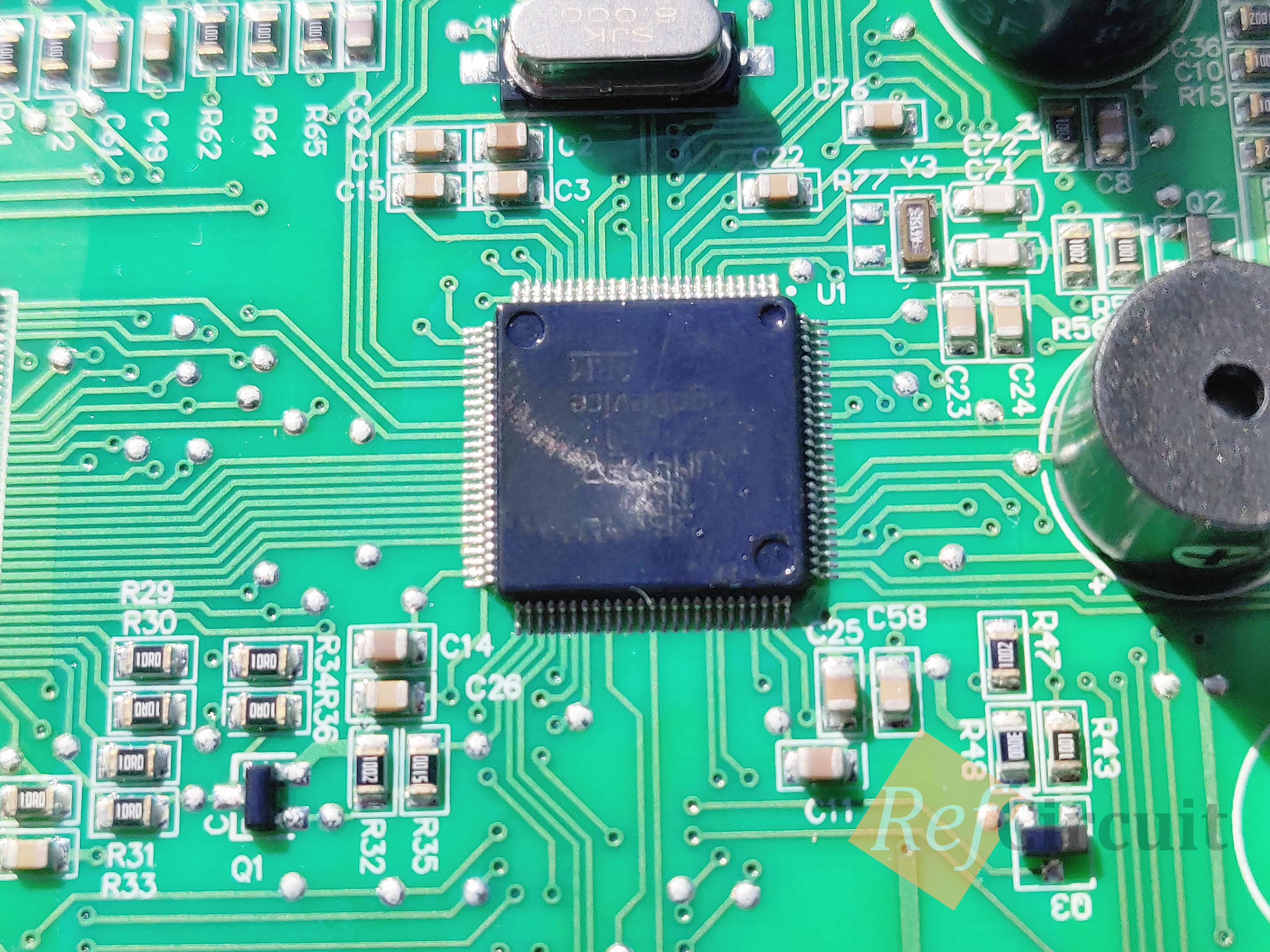

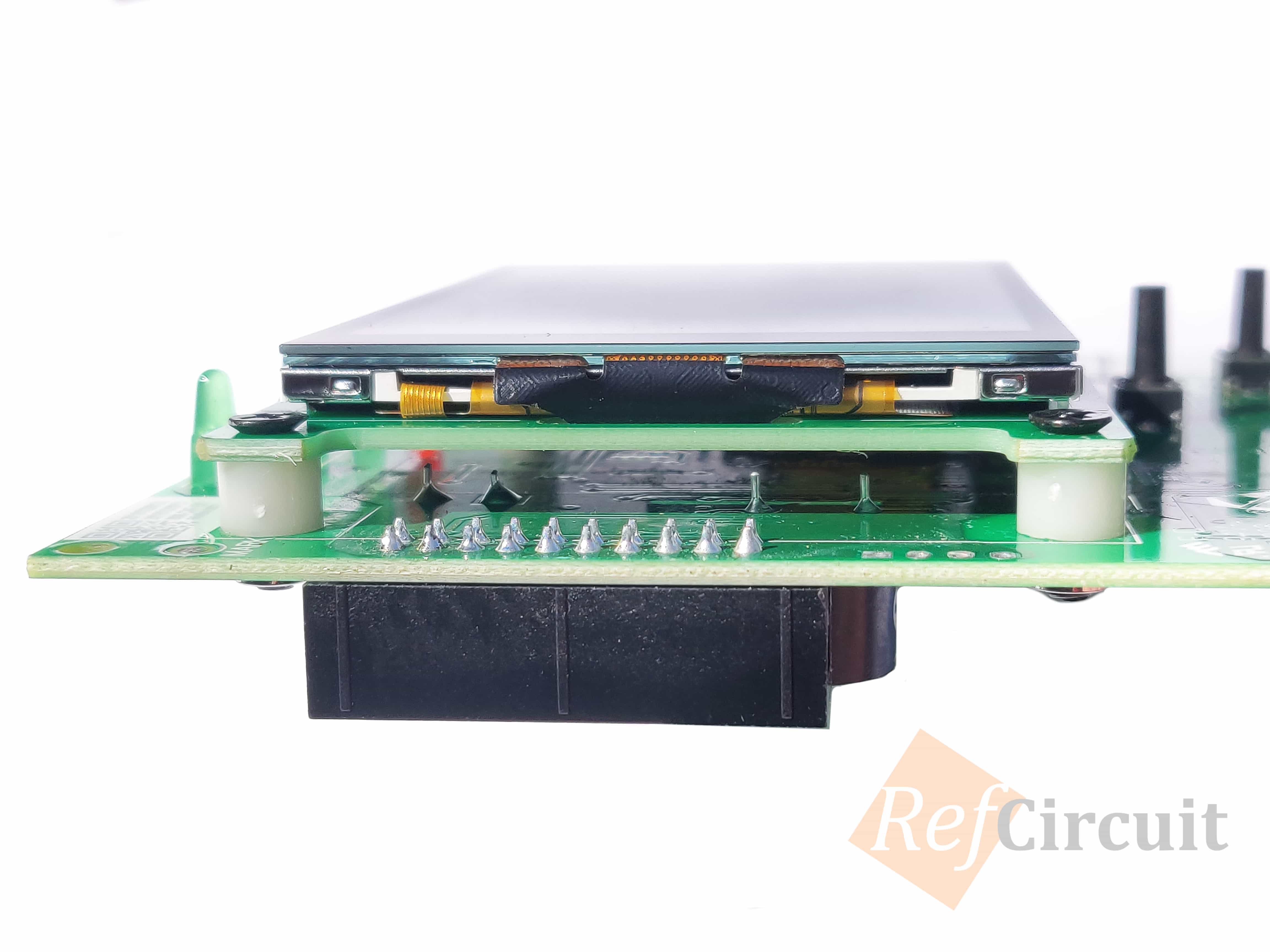

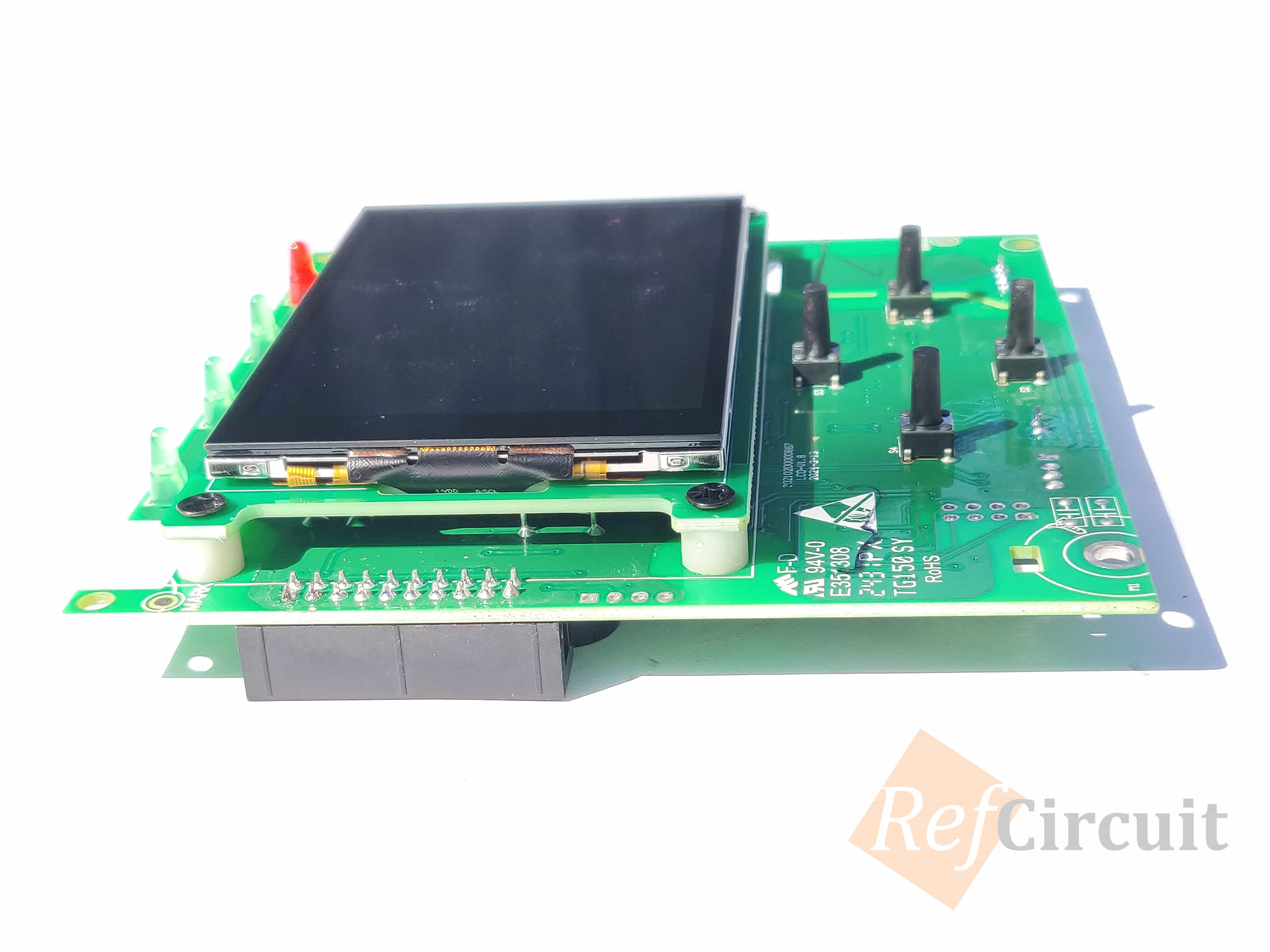

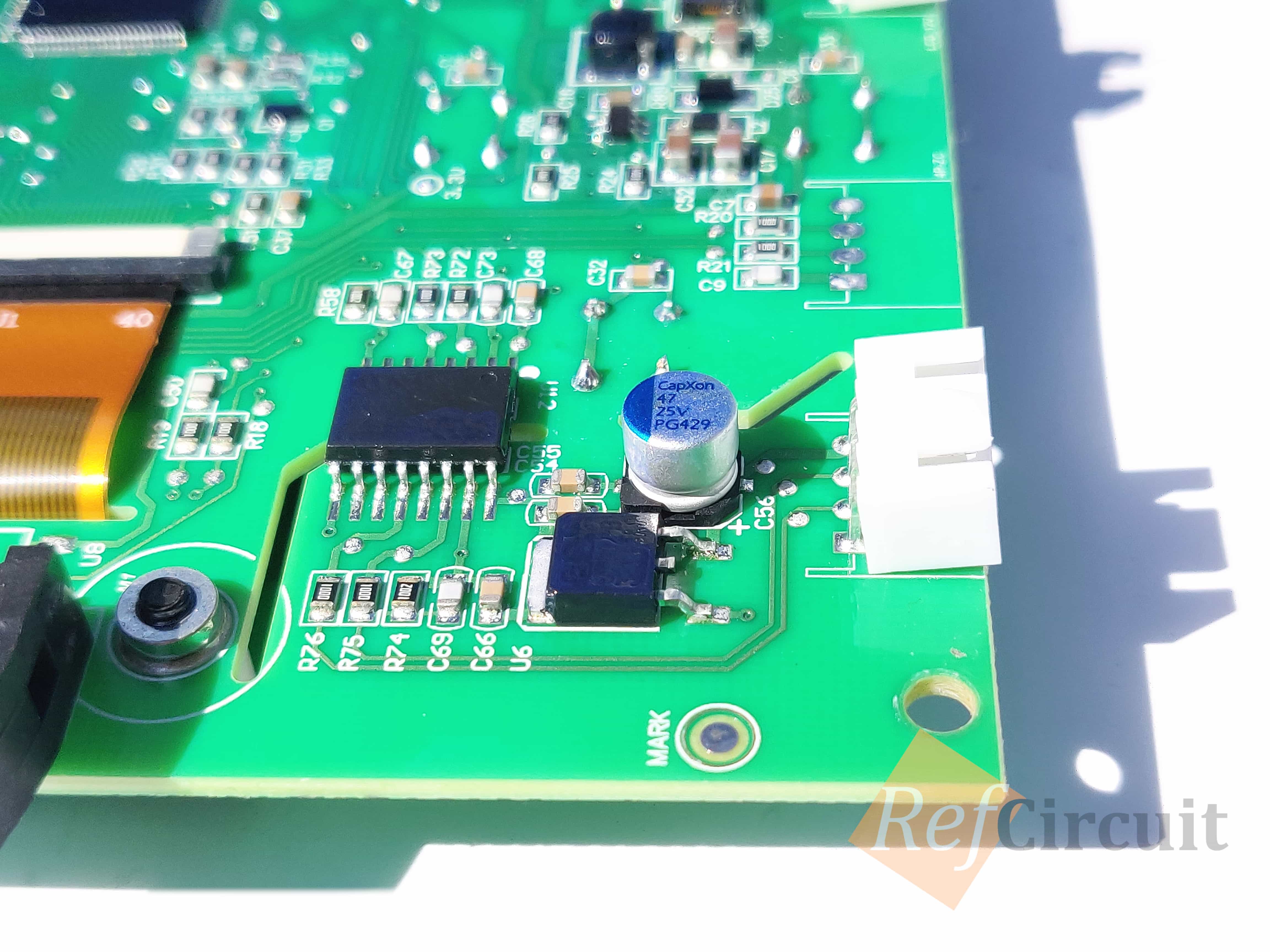

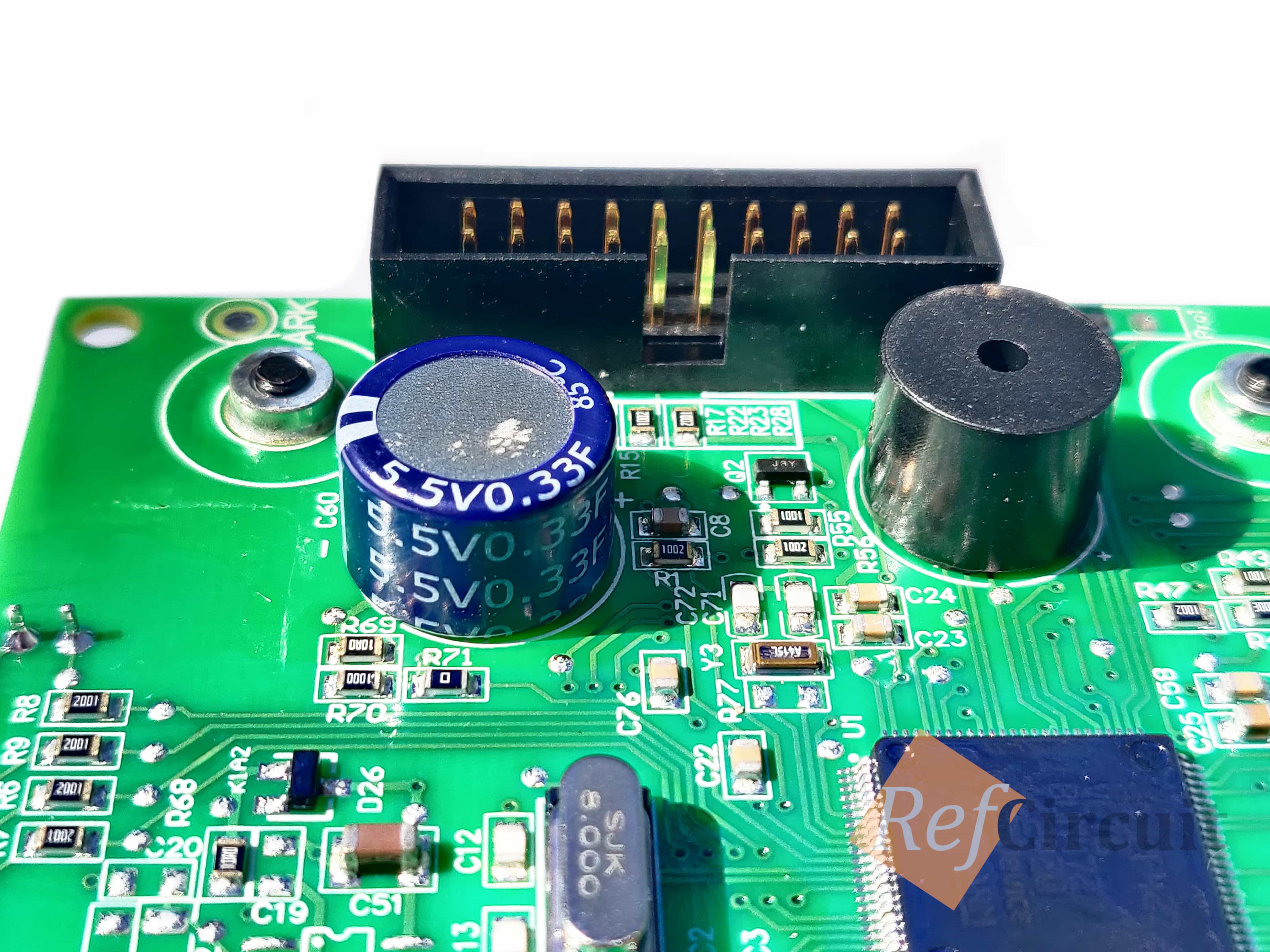

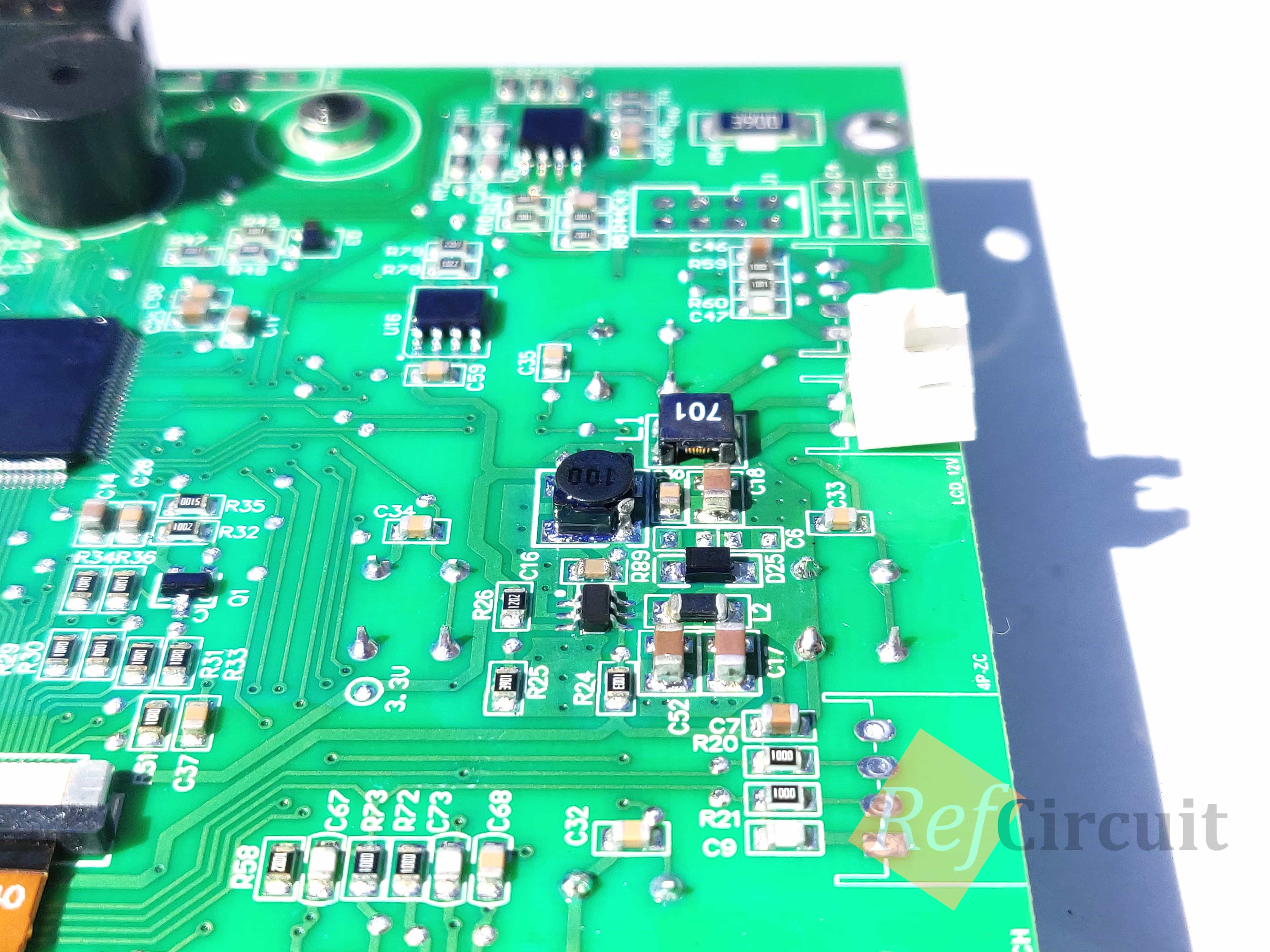

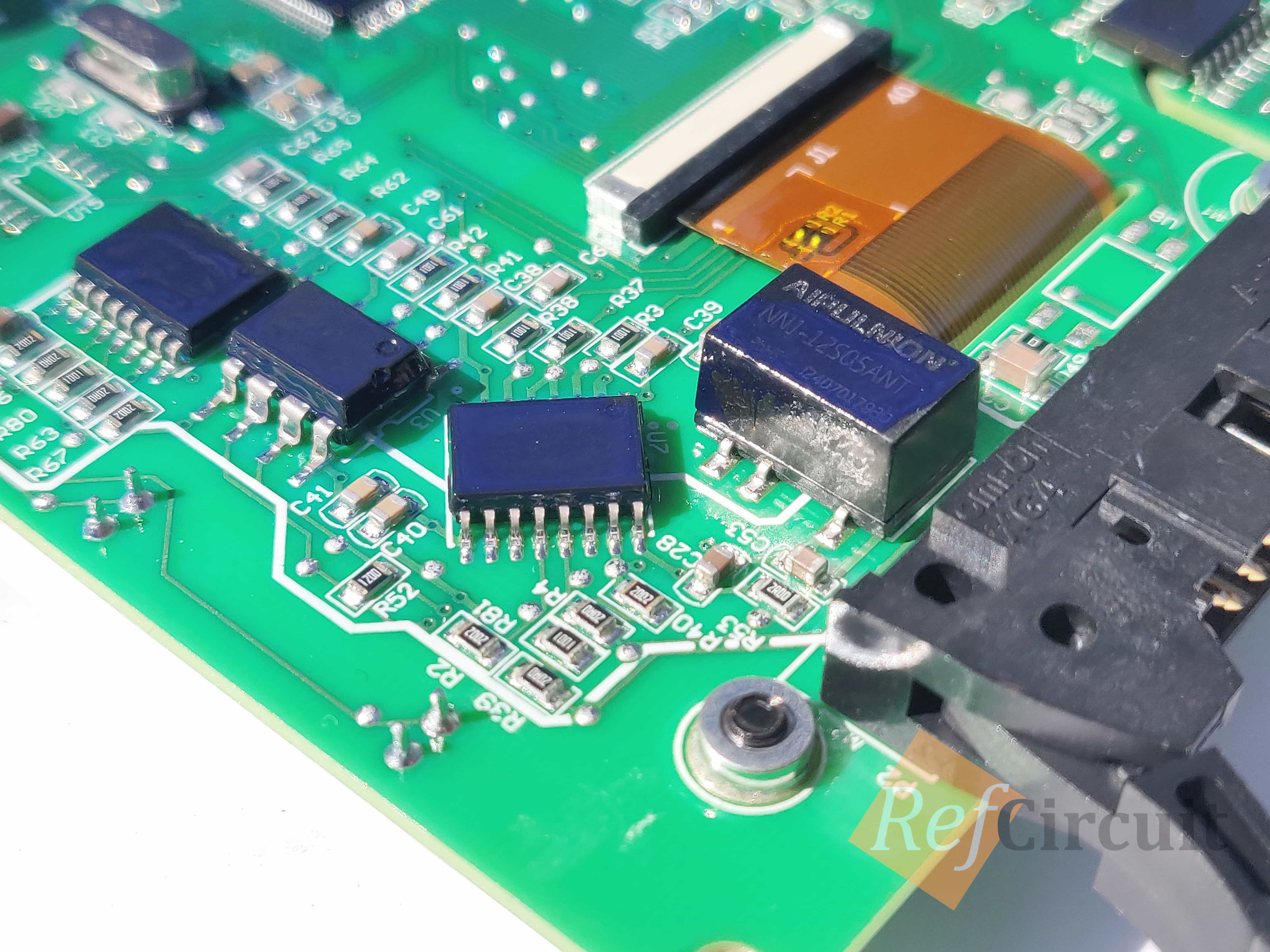

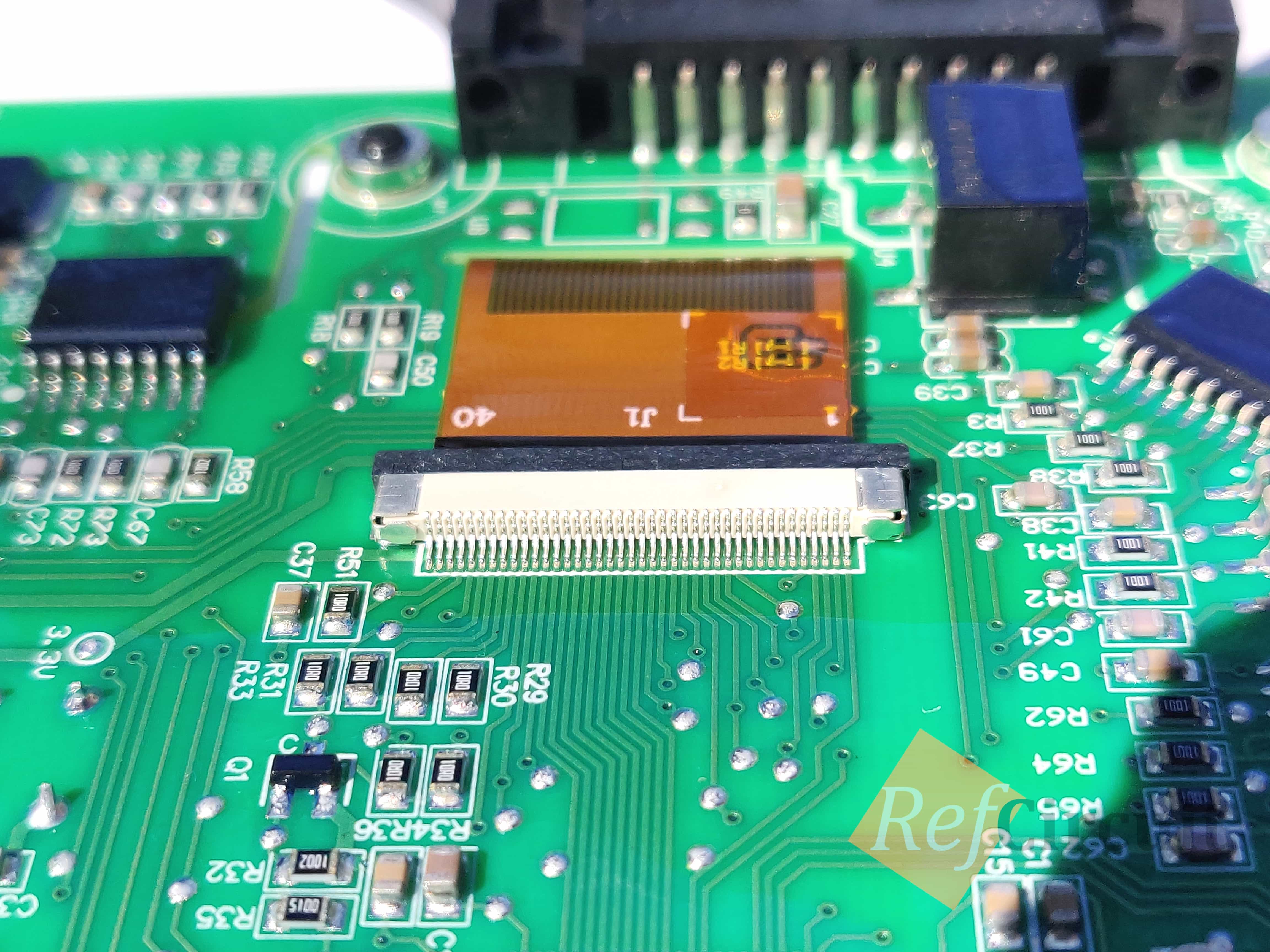

LCD-V1.8 (2024-3-13)

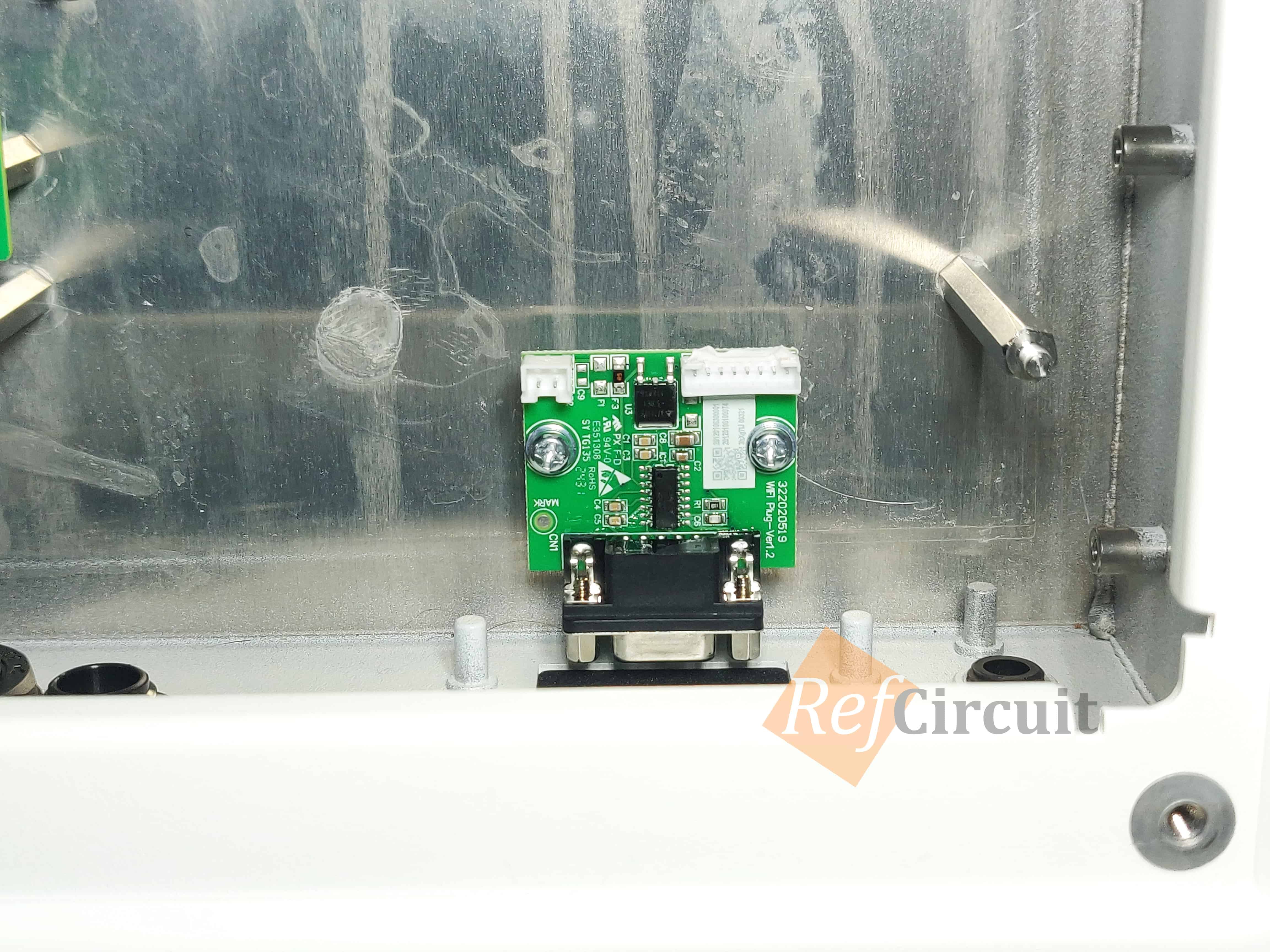

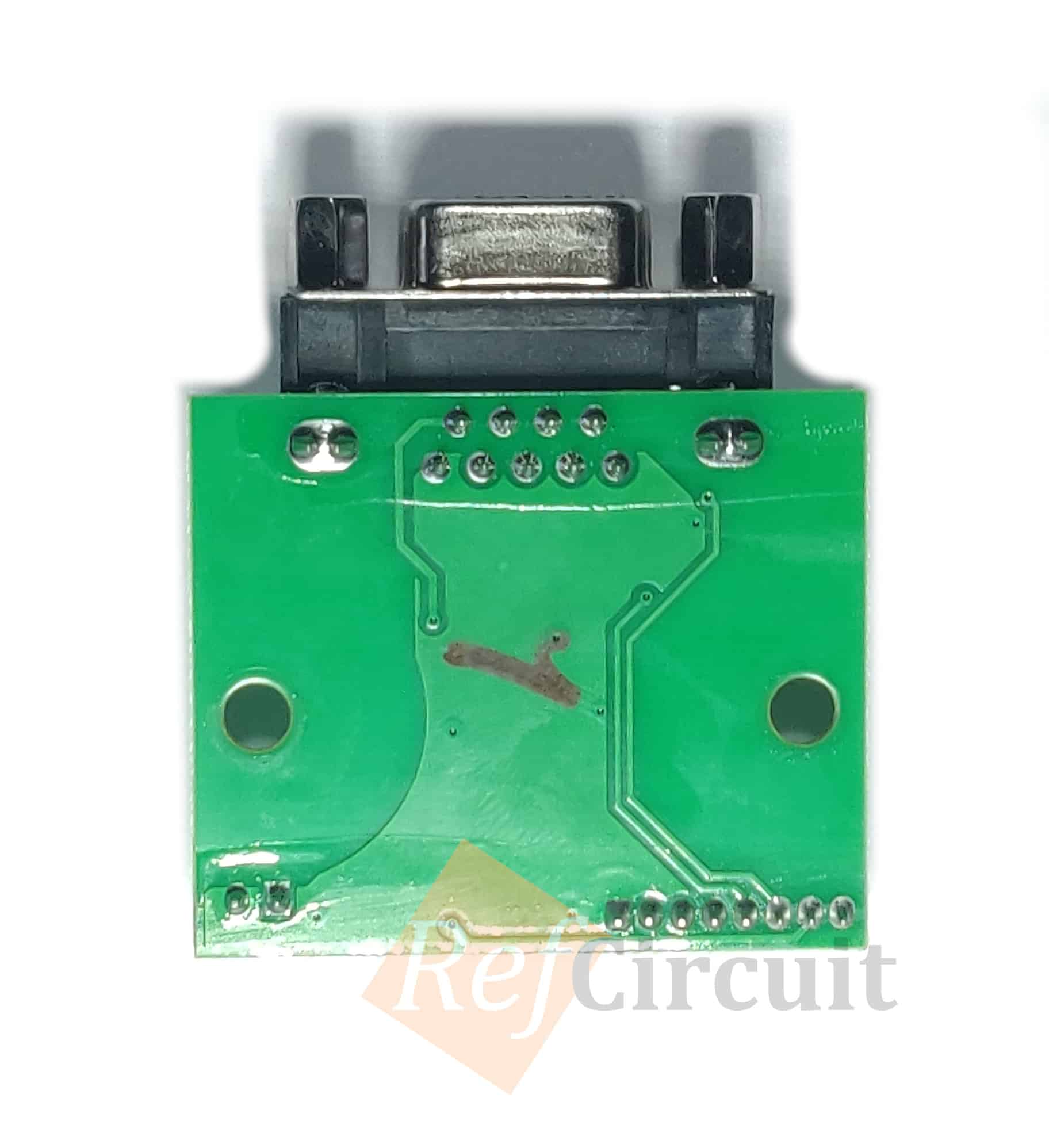

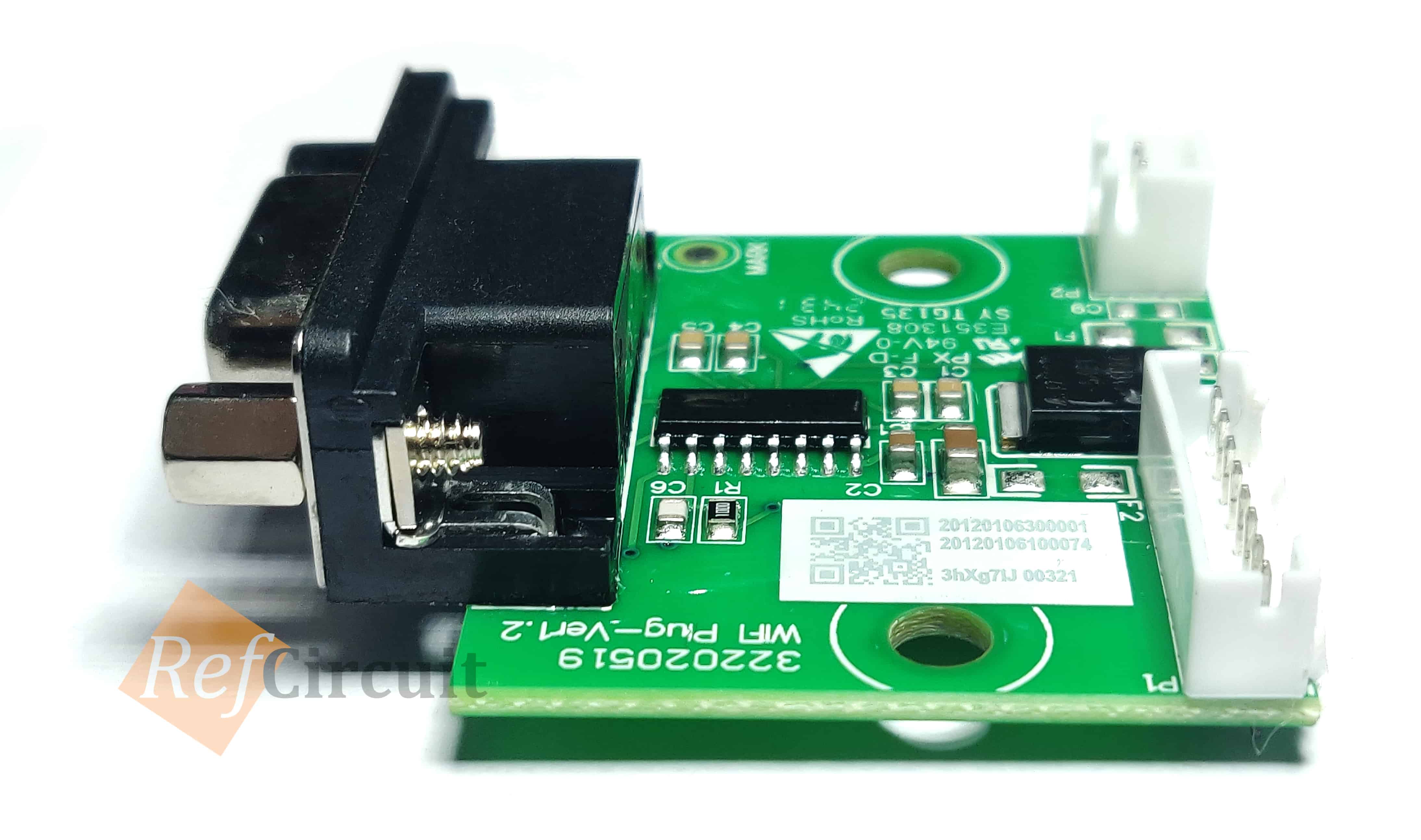

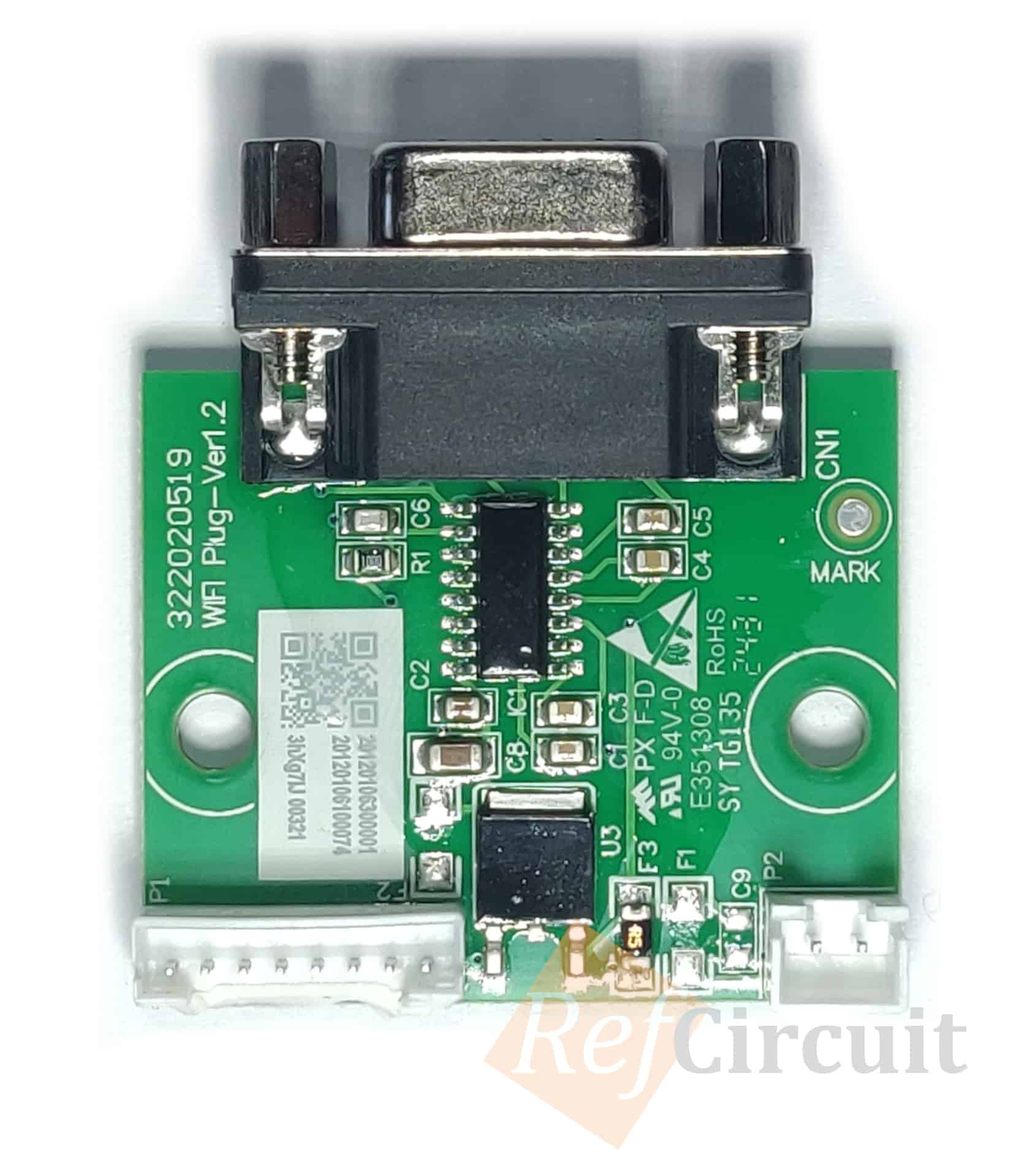

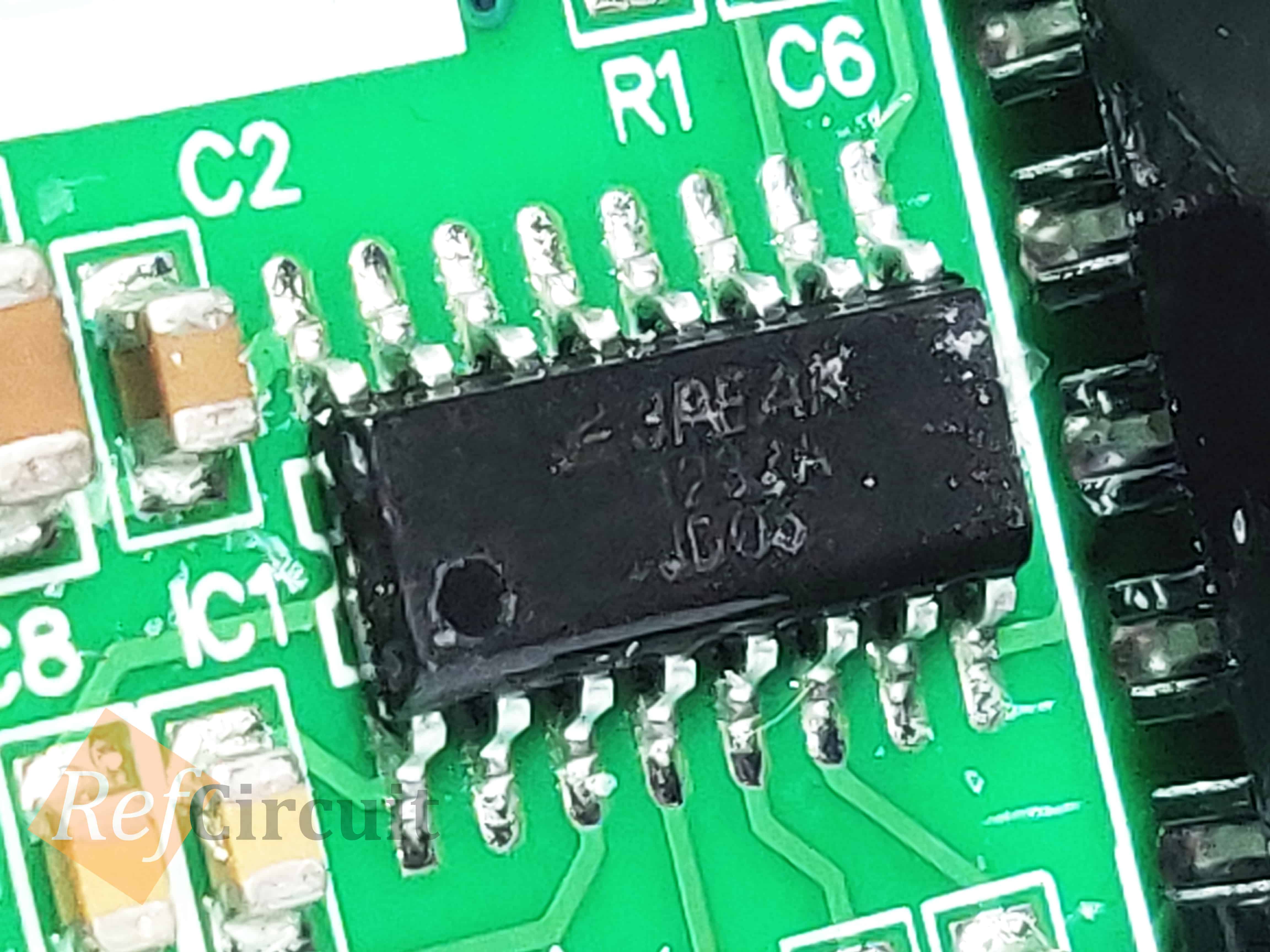

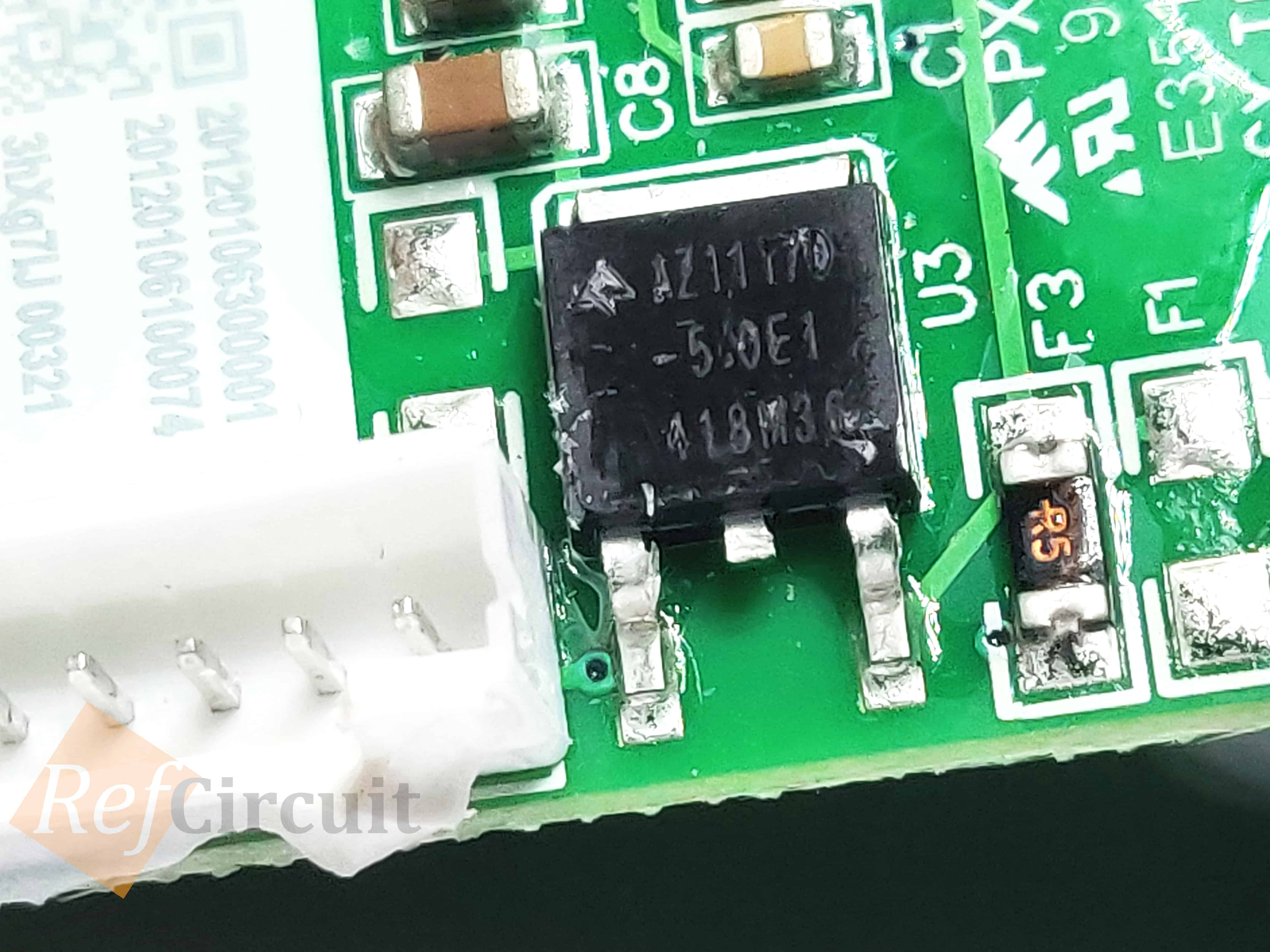

WIFI PLUG-V1.2

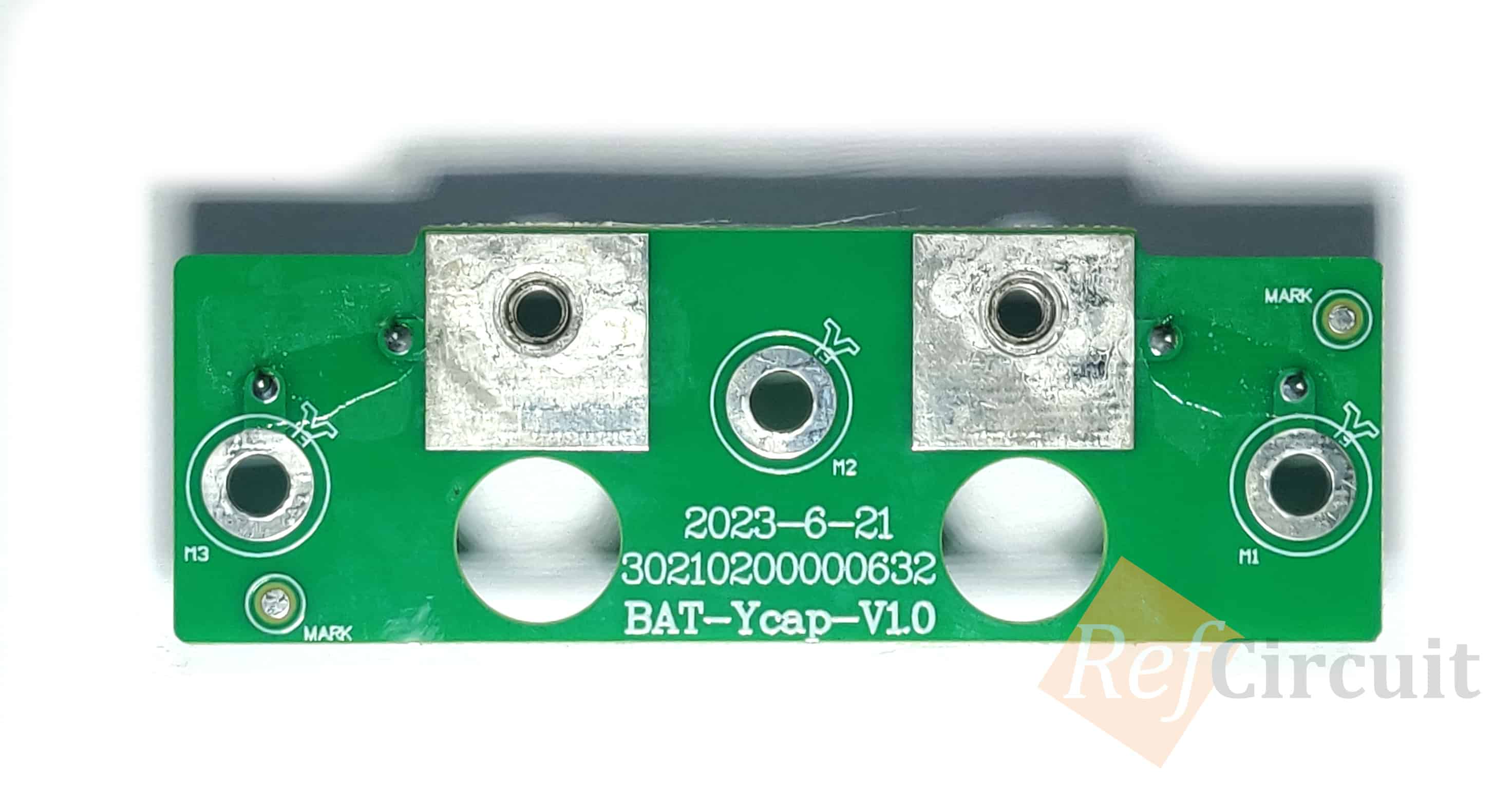

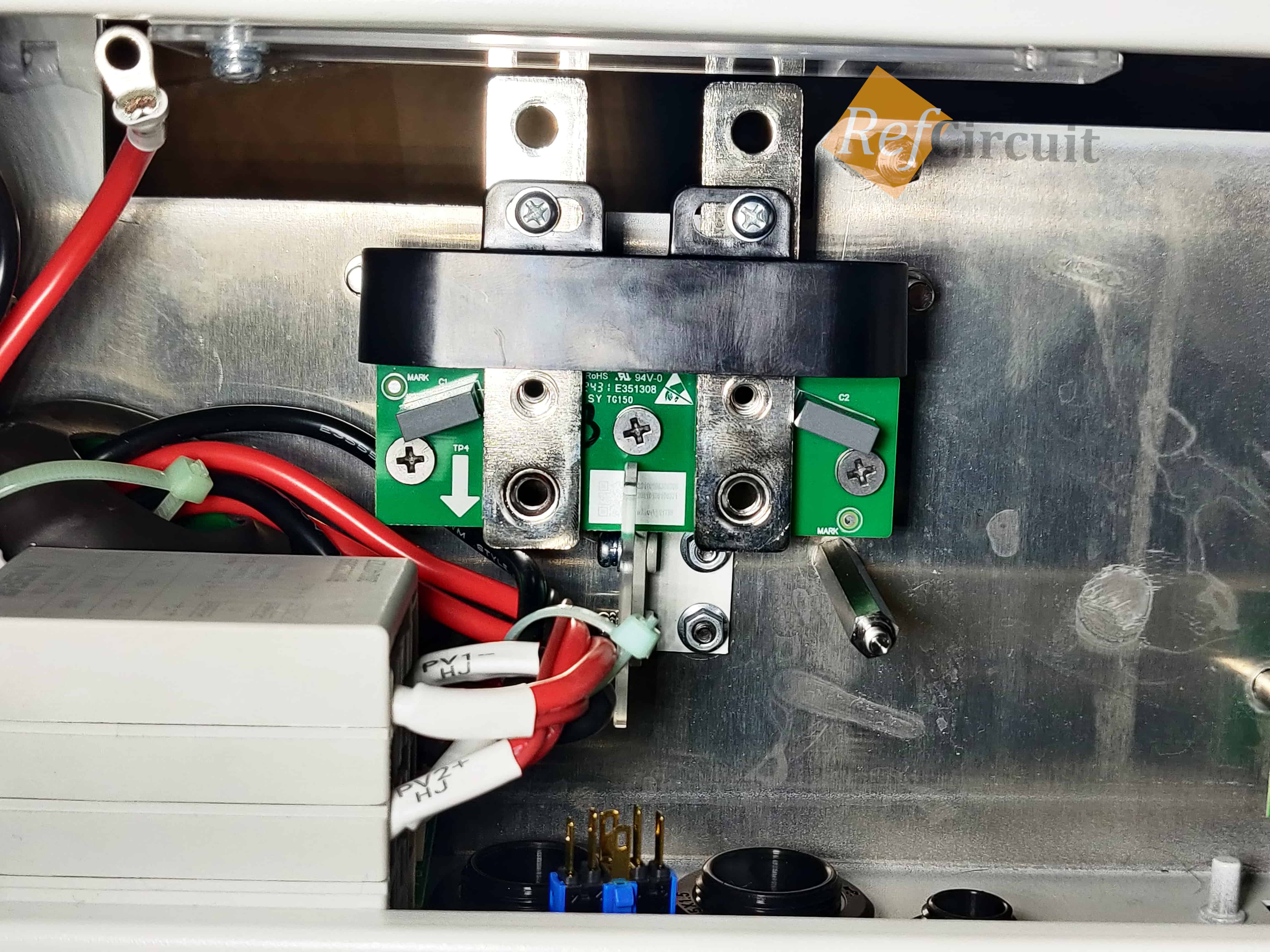

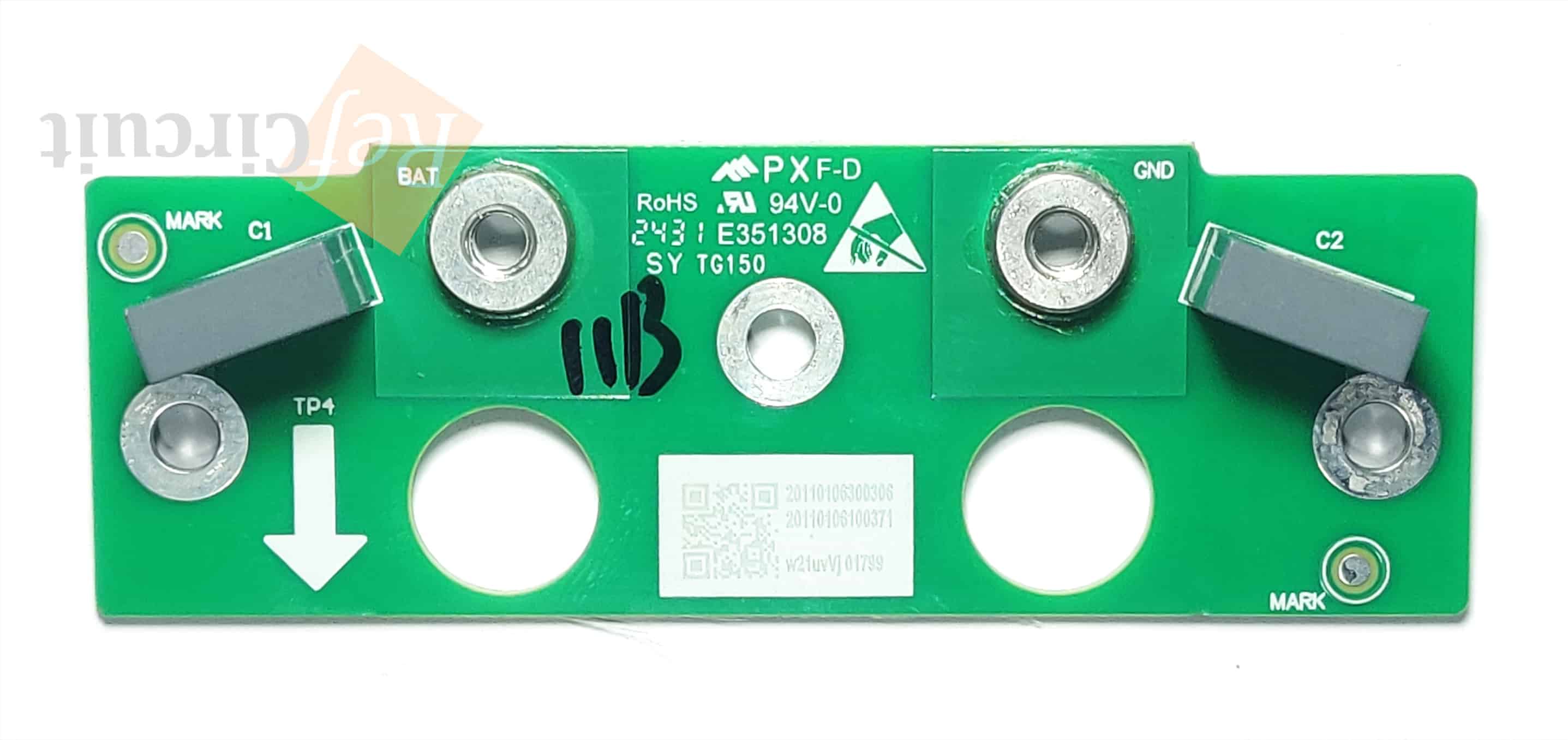

BAT-YCAP-V1.0 (2023-6-21)

Safety capacitors 47nF connected between positive and negative battery's terminals and grounding (Earth)
