Review of silicone rubber 704 glue for capacitors and electronics

Intro

When disassembly electronic devices you might seen special white ยซglueยป which used for fixing capacitors, inductors or plugs in sockets, etc.

Aliexpress

Image120ml 704 Fixed High Temperature Resistant Silicone Rubber Insulated Sealing Glue Waterproof Silicone Thermal Conductive

Photos

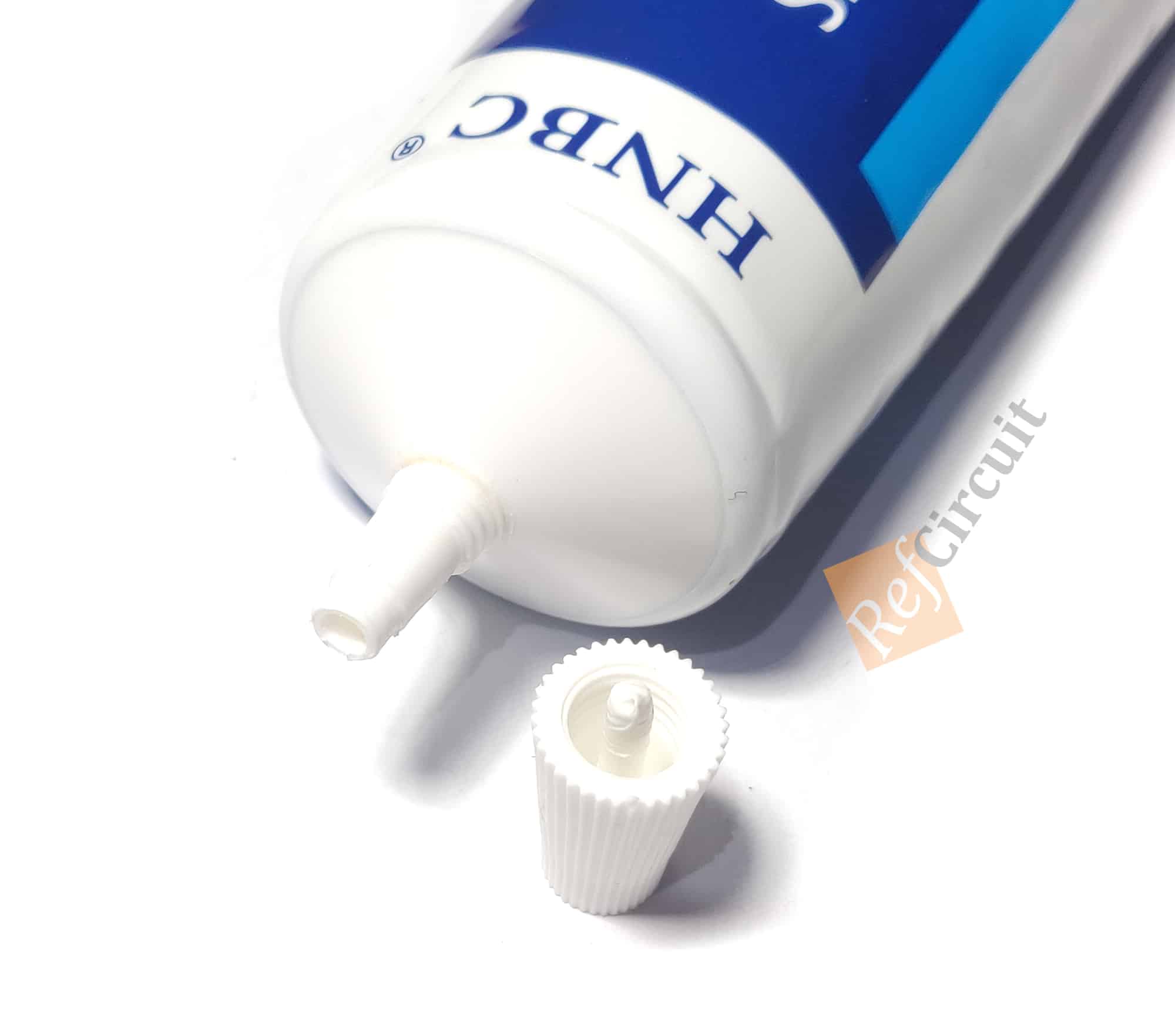

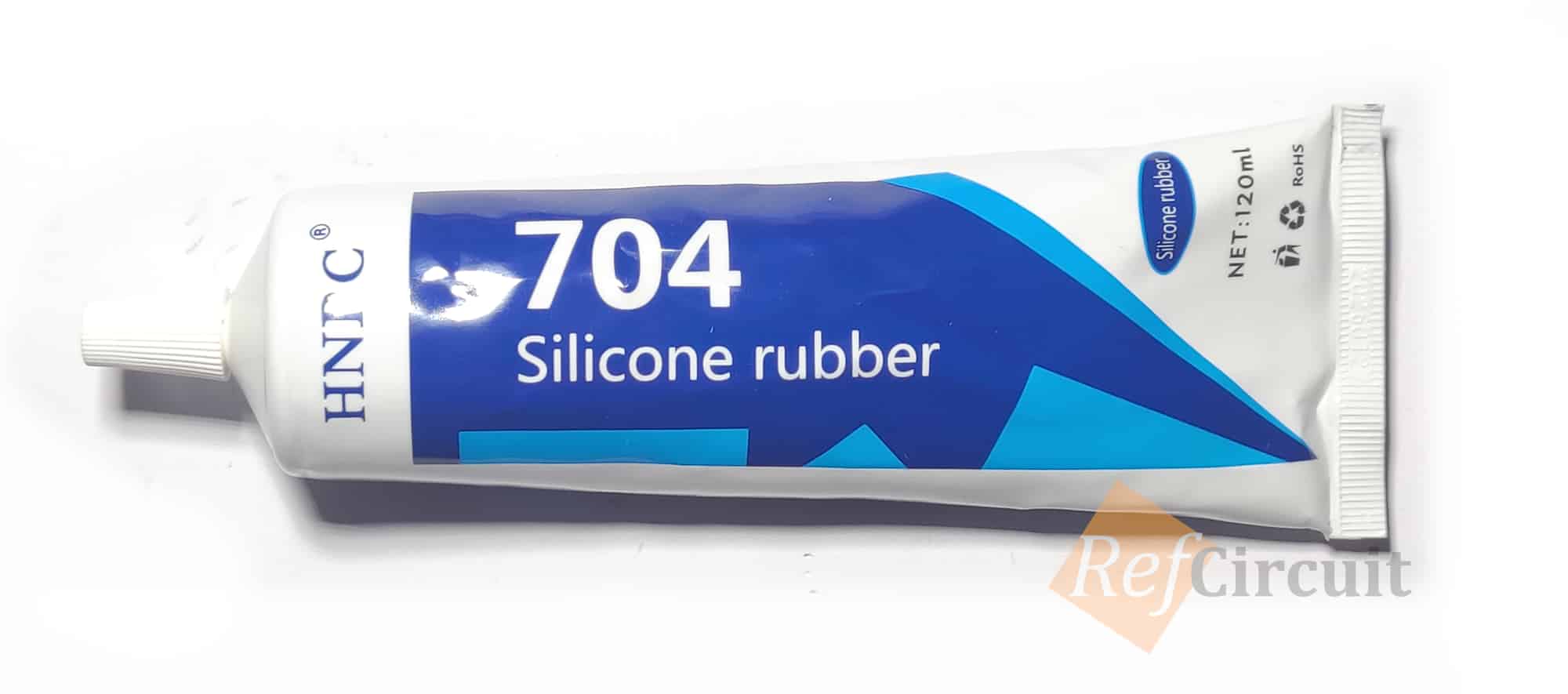

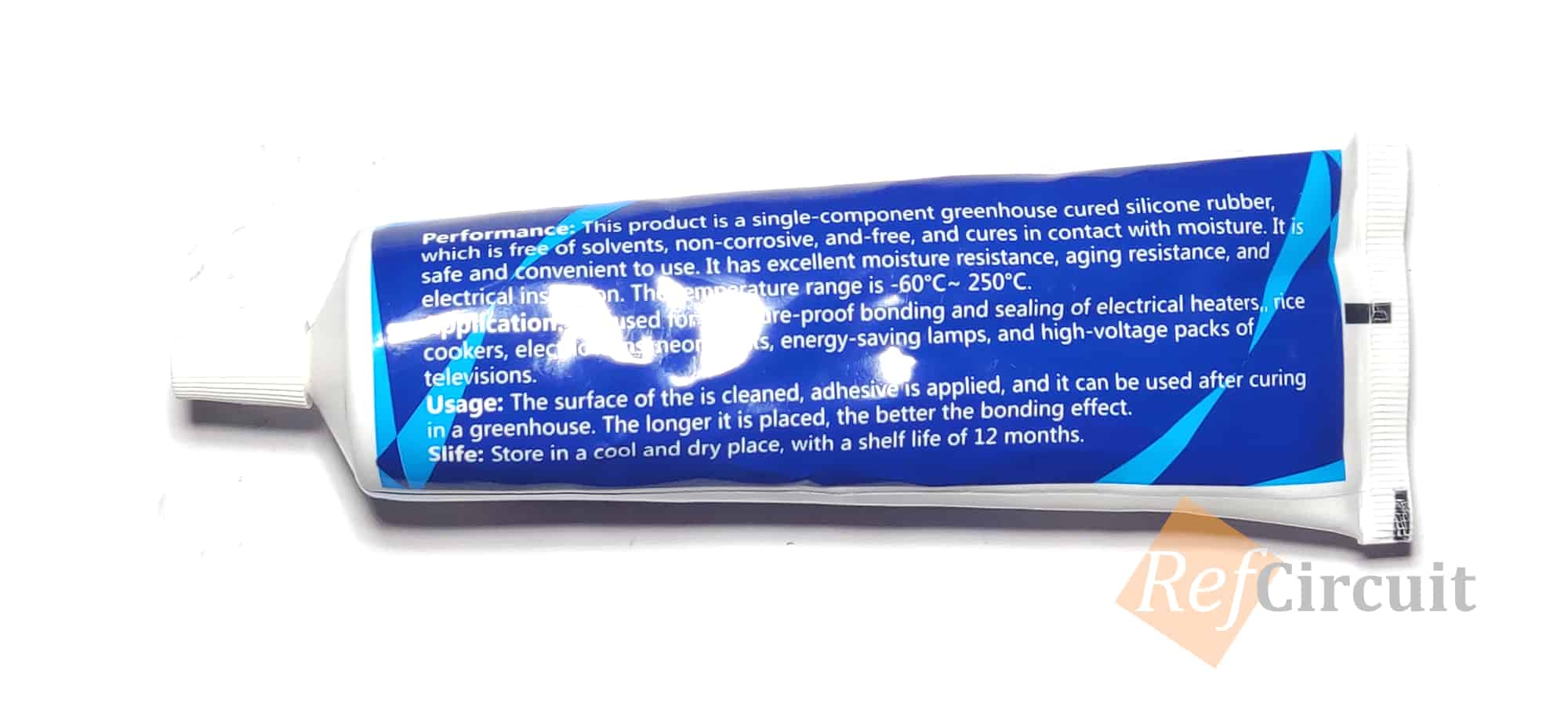

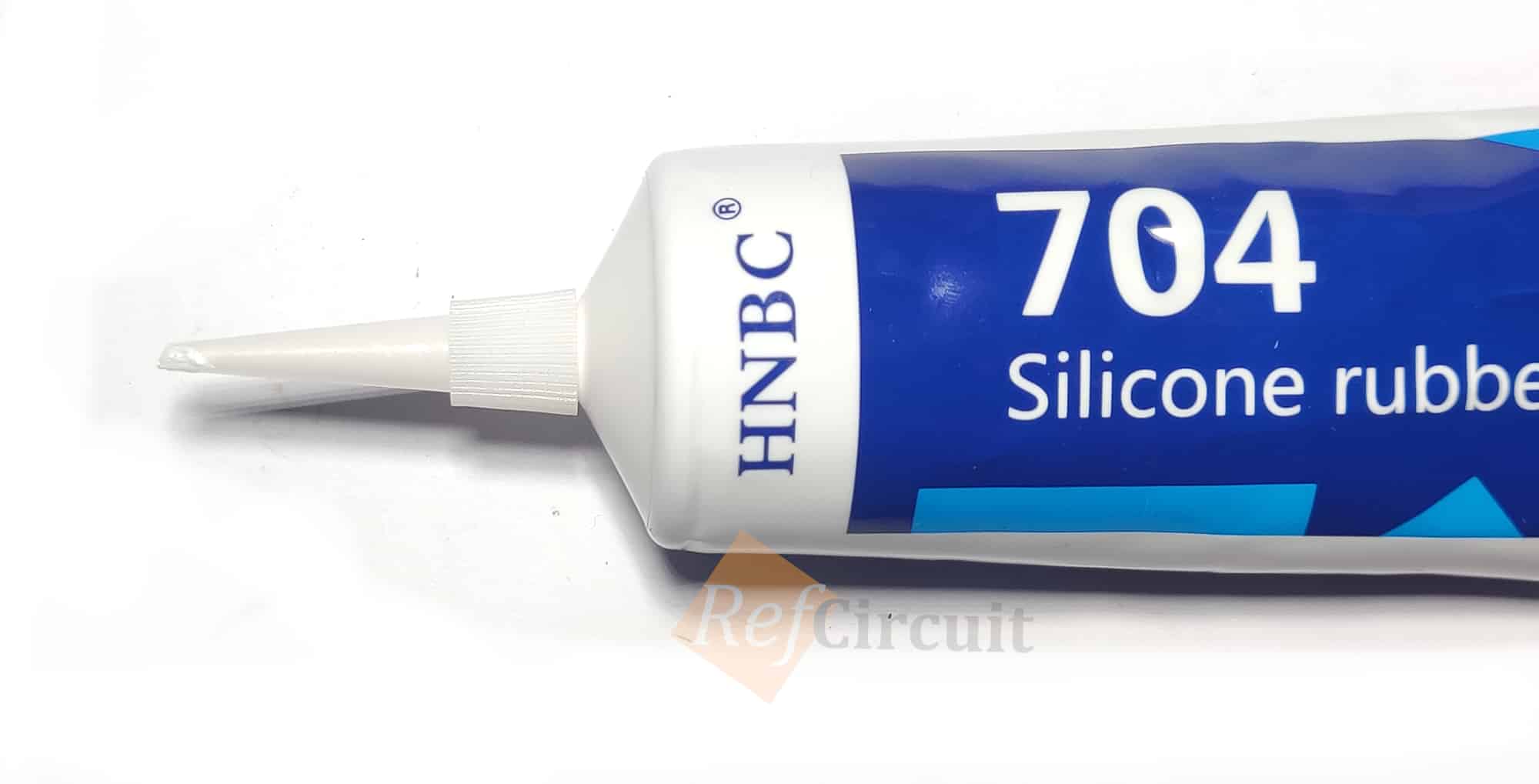

I purchased 120ml of white since it's most common:


Real Examples

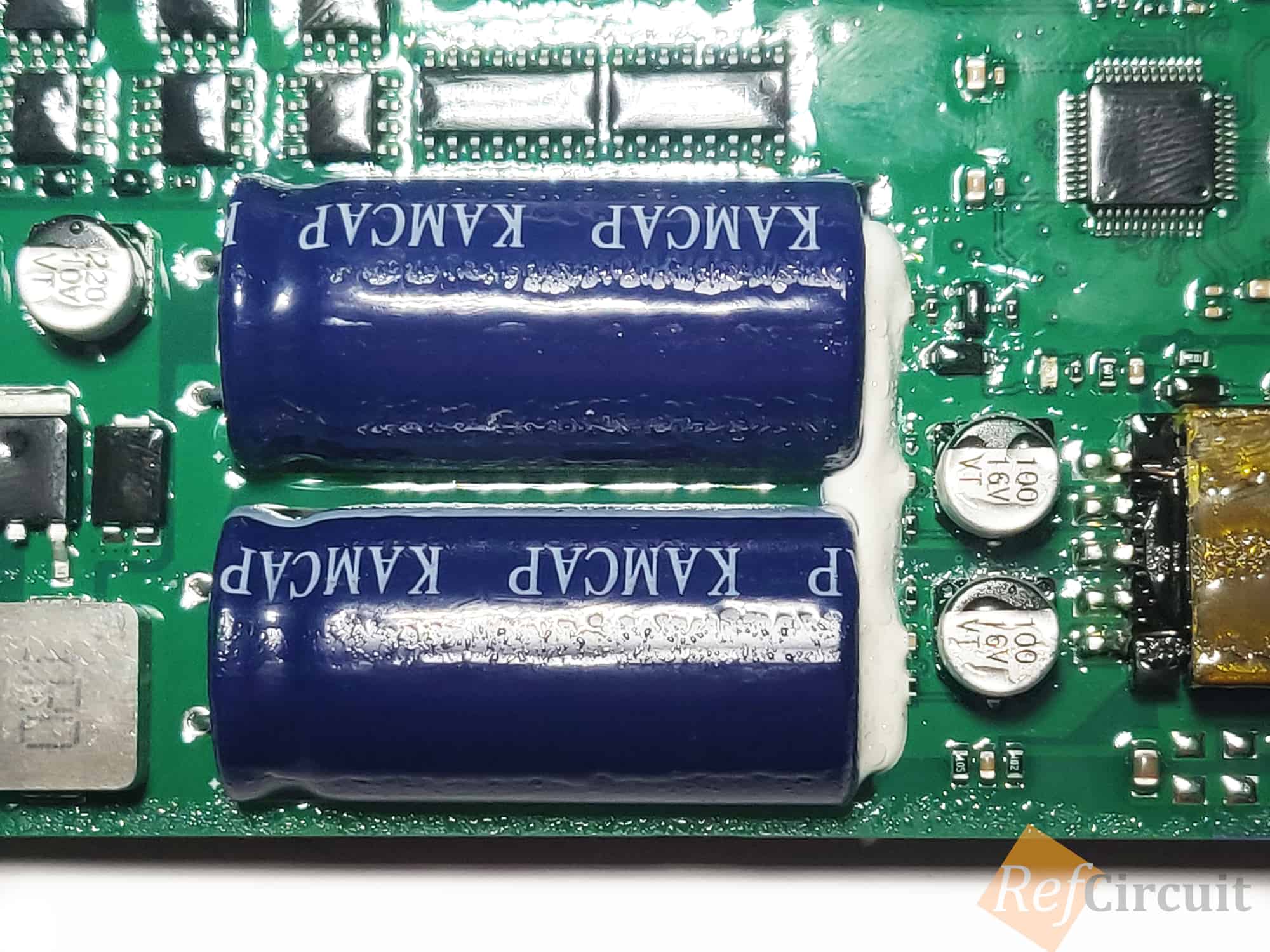

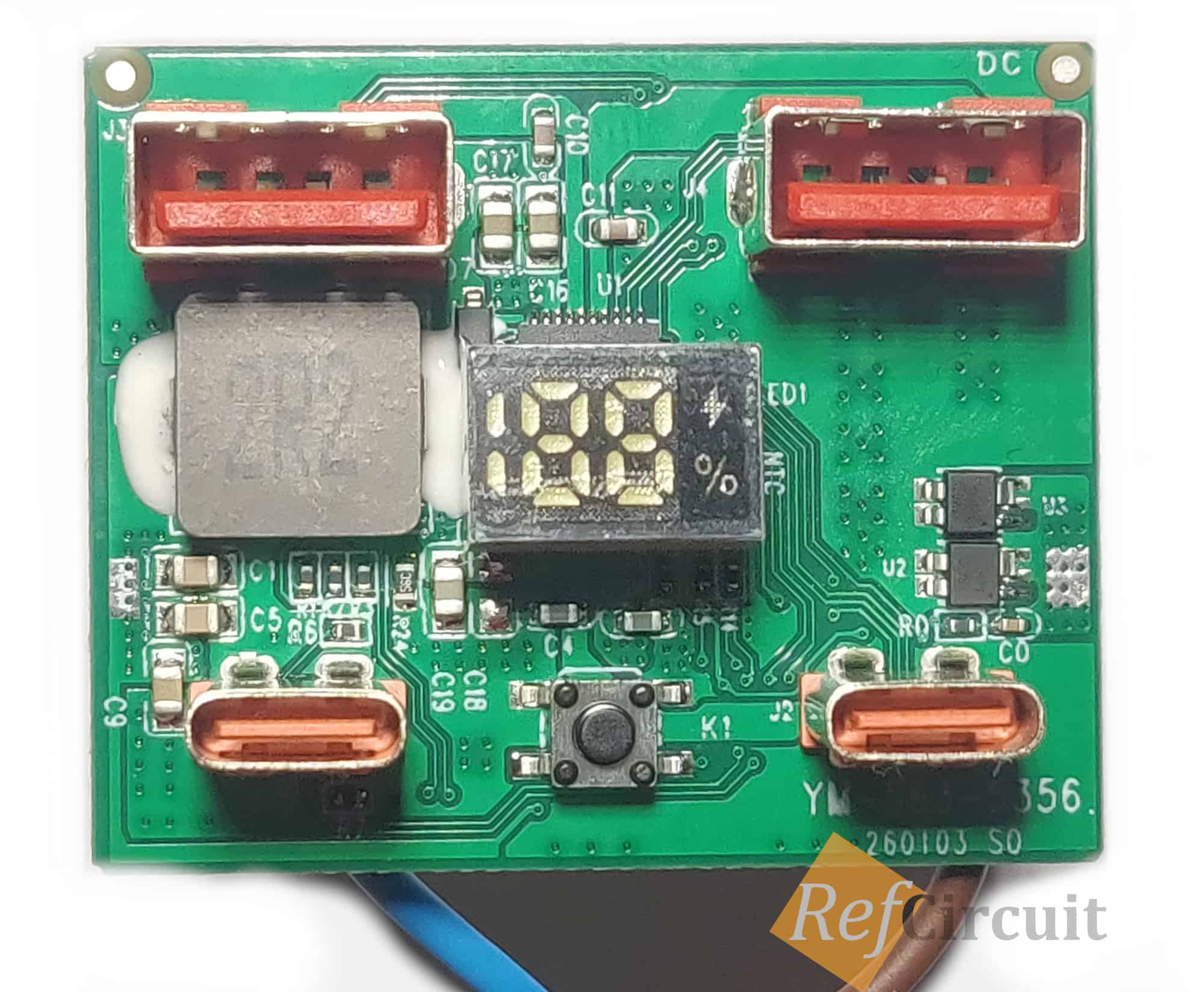

Fixing supercapacitors in JBD active balancerFixing power inductor in IP5356 power bank module (to prevent noise?)
Fixing connector of battery fuse hall current sensorFixing capacitor to prevent pins broking from vibrations

Tests

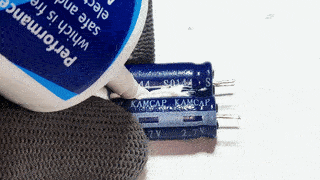

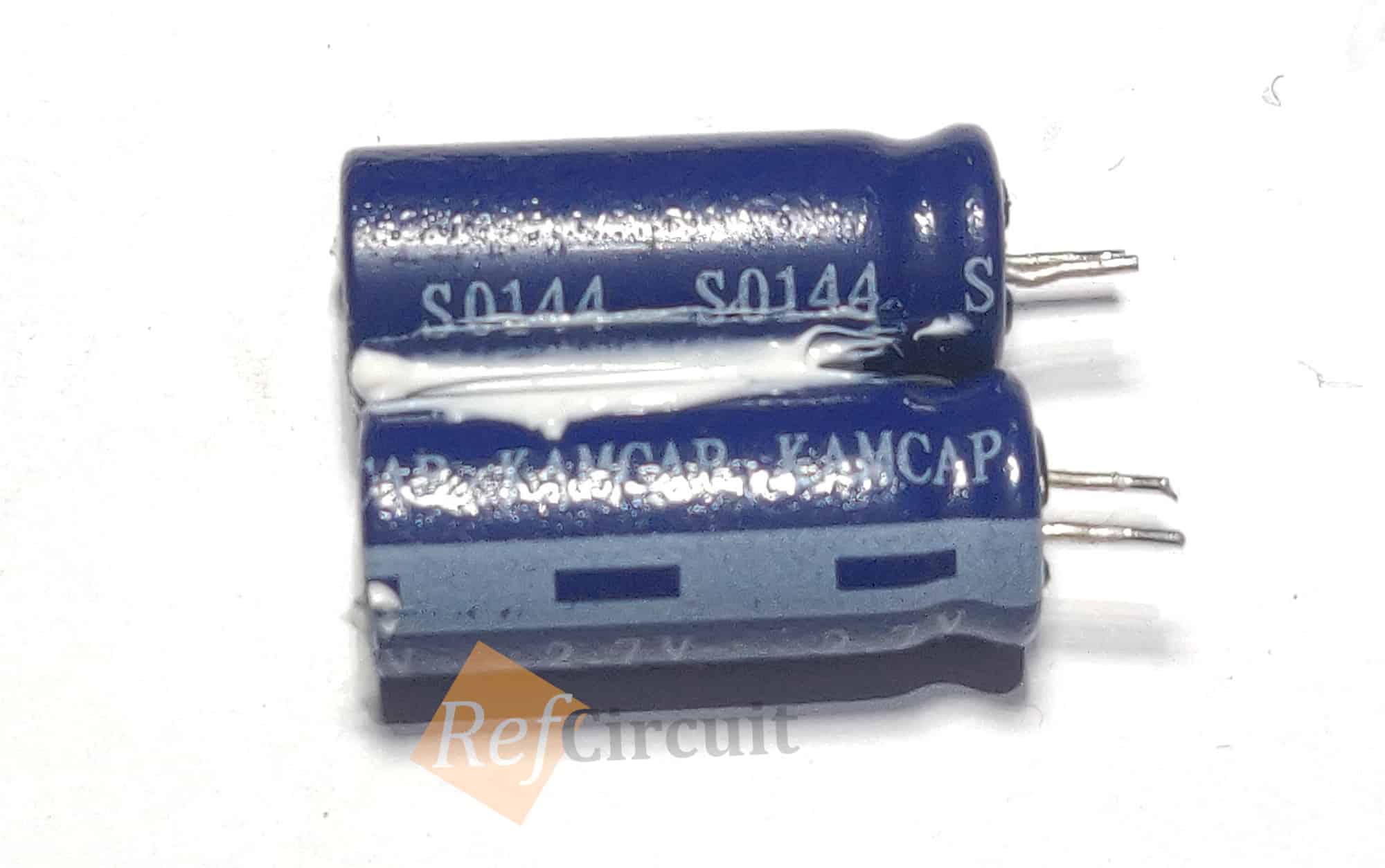

Trying to connect two ultracapacitors:

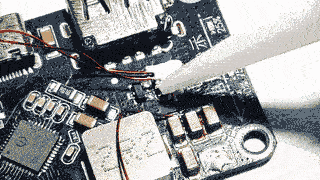

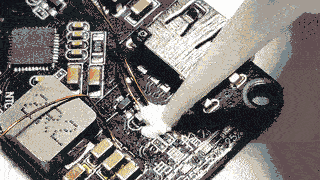

Fixing wires of I2C line (SDA, SCL) on IP5328 power bank module:

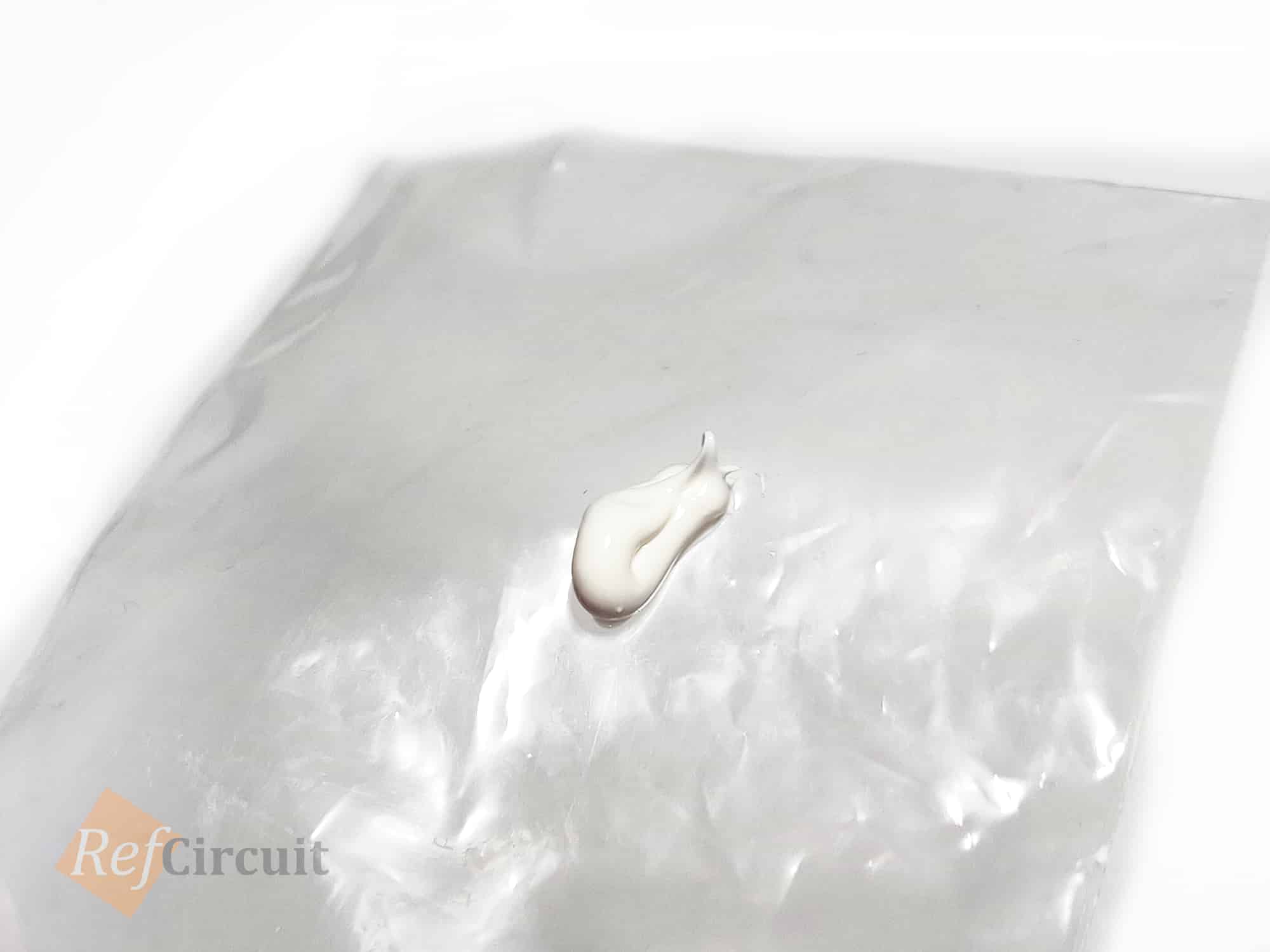

Testing for rubber properties. Drying pretty fast:


Conclusions

๐ŸŸขUseful in electronics stuff for fixing and isolation, also should have good thermal conductivity
๐ŸŸขTranslucent, white and black colors are available
๐ŸŸขCan be used for to protect against water and moisture
๐ŸŸขRated for -60ยฐC to 250ยฐC operational temperature
