Introduction

This article is an outline of the tester project development process. You can see basic features of LED TESTER device, testing, issues resolving and new features implementation in second board revision 😎

Revisions

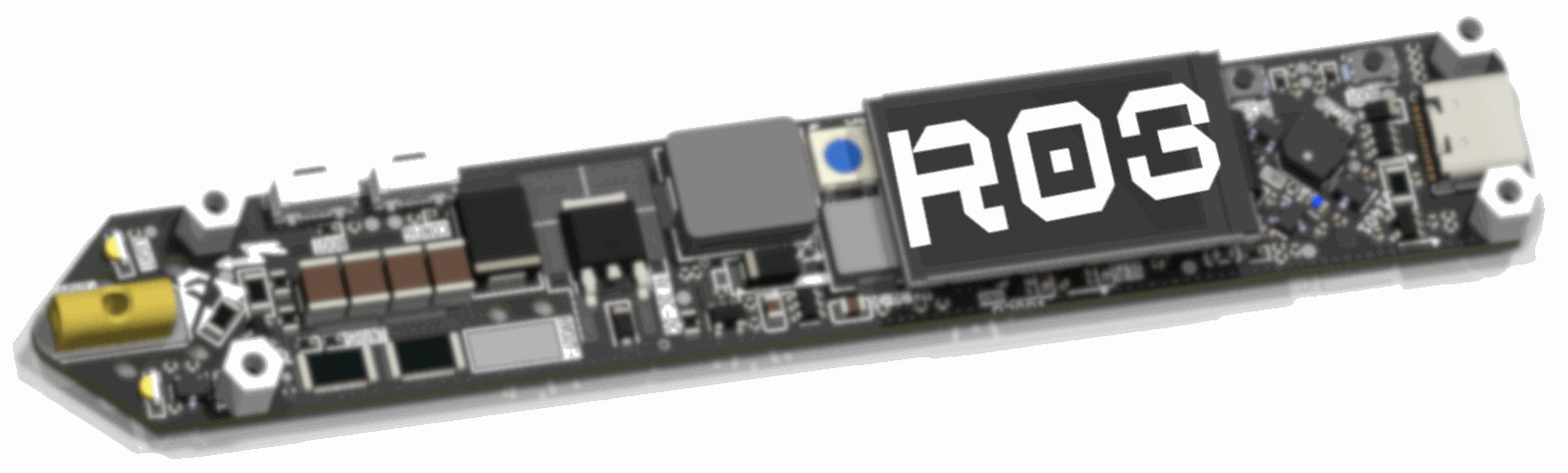

LED TESTER R01	LED TESTER R02	LED TESTER R03

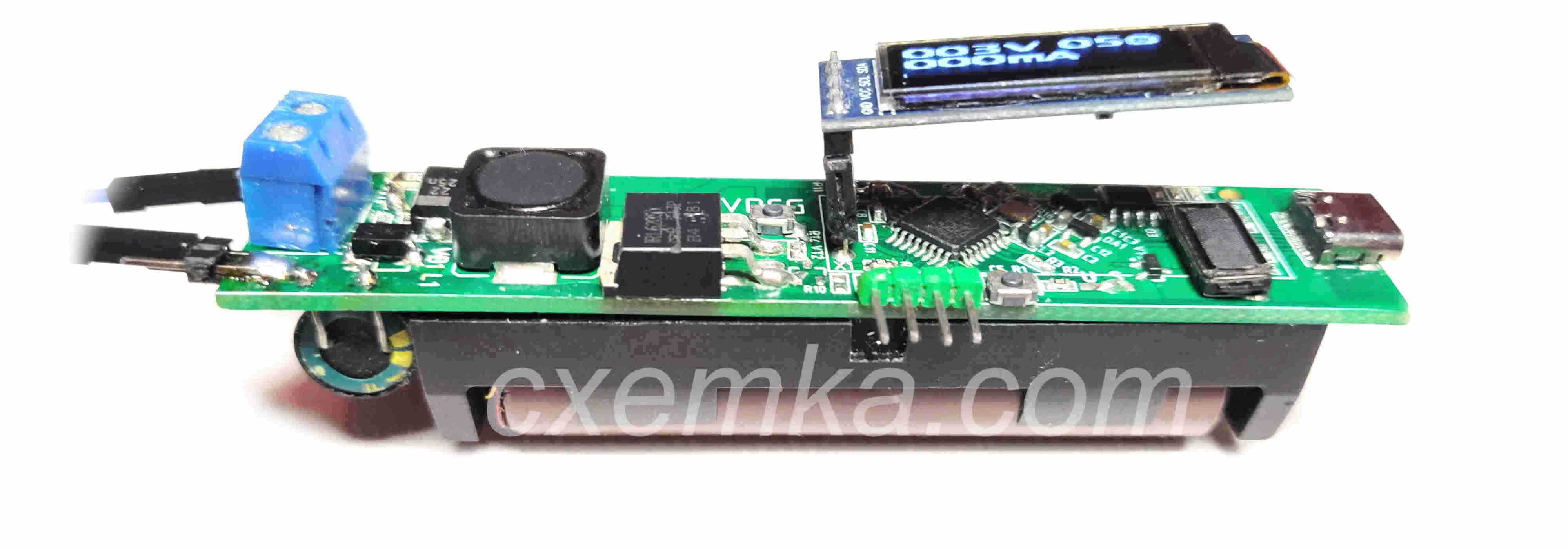

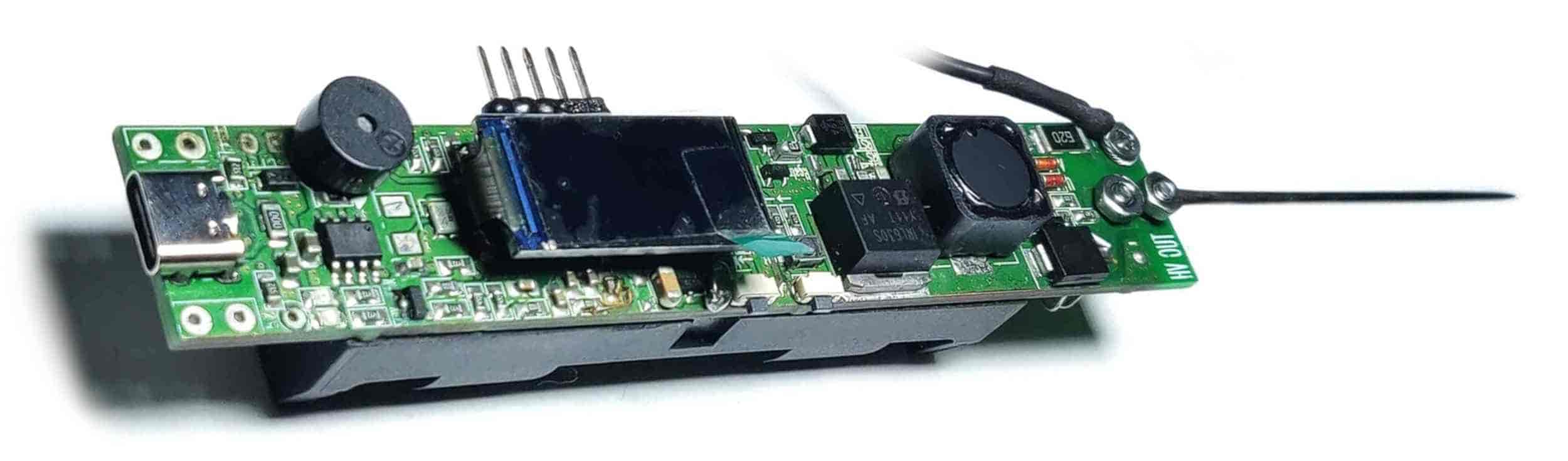

The first version was the created to test concept of testing led by using boost converter with current and voltage feedback. I overall device could glow up many diodes, connected in series, so concept approved for further development. List of legacy main feature of first version: Powering from Li-ion 18650 rechargeable battery as common use and widespread Charger based on common-use TP4056 charger USB Type-C connector for charging OLED I2C display Sound beeper Step-up converter topology without transformers (only inductor) Banana output connector	List on changes of second version: New screen (Monochrome OLED -> Color IPS) New driver (has issue, but work) New microcontroller (STM32F030K6T6 -> STM32F401CCU6) New beeper (speaker -> buzzer) ADC inputs protections In series resistor to reduce minimum output current	In developing process...

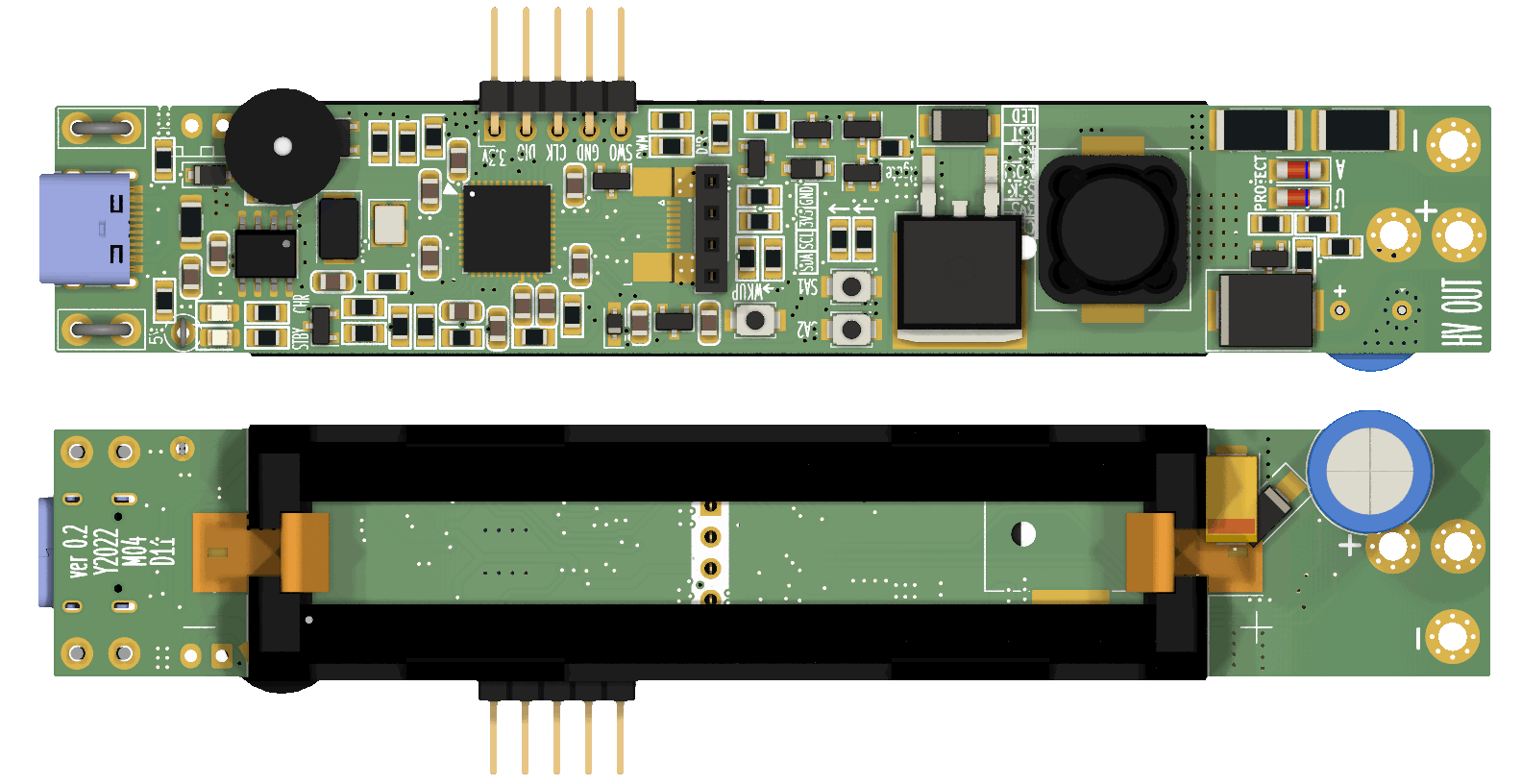

3D Top and Bottom View

Structural Diagram

Schematic

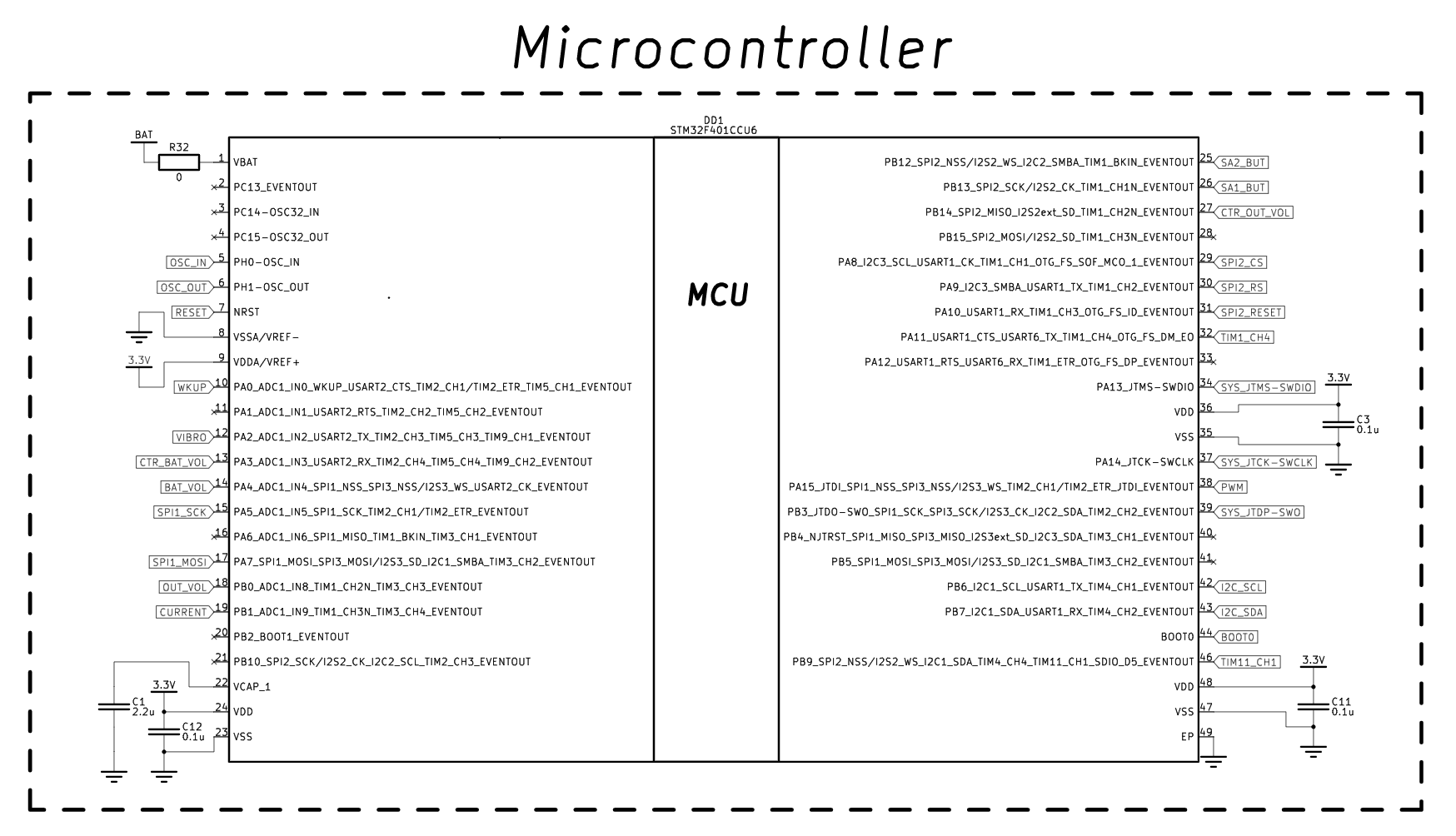

MCU

The previous microcontroller had too small memory size and due to using HAL SDK the resources was not enough for convenient developing and working with heavy display libraries (fonts and icons, strings). So, now it's Cortex M4 STM32F401CCU6, that used on "Black Pill":

• FLASH: 256kB
• RAM: 64kB
• HCLK (MAX): 84 MHz
• ADC: 12-bit, 2.5 MSPS
• Package: 48QFPN

The resources of this MCU is completely sufficient to operate with color screen, do floating point calculations, generate PWM-signal with pretty high resolution and even flash firmware with using USB DFU mode (last feature not implemented in this release)!

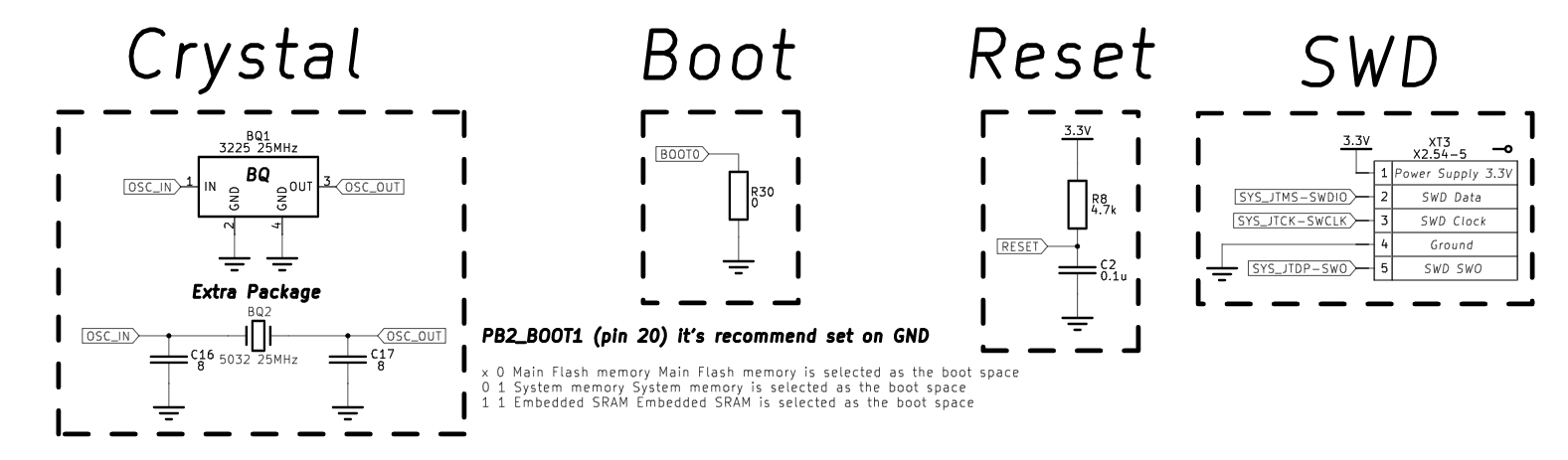

Basic components for MCU

On the tester's board mounted crystal 25MHz, same as «Black Pill».

In this version boot mode configured to main flash memory.

Capacitor C2 0.1uF tie RESET pin to ground to reset controller at power on, then capacitor charging through R8 4.7 kOhm to supply voltage 3.3V and controlled starting work.

Connector for programming/debugging with Serial Wire Debug (SWD) interface.

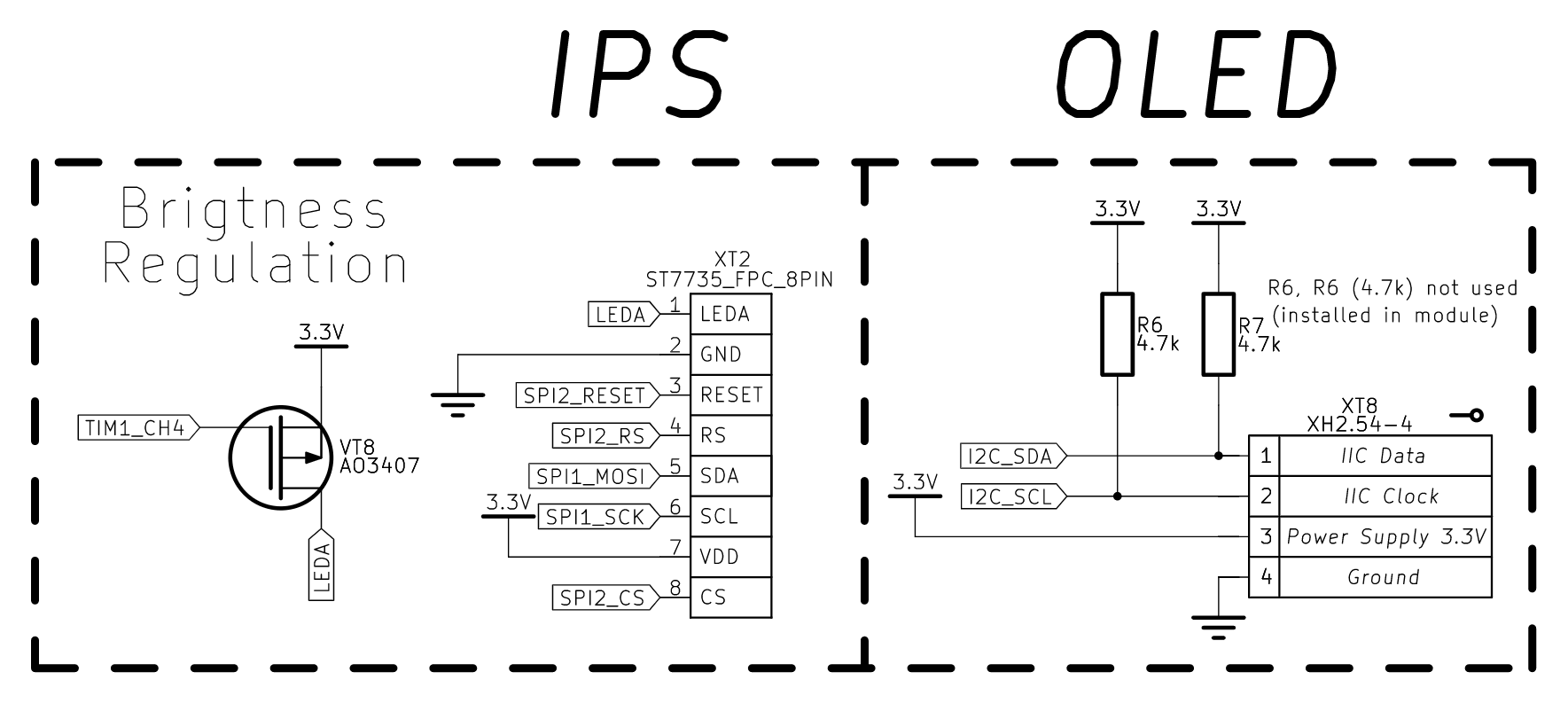

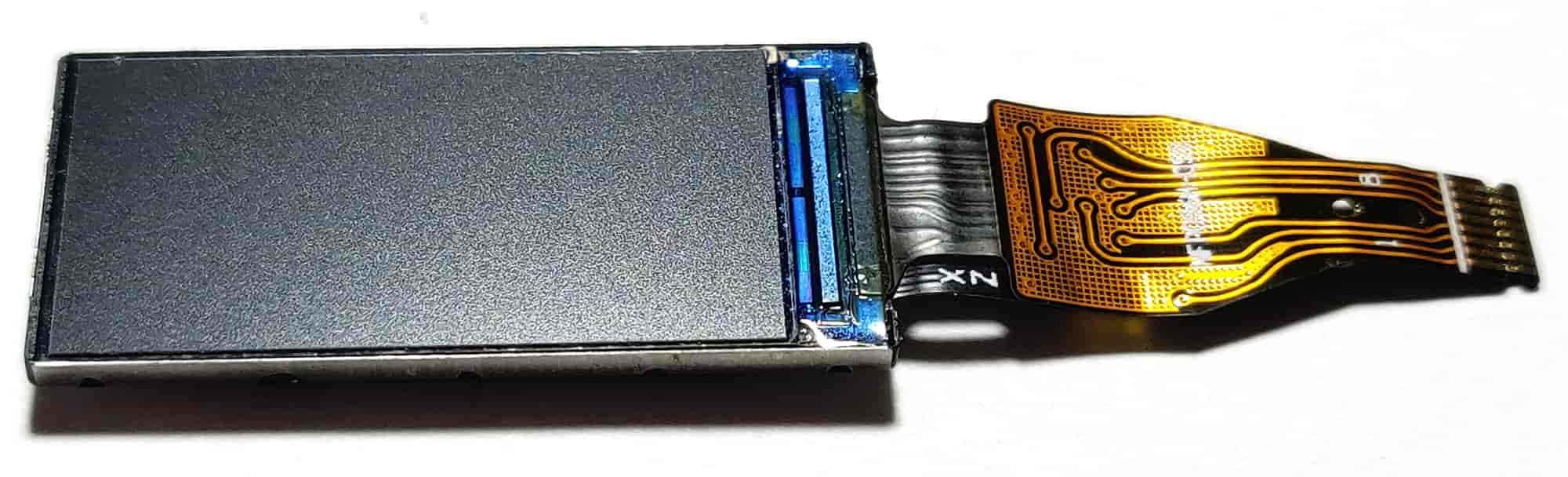

IPS Display

Previous version has one-color OLED screen SSD1306, so PLS-2.54-4 connector added just in case, the main problem was insufficient resolution 128x32. In the current version with same same cost the color IPS display with higher resolution ST7735 screen is installed:

• Type: IPS
• Size: 0.96 inch (16:9)
• Resolution: 160 px × 80 px
• Colors: 65535
• Driver: ST7735

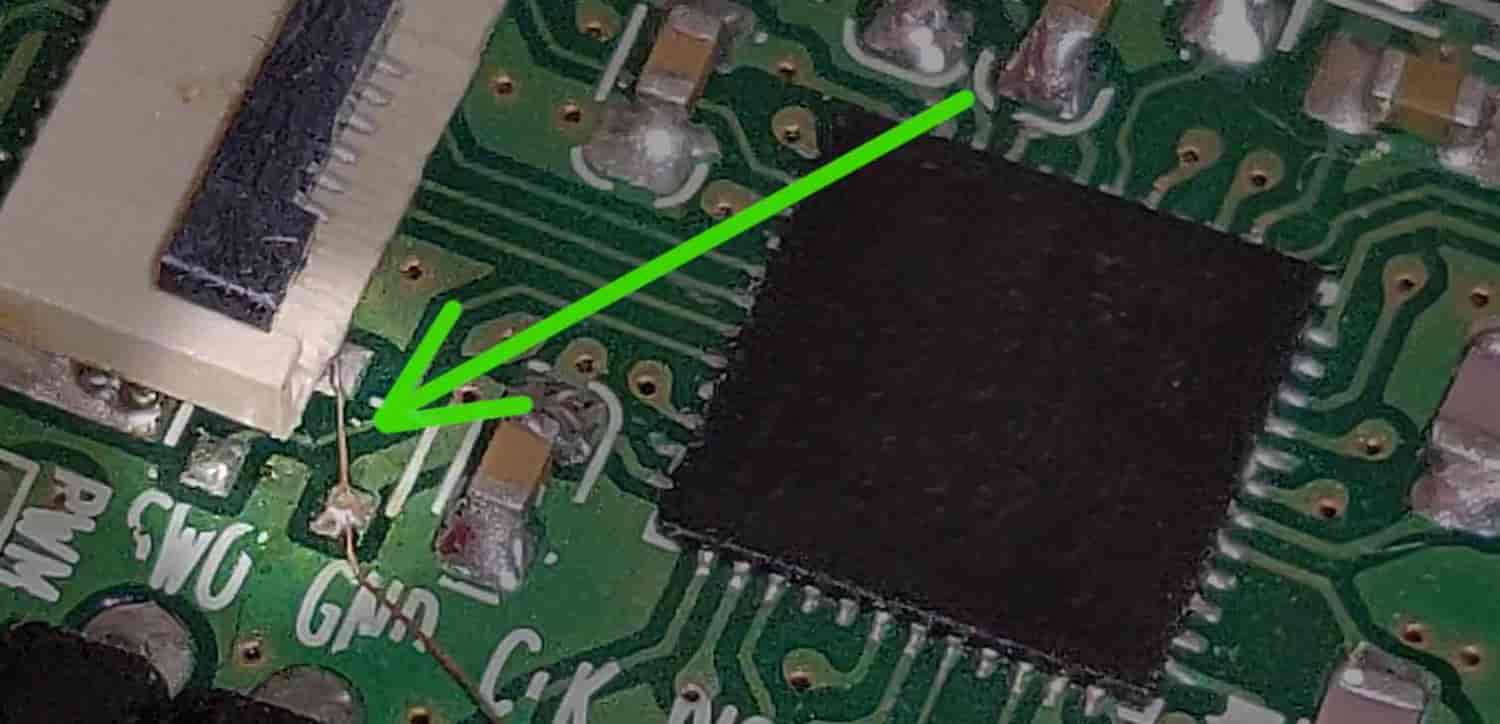

Brightness regulation not used due to transistor and connector courtyard overlap on the board.

Voltage USB Input

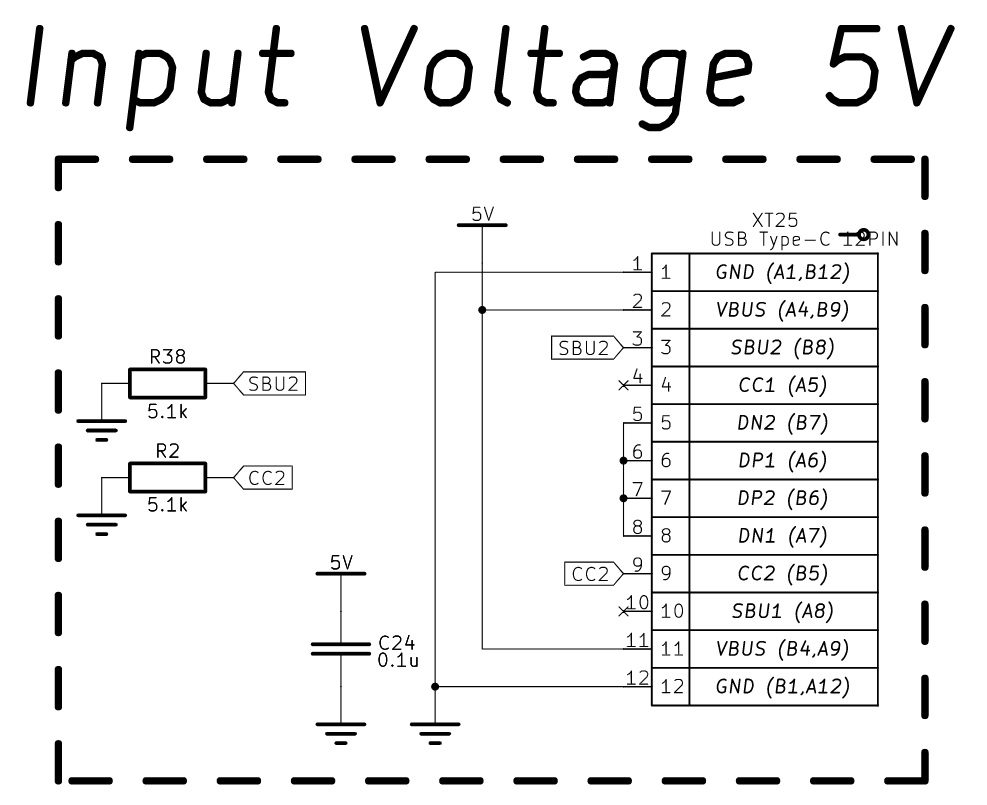

Of course, the USB Type-C used for charging battery. Resistors 5.1k give a chance to get 5V from USB Power Delivery (PD) chargers.

It's recommended to add also TVS diode 5Vrm to the VBUS and increase capacity 0.1uF -> 1uF.

Note: Incorrect labels: SBU2 -> CC2; CC2 -> CC1

Note: shielding (body) it's recommended to connect to ground and it should have a pin on symbol.

Step-up (Boost) Converter

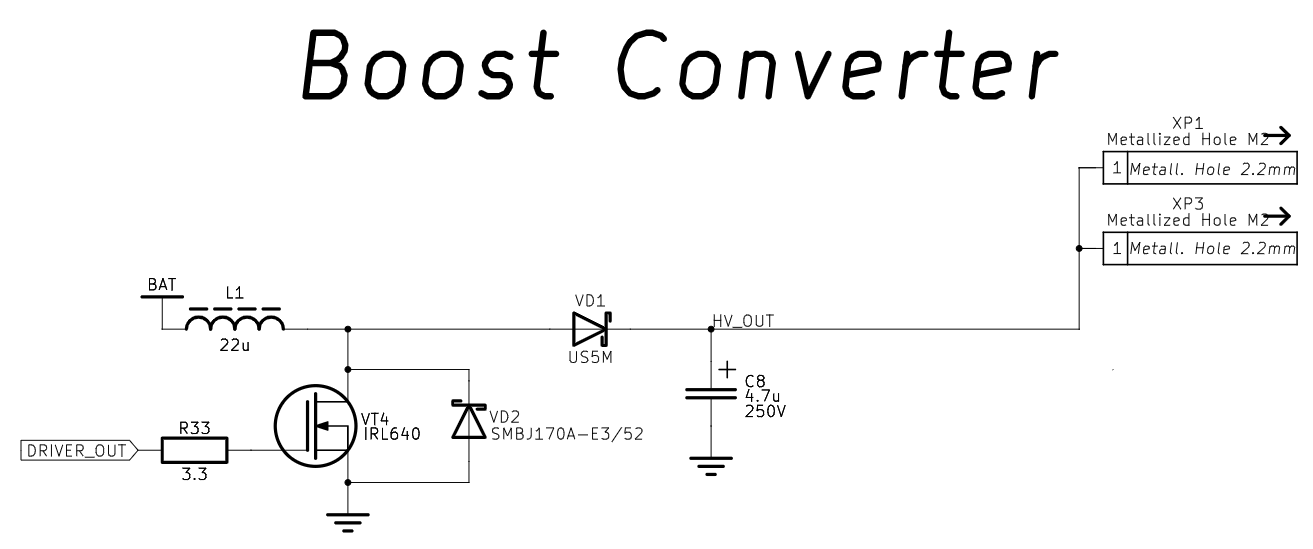

IRL640S (instead of VT4 IRL640 on the real board):

• Vds = 200 V
• Rds = 0.4
• Qg(MAX) = 40 nC
• Ciss = 1100 pF
• Vgs(th) = 1 V (MIN) – 2 V (MAX)

For protect transistor against Vgs overvoltage TVS diode VD2 SMBJ170:

• Vbr = 189 V
• Vrm = 170 V
• Package: SMB (DO-214AA)

Diode VD1 usually is Schottky, but in my case it's US5M

• Vreverse = 1000 V
• Ipeak = 5 A
• Vdrop (5A) = 1.7 V
• Trecovery = 75 ns

Current Measurement

Due to low expected current (up to 100 mA — 150 mA maximum), and high output voltage for measurement the current we need only resistor-shunt (without additional amplifier), that uses for monitoring the output current. It's required using to use high-power resistors, R31 10 Ohm it's shunt, the R17 resistor used to limit minimum output current, because output voltage is non-zero, even if pulse width of PWM signal is zero. Zener diode limit output voltage at 3.3V to protect ADC input.

Buzzer(need modifications)

Passive beeper is used for sound notification (as on a multimeter), this can be used for buttons, high voltage or battery notifications. For protect transistor against reverse EMF in additional in parallel to buzzer is installed on the board later.

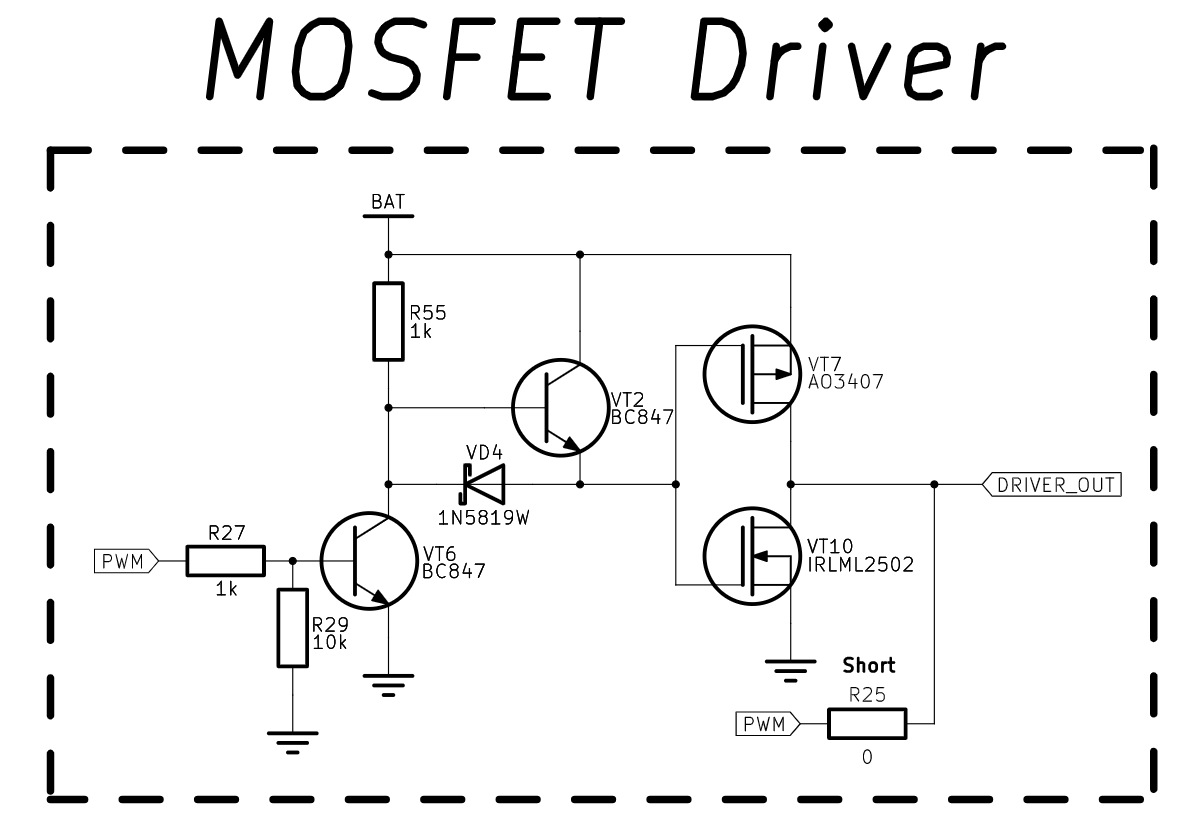

MOSFET Discrete Driver* (need modifications)

This circuit could pass through current (through VT7 and VT10)

Controlled Voltage Divides* (need modifications)

One high voltage divider used for monitoring (dividing by 2), also Zener diode 3.3V limit output voltage to protect ADC input of microcontroller. Note, that controlling transistor must have high drain-to-source voltage (about 300V).

Second battery voltage divider used for monitoring battery voltage, the divider also could be turned-off to reduce consumption power.

NOTE: CTR_BAT_VOL should be always connected to ground to prevent ADC input overvoltage.

NOTE: VT3 should be always enabled to prevent ADC input overvoltage.

NOTE: now VT3 used as schematic of capacitor's high voltage discharger.

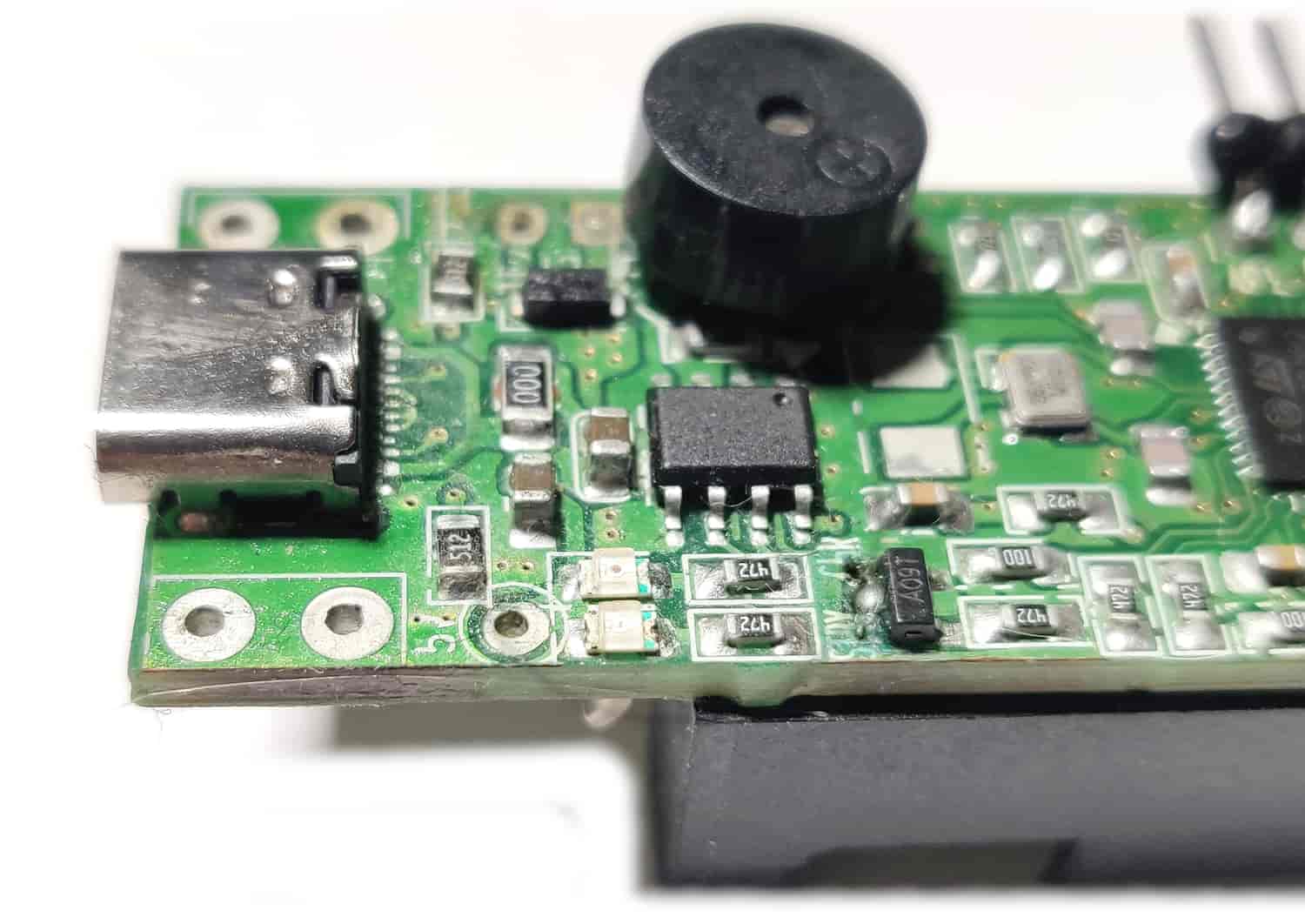

Li-ion Charger (NOT USED)

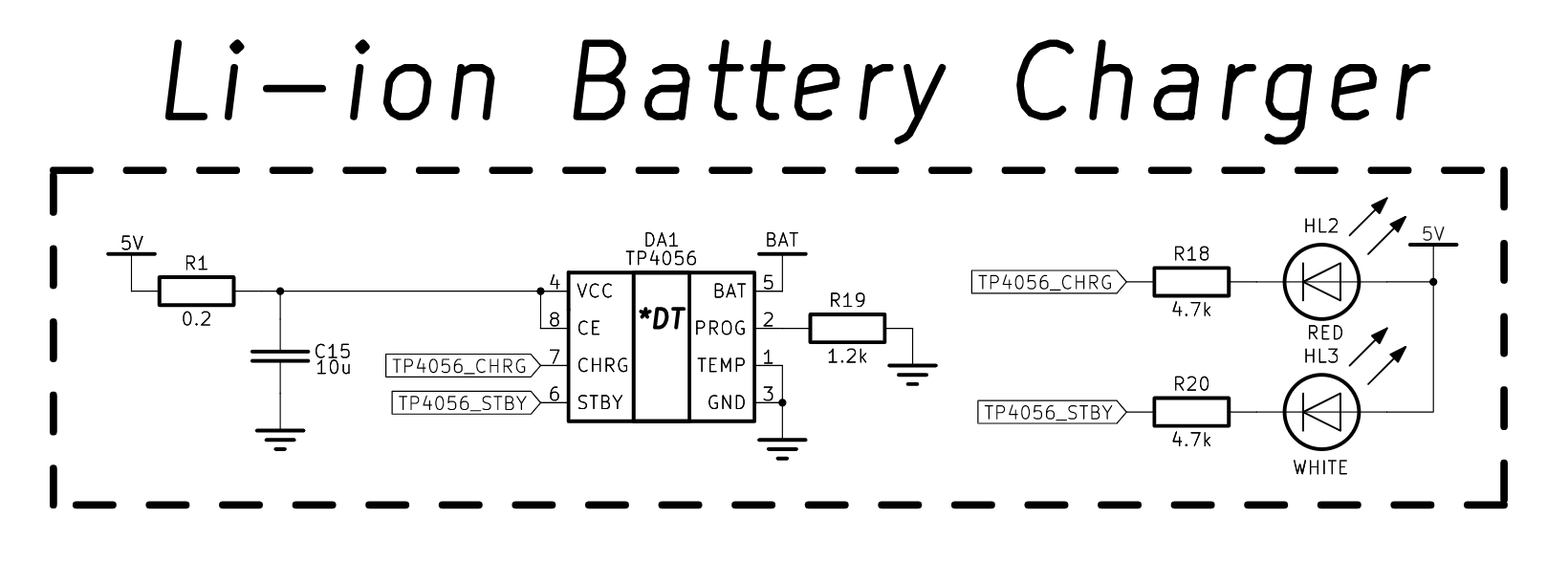

The most widespread in DIY electronics TP4056 controlled used for charging Li-ion battery with current up to 1 A with two LED indicators.

I forgot to connect CHRG and STBY pins to microcontroller in this version, but actually it's not critical, because I decided to eliminate battery powering at all.

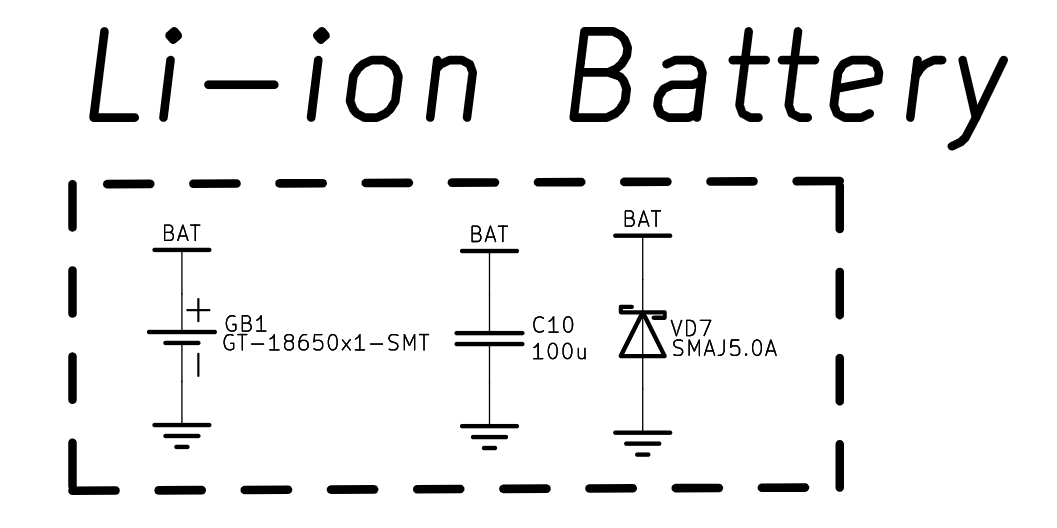

Battery Holder (NOT USED)

The surface-mounted holder from KLS for one 18650 cell mounted on the back side of board. This holder hold the battery very well, but it is difficult to insert it and remove it. It additional TVS diode added to protect against reverse polarity (enough for a few seconds, could be replaced by ordinary diode).

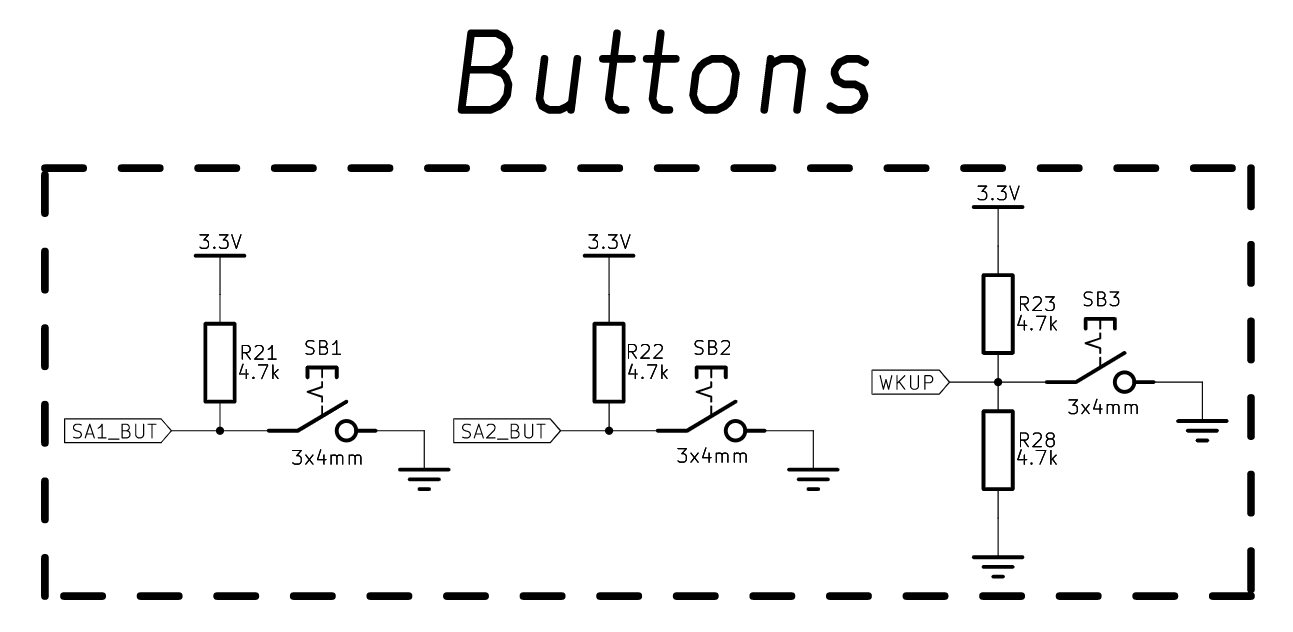

Control Buttons

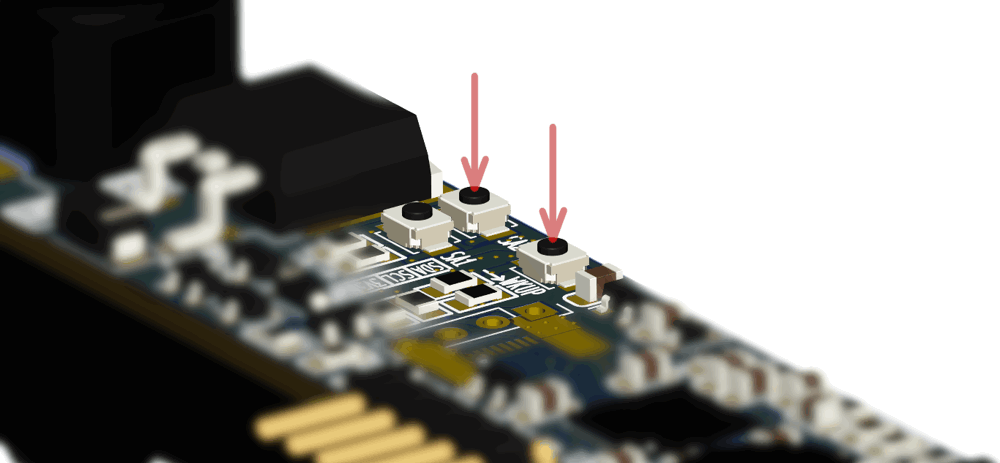

Buttons, that I used good and cheap, easy to mount, but uncomfortable to use, because the device is held like a pen.

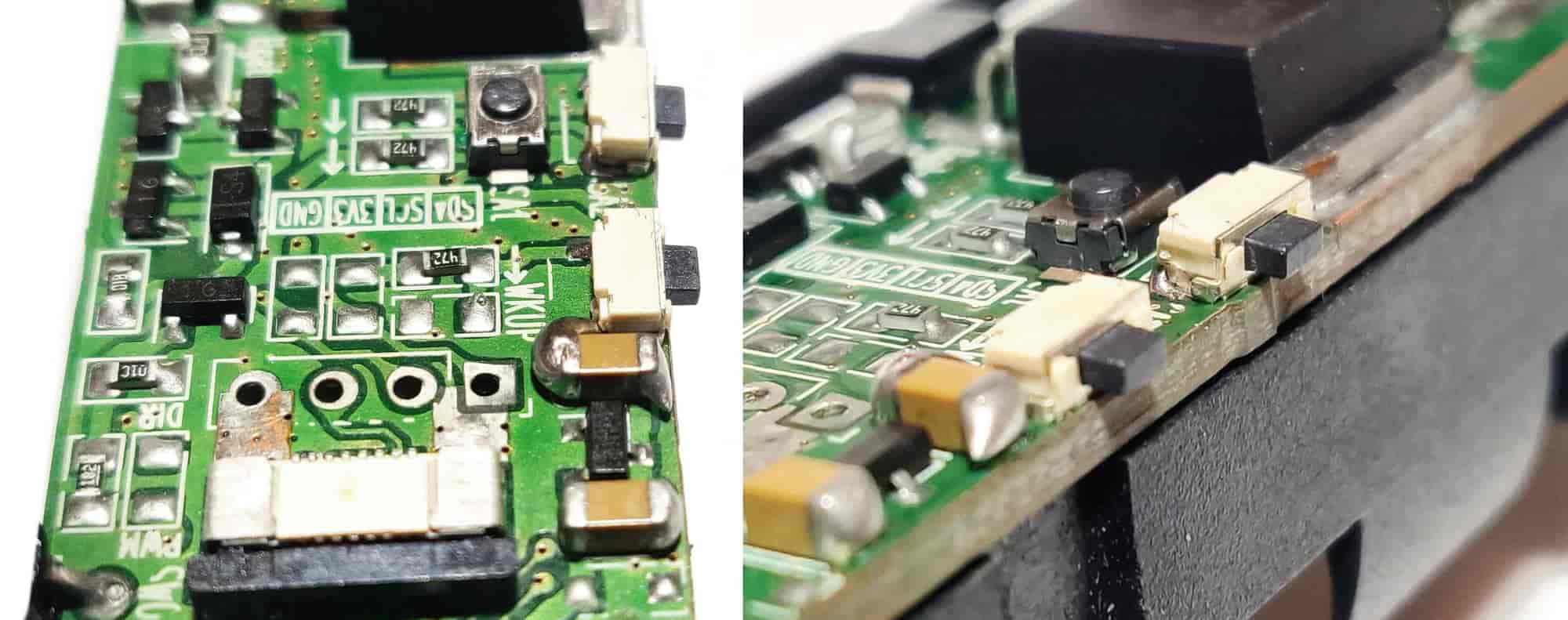

In my case it's much better to use right-angle buttons, that can be pressed by finger, so I solder new buttons on the old footprint place (see below).

Printed Circuit Board

Bare Copper

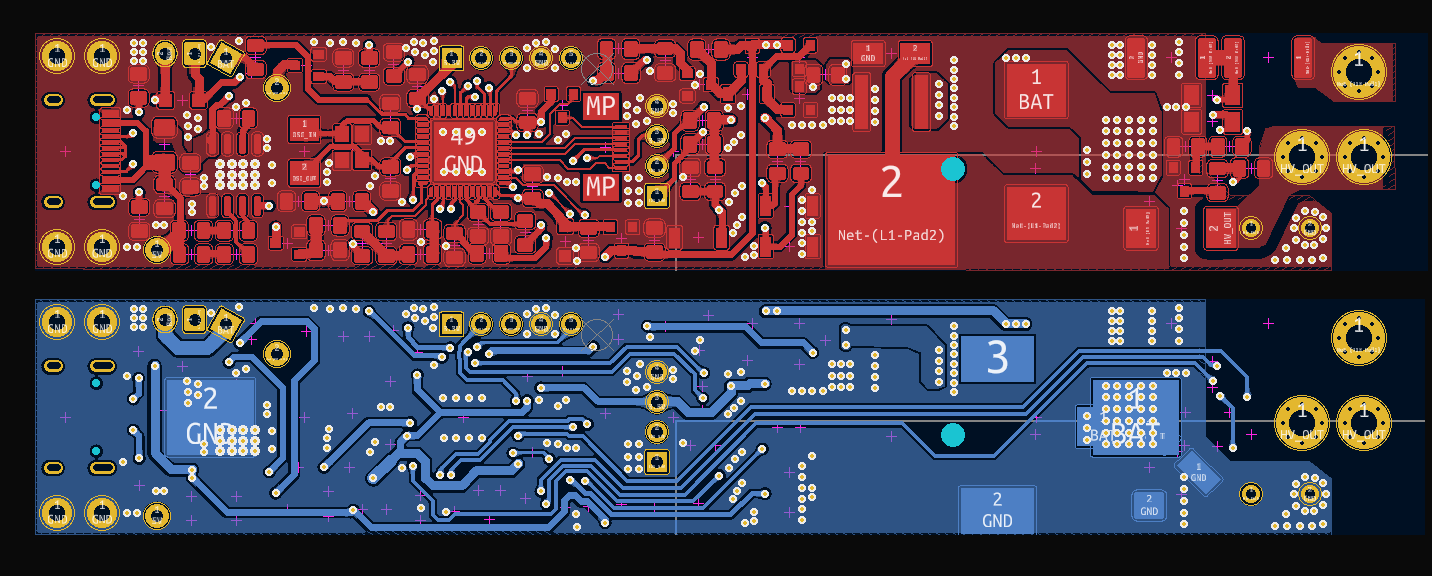

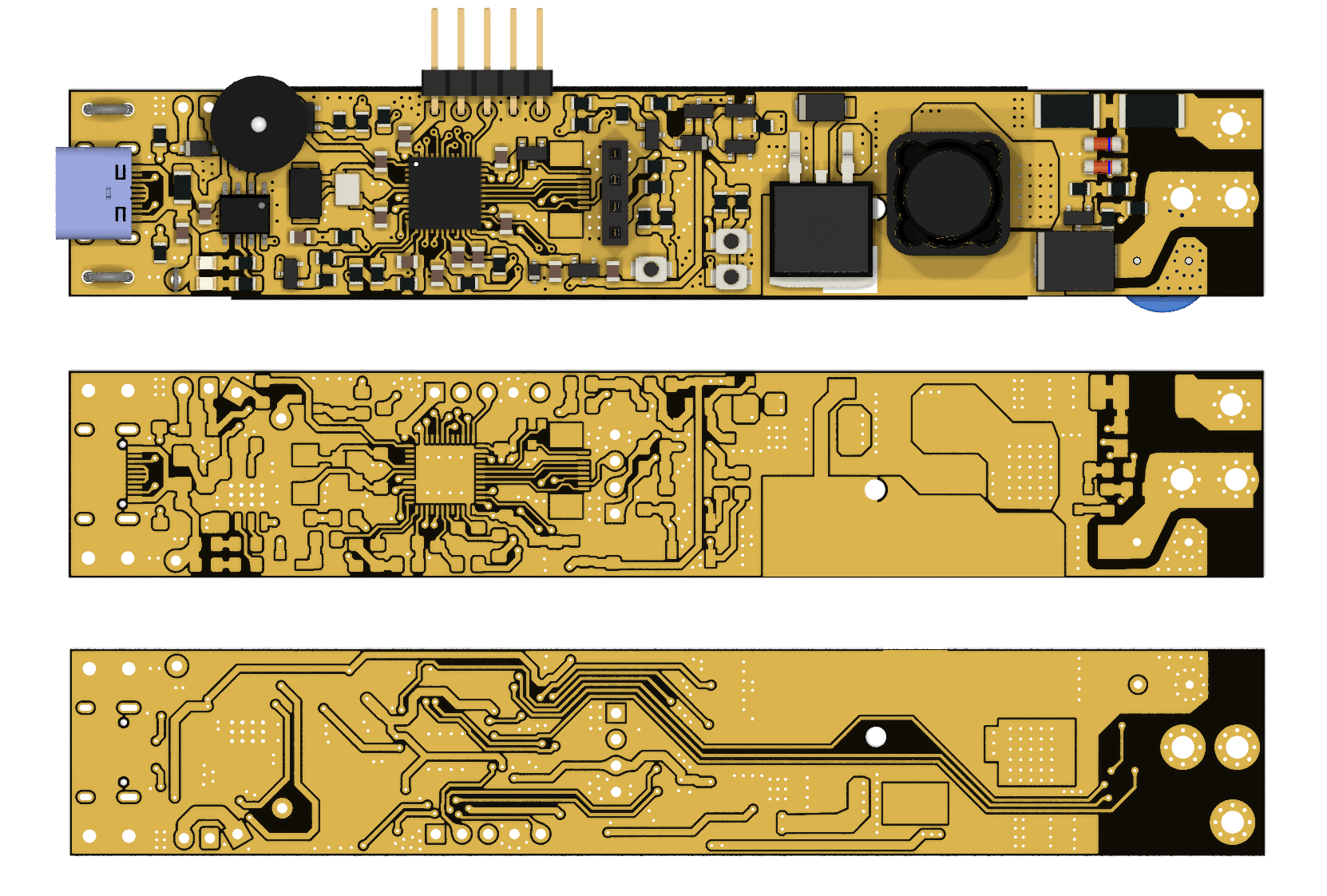

Artwork (TOP and BOT sides)

• Copper layer count: 2
• Sizes: 115.6 mm × 20 mm
• Thickness: 1.6 mm
• Material: FR-4
• Color: Green

Assembly

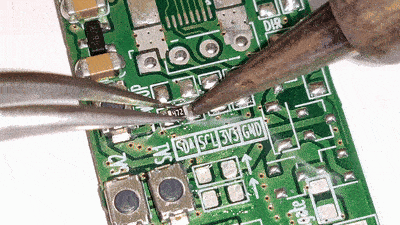

The most of components are 0603, but footprints are for 0805:

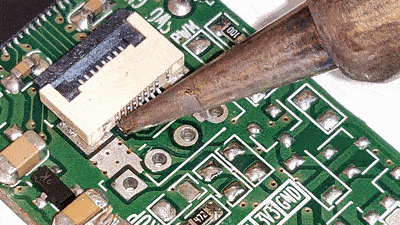

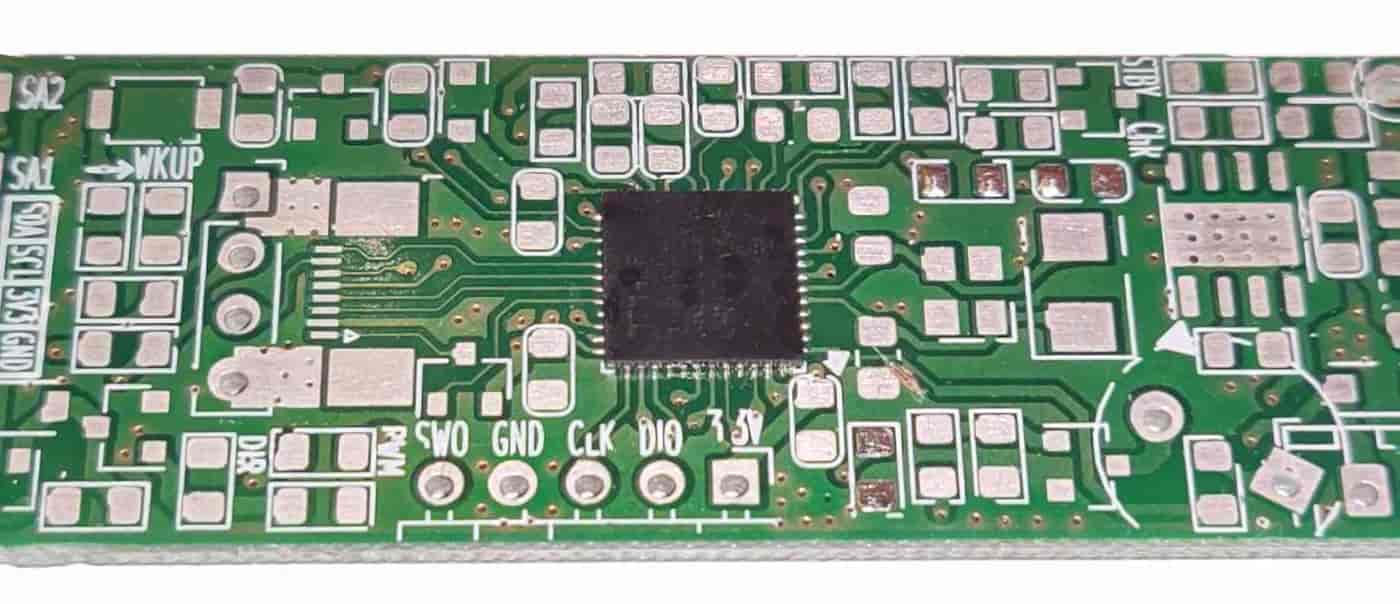

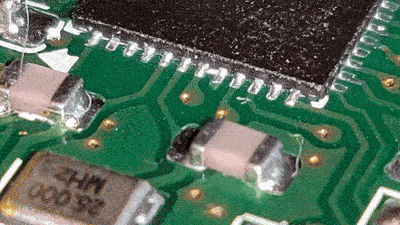

FPC connector pins soldered using soldering iron:

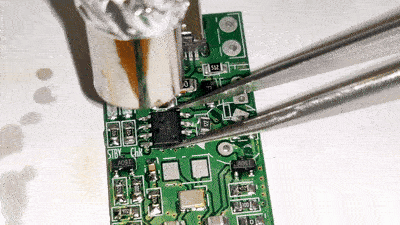

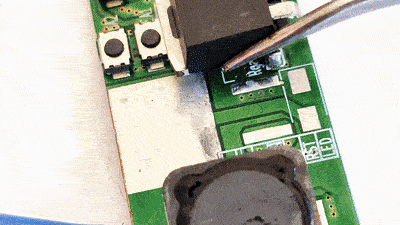

Powerful MOSFET soldered using higher temperature:

After manual soldering double check the soldering quality by visual inspection:

Problems, that I faced and their Solving

💊 High residual voltage

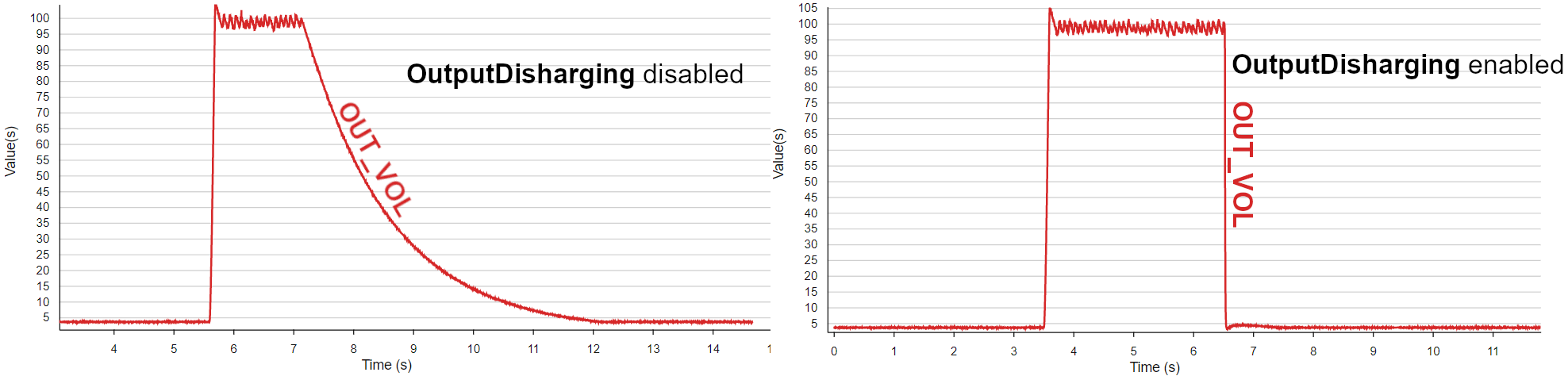

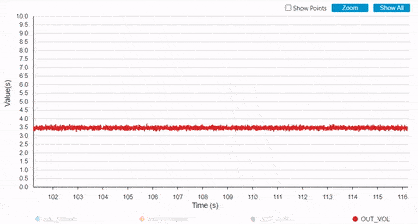

The first issue, that I knew will be, it's high output residual voltage, at the output capacitor. When step up converter enabled by button pressing the low input voltage (from battery) convert to high output voltage and without load it can damage the tested MOS, due to high voltage, even if the no buttons pressed (because discharging process is slow without load, you can see in on the graph from STM32CubeMonitor).

✔ Solve

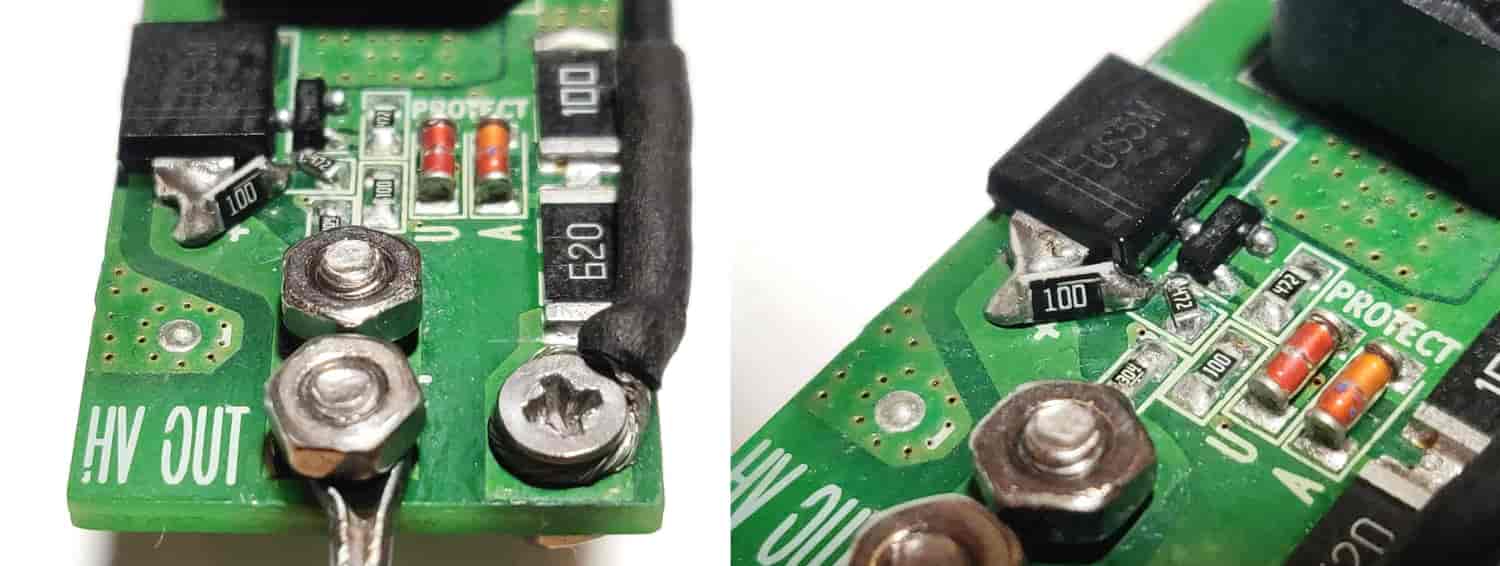

Temporary, instead of voltage divider controller the discharge resistor connected to MOSFET (with high VDS of course).

When button is released the output voltage connected to the 10 Ohm resistor to discharge the electrolytic capacitor (in period approximately 20-50 ms).

And now fall time to safety voltage value is extremally small, in comparison to initial ?

🔽 Inconvenient buttons

Up-pressed button inconvenient for pen-device, like that, also the other component

✔ Solve

Change button to right angle, so now other components don't bother pressing a button and it's good to press it, when  it lies in the hand like a pen.

🔋 Big battery powering

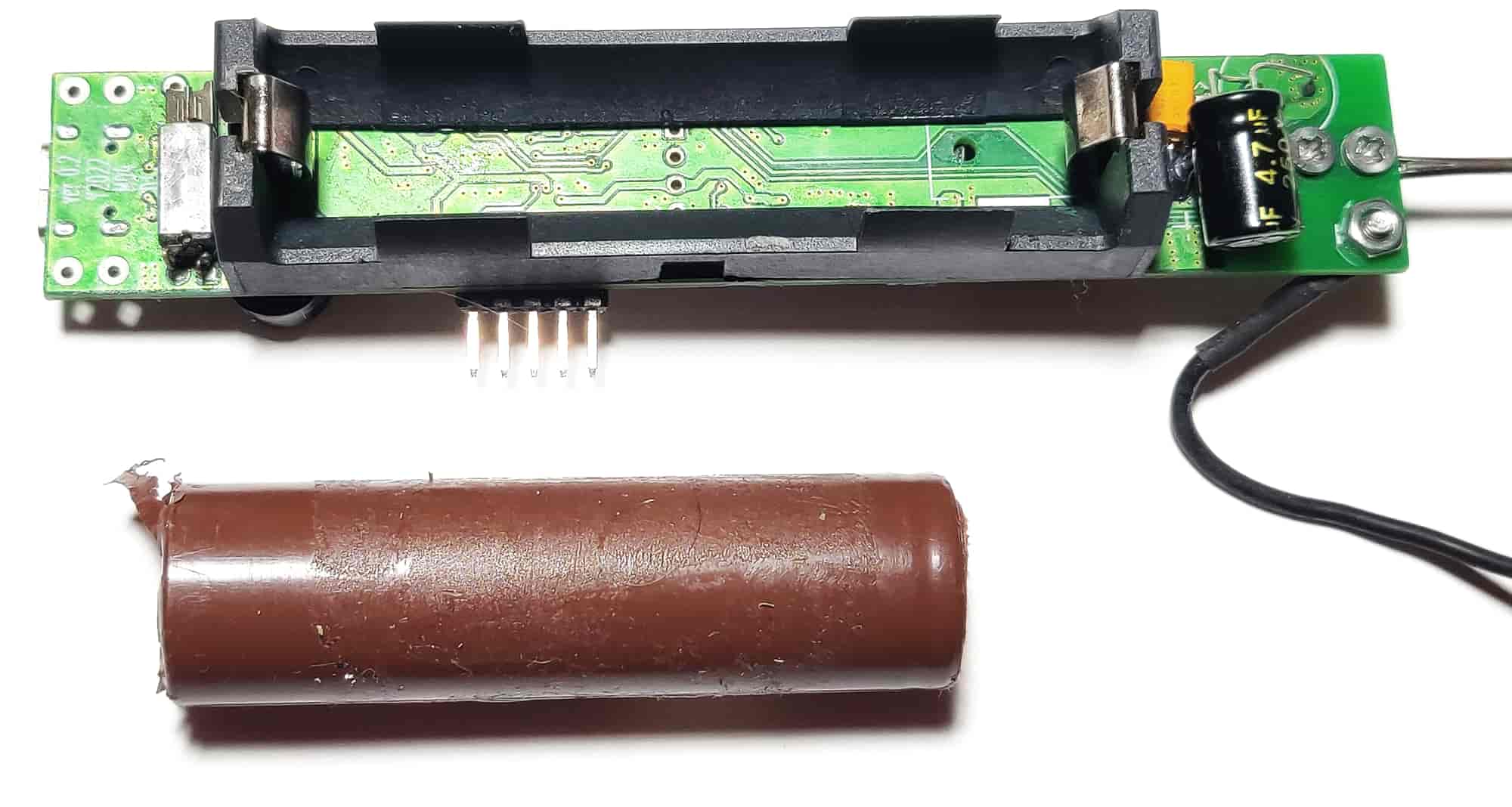

Due to big sizes, high weight it's not coinvent to hold device. Also battery powering increasing of schematic complexity, because need ORing, charger, battery monitoring circuit and low-power mode to minimize s standby current.

✔ Solve

I've decided to make the device USB-powered instead of battery/USB powered. Just a single wire to the battery bus. Also it's good to remove charger and other battery related components.
