Board Hardware Revision using one ADC pin (REV1️⃣, REV2️⃣, REV3️⃣)
When you design a board mostly you have several iterations, when you fix bugs and make improvements 😄

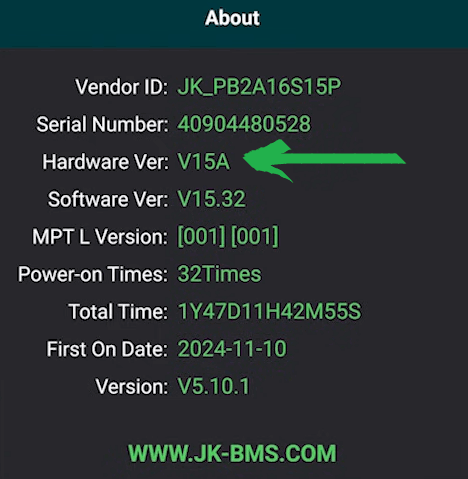

But if board has programming side you might want to have only one firmware for all released boards (especially if it's not just engineering samples, but already
As you can see it's just a voltage divider, that can be connected to the same power rail voltage, as you MCU (e.g. 3.3V).
The required voltage could be easily obtained using standard E24 5% resistors.
|Tip: For battery powered-device connect it to the switchable bus (load switch or LDO with EN pin) to turn off during low power mode and enabling only when do revision reading)|
For this purposes you can use this simplest high-side load switch: https://refcircuit.com/articles/842-high-side-p-channel-load-switch-on-discrete-components.html
Using Microcap 12 (really powerful schematic simulator) you can see how different resistor values affect on output voltage, that represent board revision.
If you use two 0603/0402 resistors doesn't take up much space (approximately 1.89 mm x 1.86 mm with using 0402 (1005 metric) resistors):
Code implementation (C language)
Code implementation (C++ language)
The difference between C and C++ only in included libraries.
|Tip: load ADC value (0-4095) to getHwRev function and it return revision number.|
It works good, you can test it with any online code service, even without MCU:

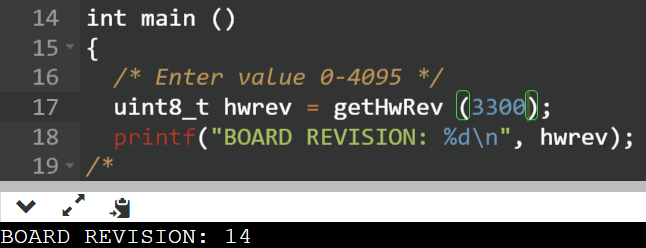

|Test 1 (REV5)||Test 2 (REV8)||Test 3 (REV14)|
- Using hardware revision give a chance to clearly and easy identify board version using code, which is could be very useful for the programming.
- Hardware revision give a chance to maintain different board revisions (releases) using only one firmware
- Connection resistors divider to the controlled power bus to give a change of turn off it from powering, when device powered from battery
